Lantronix xPico 270 Embedded Wi-Fi 5 and Bluetooth IoT Gateway
An industrial-temperature embedded IoT gateway module that adds dual-band 802.11ac Wi-Fi, Bluetooth 4.2 and 10/100 Ethernet to an OEM product, in LGA surface-mount or edge-card form.
From $39.92
Overview
About the Lantronix xPico 270
The xPico 270 (also written xPico270; part numbers start with XPC270) is an embedded IoT gateway module for OEMs that need Wi-Fi, Bluetooth and Ethernet in a connected product without writing wireless drivers. Built on a Cypress 802.11ac Wi-Fi module, it can run as a network co-processor that fully offloads communications from the host microcontroller, or as a wireless microcontroller using the provided SDK.
Wi-Fi covers 802.11a/b/g/n/ac on 2.4 and 5 GHz, with 802.11ac up to 433 Mbps on 20, 40 and 80 MHz channels and 802.11r fast roaming. Bluetooth 4.2 supports BR/EDR and Bluetooth LE in central and peripheral roles with GATT and SPP. Host interfaces are a TTL UART at 9600 bps to 4 Mbps, USB host, 12 GPIOs and 10/100 Ethernet over RMII. TruPort Serial passes serial and Fieldbus protocols over TCP, UDP or TLS, and a Modbus TCP to Modbus RTU/ASCII gateway is built in.
Concurrent Soft AP plus client mode allows direct service access while the device stays on the plant network. InfiniShield security provides secure boot, secure FOTA, encrypted configuration, role-based access control and WPA2 Enterprise, with WPA3 on firmware v5.0.0.0 or later. Devices are managed through Percepxion, REST, MQTT or the internal web server. The module runs from 3.3 VDC at -40°C to +85°C.
Key capabilities
- 802.11ac up to 433 Mbps
- Dual-band 2.4/5 GHz Wi-Fi with 80 MHz channels and 802.11r fast roaming, compared with 150 Mbps 802.11n on the xPico 250.
- Wi-Fi, Bluetooth and Ethernet
- Bluetooth 4.2 dual mode (BR/EDR and LE) and 10/100 Ethernet over RMII join Wi-Fi in one 17 x 25 mm LGA package.
- Modbus gateway built in
- Bridges Modbus TCP to Modbus RTU/ASCII, and TruPort Serial carries proprietary serial and Fieldbus protocols over TCP, UDP or TLS.
- InfiniShield security
- Secure boot, secure firmware-over-the-air updates, secure key storage, encrypted configuration and WPA2 Enterprise EAP-TLS, EAP-TTLS, EAP-PEAP and EAP-FAST.
- -40°C to +85°C rated
- Industrial temperature range with 40G operational vibration and 65G non-operational shock ratings for equipment in harsh settings.
- Percepxion managed
- Pre-integrated with the Lantronix Percepxion cloud platform for remote device management, plus REST and MQTT interfaces.
How to choose the right xPico 270 part number
The digit after XPC270 sets the form factor: 1 is the 17 x 25 mm LGA surface-mount module, 3 is the 22 x 35.5 mm edge-connector card. The last letter sets packaging. XPC270100B is LGA on a 250-piece tape and reel, XPC270100S is LGA on a 25-piece reel, XPC270300B is the edge card in trays and XPC270300S is a single edge card for sampling. Start development on the XPC270300EK evaluation kit, then choose LGA for volume board designs or the edge card for plug-in builds.
Configure & order
Find your xPico 270 part number
Every orderable xPico 270 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
XPC270100B
$39.92
Ships on backorder

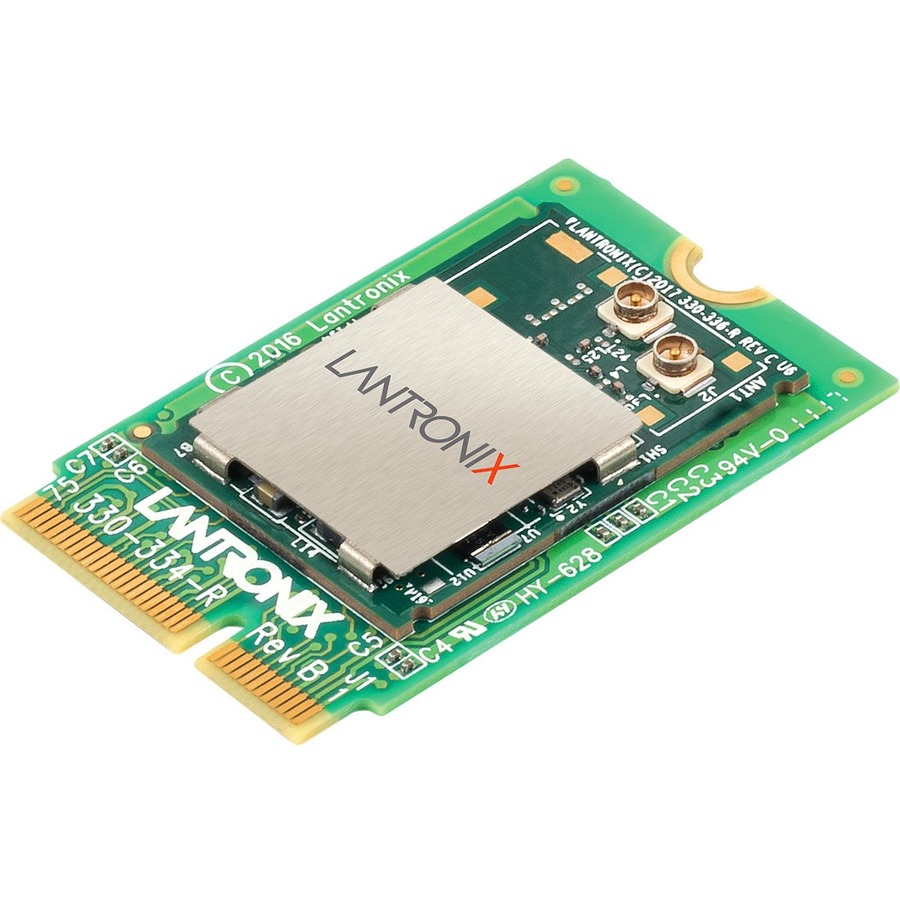

XPC270300B
$42.42
Ships on backorder

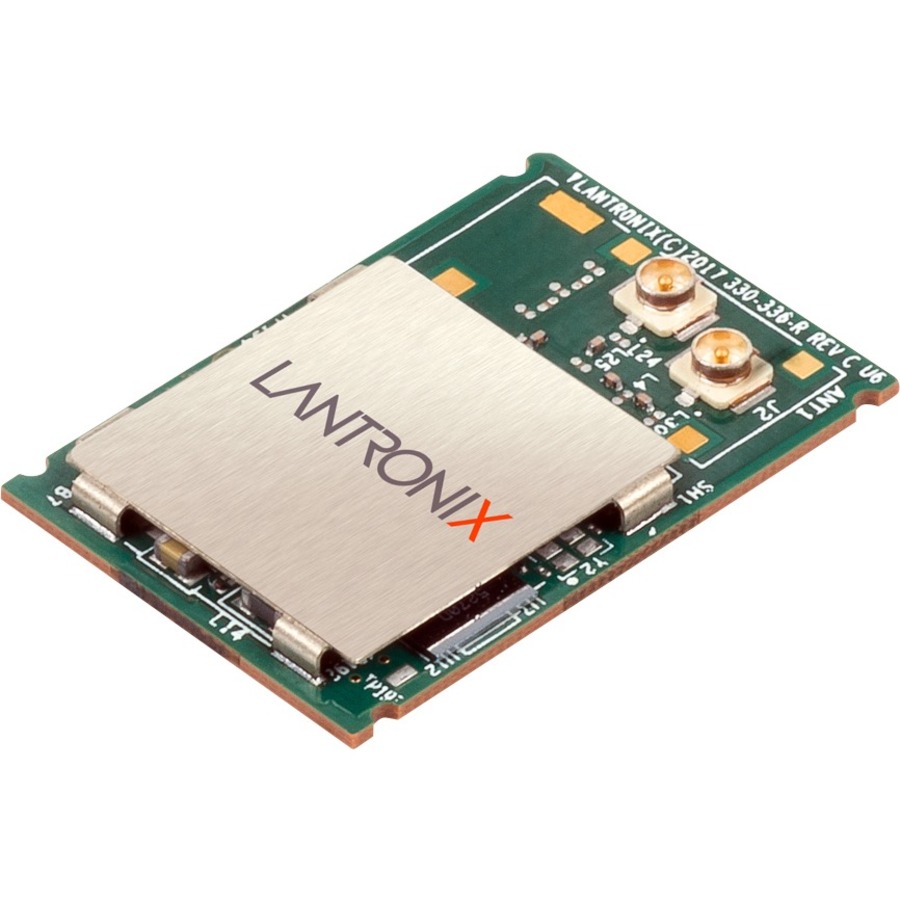

XPC270100S
$43.91
Ships on backorder
XPC270300S
$46.66
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the xPico 270, organized by what it does — antennas, cables & adapters, evaluation & development kits— each with why you'd add it.
Antennas
5 itemsCable
ACC-500-0378-00
U.FL to U.FL antenna cable accessory with 254 mm Length (10 inch).
$5.19
Ships on backorder
Antenna
ACC-930-033-R
Accessory antenna for 2.4 GHz and 5 GHz wireless data networks. It provides 2.15 dBi gain, an RP-SMA connector, and RoHS compliance.
$6.41
Ships on backorder
Cable
500-182-R-ACC
38.10 mm U.FL to R-SMA antenna cable supplied as a 10-pc bulk pack. Etilize data lists compatibility with the Lantronix xPico Wi-Fi SMT Embedded Wireless Device Server.
$34.50
Ships on backorder
Cable
500-180-R-ACC
U.FL to R-SMA antenna cable supplied as a 10-pc bulk pack. Lantronix lists the cable length at 152.40 mm.
$39.50
Ships on backorder
Antenna
XPW100A003-01-B
U.FL to PCB strip antenna accessory with a 50 mm cable. It is specified at 2.5dBi from 2.39 GHz to 2.49 GHz and 5 dBi from 4.9 GHz to 5.9GHz.
$162.50
Ships on backorder
Cables & adapters
2 itemsCable
ACC-500-0390-00
Antenna cable accessory with U.FL to R-SMA connections. It measures 254mm (10 inch) in length.
$5.99
Ships on backorder
Cable
500-181-R-ACC
U.FL to U.FL antenna cable listed at 152.40 mm / 6 inches. It is supplied as a 10-pc bulk pack.
$33.25
Ships on backorder
Evaluation & development kits
3 itemsxPico 240 Evaluation Kit
XPC240300EK
XPico 240 Evaluation Kit for Embedded IoT GW evaluation with dual-band Wi-Fi and Ethernet.
$102.00
Ships on backorder
xPico 250 Evaluation Kit
XPC250300EK
XPico 250 Evaluation Kit for an Embedded IoT GW with dual-band Wi-Fi, Ethernet and Bluetooth 4.2.
$107.00
Ships on backorder
xPico 270 Evaluation Kit
XPC270300EK
XPico 270 Evaluation Kit for Wi-Fi, Bluetooth 4.2 and Ethernet.
$114.00
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the xPico 270. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the xPico 270 is used
- Adding Wi-Fi and Bluetooth to industrial machine controllers
- Wireless Modbus RTU equipment linked to Modbus TCP networks
- Field service access via concurrent Soft AP mode
- Connected medical and lab instruments needing enterprise Wi-Fi
xPico 270 datasheets & documentation
xPico 270 FAQ
What is the difference between the xPico 270 and xPico 250?
The xPico 270 adds 802.11ac Wi-Fi up to 433 Mbps with 80 MHz channels, while the xPico 250 supports 802.11a/b/g/n up to 150 Mbps. The 270 also lists a Modbus TCP to RTU/ASCII gateway. Both have Bluetooth 4.2, Ethernet and identical footprints.
What host interfaces does the xPico 270 provide?
A TTL UART from 9600 bps to 4 Mbps with RTS/CTS and XON/XOFF flow control, USB host, 12 programmable GPIOs, RESET/DEFAULT/WAKE pins, and 10Base-T/100Base-TX Ethernet via RMII.
Does the xPico 270 support WPA3?
Yes. WPA3-Personal and WPA3-Enterprise Transition Mode require firmware v5.0.0.0 or later. WPA2 Personal and WPA2 Enterprise with EAP-TLS, EAP-TTLS, EAP-PEAP and EAP-FAST are also supported.
What are the xPico 270 power and size specs?
It runs on 3.3 VDC with a 600 mA boot peak. The LGA module measures 17 x 25 x 2 mm and the edge card 22 x 35.5 x 2.73 mm.
Which antennas work with the xPico 270?
The module has dual u.FL antenna connectors. Listed accessories include u.FL to RP-SMA cables, the ACC-930-033-R 2.4/5 GHz 2.15 dBi antenna and the XPW100A003-01-B dual-band PCB strip antenna.
