Lantronix ION002-AD 2-Slot ION Media Converter Chassis
A compact, fanless 2-slot chassis that lets one double-wide or two single-wide ION slide-in cards run as stand-alone units at the network edge, powered from AC or 21-60 VDC.
Overview
About the Lantronix ION002-AD

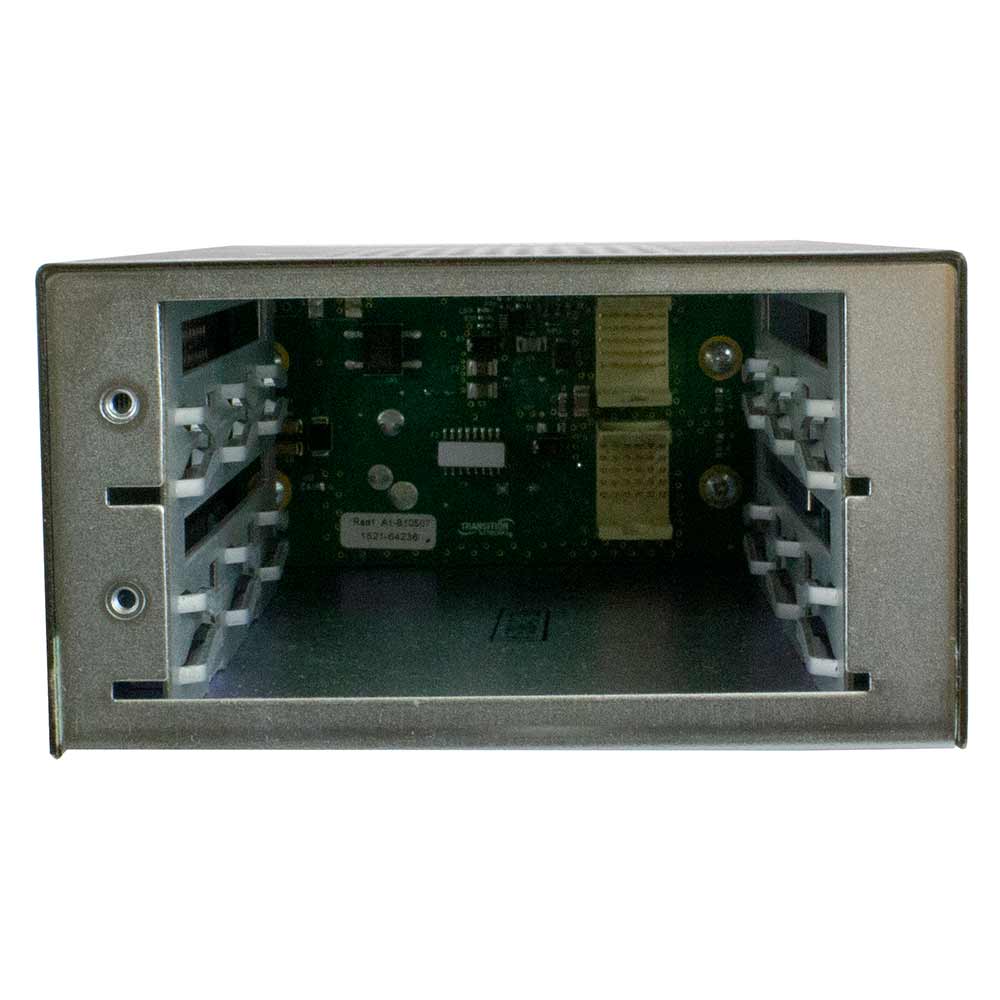

The ION002-AD (also written ION 002-AD) is the smallest multi-slot housing for the Lantronix ION media conversion platform. It is meant for network edge deployments where a full rack chassis is excessive, such as a customer premises, telecom closet or remote cabinet. It holds one double-wide card or up to two single-wide ION slide-in cards, so the same modules used in a central ION chassis can be deployed singly at the far end of a fiber link.
The chassis is unmanaged, but it supports IP-addressable managed ION slide-in cards. Any ION card consuming 6 W or less is supported; Lantronix specifically excludes the C4120-1048 and C4221-4848. There are no status LEDs on the chassis; the power indicator is on each card. The design is fanless.

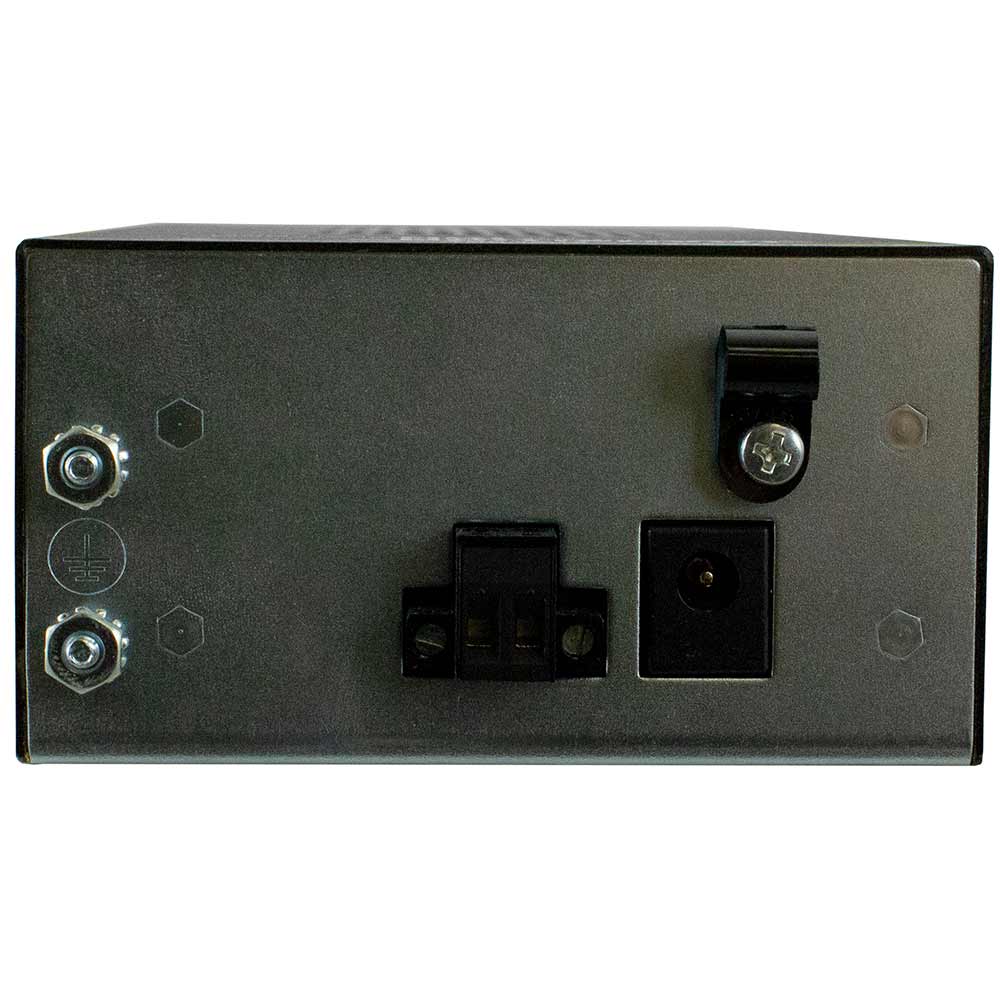

Power comes either from the included external 120-240 VAC to 12 VDC supply through a barrel connector, or from a two-wire 21-60 VDC source on the terminal block. The chassis measures 102 x 180 x 56 mm, weighs 3 lbs and operates from 0°C to 50°C at up to 10,000 ft. It installs on a desktop, on a wall with WMBP brackets, on DIN rail with WMBD, or in a 19-inch rack with RMB2 ears.
Key capabilities
- One or two cards
- Holds one double-wide or up to two single-wide ION slide-in cards, each drawing 6 W or less.
- AC or DC power
- Included 120-240 VAC to 12 VDC supply on a barrel connector, or 21-60 VDC through a two-wire terminal block.
- Fanless edge design
- No fan to fail in closets and cabinets, with 0°C to 50°C operation and 5% to 95% non-condensing humidity.
- Managed cards supported
- The chassis itself is unmanaged but accepts IP-addressable managed ION slide-in cards. Each card can be managed individually.
- Four mounting options
- Sits on a desktop or mounts with WMBP wall brackets, the WMBD DIN rail bracket, or RMB2 ears in a 19-inch rack.
How to choose the right ION002-AD part number
ION002-AD is the chassis itself and includes the AC power supply. The other part numbers are accessories. RMB2 adds 19-inch rack-mount ears, WMBP mounts 1- or 2-slot ION chassis on a wall, and WMBD is a 5-inch DIN rail bracket. IONFP is an ION face plate for covering an unused slot. Lantronix also lists the IONMM management module (USB Type B CLI port) and IONMM-232 (RS232 RJ-45 CLI port) as compatible accessories. Check card power: anything over 6 W, including C4120-1048 and C4221-4848, is not supported.
Configure & order
Find your ION002-AD part number
Every orderable ION002-AD configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
ION002-AD
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the ION002-AD, organized by what it does — mounting & enclosures, chassis & shelves, modules & option cards— each with why you'd add it.
Mounting & enclosures
2 items
IONFP
IONFP
ION front blank face plate that occupies one slot. It is listed as a Lantronix ION Face Plate and TAA Compliant.
$11.00
Ships on backorder
RMB2
RMB2
1-pack 19” rack mount ear kit for the ION002-AD. It is listed as compatible with the ION002-AD 2-Slot Chassis for ION Modules.
$28.00
Ships on backorder
Chassis & shelves
2 items
Modules & option cards
2 items
IONMM Series
IONMM-232
ION Management Module for the ION Chassis with an RS232 RJ-45 CLI port. It connects to the chassis backplane and carries only management traffic, not end-user data traffic.
$506.00
Ships on backorder
IONMM Series
IONMM
ION Management Module for the ION Chassis with a USB Type B CLI port. It enables remote configuration, monitoring and troubleshooting of ION slide-in modules.
$534.00
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the ION002-AD. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the ION002-AD is used
- Customer-premises end of an ION fiber service
- Deploying ION converter cards as stand-alone units
- DC-powered telecom closets using the 21-60 VDC input
- DIN-rail fiber termination in remote cabinets
ION002-AD datasheets & documentation
ION002-AD FAQ
Which ION cards work in the ION002-AD?
Any ION slide-in card that consumes 6 W or less, either one double-wide card or up to two single-wide cards. The C4120-1048 and C4221-4848 are not supported.
Is the ION002-AD a managed chassis?
No, the chassis is unmanaged. It does support IP-addressable managed ION slide-in cards, which can be managed individually. Lantronix also lists IONMM management modules as compatible accessories.
What power options does the ION002-AD have?
AC through the barrel connector using the included 120-240 VAC to 12 VDC external supply, or 21-60 VDC on a two-wire terminal block. The DC option suits sites with DC plant power and no convenient AC outlet.
Can the ION002-AD be rack mounted?
Yes, with the RMB2 19-inch rack-mount ears. It can also sit on a desktop, mount on a wall with WMBP brackets or on DIN rail with the WMBD bracket.
What are the ION002-AD dimensions?
4 x 7.1 x 2.2 inches (102 x 180 x 56 mm), weighing 3 lbs (1.35 kg). It holds up to two single-wide ION cards.
