Lantronix M/GE-T Series Mini Gigabit Ethernet Media Converters
The M/GE-T Series are mini Gigabit media converters that link a 1000Base-T RJ-45 copper port to 1000Base-SX multimode or 1000Base-LX single-mode fiber, or to an open SFP slot, in a housing 46 mm wide.
From $336.00
Overview
About the Lantronix M/GE-T Series
The M/GE-T Series (also written MGE-T) converts a 1000Base-T copper Ethernet link to Gigabit fiber, extending the reach of a switch or NIC port well past the 100 m copper limit. Lantronix describes the housing as 65% smaller than a standard media converter: it measures 46 x 85 x 22 mm, which makes it easy to tuck behind a desktop, into a ceiling space or into a wiring closet as a fiber-to-the-desk endpoint.
The copper side supports auto-negotiation and auto-MDI/MDIX. Fiber options are 1000Base-SX at 850 nm over multimode, reaching 220 m on 62.5/125 µm and 550 m on 50/125 µm fiber, or 1000Base-LX at 1310 nm over single-mode to 10 km. The M/GE-T-SFP-01 leaves the fiber port as an empty SFP slot. All models support jumbo frames up to 13,312 bytes, automatic link restoration and fiber link pass-through, and comply with IEEE 802.3z and 802.3ab.
Units run from an external +12 VDC, 0.5 A supply (7.5 to 13.9 VDC input range) and draw 2.6 W, operating from 0 °C to 50 °C. Wall-mount (WMBM) and DIN-rail (DRBM) brackets fit all mini converters, and the M-MCR-01 18-slot powered chassis consolidates many units into a 19-inch rack.
Key capabilities
- Compact mini housing
- At 46 x 85 x 22 mm, the converter fits behind desktops and in tight closets, and mounts by wall bracket, DIN-rail bracket or chassis.
- SX, LX or SFP
- Choose 850 nm multimode to 550 m, 1310 nm single-mode to 10 km, or an empty SFP slot for any compatible Gigabit optic.
- Jumbo frame support
- Passes jumbo frames up to 13,312 bytes, so storage and backup traffic using large MTUs crosses the converter without fragmentation.
- Link fault visibility
- Fiber link pass-through and automatic link restoration propagate a fiber fault to the copper side, so the attached switch sees the link go down.
- Low power draw
- Consumes 2.6 W from a +12 VDC external supply, with a wide 7.5 to 13.9 VDC input range on the converter.
How to choose the right M/GE-T Series part number

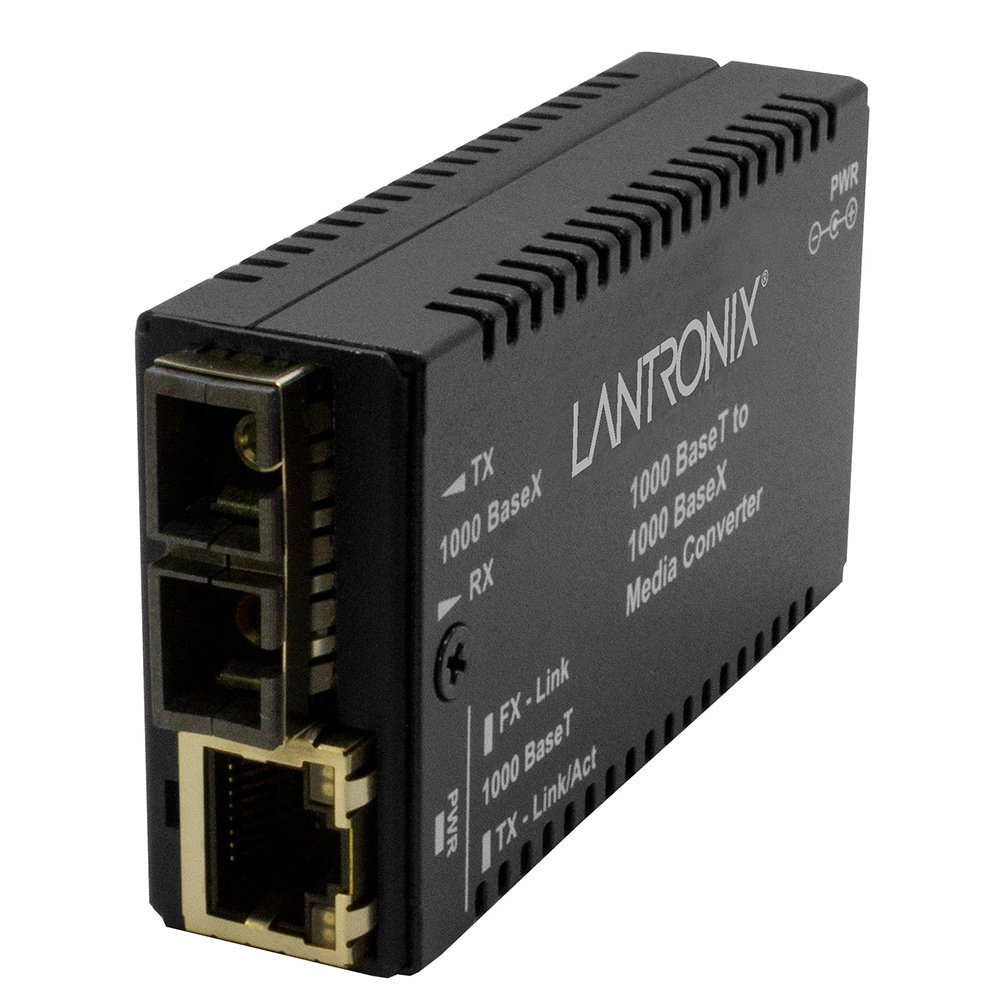

Pick by fiber type, connector and power supply. M/GE-T-SX-01 models are 850 nm multimode with SC connectors and a 7.0 dB link budget; the suffix sets the bundled power supply region: -NA North America, -EU Europe, -UK, -JP Japan, -OZ Australia, -BR Brazil, -LA Latin America and -SA South America. M/GE-T-SX-01(LC) is the same multimode converter with LC connectors and an 8.5 dB budget. M/GE-T-LX-01 is 1310 nm single-mode SC to 10 km with a 10.5 dB budget. M/GE-T-SFP-01 has an empty SFP slot for a separately ordered module.
Configure & order
Find your M/GE-T Series part number
Every orderable M/GE-T Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
M/GE-T-SX-01-LA
$336.00
Ships on backorder

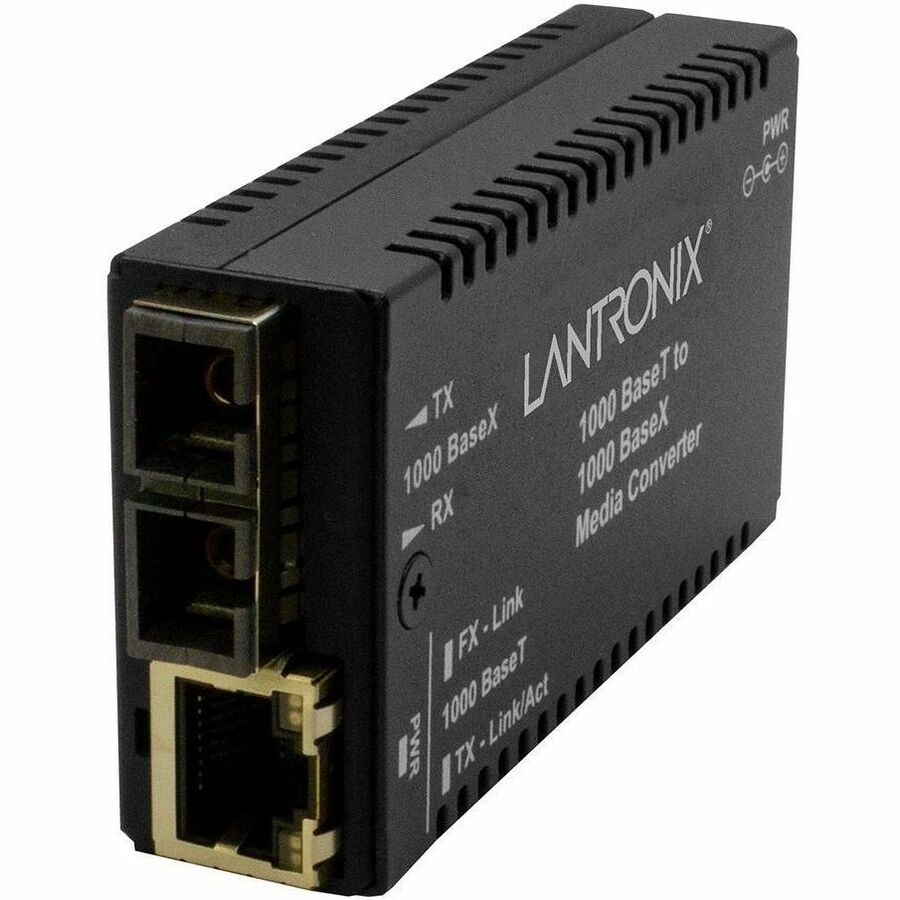

M/GE-T-SX-01-JP
$336.00
Ships on backorder
M/GE-T-SX-01-EU
$336.00
Ships on backorder
M/GE-T-SX-01-UK
$336.00
Ships on backorder
M/GE-T-SX-01-SA
$336.00
Ships on backorder
M/GE-T-SX-01-OZ
$336.00
Ships on backorder
M/GE-T-SX-01-BR
$336.00
Ships on backorder
M/GE-T-SX-01-NA
$336.00
6 in stock
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the M/GE-T Series, organized by what it does — power, mounting & enclosures, chassis & shelves— each with why you'd add it.
Power
1 item
SPS-2460-SA
SPS-2460-SA
Stand-alone wide input external power supply for all Lantronix stand-alone media converters and some chassis.
$248.00
Ships on backorder
Mounting & enclosures
3 items
WMBM
WMBM
3.3” [84 mm] wall mount bracket kit for “Mini” Media Converters. It is listed as a compatible accessory for the M/GE-PSW-PSE-01 series.
$24.00
9 in stock
RMBM
RMBM
Rack mount bracket for mini media converters. It is used with E-MCR-05 and RMS19-SA4-02.
$28.00
Ships on backorder
DRBM
DRBM
3.3” [84 mm] DIN Rail Mount Bracket for “Mini” Media Converters. It fits all “Mini” Media Converters.
$28.00
Ships on backorder
Chassis & shelves
1 item
M-MCR-01
M-MCR-01
18-slot powered chassis for non-hardened Mini Media Converters. It includes 19″ rack mount ears and uses one AC power connection for multiple deployed Minis.
Compatibility taken from the Lantronix part-number tables for the M/GE-T Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the M/GE-T Series is used
- Fiber-to-the-desk links for Gigabit workstations
- Extending switch ports beyond 100 m copper limits
- Single-mode Gigabit links between buildings up to 10 km
- Rack-dense fiber conversion in the M-MCR-01 chassis
M/GE-T Series FAQ
How far can the M/GE-T Series transmit over fiber?
The SX models reach 220 m over 62.5/125 µm and 550 m over 50/125 µm multimode fiber. The M/GE-T-LX-01 reaches 10 km over single-mode fiber at 1310 nm. The copper RJ-45 side supports 100 m. With the SFP model, distance depends on the module installed.

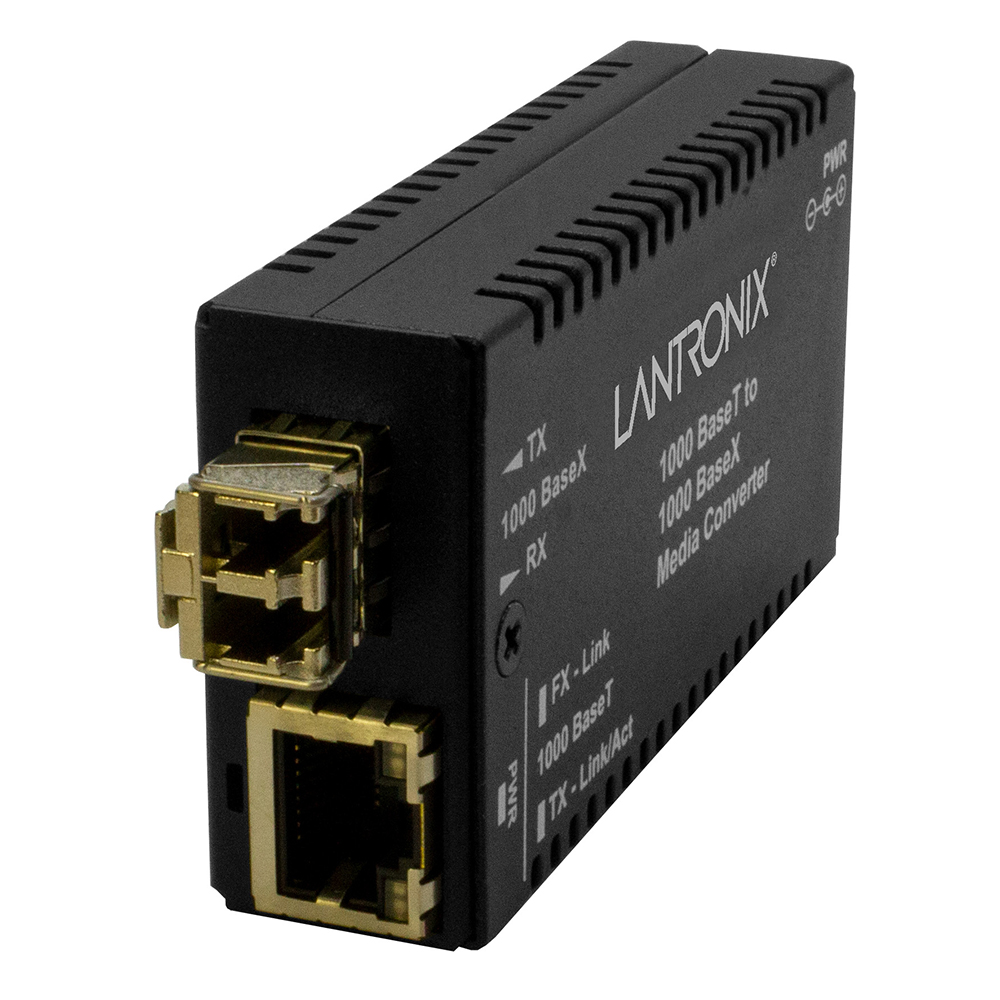

What is the difference between M/GE-T-SX-01 and M/GE-T-SX-01(LC)?
Both are 1000Base-SX 850 nm multimode converters with the same distances. The standard SX-01 models use SC connectors with a 7.0 dB link budget and a regional power supply suffix, while the (LC) version uses LC connectors with an 8.5 dB link budget.

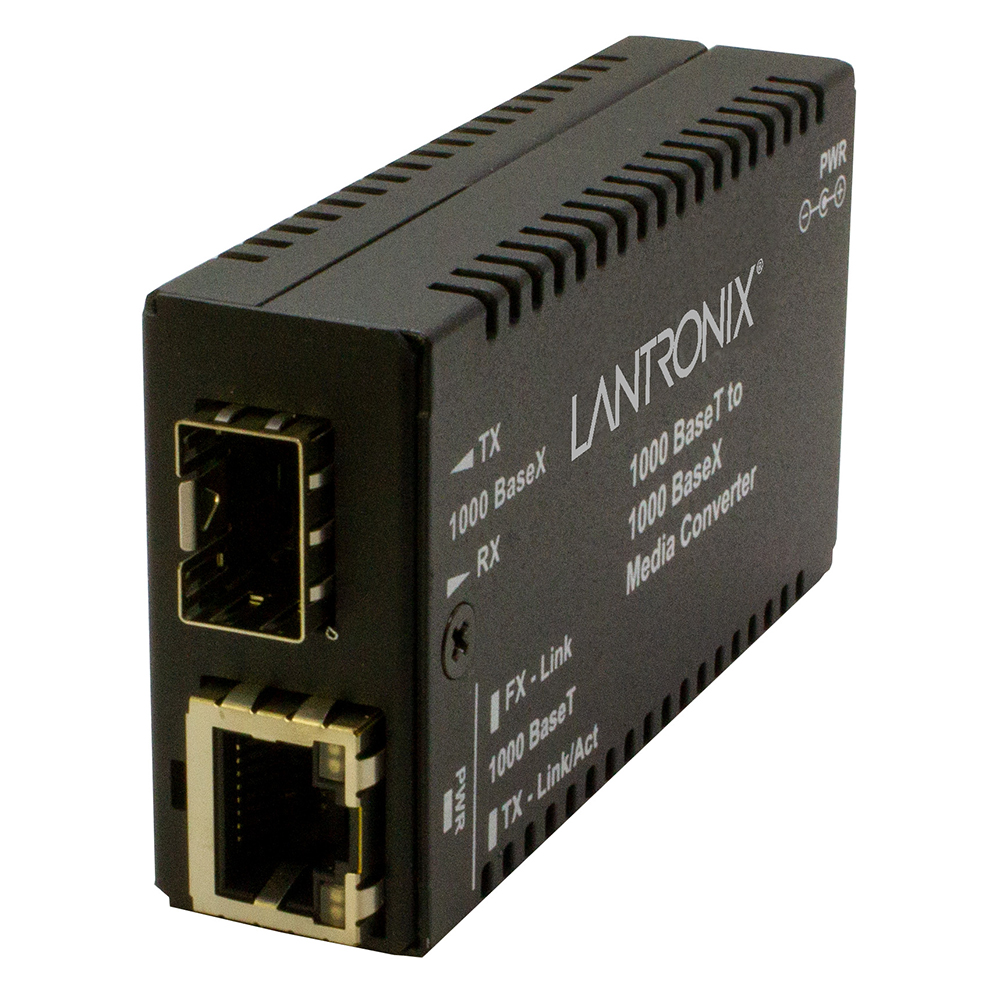

Does the M/GE-T-SFP-01 include an SFP module?
No. The M/GE-T-SFP-01 is a 1000Base-T to SFP converter with an empty slot. You choose and install a Gigabit SFP module separately, which sets the fiber type, wavelength and distance.
What power does the M/GE-T converter need?
It requires an external AC/DC supply providing +12 VDC at 0.5 A, and accepts 7.5 to 13.9 VDC at the input. Power consumption is 2.6 W. The regional suffix on SX models (such as -NA or -EU) identifies the included supply.
Can M/GE-T converters be rack mounted?
Yes. The M-MCR-01 is an 18-slot powered chassis for non-hardened mini media converters with 19-inch rack ears. The RMBM bracket, WMBM wall-mount bracket and DRBM DIN-rail bracket are other mounting options.
