Autonomous Out-of-Band
Lantronix EMG 7500 Edge Management Gateway with LTE
The EMG 7500 is a compact edge management gateway, a console server with an integrated 4G/LTE radio, giving out-of-band access to up to eight devices at branch offices, retail stores, ATMs and cell-tower sites.
From $1,000.00
Overview
About the Lantronix EMG 7500
The EMG 7500 (also written EMG7500) keeps routers, firewalls and switches reachable when the primary network fails. Lantronix positions it as the smaller sibling of the EMG 8500 for sites where space and cost matter most: retail, branch offices and unmanned locations. It comes in a fixed configuration with internal flash and an integrated LTE cellular interface, so out-of-band access does not depend on a separate modem.
Two 10/100/1000 Mbps Ethernet ports provide in-band access, and the internal LTE radio with a microSIM slot handles automatic failover and failback, with support for private APN, VPN and public or private IP addressing. Device ports are RS-232 on RJ-45 with software-reversible pinouts at 300 to 921600 bps, or USB Type A, in 4- or 8-port configurations. Each port buffers 256 KB and logs to local files, syslog, USB, microSD or NFS.
Security includes TLS 1.0 to 1.3, FIPS 140-2 compliant cryptography (certificate 2398), LDAP/AD, RADIUS, Kerberos and TACACS+ authentication, per-port permissions and a packet filter firewall. The gateway runs Python scripts, exposes secure REST APIs, generates Cisco-compatible IP SLA traffic and is managed centrally through Percepxion for Networking with zero-touch provisioning.
Key capabilities
- Integrated LTE failover
- A built-in 4G/LTE radio with automatic failover and failback keeps console access available when the primary WAN is congested or down.
- Up to 8 managed ports
- Choose 4 or 8 RS-232 RJ-45 ports, or 4 RS-232 plus 4 USB Type A ports, with software-programmable reversible pinouts.
- FIPS 140-2 cryptography
- FIPS 140-2 compliant crypto (certificate 2398), NIST-certified AES and TLS up to v1.3 protect sessions and stored data.
- IP SLA monitoring
- Cisco-compatible IP SLA simulation traffic monitors network performance to catch degradation before a lights-out event.
- Compact 1.7-inch chassis
- At 163 x 145 x 43 mm the gateway sits on a desk or mounts in a rack with single or dual side-by-side rack kits.
- Automation and APIs
- Python scripting, secure REST APIs and zero-touch provisioning through Percepxion for Networking reduce manual work at remote sites.
How to choose the right EMG 7500 part number
All three gateways include LTE and two Gigabit Ethernet ports; they differ in device ports. EMG751001S has 4 RS-232 RJ-45 serial ports. EMG751101S has 8 RS-232 serial ports. EMG751201S has 4 RS-232 serial ports plus 4 USB ports, for equipment with USB consoles. For racks, EMG-75SURM-KIT mounts one unit and EMG-75DJRM-KIT joins two side by side. ACC-520-0164-00 is a 12 V, 100 W desktop power supply, and ACC-500-103 is a 6-foot RJ-45 to DB9 female adapter for DTE console ports.
Configure & order
Find your EMG 7500 part number
Every orderable EMG 7500 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
EMG751001S
$1,000.00
Ships on backorder
EMG751201S
$1,350.00
Ships on backorder

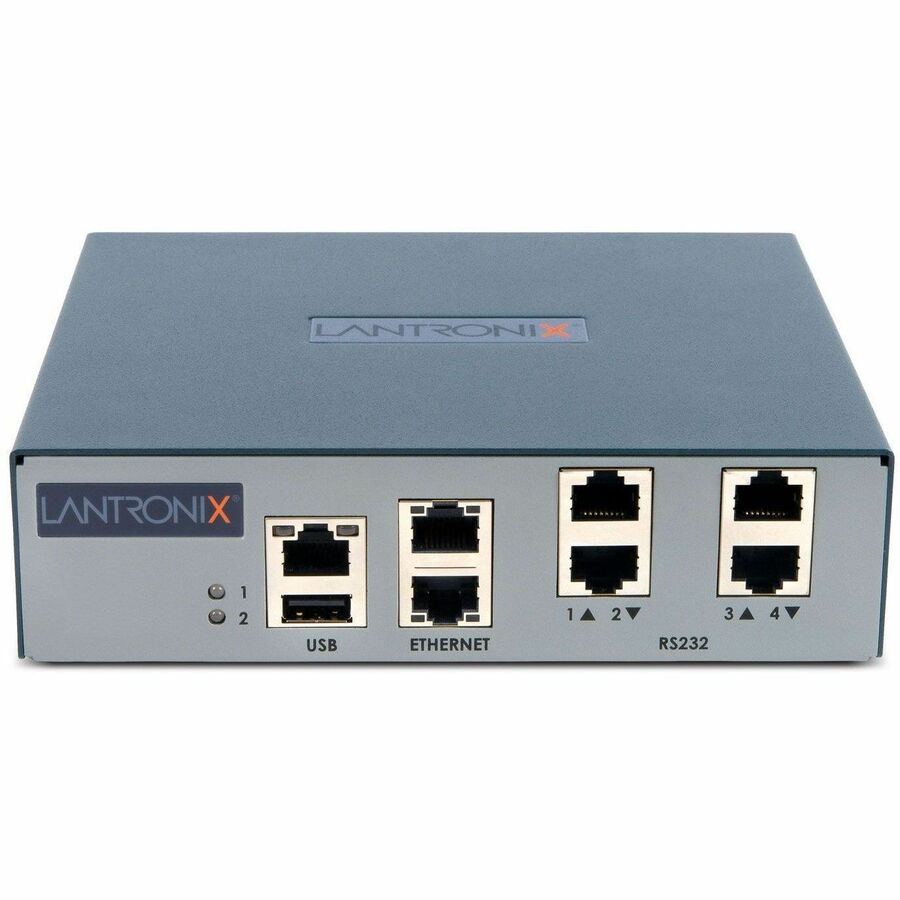

EMG751101S
$1,350.00
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the EMG 7500, organized by what it does — power, cables & adapters, mounting & enclosures, other add-ons— each with why you'd add it.
Power
1 itemPower Supply
ACC-520-0164-00
Desktop 12 V DC, 100W power supply for EMG products.
$80.00
Ships on backorder
Cables & adapters
1 item
ACC-500-103
ACC-500-103
6 ft RJ-45/Serial network/data transfer cable. It connects from RJ-45 Network male to DB-9 Serial female for DTE devices including terminals, printers and console ports.
$14.25
Ships on backorder
Mounting & enclosures
1 itemEMG7500 Edge Management Gateway
EMG-75SURM-KIT
Single unit rack mount kit accessory for the EMG 7500. It is listed for gateway use with a 1U rack height.
$39.36
Ships on backorder
Other add-ons
1 itemEMG7500 Edge Management Gateway
EMG-75DJRM-KIT
Dual joint rackmount kit accessory for EMG 7500. It is listed as a Lantronix Rackmount Kit with UPC 783384255562.
$29.99
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the EMG 7500. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the EMG 7500 is used
- Out-of-band console access at branch offices and retail stores
- Remote recovery of ATMs and unmanned kiosks
- Cellular failover management at cell-tower sites
- Managing USB-console switches and firewalls alongside RS-232 gear
EMG 7500 FAQ
What is the difference between the EMG 7500 and EMG 8500?
Lantronix describes the EMG 7500 as smaller than its EMG 8500 sibling while still offering up to 8 management ports. It comes in a fixed configuration with internal flash and integrated cellular, aimed at retail, branch and unmanned sites where space and cost matter most.
Does the EMG 7500 support USB console ports?
Yes, on the EMG751201S, which pairs 4 RS-232 RJ-45 ports with 4 USB Type A host ports. The EMG751001S and EMG751101S have 4 and 8 RS-232 ports respectively. A front-panel USB port is also available for logging.
Which cellular carriers work with the EMG 7500?

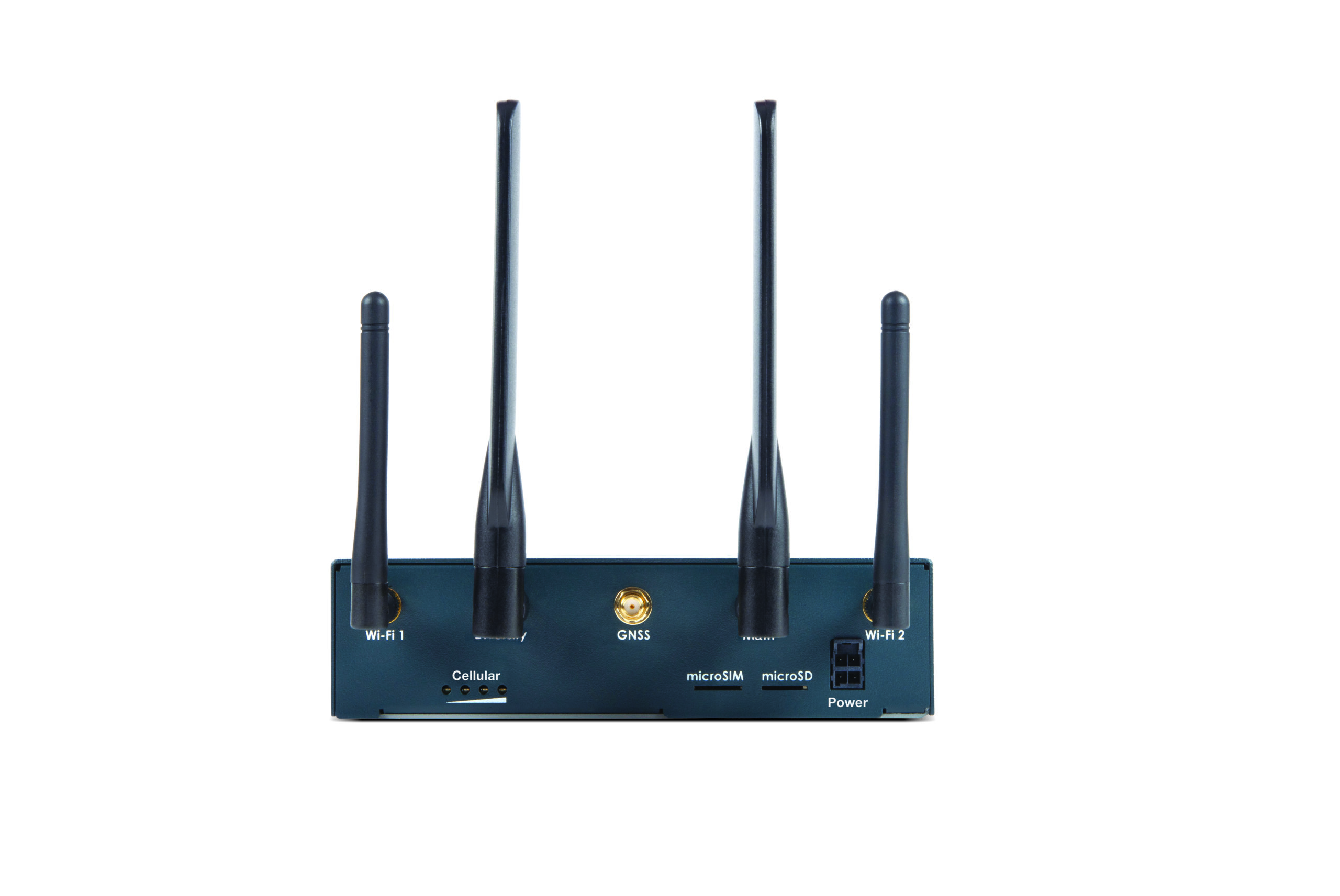

Lantronix states the LTE failover connection supports all global carriers, with private APN, VPN access and public or private IP addressing. The cellular radio uses a microSIM slot with external antennas. PTCRB certification is complete.
How is the EMG 7500 powered?
It ships with a desktop power supply and also accepts external 9-30 VDC. Typical power usage is 20 W. A replacement 12 V, 100 W desktop supply is available as ACC-520-0164-00.
What is the EMG 7500 operating temperature?
Lantronix rates it for 0°C to 50°C operation at 30% to 90% non-condensing humidity, with storage from -20°C to 80°C at 10% to 90% humidity. It draws 20 W and measures 163 x 145 x 43 mm.
