Lantronix NTC-140 Series 4G LTE M2M Routers

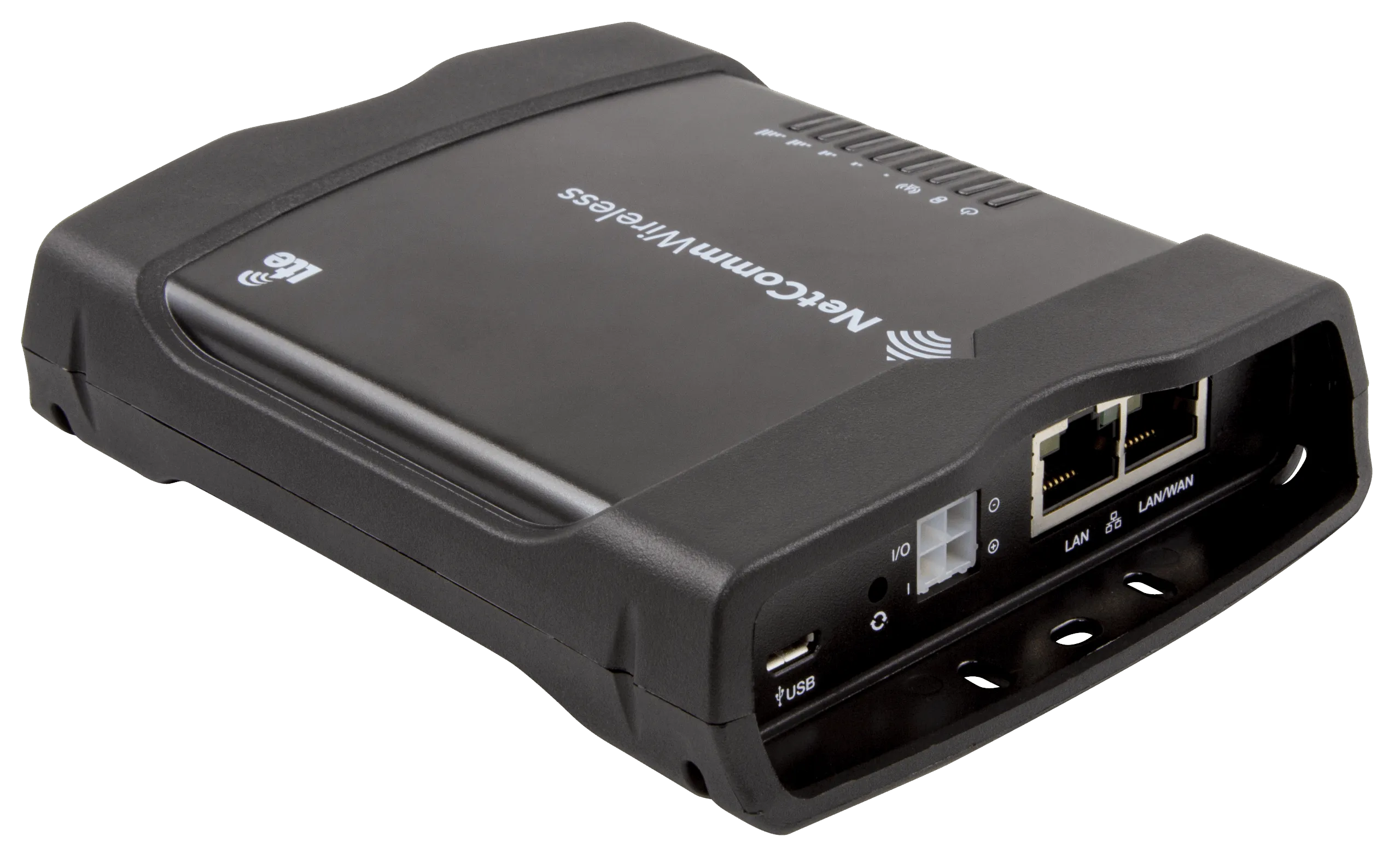

The NTC-140 Series is a rugged 4G LTE M2M router with two Gigabit Ethernet ports, GPS and ignition sensing, built for vehicles and industrial sites in EMEA, Australia and Singapore. It is now in Last Time Buy status.
From $339.00
Overview
About the Lantronix NTC-140 Series
The NTC-140 Series (also written NTC140) is in Last Time Buy status, and Lantronix has published a product discontinuation notice; no direct successor is named on the product page. The router provides cellular WAN connectivity for machines, vehicles and remote sites, combining a rugged enclosure, a wide operating temperature range, wall-mount options and a flexible range of input power options for harsh industrial environments.
Cellular connectivity covers 4G LTE at up to 100 Mbps down and 50 Mbps up, 3G DC-HSPA+ and 1xEV-DO Rel. A at up to 42 Mbps and 5.76 Mbps, and 2G EDGE. Two Gigabit Ethernet ports and a USB-OTG port for extra interfaces or storage give networking flexibility, and any interface can be configured as the WAN for business continuity designs. The NTC-140-02 adds integrated standalone GPS for asset tracking.
For vehicle installs, the router is tested to IEC Class 5M2, MIL-STD-810 method 516.5 and ISO 7637-2. Ignition sense provides graceful startup and shutdown with the vehicle, and a configurable power save mode minimizes current draw in sleep. Lantronix provides a series user guide, a quick start guide and a dedicated NTC-140-02 user guide for configuration.
Key capabilities
- LTE with 3G/2G fallback
- 4G LTE delivers up to 100 Mbps down and 50 Mbps up, with DC-HSPA+, 1xEV-DO Rel. A and EDGE available where LTE coverage is missing.
- Vehicle tested
- Testing to IEC Class 5M2, MIL-STD-810 method 516.5 and ISO 7637-2 qualifies the router for vehicular applications such as fleet, transit and service vehicles.
- Ignition sense
- The router starts and shuts down gracefully with the vehicle ignition, and a configurable sleep mode keeps current draw to a minimum.
- Integrated GPS

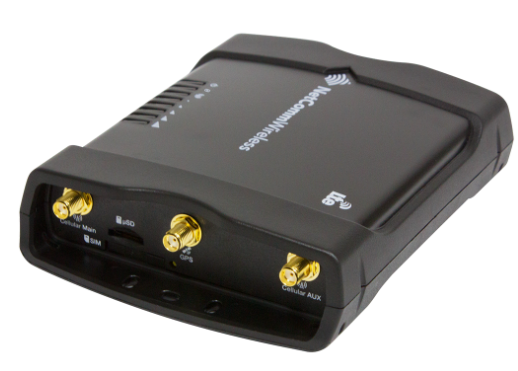

- The NTC-140-02 includes standalone GPS for precise location reporting, supporting fleet and asset tracking without a separate receiver.
- Flexible WAN
- Any interface, cellular or either Gigabit Ethernet port, can serve as the WAN, supporting primary or backup connectivity designs.
How to choose the right NTC-140 Series part number
The series has one router part number, NTC-140-02, a 4G M2M model for EMEA, Australia and Singapore with integrated GPS, two Gigabit Ethernet ports and USB-OTG. Confirm that your carrier and region match before ordering, since this model targets those markets. The PSU-0067 power supply, with interchangeable plug headers and a 4-pin Molex over-mold connector, is the matching power supply accessory listed for the series. Because the series is Last Time Buy, plan quantities for the remaining deployment life.
Configure & order
Find your NTC-140 Series part number
Every orderable NTC-140 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
NTC-140-02
No cellular (Wi-Fi only) · No Wi-Fi · No Bluetooth · GNSS included
$339.00
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the NTC-140 Series, organized by what it does — power— each with why you'd add it.
Power
1 item
Power Supply
PSU-0067
Power supply accessory for NTC-140 Series compatible products. It is described as a Tenpao PSU with interchangeable headers and a 4 pin Molex over-mold.
$14.59
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the NTC-140 Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the NTC-140 Series is used
- In-vehicle connectivity for fleet and transit applications
- GPS asset tracking with cellular reporting
- Cellular backup WAN for business continuity
- Remote industrial site and M2M equipment connectivity
NTC-140 Series datasheets & documentation
NTC-140 Series FAQ
Is the NTC-140 discontinued?
The NTC-140 Series is in Last Time Buy status, and Lantronix has published a product discontinuation notice for it. The remaining orderable router is the NTC-140-02 for EMEA, Australia and Singapore.
Which regions does the NTC-140-02 support?
The NTC-140-02 is a 4G M2M router for EMEA, Australia and Singapore. It supports 4G LTE, 3G DC-HSPA+ and 1xEV-DO Rel. A, and 2G EDGE cellular technologies.
Does the NTC-140 have GPS?
Yes, the NTC-140-02 has integrated standalone GPS for precise and accurate asset tracking. Lantronix notes the GPS feature applies to the NTC-140-02 model only, which is also the model currently listed for ordering.
Can the NTC-140 be installed in vehicles?
Yes. It is tested for vehicular applications to IEC Class 5M2, MIL-STD-810 method 516.5 and ISO 7637-2, and its ignition sense input allows graceful startup and shutdown with the vehicle.
