Lantronix OCA Bundle Series Outdoor Cabinet and PoE Switch Bundles
The OCA Bundle Series pairs Lantronix's 18 x 16 x 10 inch outdoor polycarbonate cabinet with a hardened PoE switch, power supply and fiber management under one ordering number, for outdoor camera, wireless and traffic deployments.
From $3,007.80
Overview
About the Lantronix OCA Bundle Series
Outdoor PoE projects usually require sourcing an enclosure, a hardened switch, a power supply and fiber accessories separately and checking that they fit together. The OCA Bundle Series removes that step. Each bundle combines the OCA-P181610 Outdoor Cabinet Assembly with one of two hardened SISPM1040 PoE switches, a matching power supply and fiber management kits, so a security camera, wireless access point or intelligent traffic site can be ordered with a single part number such as OCA-1AA200. Items ship together as a bundle but are not pre-assembled.
The cabinet is a high-impact polycarbonate enclosure measuring 18 x 16 x 10 inches with a hinged, removable door. Two DIN rails come pre-installed for the switch and power supply, along with a magnetic door contact switch, ground terminal blocks, AC/DC termination blocks and wire glands.
Bundles are built from either the SISPM1040-384-LRT-C or the SISPM1040-582-LRT switch, powered by the 25160 AC supply (90-264 VAC or 127-370 VDC in, 48-55 VDC at 480 W out) or the PS-DC-DUAL-5624T dual DC supply. Options add the EDCA-DIO-01 enclosure door contact alarm and the OCA-PMK-26 mounting kit.
Key capabilities
- One part number per site
- Cabinet, hardened switch, power supply and fiber management kits are ordered together, which simplifies quoting and procurement for outdoor builds.
- Pre-fitted polycarbonate cabinet
- The 18 x 16 x 10 inch enclosure arrives with two DIN rails, ground and AC/DC termination blocks and wire glands installed.
- Choice of two switches
- Bundles use the SISPM1040-384-LRT-C or the SISPM1040-582-LRT hardened PoE switch, matched with the right number of fiber management kits.
- AC or dual DC power
- Pick the 25160 480 W supply with wide AC or DC input, or the PS-DC-DUAL-5624T dual DC supply with a country-specific cord.
- Door intrusion alarm option
- Bundles whose code ends in A0 or A1, such as OCA-1AA2A0, add the EDCA-DIO-01 enclosure door contact alarm to report cabinet access.
How to choose the right OCA Bundle Series part number
Read the code left to right. OCA-1A uses the SISPM1040-384-LRT-C switch with two SESPM-4P-FMKIT fiber kits; OCA-1B uses the SISPM1040-582-LRT with one kit. The next letter sets power: A for the 25160 480 W supply, B for the PS-DC-DUAL-5624T dual DC supply, which takes a -xx country cord suffix. An A before the last digit adds the EDCA-DIO-01 door alarm. The final digit sets mounting: 0 for wall mount, 1 for the OCA-PMK-26 kit. Examples: OCA-1AA200, OCA-1BA1A1, OCA-1AB201-xx.
Configure & order
Find your OCA Bundle Series part number
Every orderable OCA Bundle Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.

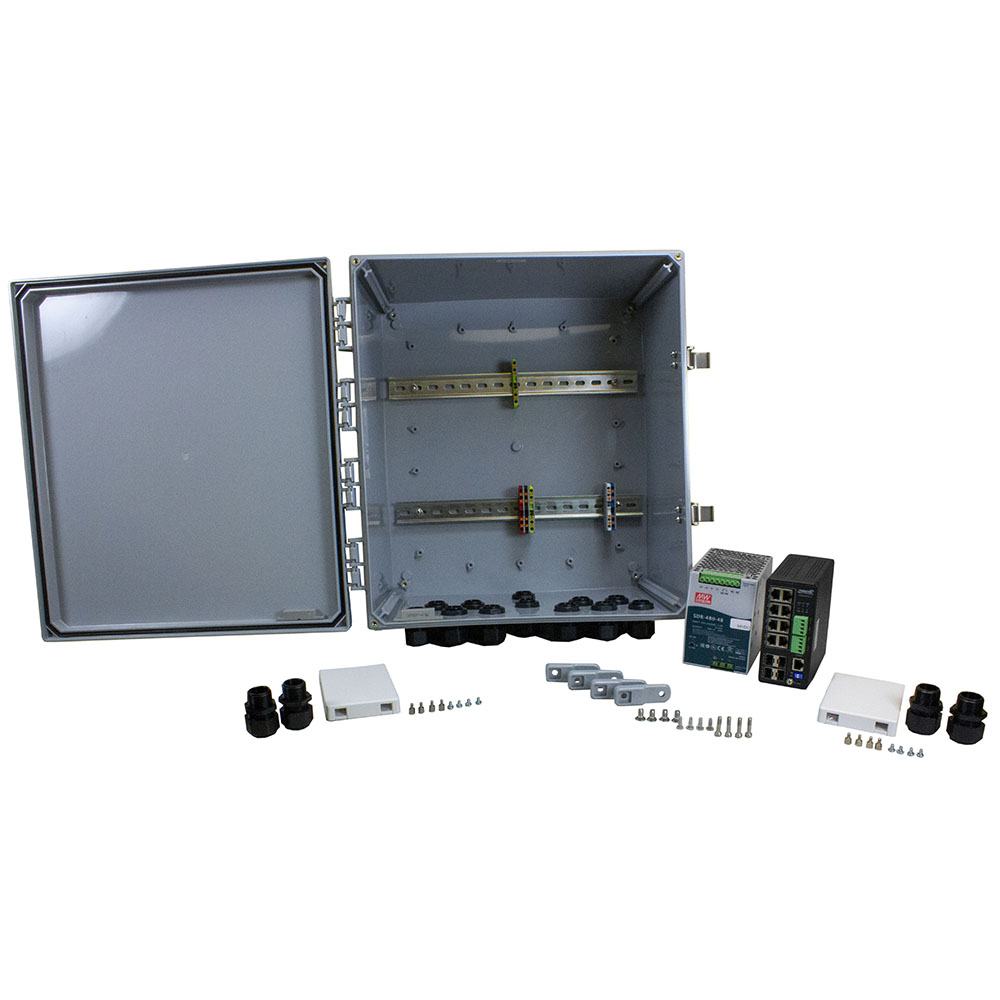

OCA-1AA200
$3,007.80
Ships on backorder

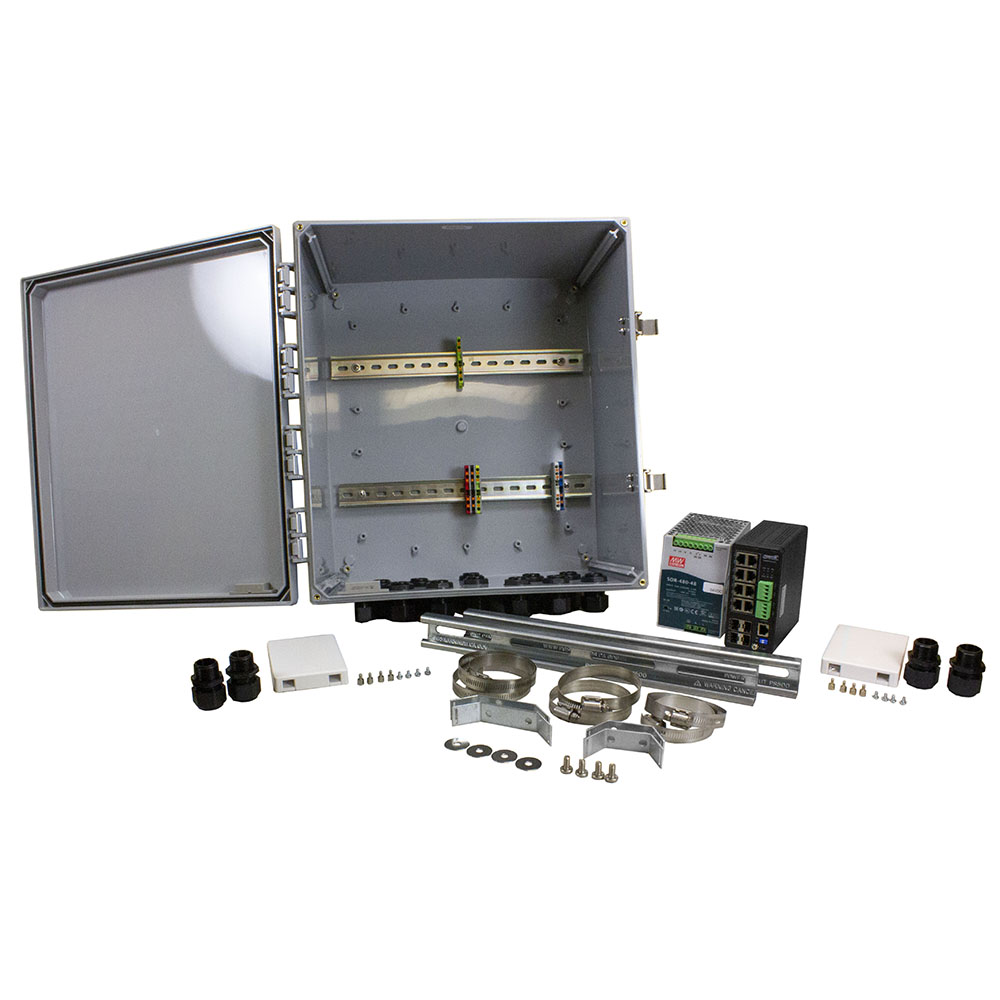

OCA-1AA201
$3,221.55
Ships on backorder

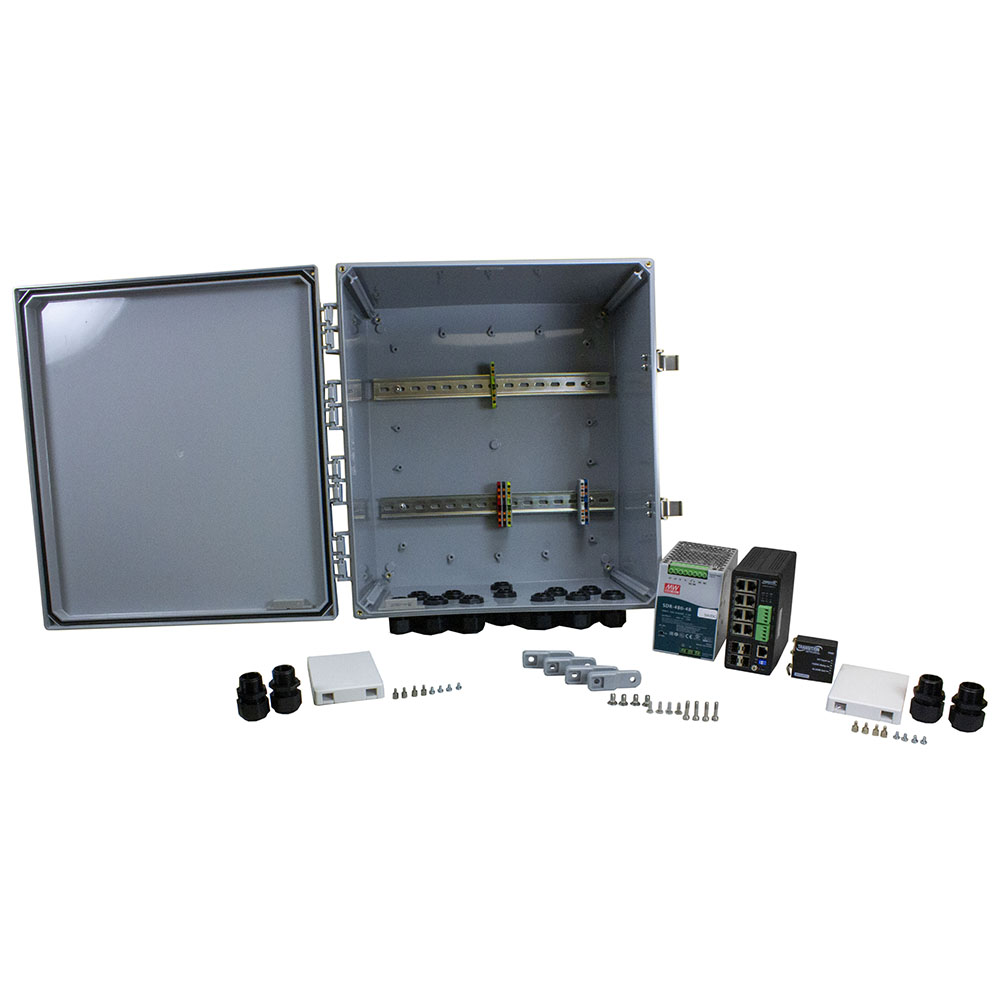

OCA-1AA2A0
$3,138.90
Ships on backorder

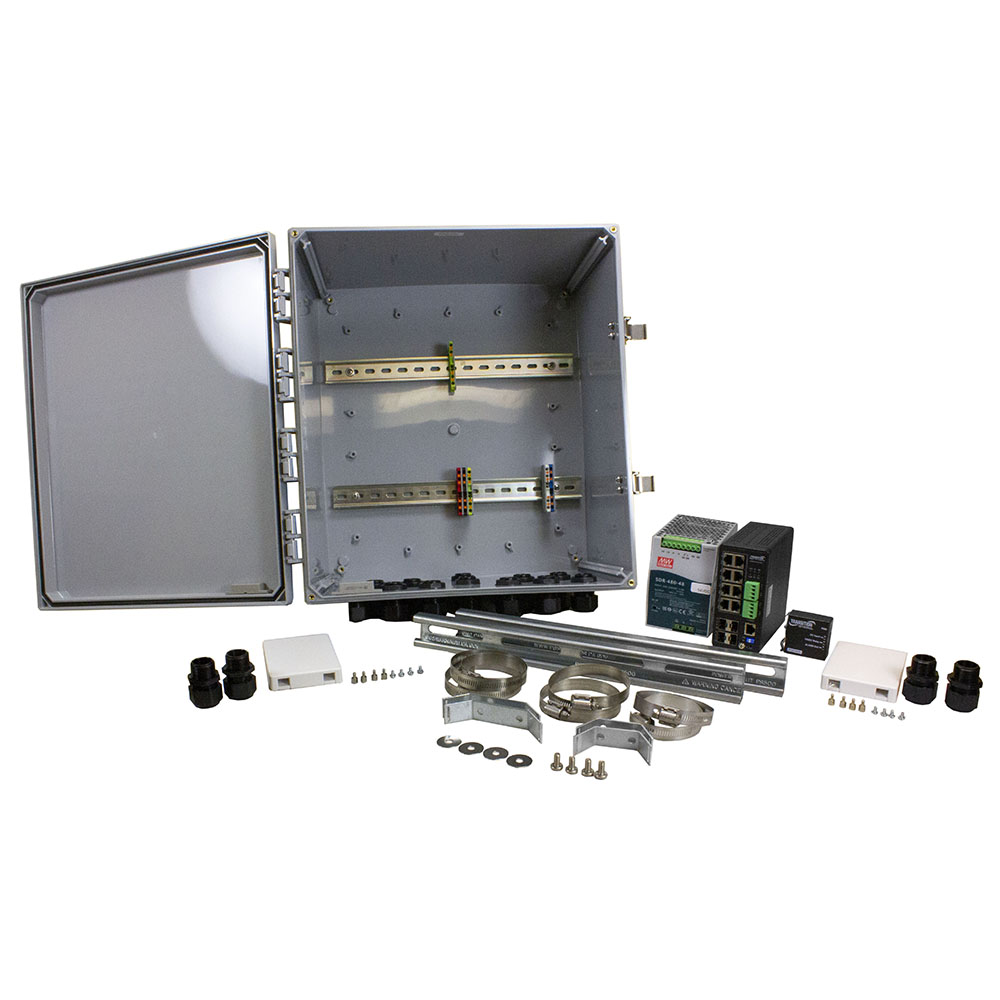

OCA-1AA2A1
$3,352.65
Ships on backorder
OCA-1BA100
$3,063.18
Ships on backorder
OCA-1BA101
$3,276.93
Ships on backorder
OCA-1BA1A0
$3,194.28
Ships on backorder
OCA-1BA1A1
$3,408.03
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the OCA Bundle Series, organized by what it does — power, mounting & enclosures— each with why you'd add it.
Power
1 item
25160
25160
Hardened DIN rail mounted power supply with 90-264 VAC or 127-370 VDC input and 48 ~ 55 VDC, 10A, 480 Watts output.
$517.00
3 in stock
Mounting & enclosures
1 item
EDCA-DIO-01
EDCA-DIO-01
EDCA-DIO-01 Enclosure Door Contact Alarm mounts within a telecom equipment cabinet to help alert network managers when the cabinet door has been opened.
$138.00
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the OCA Bundle Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the OCA Bundle Series is used
- Outdoor security and surveillance camera clusters
- Wireless access points in parking lots and campuses
- Intelligent traffic system roadside installations
- Pole or wall-mounted PoE and fiber termination points
OCA Bundle Series datasheets & documentation
OCA Bundle Series FAQ
What is included in an OCA bundle?
Every bundle includes the OCA-P181610 outdoor cabinet, one hardened SISPM1040 PoE switch, a power supply and SESPM-4P-FMKIT fiber management kits, plus wall mounting or the OCA-PMK-26 kit. Some versions add the EDCA-DIO-01 door contact alarm. Items ship as a bundle and are not assembled.
How big is the OCA outdoor cabinet?
The OCA-P181610 is an 18 x 16 x 10 inch high-impact polycarbonate enclosure with a hinged, removable door. Two DIN rails, a magnetic door contact switch, ground terminal blocks, AC/DC termination blocks and wire glands are pre-installed.
What power supply comes with OCA bundles?
Bundles with AA or BA in the code include the 25160, which accepts 90-264 VAC or 127-370 VDC and delivers 48-55 VDC at 10 A, 480 W. Bundles with AB or BB include the PS-DC-DUAL-5624T dual DC supply and take a country-specific power cord suffix.
What is the difference between OCA-1A and OCA-1B bundles?
The switch. OCA-1A bundles include the SISPM1040-384-LRT-C with two fiber management kits. OCA-1B bundles include the SISPM1040-582-LRT with one fiber management kit. Cabinet, power and mounting options are otherwise the same.
