Lantronix PremierWave 2050 802.11ac Embedded Wi-Fi IoT Gateway

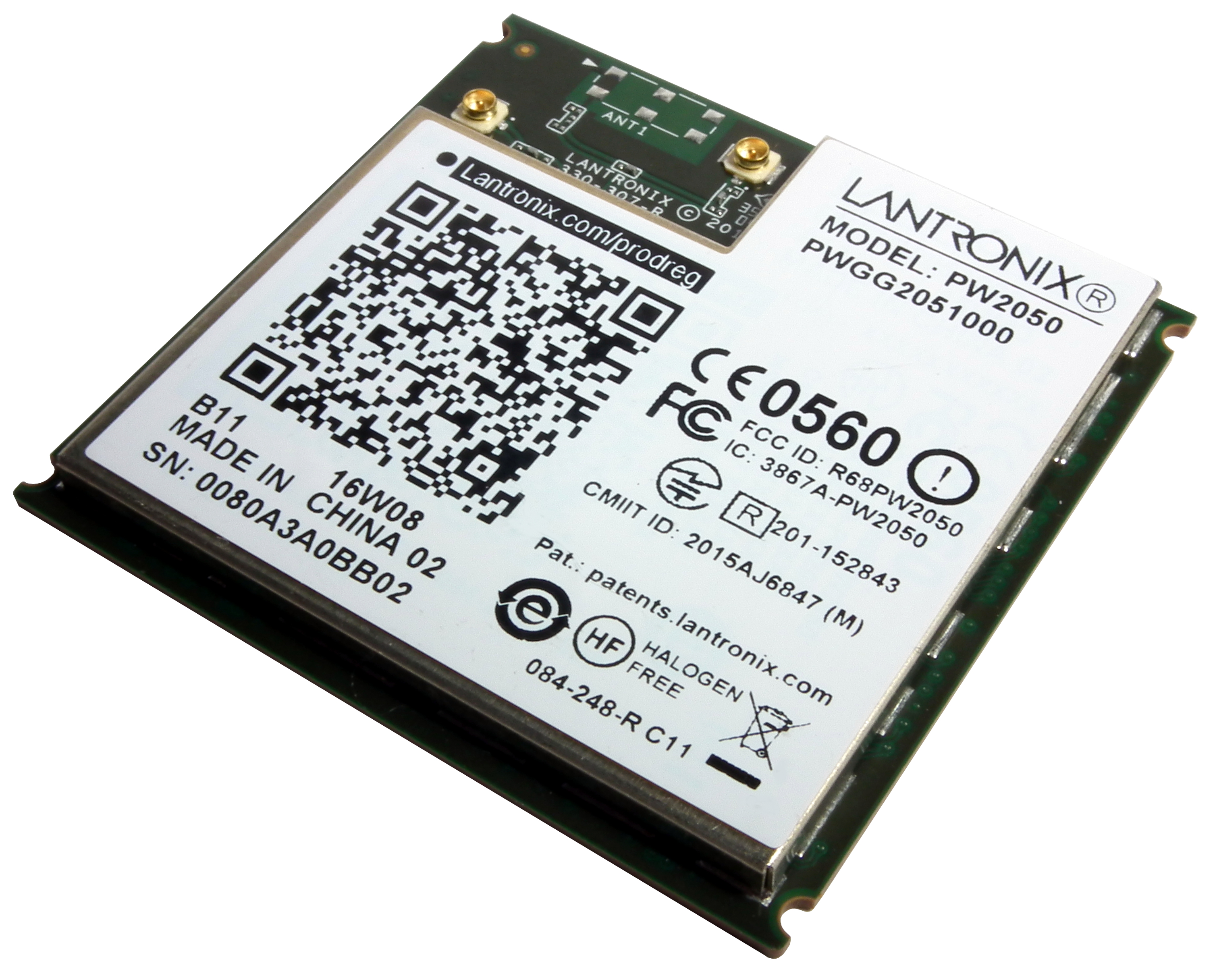

PremierWave 2050 is an industrial-grade, dual-band 802.11ac embedded Wi-Fi gateway module that bridges Ethernet devices onto enterprise WLANs, available in LGA and through-hole versions and now in Last Time Buy.
From $101.15
Overview
About the Lantronix PremierWave 2050
PremierWave 2050 is in Last Time Buy status, so designs still using it should place final orders now; Lantronix does not name a direct replacement on the product page. The module, ordered under the PW2050 part prefix, adds Linux-based 802.11ac Wi-Fi to equipment that already speaks Ethernet, handling connection management, security and Ethernet to Wi-Fi bridging in a production-ready software stack. Lantronix describes it as the industry's first industrial grade 5G Wi-Fi module for Ethernet devices, where 5G refers to the 5 GHz band.
The radio is 1x1 802.11ac up to 433 Mbps and 802.11n up to 150 Mbps, dual band 2.4 and 5 GHz across UNII-1, 2, 2e and 3, with 20, 40 and 80 MHz channels, transmit beamforming and LDPC. A Soft AP serves up to 14 simultaneous clients and can run alongside client mode. Security covers WPA2 Enterprise with EAP-TLS, EAP-TTLS, EAP-PEAP and EAP-FAST, SSH, TLS, PKI with 2048-bit RSA and NIST-certified AES. Modular RF certification, Wi-Fi Alliance certification and the IPv6 Ready logo shorten product approval.

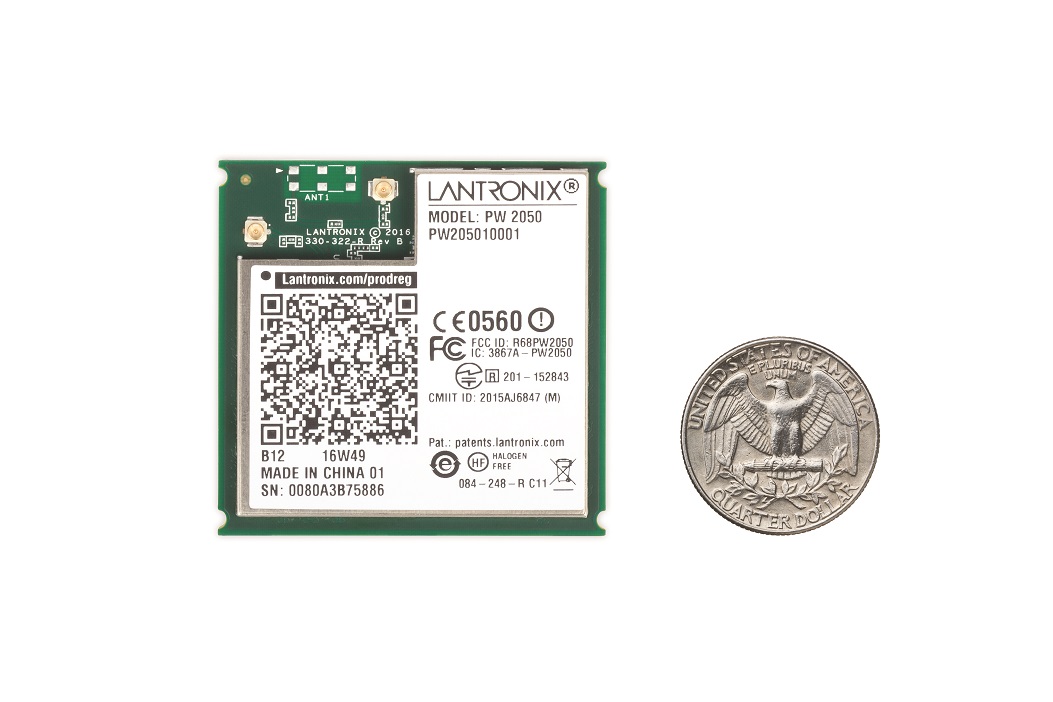

The module runs from 5 VDC at 270 mA average, measures 45.66 x 45.07 x 3.5 mm and operates from -40 to +85 C. It is managed by CLI over serial, Telnet or SSH, by web browser, Web Services API or XML configuration, and is OTA field upgradeable.
Key capabilities
- Dual-band 802.11ac
- 1x1 802.11ac up to 433 Mbps on 5 GHz with 80 MHz channels, plus 2.4 GHz 802.11n up to 150 Mbps and backward compatibility with 802.11a/b/g.
- Ethernet to Wi-Fi bridge
- A 10/100 Ethernet MAC and PHY with auto-MDIX and a single-host Ethernet to Wi-Fi client bridge with Auto-MAC ID put existing Ethernet devices onto the WLAN.
- Simultaneous AP and client
- Run as Soft AP with DHCP server and DNS proxy for up to 14 clients while connected as a client to the site WLAN, or use either mode alone.
- Enterprise WLAN security
- WPA2 Enterprise with EAP-TLS, EAP-TTLS, EAP-PEAPv0/v1 and EAP-FAST, AES/CCMP ciphers, SSH and TLS management, PKI certificates and a port-blocking firewall.
- Extended temperature rating
- Operates and stores from -40 to +85 C at 0% to 90% non-condensing humidity, suiting industrial and commercial equipment in harsh environments.
- Modular RF certification
- Modular approvals including FCC, CE, Industry Canada and Japan, plus Wi-Fi Alliance and IPv6 Ready Logo certification, reduce end-product certification work.
How to choose the right PremierWave 2050 part number
The digits after PW2050 set the antenna and mounting option. 10 is LGA with dual u.FL antenna connectors, 20 is LGA with one u.FL and an onboard chip antenna, and 30 is a through-hole version with dual u.FL. The final letter sets packaging: B is a JEDEC tray of 120 for production, S is a single sample, and K is an evaluation kit. So PW205020002B is a tray of chip-antenna LGA modules, PW205030002B is the through-hole tray, and PW205010002K is the dual u.FL evaluation kit. TAA-compliant options include PW205020002B, PW205010002S and both kits.
Configure & order
Find your PremierWave 2050 part number
Every orderable PremierWave 2050 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
PW205010002B
$101.15
Ships on backorder
PW205020002B
$104.55
Ships on backorder
PW205030002B
$116.81
Ships on backorder
PW205010002S
$103.63
Ships on backorder
PW205020002S
$104.99
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the PremierWave 2050, organized by what it does — evaluation & development kits— each with why you'd add it.
Evaluation & development kits

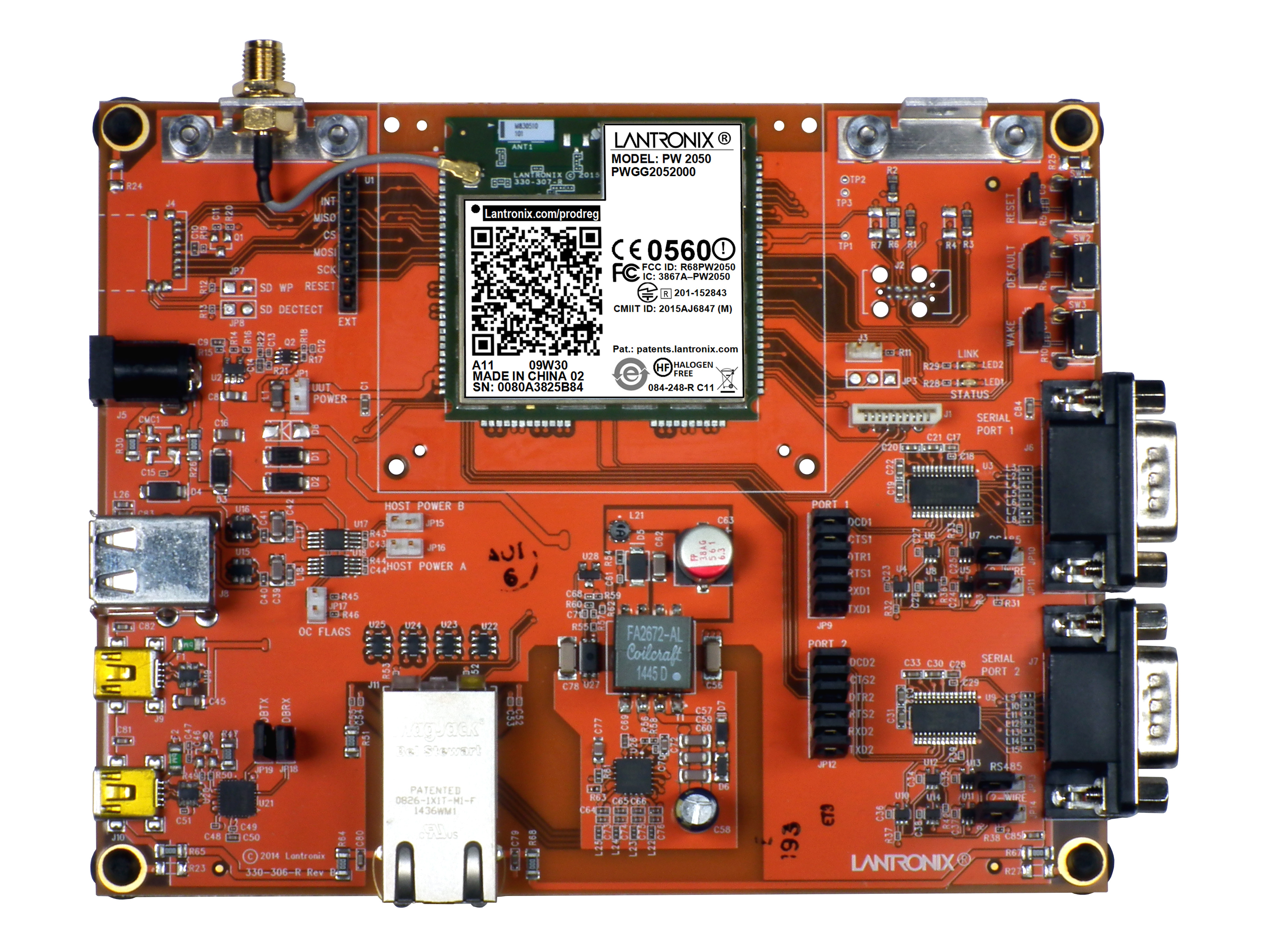

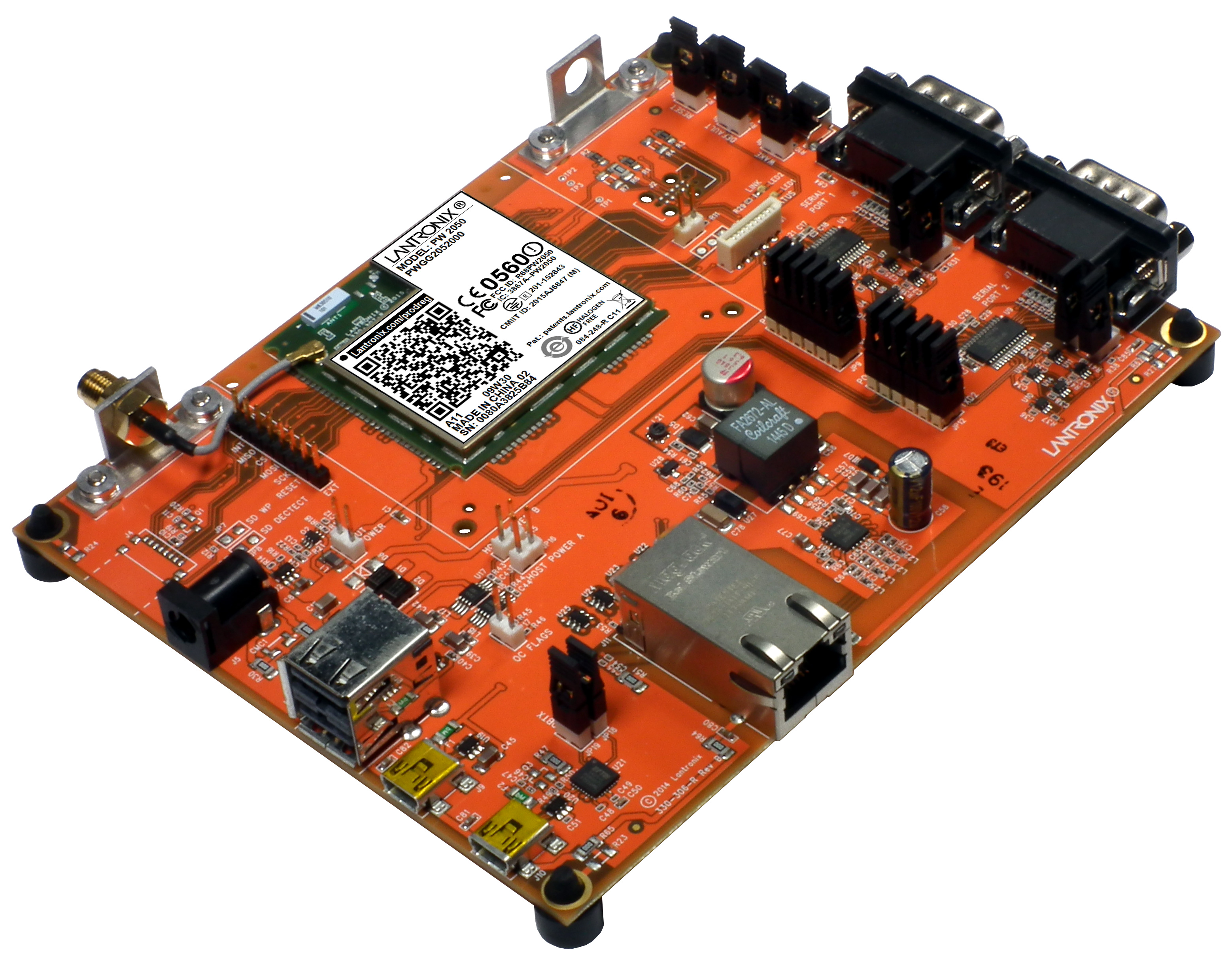

2 itemsPremierWave 2050 Evaluation Kit, Chip Ant
PW205020002K
PremierWave 2050 Evaluation Kit with U.FL and chip antenna, 256M flash and TAA Compliant status.
$269.14
Ships on backorder
PremierWave 2050 Evaluation Kit, Dual u.fl
PW205010002K
PW205010002K is the Lantronix PremierWave 2050 Evaluation Kit in the Dual U.FL ANT, 256M Flash, TAA Compliant configuration.
$274.44
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the PremierWave 2050. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the PremierWave 2050 is used
- Adding 5 GHz Wi-Fi to Ethernet-only industrial controllers
- Wireless links for commercial equipment on enterprise WLANs
- Field setup of devices through the built-in Soft AP
- Sustaining production of existing PremierWave 2050 designs
PremierWave 2050 datasheets & documentation
- PremierWave 2050 Product BriefPDF
- PremierWave 2050 Product Brief (A4)PDF
- PremierWave 2050 – DatasheetPDF
- PremierWave 2050 Evaluation Board – Quick Start Guide Rev BPDF
- PremierWave 2050 Evaluation Kit – User GuidePDF
- PremierWave 2050 Module – User GuidePDF
- Embedded Product Comparison MatrixPDF
- Embedded Product Comparison Matrix – A4PDF
PremierWave 2050 FAQ
Is the PremierWave 2050 discontinued?
Lantronix lists PremierWave 2050 as Last Time Buy, meaning remaining orders should be planned before production ends. The product page does not name a direct successor, so new designs should evaluate current Lantronix Wi-Fi modules separately.
What is the difference between PremierWave 2050 LGA and through-hole parts?
The 10 and 20 variants are LGA surface-mount modules, with dual u.FL connectors or a u.FL plus chip antenna respectively. PW205030002B is a through-hole pin version with dual u.FL connectors for through-hole board designs.
What Wi-Fi speeds does the PremierWave 2050 support?
It supports 1x1 IEEE 802.11ac up to 433 Mbps and 802.11n up to 150 Mbps, with 20, 40 and 80 MHz channels (80 MHz on ac only) across 2.4 GHz channels 1-14 and 5 GHz UNII-1, 2, 2e and 3.
What are the PremierWave 2050 power requirements?
Input voltage is 5 VDC. Typical current is 270 mA average and 500 mA peak, with a typical boot surge of 930 mA, so the supply should be sized for the boot surge.
How many clients can connect to the PremierWave 2050 Soft AP?
The Soft AP interface supports 14 simultaneous client connections and includes a DHCP server, DNS proxy and Wi-Fi Direct. It can run at the same time as client mode on an existing WLAN.
