Lantronix xPico Wi-Fi Embedded Wi-Fi Device Server Modules
xPico Wi-Fi is a family of compact 2.4 GHz 802.11 b/g/n embedded device server modules that add wireless LAN to products with a serial, SPI or USB host interface, without writing drivers on the host microcontroller.
From $31.66
Overview
About the Lantronix xPico Wi-Fi

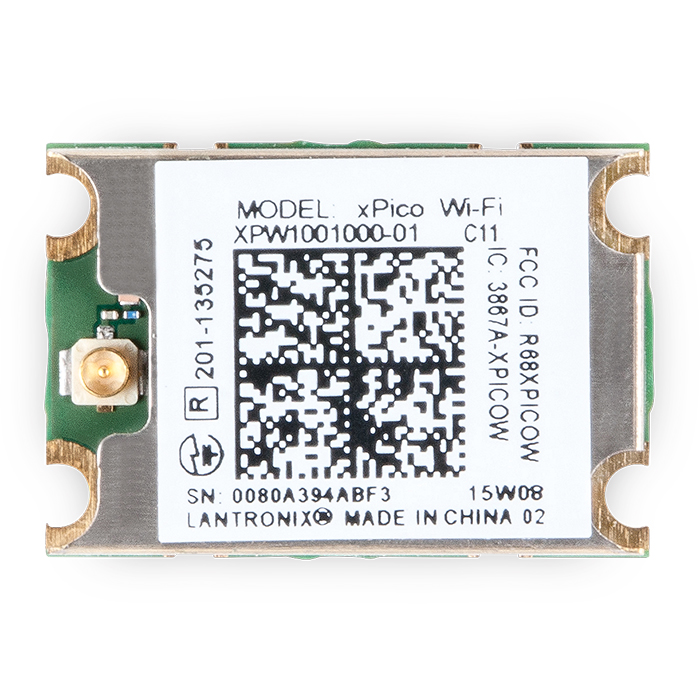

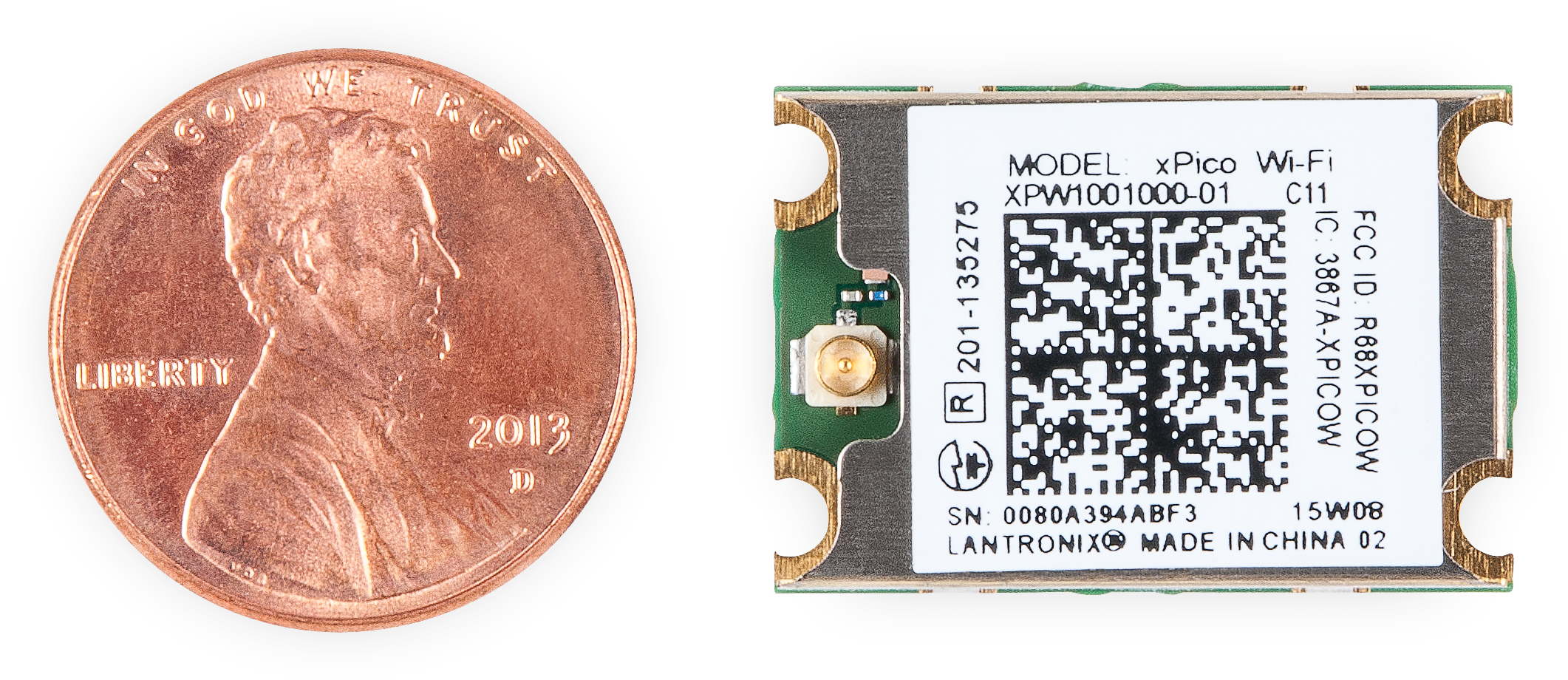

xPico Wi-Fi (also written xPico WiFi) gives OEM designers a complete Wi-Fi device server in a 24 x 16.5 x 5.64 mm module weighing 2.5 g. It is based on the Cypress WICED platform and runs full IP and WLAN stacks on board, so the host microcontroller needs no Wi-Fi drivers. Lantronix calls this zero host load. The module meets FCC Class B, UL and EN EMC requirements, which cuts certification work for the end product.
The radio supports IEEE 802.11 b/g and single-stream 802.11n at 2.4 GHz, with WPA-Personal and WPA2-Personal security. An ARM Cortex M3 class processor with 1 MB flash, 128 KB SRAM and 1 MB SPI flash runs the stack. Host options are two 3.3 V serial CMOS ports at 300 to 921.6 Kbps, SPI, USB 2.0 device and 8 GPIO. It runs from 3.3 VDC, draws about 6 μA in standby and operates from -40 to +85°C.
Simultaneous Soft AP and client mode is the defining feature. A headless product can join the site WLAN while also hosting its own access point with a DHCP server, so installers configure it from a smartphone or browser. Management includes a web landing page, serial CLI, XML configuration import and export, and OTA firmware updates.
Key capabilities
- Simultaneous Soft AP and client
- The module joins an existing access point while also serving its own Soft AP with DHCP, letting users set up headless products from a phone or browser.
- Zero host load
- Full IP and WLAN stacks run on the module, so the connected microcontroller needs no Wi-Fi drivers and integration requires little or no host code.
- Two mounting options

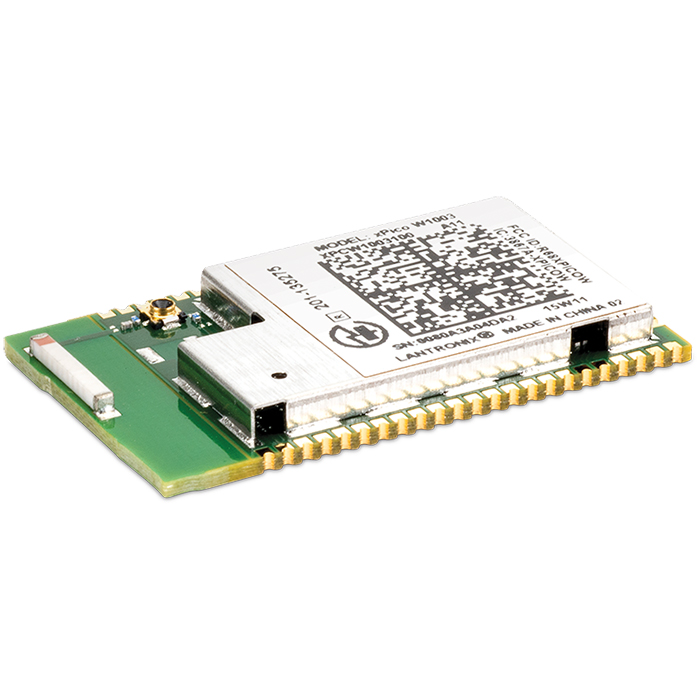

- Choose the original 40-pin board-to-board connector module or the xPico Wi-Fi SMT version for direct surface mounting, with or without an on-module antenna.
- Extended temperature range
- Rated for -40 to +85°C operation and storage. A thermal pad, sold as XPC100A002-01-B, is required for operation above +70°C.
- Low-power 3.3 V design
- The module runs from a 3.3 VDC supply and draws approximately 6 μA in standby, suiting battery-sensitive and always-on IoT designs.
- Pre-certified radio
- FCC Class B, UL and EN EMC and Japan certifications reduce the regulatory testing an OEM product needs before release.
How to choose the right xPico Wi-Fi part number
Pick the form factor first. XPW100100B-01 is the board-to-board connector module in bulk, XPW100100S-01 is a sample and XPW100100K-01 is its evaluation kit. The SMT line splits by antenna: XPCW1002100B uses an external antenna via U.FL, while XPCW1003100B has an on-module antenna (XPCW1003100S is its sample). XPCW1002100K and XPCW1003100K are the matching SMT evaluation kits. TWR-LTRX-XPWK is a Freescale Tower System module. Accessories include the XPC100A001-01-B mounting quick clip, XPC100A002-01-B thermal pad, U.FL antenna cables and antennas.
Configure & order
Find your xPico Wi-Fi part number
Every orderable xPico Wi-Fi configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
XPCW1002100B
$31.66
Ships on backorder
XPCW1003100B
$31.67
Ships on backorder
XPCW1003100S
$34.50
Ships on backorder
XPW100100B-01
$39.53
Ships on backorder
XPW100100S-01
$48.37
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the xPico Wi-Fi, organized by what it does — antennas, cables & adapters, mounting & enclosures, evaluation & development kits, other add-ons— each with why you'd add it.
Antennas
5 itemsCable
ACC-500-0378-00
U.FL to U.FL antenna cable accessory with 254 mm Length (10 inch).
$5.19
Ships on backorder
Cable
500-182-R-ACC
38.10 mm U.FL to R-SMA antenna cable supplied as a 10-pc bulk pack. Etilize data lists compatibility with the Lantronix xPico Wi-Fi SMT Embedded Wireless Device Server.
$34.50
Ships on backorder
Cable
500-180-R-ACC
U.FL to R-SMA antenna cable supplied as a 10-pc bulk pack. Lantronix lists the cable length at 152.40 mm.
$39.50
Ships on backorder
Antenna
XPW100A003-01-B
U.FL to PCB strip antenna accessory with a 50 mm cable. It is specified at 2.5dBi from 2.39 GHz to 2.49 GHz and 5 dBi from 4.9 GHz to 5.9GHz.
$162.50
Ships on backorder
Antenna
930-033-R
External antenna accessory with 2.4 GHZ and 5GHZ operation, 2.15 dBi gain, and an RP-SMA connector. It is listed for the xpico-wi-fi series.
Cables & adapters
2 itemsCable
ACC-500-0390-00
Antenna cable accessory with U.FL to R-SMA connections. It measures 254mm (10 inch) in length.
$5.99
Ships on backorder
Cable
500-181-R-ACC
U.FL to U.FL antenna cable listed at 152.40 mm / 6 inches. It is supplied as a 10-pc bulk pack.
$33.25
Ships on backorder
Mounting & enclosures
1 item
Mounting Quick Clip
XPC100A001-01-B
XPico mounting quick clip SKU supplied as a 50 pc pack. It is listed by Lantronix under the xPico series.
$23.01
Ships on backorder
Evaluation & development kits

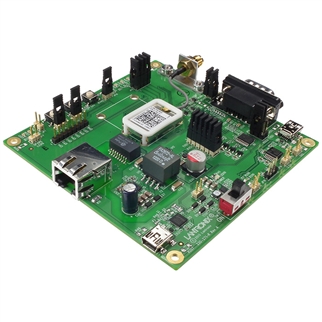

3 itemsxPico Wi-Fi Eval Kit
XPW100100K-01
XPico Wi-Fi Eval Kit for IEEE 802.11 b/g/n device server evaluation with module, RoHS.
$179.24
Ships on backorder
xPico W1002 Wi-Fi SMT Evaluation Kit
XPCW1002100K
XPico Wi-Fi W1002 SMT Evaluation Kit with the module on a carrier board, U.FL and an antenna sample. It supports IEEE 802.11 b/g/n Wi-Fi for xPico Wi-Fi evaluation.
$184.58
Ships on backorder
xPico W1003 Wi-Fi SMT Evaluation Kit
XPCW1003100K
XPico W1003 Wi-Fi SMT Evaluation Kit with an IEEE 802.11 b/g/n module and on-module antenna.
$246.10
Ships on backorder
Other add-ons
2 itemsThermal Pad
XPC100A002-01-B
Thermal Pad accessory for the xPico Wi-Fi series. It is supplied as a 50-pc Bulk Pack.
$23.47
Ships on backorder
xPico Wi-Fi Freescale Tower System Module
TWR-LTRX-XPWK
XPico Wi-Fi Freescale Tower System Module with an xPico Wi-Fi Module; the Freescale Tower System is not included.
Compatibility taken from the Lantronix part-number tables for the xPico Wi-Fi. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the xPico Wi-Fi is used
- Adding Wi-Fi to serial-based industrial equipment and instruments
- Smartphone setup of headless devices via Soft AP
- Battery-sensitive M2M and IoT sensor products
- Wireless retrofits of designs with SPI or USB hosts
- Prototyping on Freescale Tower System hardware
xPico Wi-Fi datasheets & documentation
- xPico Wi-Fi – Product BriefPDF
- xPico Wi-Fi – Product Brief (A4)PDF
- xPico Wi-Fi Freescale Tower System Module – Product BriefPDF
- xPico Wi-Fi Freescale Tower System Module – Product Brief (A4)PDF
- xPico Wi-Fi SMT – Product Brief (A4)PDF
- xPico Wi-Fi SMT Model – Product BriefPDF

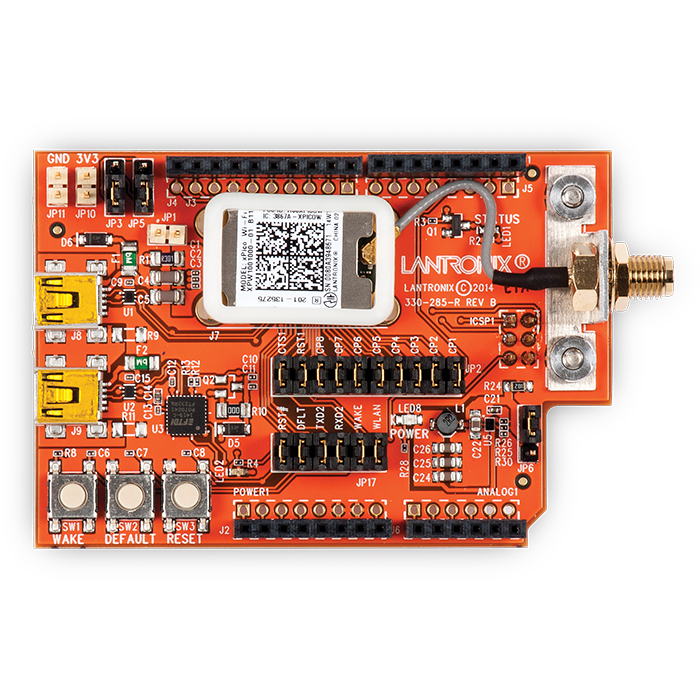

- xPico Wi-Fi Shield – Product BriefPDF
- xPico Wi-Fi Shield – Product Brief (A4)PDF
xPico Wi-Fi FAQ
Does xPico Wi-Fi support 5 GHz?
No. The xPico Wi-Fi module supports IEEE 802.11 b/g and single-stream 802.11n on the 2.4 GHz band only. Some optional antennas in the accessory list cover 2.4 and 5 GHz, but the module radio itself operates at 2.4 GHz.
What is the difference between XPCW1002 and XPCW1003?
Both are xPico Wi-Fi SMT modules with extended temperature ratings. XPCW1002100B connects to an external antenna through U.FL, while XPCW1003100B includes an on-module antenna. Each has its own evaluation kit, XPCW1002100K and XPCW1003100K.
What host interfaces does xPico Wi-Fi support?
The module offers two serial CMOS ports (3.3 V, 5 V tolerant) at 300 to 921.6 Kbps with XON/XOFF or RTS/CTS flow control on port 1, plus SPI, USB 2.0 device and 8 GPIO.
Does the xPico Wi-Fi need a thermal pad?
Only above +70°C. The module is rated from -40 to +85°C, and Lantronix requires a thermal pad for operation over +70°C. The XPC100A002-01-B thermal pad is offered in a 50-piece bulk pack.
What security does xPico Wi-Fi support?
It supports IEEE 802.11i with WPA-Personal and WPA2-Personal, and Lantronix lists 256-bit AES encryption. Configuration is available through a web landing page, serial CLI and XML import and export.
