Lantronix xPico 240 Embedded Wi-Fi and Ethernet IoT Gateway Modules
The xPico 240 is a surface-mount embedded IoT gateway module that gives OEM products dual-band Wi-Fi and 10/100 Ethernet connectivity, either as a network co-processor for an existing microcontroller or as a wireless MCU running its own application.
From $31.24
Overview
About the Lantronix xPico 240
The xPico 240 (part numbers beginning XPC240) lets OEMs add managed Wi-Fi and Ethernet to an industrial product without writing network drivers. It handles the full network stack and connection management, so a host microcontroller simply talks to it over a TTL UART or USB. Concurrent Soft AP plus client mode allows a technician to connect directly to the device for service while it stays on the plant network, which matters for machines that cannot be taken offline.
The radio supports 802.11a/b/g at up to 54 Mbps and 802.11n 1x1 at up to 150 Mbps across 2.4 GHz and 5 GHz, with 802.11r fast roaming and WPA2-Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST). Ethernet is 10Base-T/100Base-TX over RMII. The UART runs from 9600 bps to 4 Mbps, and 12 GPIOs are available. TruPort Serial passes proprietary serial and fieldbus protocols transparently, TruPort Socket manages multiple TCP, UDP or TLS connections, and a Modbus TCP to RTU/ASCII gateway is built in.
InfiniShield security provides secure boot, secure firmware-over-the-air updates, encrypted configuration, secure key storage and role-based access control. The module runs from 3.3 VDC and operates from -40 °C to +85 °C. Deployed devices are managed through the Percepxion cloud platform, REST, MQTT, XML configuration and status records, or the internal HTTPS web server.
Key capabilities
- Co-processor or wireless MCU
- Offload all networking from the host microcontroller, or use the provided SDK to run the application on the xPico 240 itself.
- Dual-band Wi-Fi plus Ethernet
- 802.11a/b/g/n on 2.4 GHz and 5 GHz with 802.11r fast roaming, plus 10/100 Ethernet and an Ethernet-to-Wi-Fi client bridge mode.
- Concurrent Soft AP and client
- Up to 4 simultaneous Soft AP clients in concurrent mode give field technicians direct wireless access without disconnecting the device from its network.
- Industrial temperature and shock
- Rated for -40 °C to +85 °C operation, 40G operational vibration and 65G non-operational shock for equipment in harsh environments.
- Global radio approvals
- Type approvals cover FCC Part 15, IC RSS, EU RED, Japan MIC, China SRRC and AU/NZS, simplifying certification of the end product.
- Built-in Modbus gateway
- Converts Modbus TCP to Modbus RTU or ASCII on the module, alongside TruPort Serial pass-through for proprietary and fieldbus protocols.
How to choose the right xPico 240 part number
The digits after XPC240 set form factor and antenna: XPC240100 is the 17 x 25 x 2 mm LGA module with dual u.FL connectors, XPC240200 is LGA with an on-module antenna, XPC240300 is the 22 x 35.5 mm edge-card version with dual u.FL, and XPC240400 is edge-card with an on-module antenna. The S or B suffix sets packaging: LGA parts come on tape and reel of 25 (XPC240100S-02) or 250 (XPC240100B-02); edge-card parts come singly (XPC240300S-02) or in trays (XPC240300B-02). Start development with the XPC240300EK evaluation kit.
Configure & order
Find your xPico 240 part number
Every orderable xPico 240 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
XPC240100S-02
$34.42
Ships on backorder

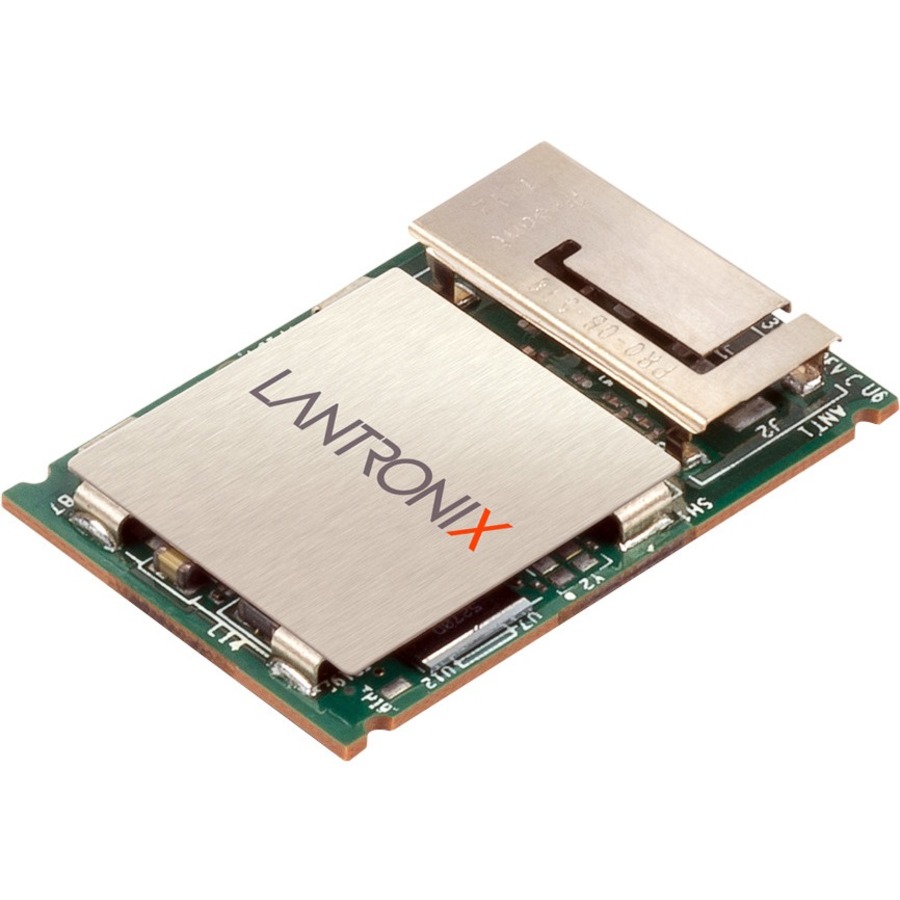

XPC240200S-02
$34.37
Ships on backorder

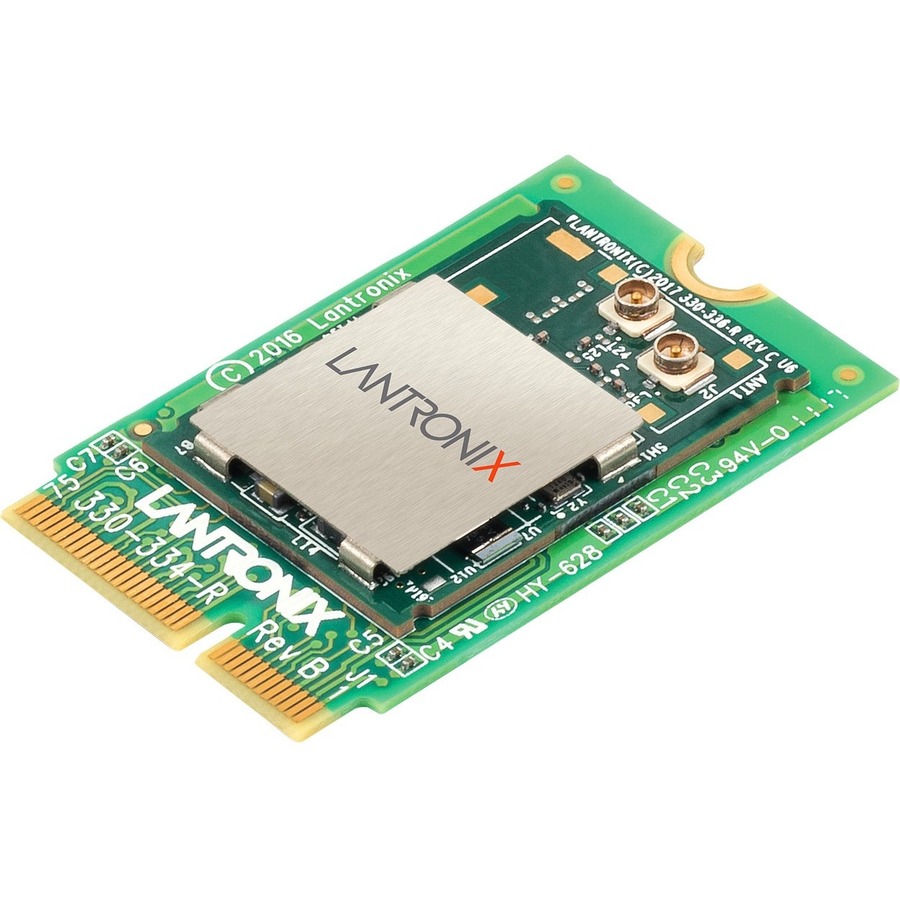

XPC240300S-02
$36.62
Ships on backorder

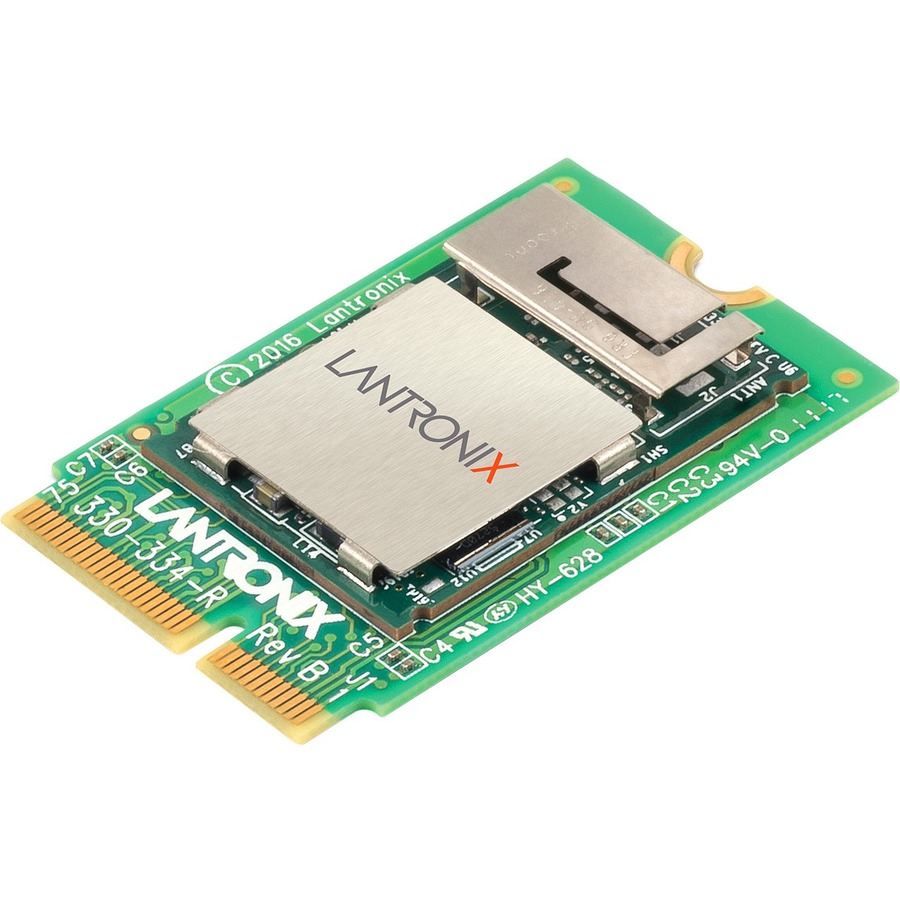

XPC240400S-02
$36.57
Ships on backorder

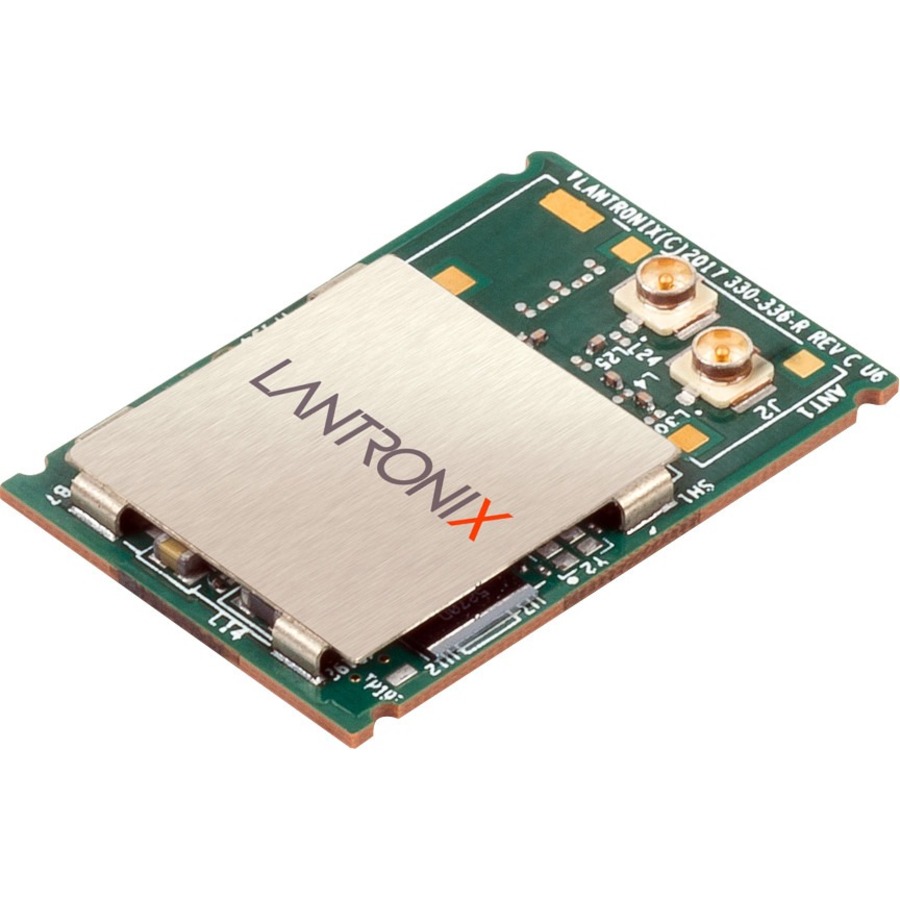

XPC240100B-02
$31.29
Ships on backorder

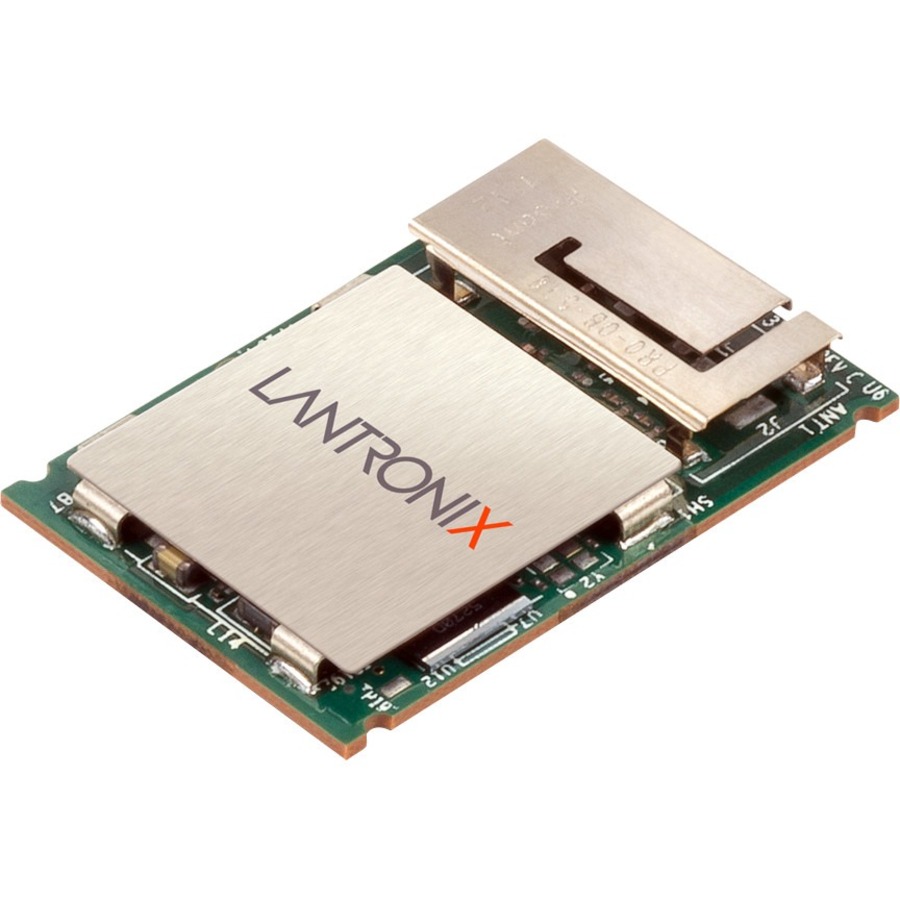

XPC240200B-02
$31.24
Ships on backorder
XPC240300B-02
$33.29
Ships on backorder

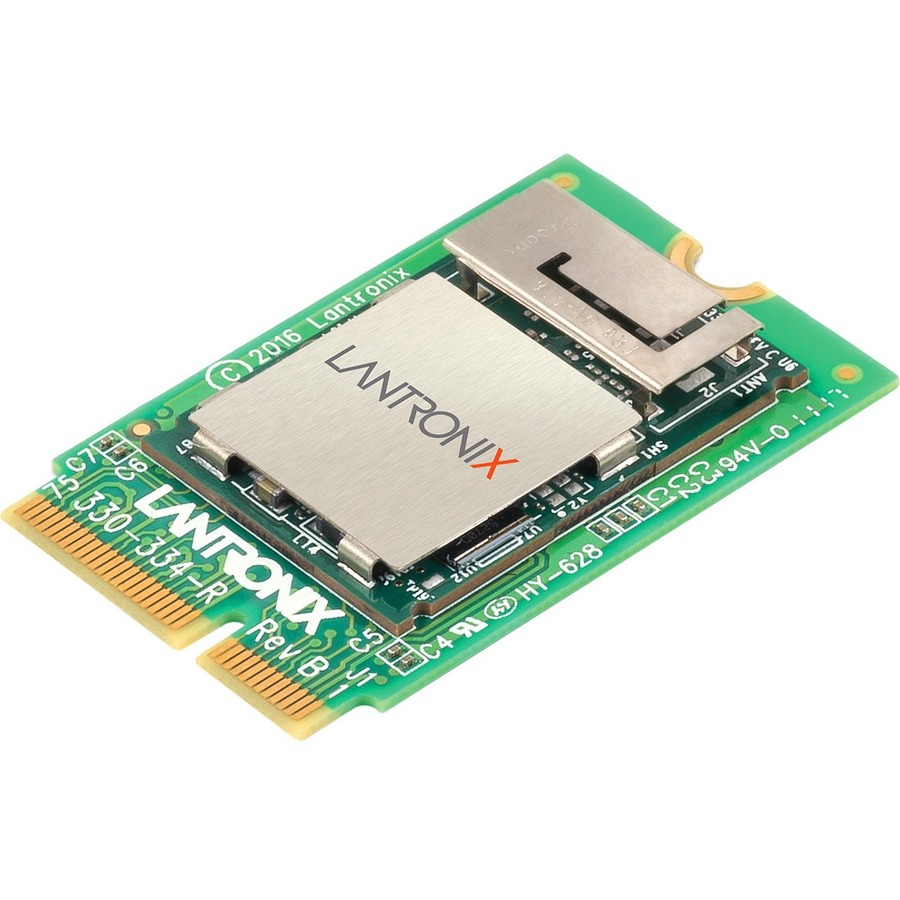

XPC240400B-02
$33.24
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the xPico 240, organized by what it does — antennas, cables & adapters, evaluation & development kits— each with why you'd add it.
Antennas
5 itemsCable
ACC-500-0378-00
U.FL to U.FL antenna cable accessory with 254 mm Length (10 inch).
$5.19
Ships on backorder
Antenna
ACC-930-033-R
Accessory antenna for 2.4 GHz and 5 GHz wireless data networks. It provides 2.15 dBi gain, an RP-SMA connector, and RoHS compliance.
$6.41
Ships on backorder
Cable
500-182-R-ACC
38.10 mm U.FL to R-SMA antenna cable supplied as a 10-pc bulk pack. Etilize data lists compatibility with the Lantronix xPico Wi-Fi SMT Embedded Wireless Device Server.
$34.50
Ships on backorder
Cable
500-180-R-ACC
U.FL to R-SMA antenna cable supplied as a 10-pc bulk pack. Lantronix lists the cable length at 152.40 mm.
$39.50
Ships on backorder
Antenna
XPW100A003-01-B
U.FL to PCB strip antenna accessory with a 50 mm cable. It is specified at 2.5dBi from 2.39 GHz to 2.49 GHz and 5 dBi from 4.9 GHz to 5.9GHz.
$162.50
Ships on backorder
Cables & adapters
2 itemsCable
ACC-500-0390-00
Antenna cable accessory with U.FL to R-SMA connections. It measures 254mm (10 inch) in length.
$5.99
Ships on backorder
Cable
500-181-R-ACC
U.FL to U.FL antenna cable listed at 152.40 mm / 6 inches. It is supplied as a 10-pc bulk pack.
$33.25
Ships on backorder
Evaluation & development kits
3 itemsxPico 240 Evaluation Kit
XPC240300EK
XPico 240 Evaluation Kit for Embedded IoT GW evaluation with dual-band Wi-Fi and Ethernet.
$102.00
Ships on backorder
xPico 250 Evaluation Kit
XPC250300EK
XPico 250 Evaluation Kit for an Embedded IoT GW with dual-band Wi-Fi, Ethernet and Bluetooth 4.2.
$107.00
Ships on backorder
xPico 270 Evaluation Kit
XPC270300EK
XPico 270 Evaluation Kit for Wi-Fi, Bluetooth 4.2 and Ethernet.
$114.00
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the xPico 240. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the xPico 240 is used
- Wireless retail scales sending data to point-of-sale terminals
- Adding Wi-Fi and Ethernet to industrial machine controllers
- Modbus RTU equipment bridged onto Modbus TCP networks
- Field service access to deployed equipment through Soft AP
xPico 240 FAQ
What is the difference between the xPico 240 LGA and edge-card versions?
The LGA version is a 17 x 25 x 2 mm surface-mount module supplied on tape and reel, MSL 3. The edge-card version measures 22 x 35.5 x 2.73 mm and plugs into an edge connector, supplied singly or in trays. Both share the same radio, Ethernet and software.
Which xPico 240 should I choose: u.FL or on-module antenna?
Choose XPC240100 or XPC240300 for dual u.FL connectors when you need external antennas or antenna diversity, for example inside metal enclosures. Choose XPC240200 or XPC240400 for an on-module antenna when the device housing allows the module to radiate directly.
What host interfaces does the xPico 240 provide?
It provides a TTL UART at 9600 bps to 4 Mbps with RTS/CTS and XON/XOFF flow control, USB host, 12 programmable GPIOs, an RMII 10/100 Ethernet interface, and RESET, DEFAULT and WAKE system pins.
What power does the xPico 240 require?
It runs from a single 3.3 VDC supply, with a maximum boot peak current of 580 mA and a standby current of 30 µA, so the host board's regulator should be sized for the boot peak rather than average draw.
Is there an evaluation kit for the xPico 240?
Yes. The XPC240300EK evaluation kit supports dual-band Wi-Fi and Ethernet development. Lantronix also lists XPC250300EK and XPC270300EK kits for the related xPico 250 and xPico 270, which add Bluetooth 4.2.
