Lantronix xPico 250 Embedded Wi-Fi and Bluetooth IoT Gateway
A compact embedded IoT gateway module that gives OEM devices dual-band 802.11n Wi-Fi, dual-mode Bluetooth 4.2 and 10/100 Ethernet, rated -40°C to +85°C and offered as LGA or edge card.
From $34.33
Overview
About the Lantronix xPico 250
The xPico 250 (also written xPico250; part numbers start with XPC250) lets OEMs add managed Wi-Fi, Bluetooth and Ethernet to an industrial or medical product without developing their own wireless stack. It runs either as a network co-processor that offloads all IoT communications from the host microcontroller, or as a wireless microcontroller programmed with the provided SDK. Lantronix cites a point-of-care medical instrument as one design built on it.
Wi-Fi supports 802.11a/b/g up to 54 Mbps and 802.11n (1x1) up to 150 Mbps on 2.4 and 5 GHz, with 20 and 40 MHz channels, antenna diversity, Bluetooth/WLAN coexistence and 802.11r fast roaming. Bluetooth 4.2 covers BR/EDR and Bluetooth LE with GAP, GATT and SPP. The host side offers a TTL UART up to 4 Mbps, USB host and 12 GPIOs, plus 10/100 Ethernet over RMII. TruPort Serial and TruPort Socket handle serial pass-through and multi-connection TCP, UDP or TLS traffic, and concurrent Soft AP plus client mode supports up to 4 Soft AP clients.
InfiniShield adds secure boot, secure FOTA, encrypted configuration and role-based access control. Management runs through Percepxion, REST, MQTT, XML or the built-in web server, and a reference SDK module supports Microsoft Azure integration. Listed type approvals include FCC, IC, EU RED, Japan MIC, China SRRC and AU/NZS.
Key capabilities
- Dual-band 802.11n
- 802.11a/b/g/n on 2.4 and 5 GHz up to 150 Mbps, with antenna diversity and Bluetooth/WLAN coexistence for noisy industrial settings.
- Bluetooth 4.2 dual mode
- Classic BR/EDR and Bluetooth LE in central and peripheral roles, with GAP, GATT, Device ID and Serial Port Profile support.
- Co-processor or MCU
- Offload all networking from the host over UART, or run application code on the module itself using the Lantronix SDK.
- Global approvals
- Type approvals for USA FCC, Canada IC, EU RED, Japan MIC, China SRRC and AU/NZS, plus RoHS and REACH.
- Industrial temperature
- Operates from -40°C to +85°C and stores to +100°C, rated for 40G operational vibration and 65G shock.
- Secure by design
- InfiniShield secure boot and FOTA, TLS 1.2 with X.509 certificates up to 4096-bit keys, and WPA2 Enterprise authentication.
How to choose the right xPico 250 part number
All xPico 250 modules carry the -02 revision suffix. The digit after XPC250 sets form factor: 1 is the 17 x 25 mm LGA solder-down module, 3 is the 22 x 35.5 mm edge-connector card. The letter before -02 sets packaging. XPC250100B-02 ships on a 250-piece tape and reel and XPC250100S-02 on a 25-piece reel; XPC250300B-02 is the edge card in trays and XPC250300S-02 is a single edge card. The XPC250300EK evaluation kit is the starting point for firmware and RF testing.
Configure & order
Find your xPico 250 part number
Every orderable xPico 250 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
XPC250100S-02
$37.77
Ships on backorder

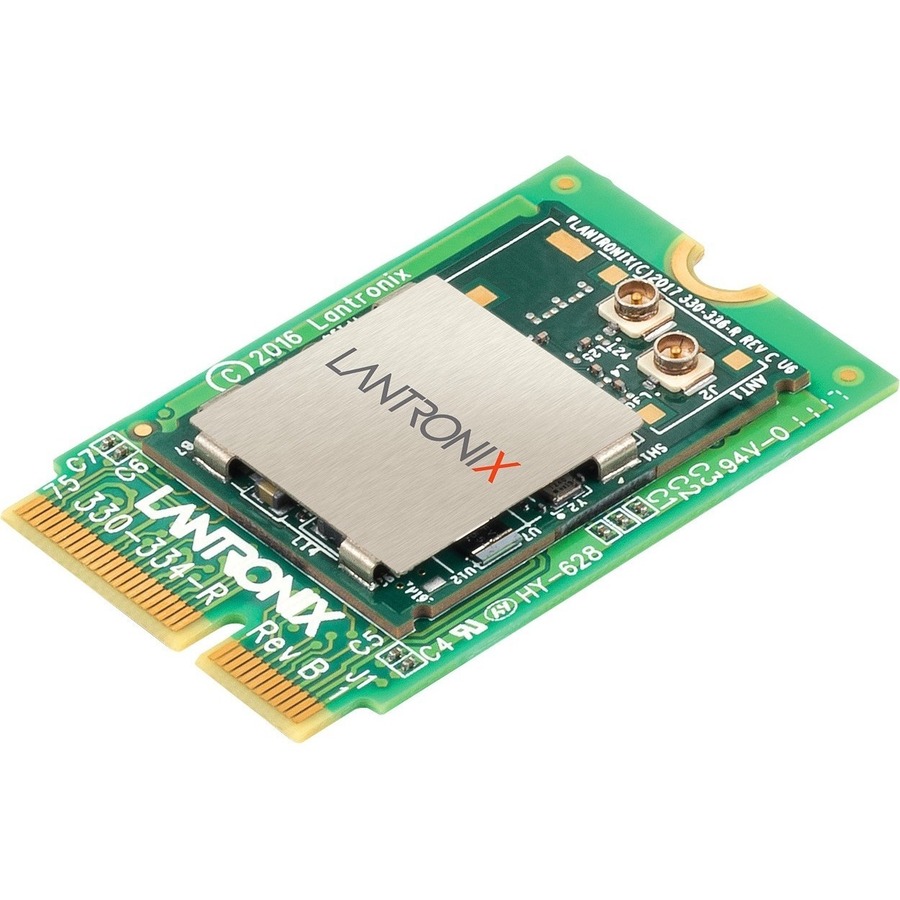

XPC250300S-02
$39.87
Ships on backorder

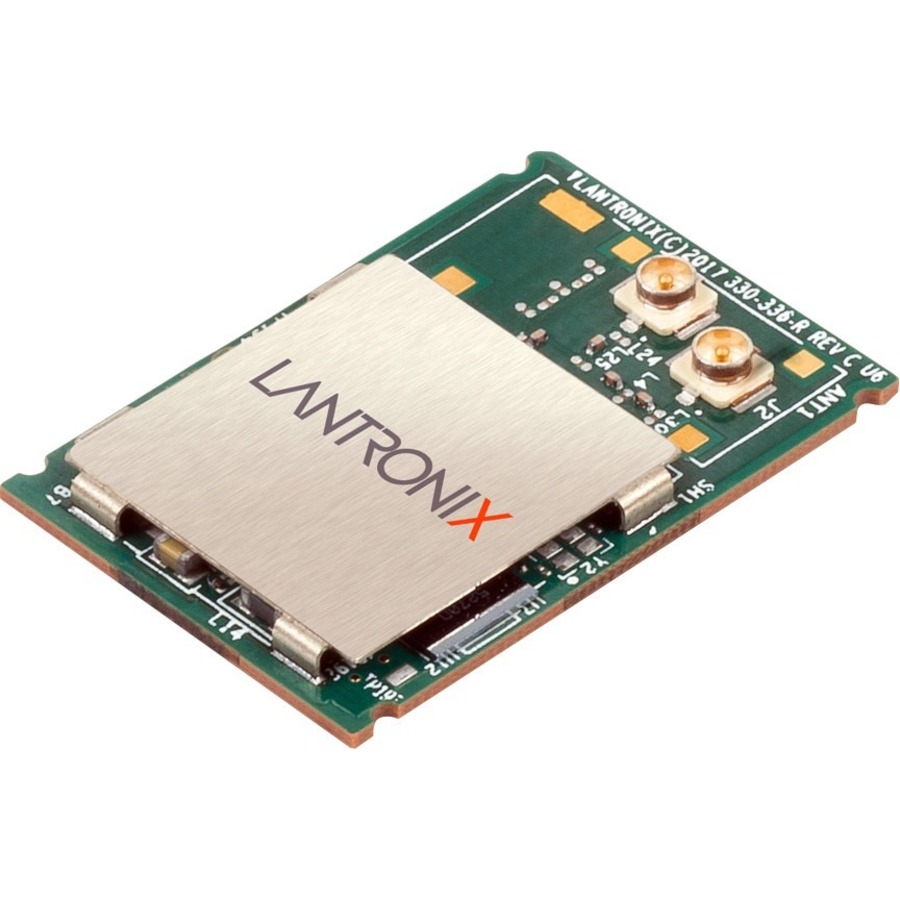

XPC250100B-02
$34.33
Ships on backorder
XPC250300B-02
$36.24
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the xPico 250, organized by what it does — antennas, cables & adapters, evaluation & development kits— each with why you'd add it.
Antennas
5 itemsCable
ACC-500-0378-00
U.FL to U.FL antenna cable accessory with 254 mm Length (10 inch).
$5.07
Ships on backorder
Antenna
ACC-930-033-R
Accessory antenna for 2.4 GHz and 5 GHz wireless data networks. It provides 2.15 dBi gain, an RP-SMA connector, and RoHS compliance.
$6.27
Ships on backorder
Cable
500-182-R-ACC
38.10 mm U.FL to R-SMA antenna cable supplied as a 10-pc bulk pack. Etilize data lists compatibility with the Lantronix xPico Wi-Fi SMT Embedded Wireless Device Server.
$33.73
Ships on backorder
Cable
500-180-R-ACC
U.FL to R-SMA antenna cable supplied as a 10-pc bulk pack. Lantronix lists the cable length at 152.40 mm.
$38.62
Ships on backorder
Antenna
XPW100A003-01-B
U.FL to PCB strip antenna accessory with a 50 mm cable. It is specified at 2.5dBi from 2.39 GHz to 2.49 GHz and 5 dBi from 4.9 GHz to 5.9GHz.
$158.85
Ships on backorder
Cables & adapters
2 itemsCable
ACC-500-0390-00
Antenna cable accessory with U.FL to R-SMA connections. It measures 254mm (10 inch) in length.
$5.85
Ships on backorder
Cable
500-181-R-ACC
U.FL to U.FL antenna cable listed at 152.40 mm / 6 inches. It is supplied as a 10-pc bulk pack.
$32.50
Ships on backorder
Evaluation & development kits
3 itemsxPico 240 Evaluation Kit
XPC240300EK
XPico 240 Evaluation Kit for Embedded IoT GW evaluation with dual-band Wi-Fi and Ethernet.
$99.71
Ships on backorder
xPico 250 Evaluation Kit
XPC250300EK
XPico 250 Evaluation Kit for an Embedded IoT GW with dual-band Wi-Fi, Ethernet and Bluetooth 4.2.
$104.59
Ships on backorder
xPico 270 Evaluation Kit
XPC270300EK
XPico 270 Evaluation Kit for Wi-Fi, Bluetooth 4.2 and Ethernet.
$111.44
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the xPico 250. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the xPico 250 is used
- Point-of-care medical instruments needing secure Wi-Fi
- Retrofitting serial equipment with Wi-Fi and Bluetooth
- Bluetooth LE commissioning of field devices from phones
- Azure-connected industrial products using the reference SDK
xPico 250 FAQ
What Wi-Fi standards does the xPico 250 support?
IEEE 802.11a/b/g up to 54 Mbps and 802.11n (1x1) up to 150 Mbps on 2.4 and 5 GHz, with 20 and 40 MHz channels, 802.11d/h/i and 802.11r fast roaming. For 802.11ac, Lantronix offers the xPico 270.
What is the difference between the LGA and edge connector xPico 250?
Part numbers starting XPC2501 are the 17 x 25 x 2 mm LGA surface-mount module on tape and reel. XPC2503 parts are the 22 x 35.5 x 2.73 mm edge-connector card supplied in trays or as singles.
Can the xPico 250 act as a Soft AP and client at the same time?
Yes. Concurrent Soft AP plus client mode allows direct wireless access for service tools while staying connected to the site network. The Soft AP accepts up to 5 clients, or up to 4 in concurrent mode.
What voltage does the xPico 250 need?
3.3 VDC input, with a maximum boot-peak current of 600 mA. The same supply requirement applies to the LGA and edge-connector versions, and the module operates from -40°C to +85°C.
How is the xPico 250 managed remotely?
Through the Lantronix Percepxion cloud platform, which provides remote updates and device management, or via REST, MQTT, XML configuration and the internal HTTP/HTTPS web server.
