Lantronix S2220 Series Remotely Managed Fast Ethernet NIDs
The ION S2220 Series are stand-alone, remotely managed network interface devices that convert 10/100/1000 copper to 100 Mbps fiber at the customer edge, with OAM, VLAN and QoS tools for delivering Ethernet services.
Overview
About the Lantronix S2220 Series

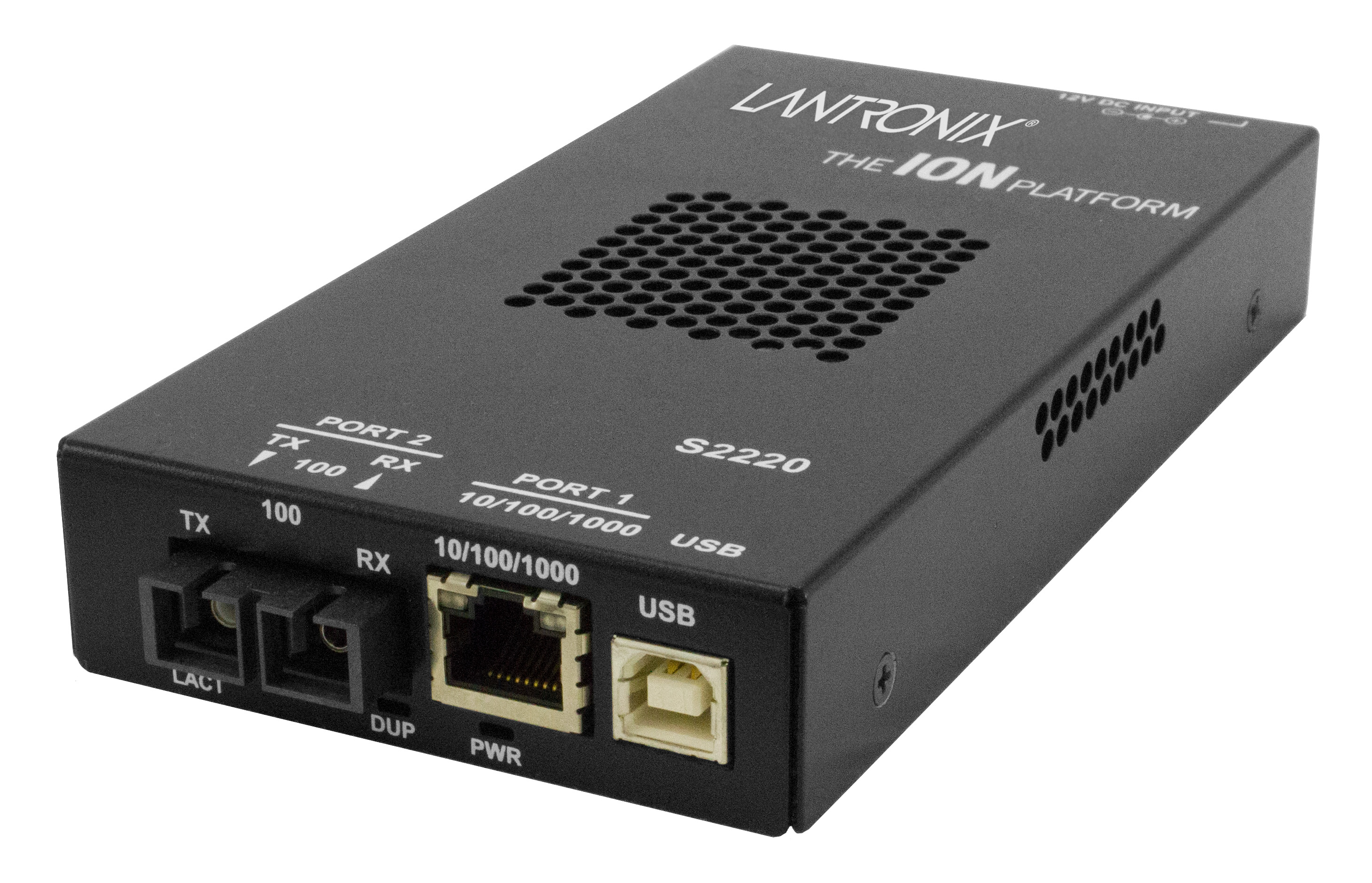

The S2220 (often listed as ION S2220) is more than a media converter. It is a managed network interface device (NID) that sits at the demarcation point between a service provider or campus fiber link and the customer's copper equipment, so the operator can monitor and control the link remotely. It suits business Ethernet services and mobile backhaul, where proving link health without a truck roll matters.
Each unit connects a 10/100/1000Base-T RJ-45 port to a 100 Mbps fiber port. It is MEF 9, 14 and 21 certified and supports IEEE 802.3ah Link OAM with remote loopback, 802.1Q VLAN and double tagging with 4096 VIDs, 802.1p, DiffServ and IPv6 QoS classification, bandwidth profiling, RMON counters, copper cable diagnostics and DMI optical monitoring. Frames up to 10,240 bytes are supported. Security options include SSH, RADIUS and SNMPv3.
Two remote management modes are selectable: IP-based management of the S2220 itself through web, CLI, Telnet, SSH, SNMP or Focal Point, or in-band management over the fiber when it is linked to a C2220 card in a managed ION chassis. A USB port handles basic setup, and firmware is field upgradeable over TFTP.
Key capabilities
- Two remote management modes
- Manage each S2220 by its own IP address, or in-band over the fiber from a C2220 card in a managed ION chassis at the other end.
- MEF certified with OAM
- MEF 9, 14 and 21 certification plus IEEE 802.3ah Link OAM and remote loopback support link monitoring and fault isolation on delivered Ethernet services.
- VLAN and QoS controls
- 802.1Q VLAN with double tagging, 802.1p, IPv4 TOS, DiffServ and IPv6 traffic class classification, plus bandwidth profiling, shape customer traffic.
- Link diagnostics
- DMI optical monitoring, copper cable diagnostics, RMON counters and Far-End Fault help pinpoint whether a problem sits in fiber, copper or the device.
- Secure management access
- SSH, SSL web management, SNMP v1, v2c and v3, RADIUS client and a management VLAN protect access to the NID.
How to choose the right S2220 Series part number

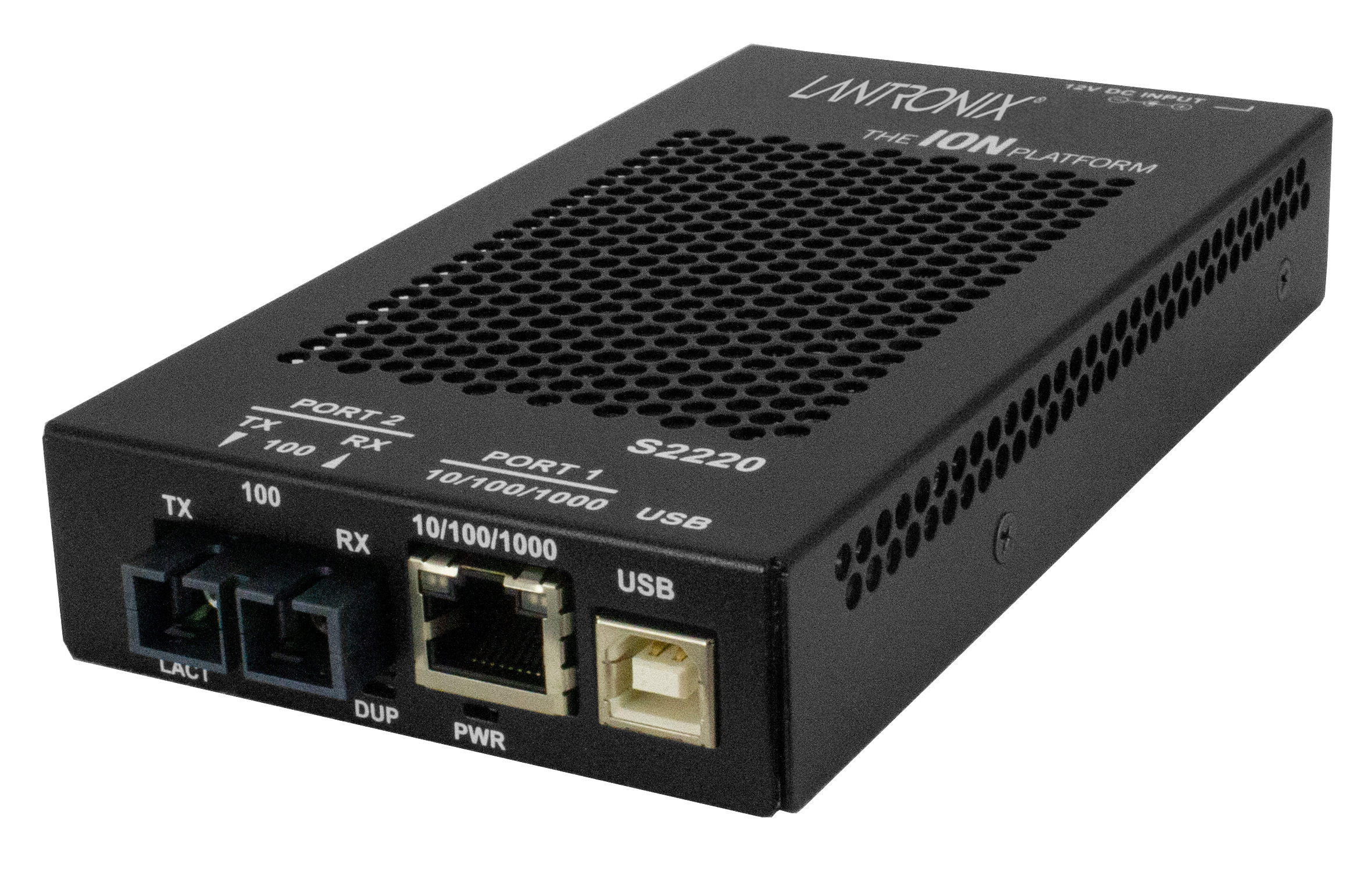

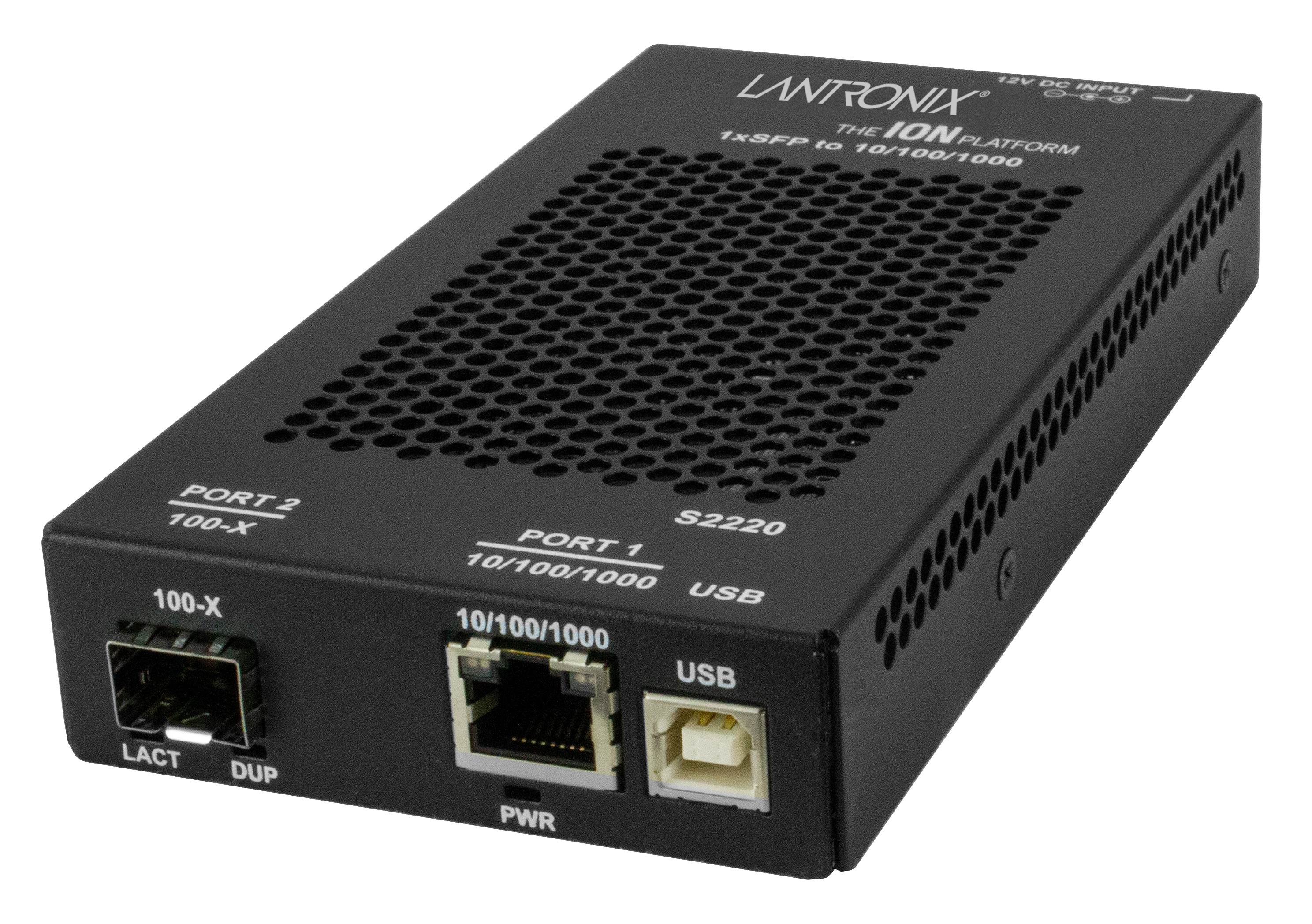

The two S2220 models share the managed NID feature set and 10/100/1000Base-T copper port; they differ on the fiber side. S2220-1014 has a fixed 1310 nm single-mode SC fiber port reaching 10 km with a 16.0 dB link budget. S2220-1040 has an empty 100Base-X SFP slot, so the installed SFP sets fiber type, wavelength and distance. Choose the 1014 for standard single-mode SC runs up to 10 km, and the 1040 when you need a different connector or reach.
Configure & order
Find your S2220 Series part number
Every orderable S2220 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the S2220 Series, organized by what it does — mounting & enclosures, chassis & shelves — each with why you'd add it.
Mounting & enclosures
1 item
Chassis & shelves
2 items
WMBD
WMBD
5″ [127 mm] DIN Rail Mount Bracket for all Stand-Alone Converters and 1- or 2-Slot ION Chassis.
RMS19-SA4-02
RMS19-SA4-02
19-inch, 1U rack-mount shelf for up to 4 stand-alone media converters. It includes 4 converter mounting brackets and 3 slot blanks.
Compatibility taken from the Lantronix part-number tables for the S2220 Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the S2220 Series is used
- Customer demarcation for business Ethernet services
- Mobile backhaul links needing OAM and loopback testing
- Remote CPE managed in-band from a central ION chassis
- Fiber-to-the-desk links with VLAN and QoS control
S2220 Series datasheets & documentation
- Product BriefPDF
- ION Media Conversion PlatformPDF
- C2220, S2220, C3220, S3220 Series User Guide Rev KPDF
- Fiber-to-the-Desk Application NotePDF
- Configure VLAN 100 with Provider S-Tag (PDF 1.40 MB)PDF
- Configure VLAN C-Tags and T-TagsPDF
- C2220, S2220, C3220, S3220, C3230, S3230 Series Installation Guide Rev DPDF
- C2220, S2220, C3220, S3220 Series CLI Reference Guide Rev HPDF
S2220 Series FAQ
What is the difference between a media converter and the S2220 NID?
A basic media converter only translates copper to fiber. The S2220 is a managed network interface device: it adds IEEE 802.3ah Link OAM, remote loopback, VLAN tagging, QoS, bandwidth profiling and remote IP or in-band management so operators can monitor and control the link.
How far can the S2220-1014 transmit?
The S2220-1014 uses 1310 nm single-mode fiber with an SC connector and reaches up to 10 km with a 16.0 dB link budget. The S2220-1040 distance depends on the SFP module installed in its open 100Base-X slot.
Can the S2220 be managed from an ION chassis?
Yes. In in-band mode, the S2220 is managed over the fiber by its local peer when linked to a C2220 card installed in a managed ION chassis. Alternatively, it can be managed individually through its own IP address.
How is the S2220 powered and what is its operating range?
The S2220 uses an external supply with 100-240 VAC, 1 A input and 12 VDC, 1.25 A output. It operates from 0 to 50 C at 5% to 90% non-condensing humidity, and mounts with WMBL, WMBD or the RMS19-SA4-02 shelf.
