Lantronix S3100-4040 Stand-Alone Fiber-to-Fiber Media Converter
The S3100-4040 is a stand-alone, protocol-transparent fiber-to-fiber media converter with two open SFP slots, supporting 100 Mbps to 2.5 Gbps for multimode to single-mode conversion, fiber repeating and CWDM wavelength conversion.
Overview
About the Lantronix S3100-4040

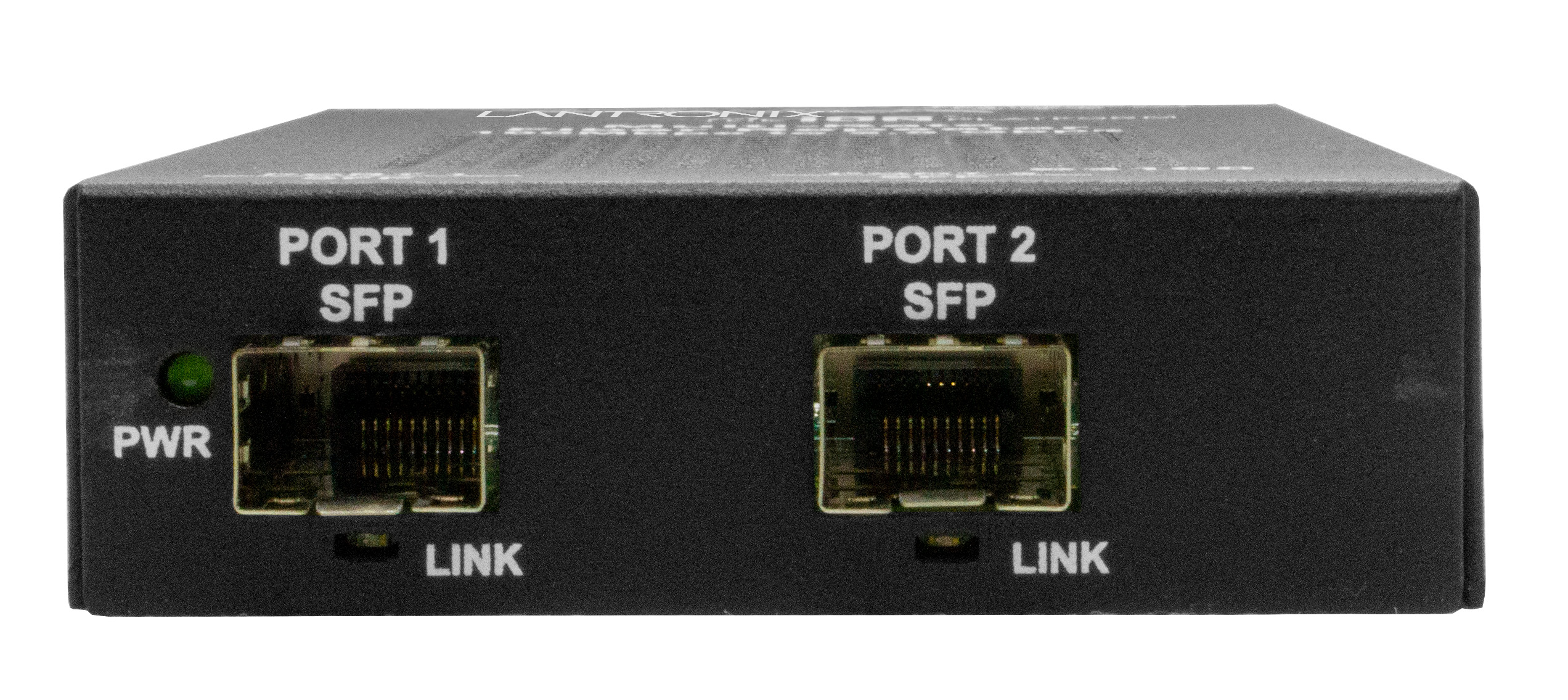

The ION S3100 (also written S3100 4040) solves fiber mismatches rather than copper-to-fiber conversion. Put a multimode SFP in one slot and a single-mode SFP in the other, and a multimode device can reach a single-mode backbone. Use two long-reach SFPs and it works as a repeater to extend a link. Fit a CWDM SFP on one side and it acts as a transponder, moving a standard optical signal onto a specific CWDM wavelength.
The converter is protocol independent and works at any rate from 100 Mbps to 2.5 Gbps, with both slots running at the same rate. Supported protocols include Fast Ethernet, Gigabit Ethernet, SONET OC-3/12/48, 1G and 2G Fibre Channel, 2.5G InfiniBand, FDDI and ESCON/SBCON. Link Pass Through and Automatic Link Restoration handle fault propagation, and jumbo frames up to 16,384 bytes pass through.

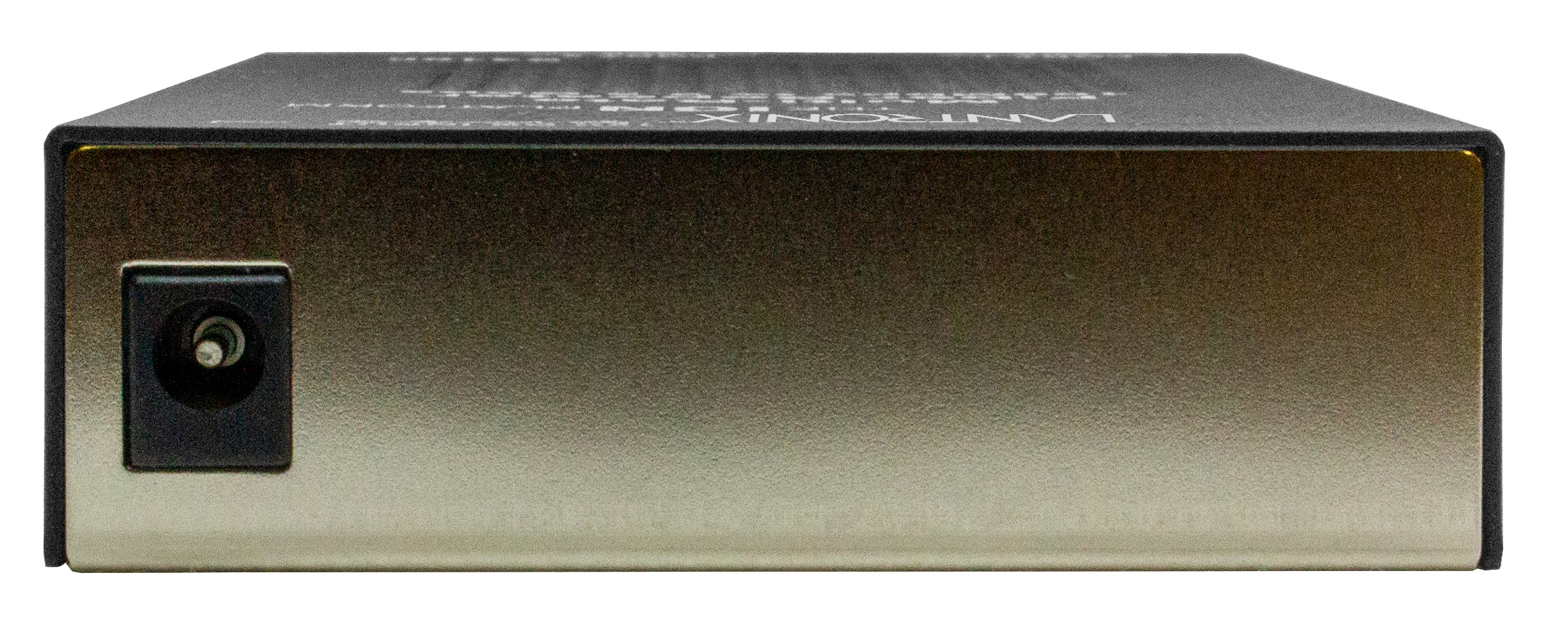

The unit draws 1.05 W plus the SFP modules, from an external 12 VDC adapter with 120-240 VAC input, and operates from 0°C to 50°C. Lantronix lists it as NDAA and TAA compliant. Web and CLI user guides are shared with the C3100-4040 chassis version.
Key capabilities
- Multimode to single-mode
- Pair a multimode SFP with a single-mode SFP to connect equipment with multimode optics to a single-mode fiber run.
- Protocol transparent
- Carries Ethernet, SONET OC-3/12/48, Fibre Channel, InfiniBand, FDDI and ESCON/SBCON at any rate from 100 Mbps to 2.5 Gbps.
- CWDM transponder
- With a CWDM SFP in one slot, the converter maps a standard optical signal onto a specific CWDM wavelength.
- Fiber repeater
- Two SFPs back to back regenerate the signal, extending fiber links beyond the reach of a single optic pair.
- NDAA and TAA compliant
- Lantronix certifies the S3100-4040 as NDAA and TAA compliant, alongside FCC Class A, EN55022, EN55024 and CE marking.
How to choose the right S3100-4040 part number
S3100-4040 is the only converter part number: one stand-alone unit with two empty SFP slots. Order two SFP modules at the same data rate, chosen for each fiber segment, for example a multimode SFP and a single-mode SFP. Mounting accessories are optional: WMBL wall bracket, WMBD DIN-rail bracket, RMS19-SA4-02 4-slot shelf and E-MCR-05 12-slot rack. For chassis installs, the C3100-4040 module shares its user guides.
Configure & order
Find your S3100-4040 part number
Every orderable S3100-4040 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
S3100-4040
100 Mbps · SFP (open slot) · Set by the SFP module · Set by the SFP module
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the S3100-4040, organized by what it does — mounting & enclosures, chassis & shelves — each with why you'd add it.
Mounting & enclosures
1 item
Chassis & shelves
3 items
WMBD
WMBD
5″ [127 mm] DIN Rail Mount Bracket for all Stand-Alone Converters and 1- or 2-Slot ION Chassis.
RMS19-SA4-02
RMS19-SA4-02
19-inch, 1U rack-mount shelf for up to 4 stand-alone media converters. It includes 4 converter mounting brackets and 3 slot blanks.
E-MCR-05
E-MCR-05
19” rack-mountable 12-slot media converter rack. It supports up to twelve Lantronix stand-alone media converters in a single chassis.
Compatibility taken from the Lantronix part-number tables for the S3100-4040. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the S3100-4040 is used
- Connecting multimode equipment to single-mode backbones
- Extending fiber links as an SFP-to-SFP repeater
- Mapping signals onto CWDM wavelengths
- Fibre Channel or SONET OC-48 fiber type conversion
- Government networks requiring NDAA and TAA compliant hardware
S3100-4040 FAQ
What data rates does the S3100-4040 support?
Any rate from 100 Mbps to 2.5 Gbps. It is an any-rate to same-rate converter, so both SFP modules must run at the same data rate, for example two Gigabit Ethernet SFPs or two OC-48 SFPs.
Can the S3100-4040 convert multimode to single-mode fiber?
Yes. Lantronix positions it for single-mode to multimode fiber conversion. Install a multimode SFP in one slot and a single-mode SFP in the other, matching the data rate on both sides.
Does the S3100-4040 include SFP modules?
No. Both SFP slots are open, so you select MSA-compliant modules for each fiber segment. Power consumption is 1.05 W plus whatever the installed SFP modules draw.
Which protocols pass through the S3100-4040?
It is protocol transparent, so it does not inspect or alter traffic. Lantronix lists Fast Ethernet, Gigabit Ethernet, SONET OC-3/12/48, 1 and 2 Gig Fibre Channel, 2.5G InfiniBand, FDDI and ESCON/SBCON as supported protocols.
