Lantronix S3230 Series Service OAM Gigabit Ethernet NIDs
The S3230 Series is a stand-alone multi-service Network Interface Device for providers that must prove SLAs, adding IEEE 802.1ag Service OAM and ITU Y.1731 performance monitoring to Gigabit copper-to-fiber demarcation.
Overview
About the Lantronix S3230 Series
The S3230 (Lantronix ION S3230) sits at the customer handoff of a business Ethernet or mobile backhaul circuit and gives the provider end-to-end visibility of the service, not just the physical link. Where Link OAM only checks a single fiber span, IEEE 802.1ag Service OAM and ITU Y.1731 measure connectivity and performance across the whole Ethernet service, which is what SLA reporting and advanced fault management require.
It also carries the full managed NID toolkit: MEF 9, 14 and 21 certification, IEEE 802.3ah Link OAM, remote loopback, Far-End-Fault, 802.1Q VLANs with double tagging across 4096 VIDs, 802.1p, DiffServ and IPv6 traffic class QoS, bandwidth profiling and 10,240-byte frames. The fiber side uses empty 100/1000Base-X SFP slots, and DMI optical management reads SFP diagnostics.
The S3230 is managed on its own IP address or in-band over the fiber from a C3230 card in a managed ION chassis. Interfaces include web, CLI, SSH, SNMP v1/v2c/v3, Focal Point and USB for initial setup. The 82 x 165 x 25 mm unit runs from 100-240 VAC and operates from 0°C to 50°C.
Key capabilities
- 802.1ag Service OAM
- Connectivity fault management across the whole Ethernet service lets providers locate faults beyond the local fiber span.
- Y.1731 performance monitoring
- ITU Y.1731 measurements give providers the service performance data needed for SLA assurance on business Ethernet circuits.
- Link OAM included
- IEEE 802.3ah Link OAM, remote loopback and Far-End-Fault still cover first-mile link testing alongside Service OAM.
- Managed from a C3230 card
- In-band management from a C3230 in an ION chassis controls the remote unit over the fiber without a local IP connection.
- MEF certified
- MEF 9, 14 and 21 certification supports standards-based business Ethernet and mobile backhaul service delivery.
How to choose the right S3230 Series part number

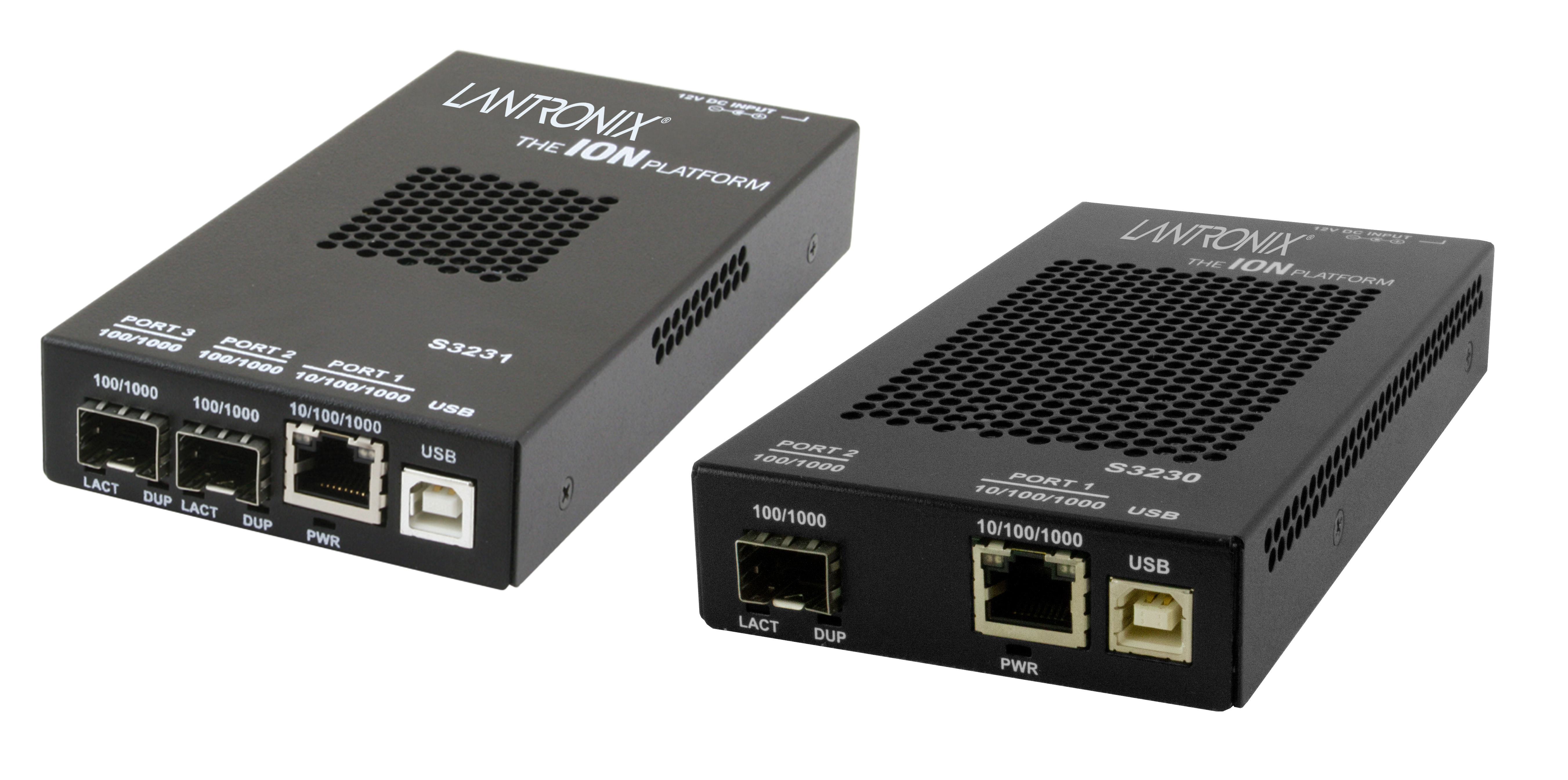

Both S3230 models have one 10/100/1000Base-T RJ-45 port and use empty 100/1000Base-X SFP slots on the fiber side, so reach and fiber type depend on the SFP you install. S3230-1040 has one SFP slot for a single fiber uplink. S3231-1040 has two SFP slots for a second fiber connection. Order SFP modules separately, and mount the unit with a WMBL wall bracket or in the RMS19-SA4-02 4-slot rack shelf.
Configure & order
Find your S3230 Series part number
Every orderable S3230 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.

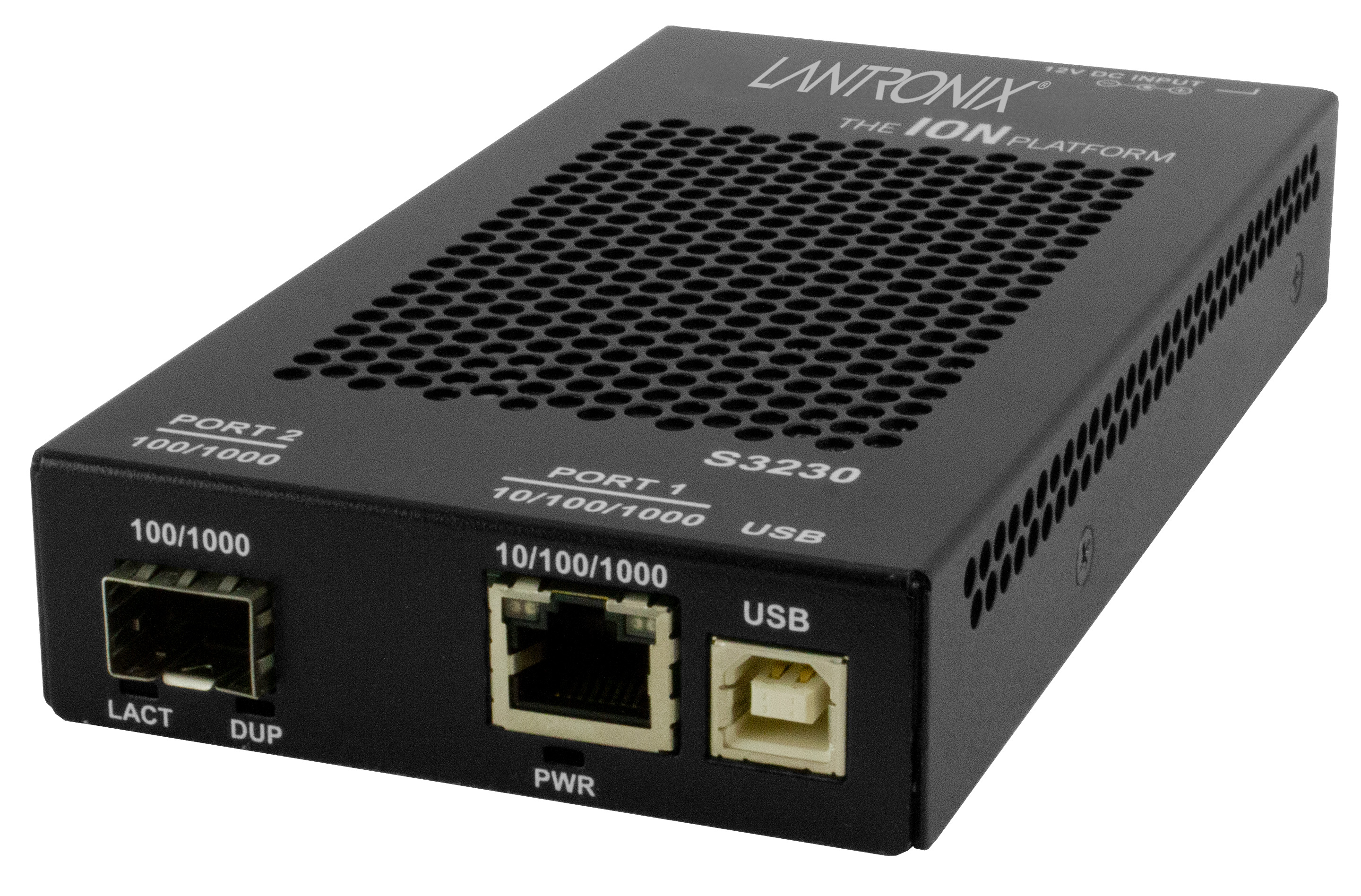

S3230-1040

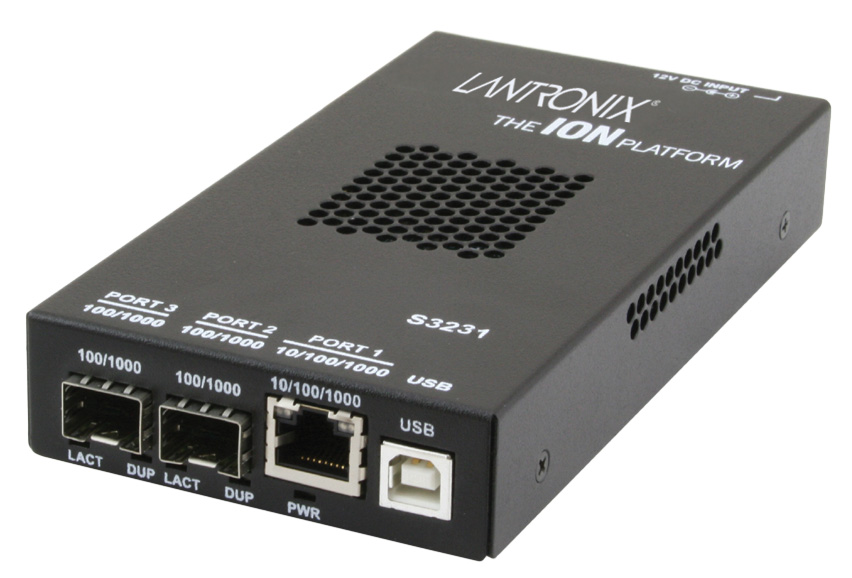

S3231-1040
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the S3230 Series, organized by what it does — mounting & enclosures, chassis & shelves— each with why you'd add it.
Mounting & enclosures
1 item
WMBL
WMBL
4″ [102 mm] wall-mount bracket kit for stand-alone converters size 4.8″ [122 mm] and 6.5″ [165 mm]. It is listed as a compatible accessory for the E-100BTX Series.
$16.00
2 in stock
Chassis & shelves
1 item
RMS19-SA4-02
RMS19-SA4-02
19-inch, 1U rack-mount shelf for up to 4 stand-alone media converters. It includes 4 converter mounting brackets and 3 slot blanks.
$177.00
3 in stock
Compatibility taken from the Lantronix part-number tables for the S3230 Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the S3230 Series is used
- SLA-assured business Ethernet customer demarcation
- Mobile backhaul handoff with Y.1731 performance reporting
- Provider fault isolation across multi-segment Ethernet services
- Remote NIDs managed in-band from an ION chassis
S3230 Series datasheets & documentation
- Product BriefPDF
- C3230 / S3230 Series User Guide Rev GPDF
- SOAM Provisioning using Web GUI (PDF 4.05 MB)PDF
- SOAM Test Configuration (PDF 274.32 KB)PDF
- GUI Login Procedure (PDF 1.49 MB)PDF
- CLI initial Set-up Procedure (PDF 802.33 KB)PDF
- Configure VLAN 100 with Provider S-Tag (PDF 1.40 MB)PDF
- Configure VLAN C-Tags and T-Tags (PDF 1.43 MB)PDF
S3230 Series FAQ
What does the S3230 add over the S3220?
The S3230 adds IEEE 802.1ag Service OAM and ITU Y.1731 performance monitoring for SLA assurance and advanced fault management. Both share 802.3ah Link OAM, MEF 9/14/21 certification, VLAN, QoS and bandwidth profiling features.
Which chassis card manages the S3230 in-band?
The S3230 pairs with a C3230 card installed in a managed ION chassis, which manages it in-band over the fiber. It can also be managed individually through its own IP address.
Does the S3230 include SFP transceivers?
No. S3230-1040 and S3231-1040 have empty 100/1000Base-X SFP slots, so you choose single-mode or multimode SFP modules to match the required distance. DMI optical management then reports diagnostics from the installed module.
What are the S3230 power and temperature specs?
It runs from a 100-240 VAC, 1 A input with 12 VDC, 1.25 A output to the unit, operates from 0°C to 50°C and stores from -25°C to 85°C at 5% to 95% non-condensing humidity.
