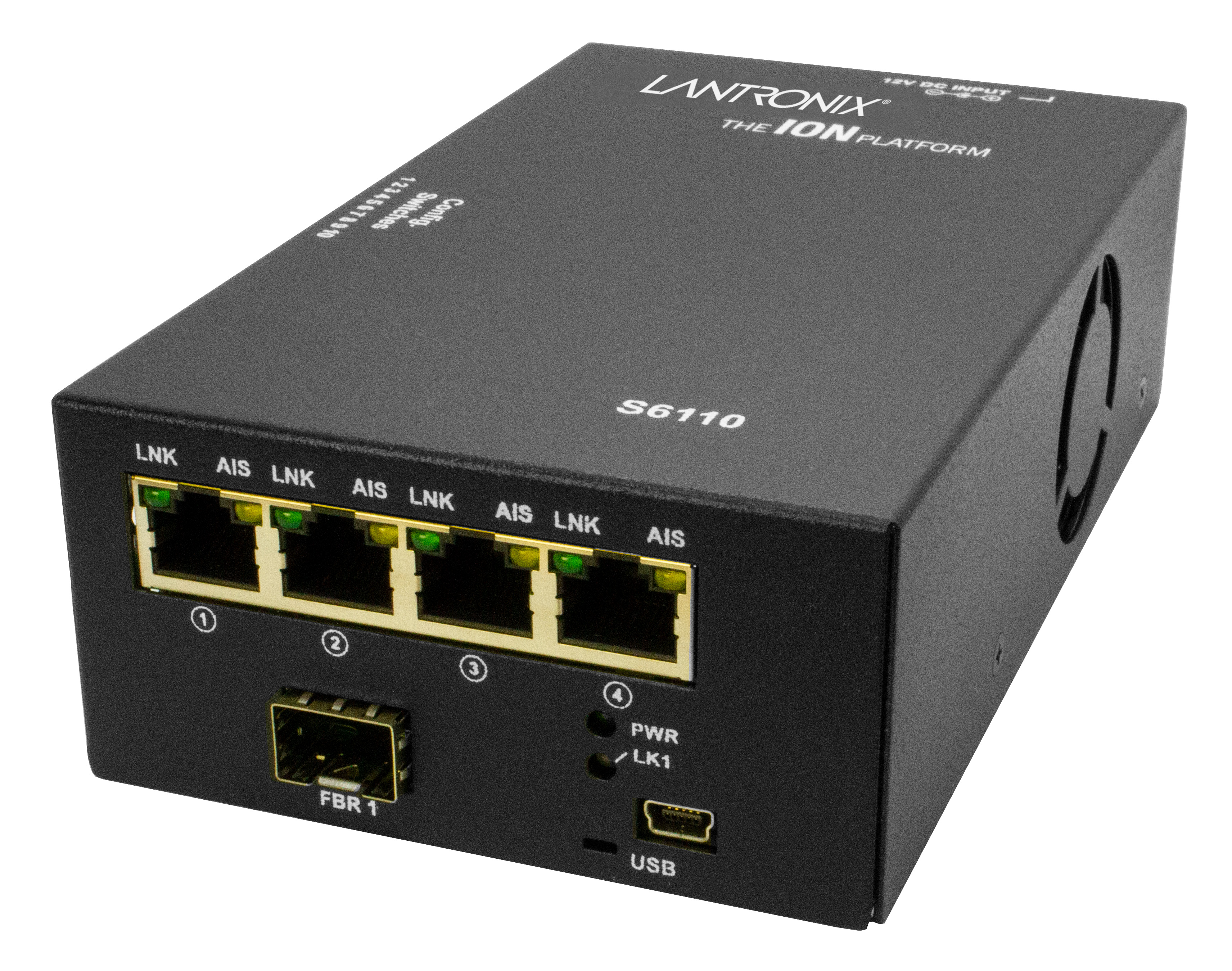

Lantronix S6110-1040 4-Port T1/E1/J1 over Fiber Multiplexer
The ION S6110-1040 is a managed stand-alone DS1 network interface device that multiplexes four T1, E1 or J1 circuits onto a single fiber SFP port, used in pairs to extend multiple DS1 connections over fiber.
Overview
About the Lantronix S6110-1040
When a site needs several T1, E1 or J1 circuits extended over fiber, running a separate converter pair for each wastes fiber and rack space. The ION S6110-1040 (S6110 for short) is a media converter mux that combines four RJ-48 DS1 ports onto one fiber interface, so four circuits share one fiber link. The converters must be used in pairs, one at each end, and each RJ-48 port supports twisted-pair runs up to 1.5 km.
The fiber side is an empty SFP slot that takes 100Base-X/OC-3 modules, so fiber type, distance and wavelength are set by the optic you choose. CWDM SFPs can be used to add further capacity to existing fiber. Switch settings control line code, line build out, loopbacks and the Alarm Indication Signal (AIS). T1 and J1 run at 1.544 Mb/s and E1 at 2.048 Mb/s, and the unit complies with ANSI T1.102, T1.403, ITU G.703, G.823 and AT&T Pub 62411.
When the remote S6110 links to a C6110 card in a managed ION chassis, it is managed in-band over the fiber with full status, configuration, loopbacks and remote firmware upgrades. The unit operates from -10°C to 65°C and draws up to 6 W from a 12 VDC adapter.
Key capabilities
- Four DS1 circuits, one fiber
- Four RJ-48 T1/E1/J1 ports are multiplexed onto a single fiber interface, extending multiple circuits without a converter pair for each.
- T1, E1 and J1
- Each copper port supports T1 and J1 at 1.544 Mb/s or E1 at 2.048 Mb/s, covering North American, international and Japanese circuits.
- SFP and CWDM flexibility
- The open SFP slot accepts 100Base-X/OC-3 modules, including CWDM SFPs, so fiber type, reach and wavelength fit the existing plant.
- Line and alarm settings
- Configurable line code, line build out, loopbacks and AIS match the carrier or PBX circuit and simplify test-set troubleshooting.
- Remote in-band management
- Paired with a C6110 card in a managed ION chassis, the remote unit offers full status, configuration and firmware upgrades over the fiber.
How to choose the right S6110-1040 part number
S6110-1040 is the single orderable model: four RJ-48 T1/E1/J1 ports rated to 1.5 km and one empty SFP port for 100Base-X/OC-3 optics. Order two units per link, or pair a remote S6110-1040 with a C6110 card in a managed ION chassis, and install matching SFP modules at both ends. Power comes from a 12 VDC adapter fed by 100-240 VAC; the SPS-2460-SA supply and WMBL wall-mount bracket are listed accessories. For a single circuit, the S6010 Series is the one-port alternative.
Configure & order
Find your S6110-1040 part number
Every orderable S6110-1040 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the S6110-1040, organized by what it does — power, mounting & enclosures— each with why you'd add it.
Power
1 item
SPS-2460-SA
SPS-2460-SA
Stand-alone wide input external power supply for all Lantronix stand-alone media converters and some chassis.
$248.00
Ships on backorder
Mounting & enclosures
1 item
WMBL
WMBL
4″ [102 mm] wall-mount bracket kit for stand-alone converters size 4.8″ [122 mm] and 6.5″ [165 mm]. It is listed as a compatible accessory for the E-100BTX Series.
$16.00
2 in stock
Compatibility taken from the Lantronix part-number tables for the S6110-1040. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the S6110-1040 is used
- Extending four T1 or E1 circuits between buildings
- Multiple DS1 lines to remote equipment rooms on one fiber
- Carrier DS1 demarcation with remote NID management
- Adding DS1 capacity to CWDM fiber infrastructure
S6110-1040 FAQ
How many T1/E1 circuits does the S6110-1040 carry?
Four. The S6110-1040 has four RJ-48 DS1 ports that each support T1, E1 or J1, multiplexed onto a single fiber SFP port. Units must be used in pairs, one at each end of the fiber.
What SFP does the S6110-1040 use?
The SFP port ships empty and accepts 100Base-X/OC-3 SFP modules. Distance, fiber type and wavelength depend on the module you install, and CWDM SFPs can be used to increase fiber capacity.
What is the difference between the S6110 and S6010?
The S6010 Series carries one T1/E1 circuit per converter and offers fixed ST or SC optics or an SFP slot. The S6110-1040 multiplexes four T1/E1/J1 circuits onto one SFP fiber port and adds settings for line code, line build out and AIS.
What is the operating temperature of the S6110-1040?
The S6110-1040 operates from -10°C to 65°C and can be stored from -40°C to 85°C, at 5% to 95% non-condensing humidity. It carries EN55022 Class A, EN55024 and CE marks.
