Lantronix SM16TAT2SA 16-Port Smart Managed Gigabit PoE+ Switch
A 1U smart managed switch with 16 Gigabit PoE+ ports, two 100/1000 SFP slots and a 250 W PoE budget, built for IP surveillance and wireless access point deployments run by security integrators.
From $744.12
Overview
About the Lantronix SM16TAT2SA

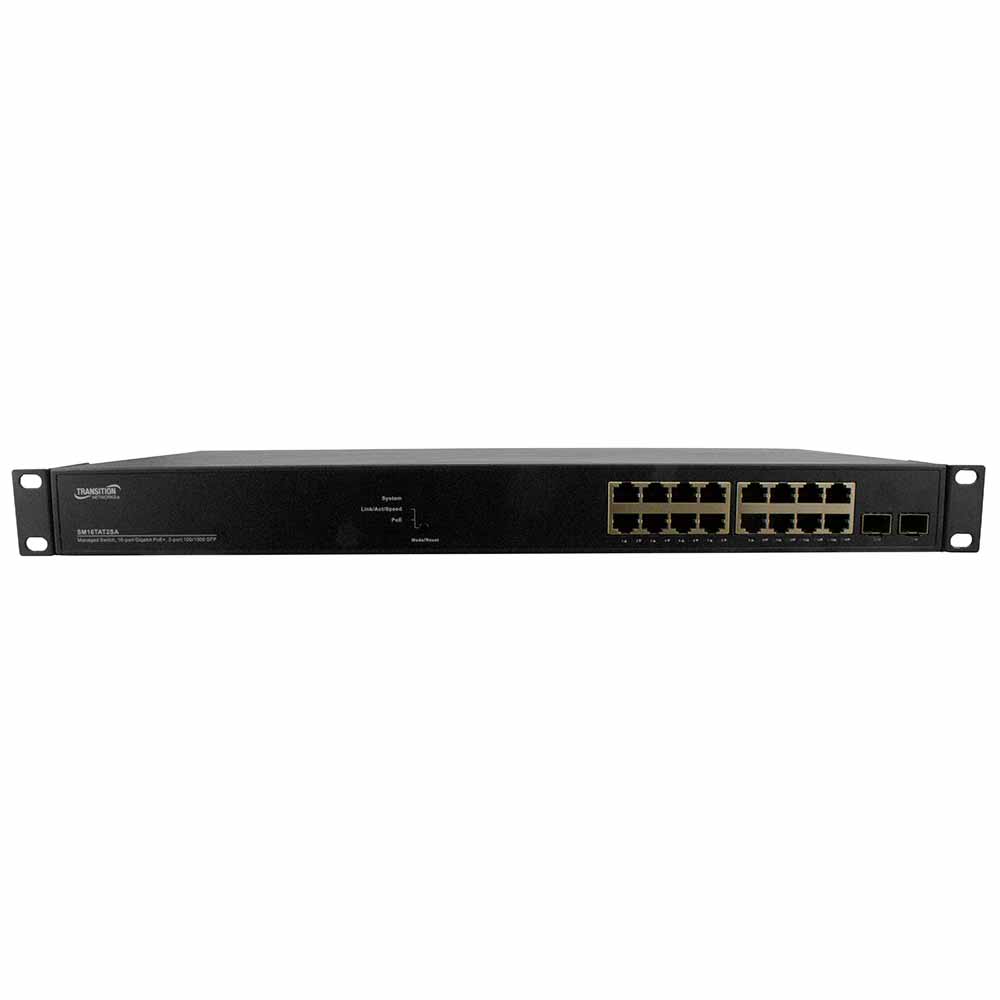

The SM16TAT2SA is the 16-port model in the Lantronix SMTATSA family (also listed as SMxTAT2SA). It provides sixteen 10/100/1000 RJ-45 ports with IEEE 802.3at PoE+ and two dual-speed 100/1000 SFP slots on a 36 Gbps store-and-forward fabric. It sits between the 8-port and 24-port models for camera and access point counts that outgrow a desktop switch but don't need 24 ports.

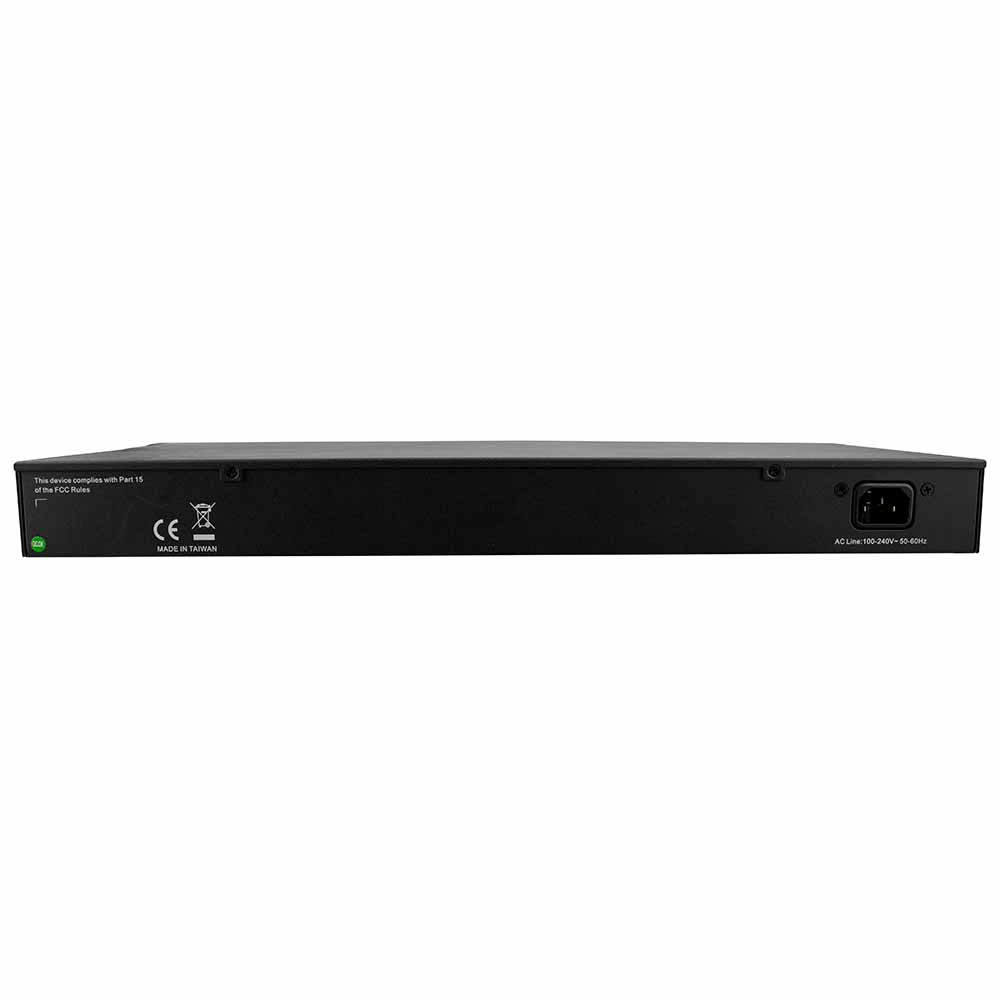

The 250 W budget powers eight ports at a full 30 W or all sixteen at 15.4 W. Full-load consumption with PoE is 296 W from a 100-240 VAC internal supply with 6KV surge protection. The embedded Device Management System lets integrators set and document a baseline deployment, automatically discover attached powered devices and configure them remotely. It adds topology, floor and map views, traffic monitoring and diagnostics. Auto Power Reset and Always on PoE keep cameras and access points running.
Layer 2 features include 802.1Q VLANs with up to 4k entries, QinQ, private and MAC-based VLANs, LACP and static trunks, MSTP/RSTP/STP, IGMP and MLD snooping, eight QoS queues, RADIUS and TACACS+, and DHCP snooping. Management is via web, CLI, Telnet and SNMP v1/v2c/v3. Operating range is 0°C to +50°C.
Key capabilities
- 250 W across 16 ports
- Run 30 W PoE+ on eight ports at once or 15.4 W PoE on all sixteen from one switch.
- Two SFP uplinks
- Dual-speed 100/1000 SFP slots connect the switch to a core or NVR room over fiber.
- Auto-discovery of PDs
- DMS automatically discovers attached IP-powered devices, documents a baseline and allows remote configuration from the switch's web manager.
- 36 Gbps fabric
- Store-and-forward switching on a 36 Gbps backplane, with an 8k MAC table and 9K jumbo frame support.
- Camera-friendly PoE tools
- Auto Power Reset restarts unresponsive devices and Always on PoE keeps power flowing, with per-port PoE configuration.
How to choose the right SM16TAT2SA part number
All eight SM16TAT2SA part numbers are the same 16-port PoE+ switch with two SFP slots, a 250 W budget and 19-inch rack-mount brackets. The suffix only selects the AC power cord: -NA North America, -LA Latin America, -EU Europe, -UK United Kingdom, -SA, -JP Japan, -OZ Australia/NZ and -BR Brazil. For a US site order SM16TAT2SA-NA; for Germany or France, SM16TAT2SA-EU. Need more or fewer ports? The SMTATSA family also includes 8- and 24-port models.
Configure & order
Find your SM16TAT2SA part number
Every orderable SM16TAT2SA configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
SM16TAT2SA-NA
$744.12
Ships on backorder
SM16TAT2SA-LA
$744.12
Ships on backorder
SM16TAT2SA-EU
$744.12
Ships on backorder
SM16TAT2SA-UK
$744.12
Ships on backorder
SM16TAT2SA-SA
$744.12
Ships on backorder
SM16TAT2SA-JP
$744.12
Ships on backorder
SM16TAT2SA-OZ
$744.12
Ships on backorder
SM16TAT2SA-BR
$744.12
Ships on backorder
Where the SM16TAT2SA is used
- IP camera deployments of up to sixteen PoE cameras
- Wireless access point closets with fiber uplinks
- Integrator-documented surveillance baselines using DMS
- Milestone XProtect video systems needing PoE+ edge switching
SM16TAT2SA datasheets & documentation
- Product BriefPDF
- SMTATSA Series Product Brief (A4)PDF
- Unified API User Guide Rev B (PDF 797.16 KB)PDF
- Milestone Integration Partnership Overview (PDF 478.44 KB)PDF
- Auto Power Reset Overview (PDF 266.77 KB)PDF
- Device Management System Feature Overview (PDF 215.04 KB)PDF
- SMTATSA Series Install Guide Rev RPDF
SM16TAT2SA FAQ
How many ports on the SM16TAT2SA can run 30 W PoE+ at once?
Eight ports can deliver 30 W simultaneously within the 250 W budget, or all sixteen ports can deliver 15.4 W. PoE is compliant with IEEE 802.3af and 802.3at.
What uplinks does the SM16TAT2SA have?
Two 100/1000 dual-speed SFP slots for fiber or copper SFP modules, in addition to the sixteen 10/100/1000 RJ-45 PoE+ ports. SFP modules let the switch reach a distant core or NVR room over fiber.
How much power does the SM16TAT2SA consume?
Up to 296 W at full load with PoE, from a 100-240 VAC input. The switch includes 6KV surge protection. The 250 W PoE budget accounts for most of that load.
How is the SM16TAT2SA different from the SM24TAT2SA?
The SM16TAT2SA has 16 PoE+ ports, a 250 W budget and a 36 Gbps backplane. The SM24TAT2SA in the same SMTATSA family has 24 ports, 370 W and 52 Gbps. Both include two SFP slots and the same software.
What are the SM16TAT2SA dimensions and operating temperature?
It measures 17.4 x 8.3 x 1.73 inches (442 x 211 x 44 mm), weighs 6.6 lbs and operates from 0°C to +50°C at 10% to 90% non-condensing humidity.
