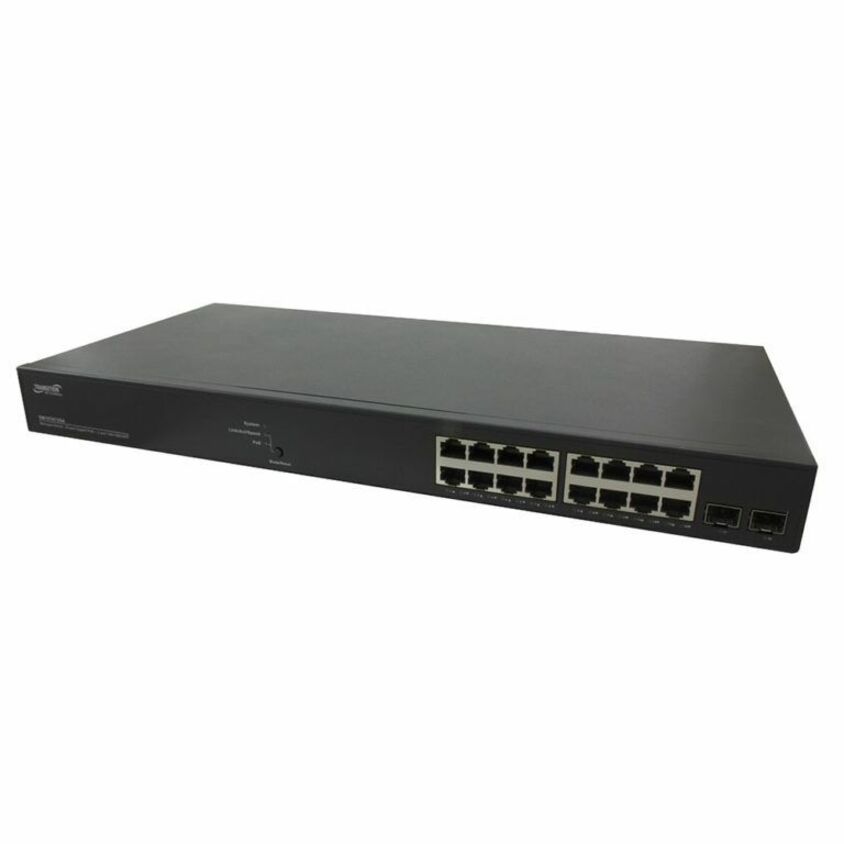

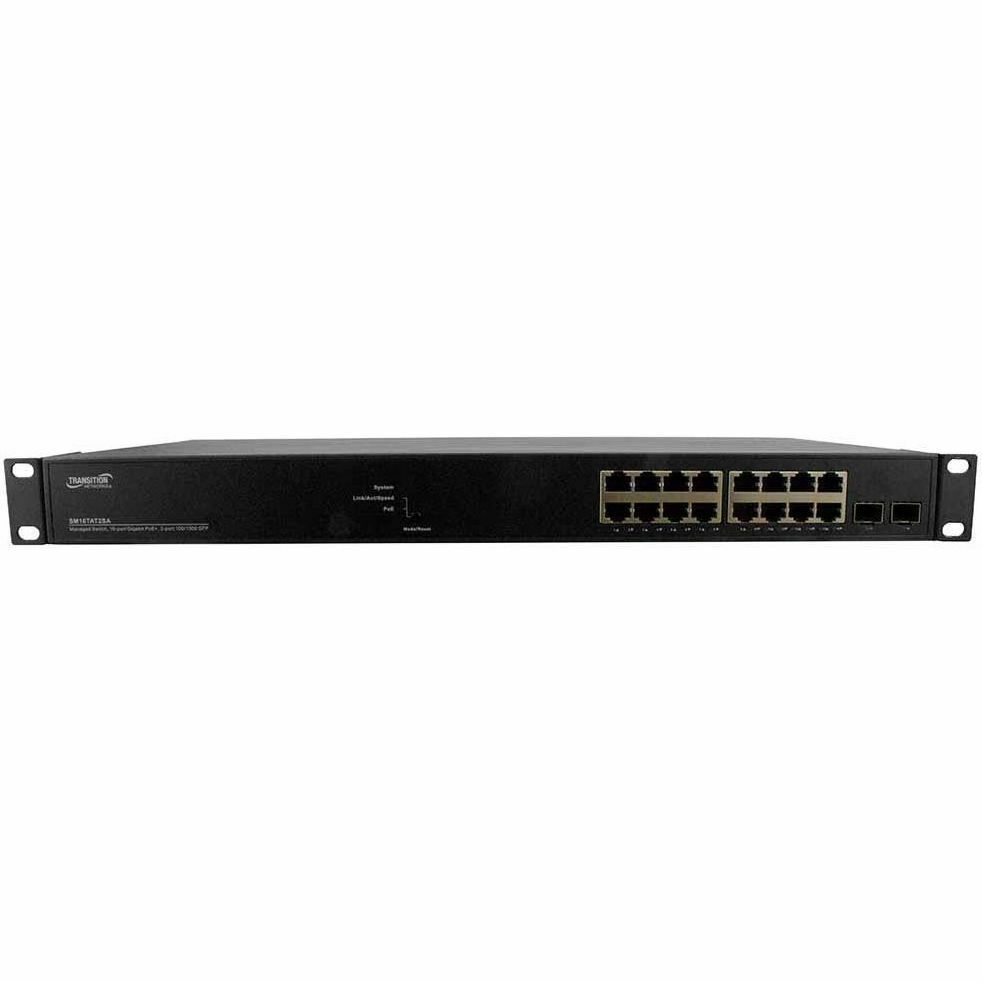

Lantronix SM16TAT2SA-UK 16-port Gigabit PoE+ smart managed switch with 2 SFP slots

Lantronix SM16TAT2SA-UK — 16-Port Gigabit PoE+ Switch

Name: Lantronix SM16TAT2SA-UK — 16-Port Gigabit PoE+ Switch
Brand: Lantronix
SKU: SM16TAT2SA-UK
Price: 744.12 USD
Availability: BackOrder

Lantronix|

MPN: SM16TAT2SA-UK

UPC: 783384250260

Available on Backorder

$744.12

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales

Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.

New, with full manufacturer warranty

Key Features

16 10/100/1000Base-T PoE+ ports with IEEE 802.3at PoE+ capability
2 100/1000Base-X SFP slots for dual-speed SFP connectivity
250 Watts max PoE budget with 30 Watts for (8) ports simultaneously or 15.4 Watts for (16) ports simultaneously
36Gbps switching capacity with store-and-forward switching architecture
Device Management System (DMS) software with Topology view, Floor view, Map view and Traffic Monitoring
Web Management, SNMP V1/V2c/V3, Telnet and CLI management
19” rack mount brackets and United Kingdom power cord included

The Lantronix SM16TAT2SA-UK is a smart managed Gigabit Ethernet PoE+ switch with (16) 10/100/1000Base-T copper ports and (2) 100/1000Base-X SFP slots. It provides 36Gbps switching capacity and a max PoE budget of 250 Watts. The embedded Device Management System (DMS) software supports graphical monitoring with Topology view, Floor view and Map view, Traffic Monitoring and troubleshooting for network diagnostic, protection mechanism, performance and link management. This UK part includes 19” rack mount brackets and a United Kingdom power cord. Certifications include FCC Class A, CE and NOM; safety listings include IEC62368/EN62368 and UL Listed.

Ideal For

IP surveillance deployments using attached IP-powered devices (PDs)
Wireless Access Point deployments with PoE+ ports
Baseline deployment documentation with embedded Device Management System (DMS) software
Rack-mounted Gigabit Ethernet PoE+ switching with SFP slots

Specifications

Depth	8.3” [211 mm]
Width	17.4” [442 mm]
Height	1.73” [44 mm]
Safety	IEC62368/EN62368, UL Listed
Weight	6.6 lbs. [3.0 kg]
Humidity	10% to 90% (non-condensing)
Warranty	5 Years
Backplane	36 Gbps
Protocols	CSMA/CD
SFP+ Slots	(2) 100/1000 SFP slots
Standards	IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab; IEEE 802.3x; IEEE 802.3ad; IEEE 802.1D; IEEE 802.1w; IEEE 802.1s; IEEE 802.1Q; IEEE 802.1p; IEEE 802.1ad; IEEE 802.1AB; IEEE 802.3af; IEEE 802.3at; IEEE 802.3az
Management	Web Management, SNMP V1/V2c/V3, Telnet, CLI
PoE++ Budget	Max PoE budget 250 Watts
Technology	Store-and-forward switching architecture
Mac Address	8k MAC address table
Power Input	100-240VAC
RJ-45 Ports	(16) 10/100/1000 RJ-45 ports
PoE++ Features	Compliant with IEEE 802.3at PoE+; Compliant with IEEE 802.3af PoE; PoE configuration; Auto Power Reset (APR); Always on PoE
Certifications	FCC Class A, CE, NOM
PoE++ At 8 Ports	30 Watts for (8) ports simultaneously
PoE++ At 16 Ports	15.4 Watts for (16) ports simultaneously
Troubleshooting	Network diagnostic, protection mechanism, performance and link management
Power Consumption	296 Watts (full load with PoE)
Graphical Monitoring	Topology view, Floor view, Map view
Included Accessories	19” rack mount brackets; United Kingdom power cord
Operating Temperature	0°C to +50°C
Device Management Software	Traffic Monitoring

Documentation

Manufacturer Brochure

User Manual

Product Brief

SMTATSA Series Product Brief (A4)

CERT, RCM sDoC , SM16TAT2SA, SM24TAT2SA RCM

CERT, CB , SM16TAT2SA, SM24TAT2SA CB

Milestone Integration Partnership Overview (PDF 478.44 KB)

Frequently Asked Questions

What ports are on the SM16TAT2SA-UK?▾

It has (16) 10/100/1000Base-T ports and (2) 100/1000Base-X SFP slots.

What is the PoE budget?▾

The max PoE budget is 250 Watts. The switch supports 30 Watts for (8) ports simultaneously or 15.4 Watts for (16) ports simultaneously.

What is included with the UK part number?▾

The SM16TAT2SA-UK includes 19” rack mount brackets and a United Kingdom power cord.

How is the switch managed?▾

Management options include Web Management, SNMP V1/V2c/V3, Telnet and CLI. The embedded Device Management System (DMS) software includes Topology view, Floor view, Map view, Traffic Monitoring and troubleshooting features.
