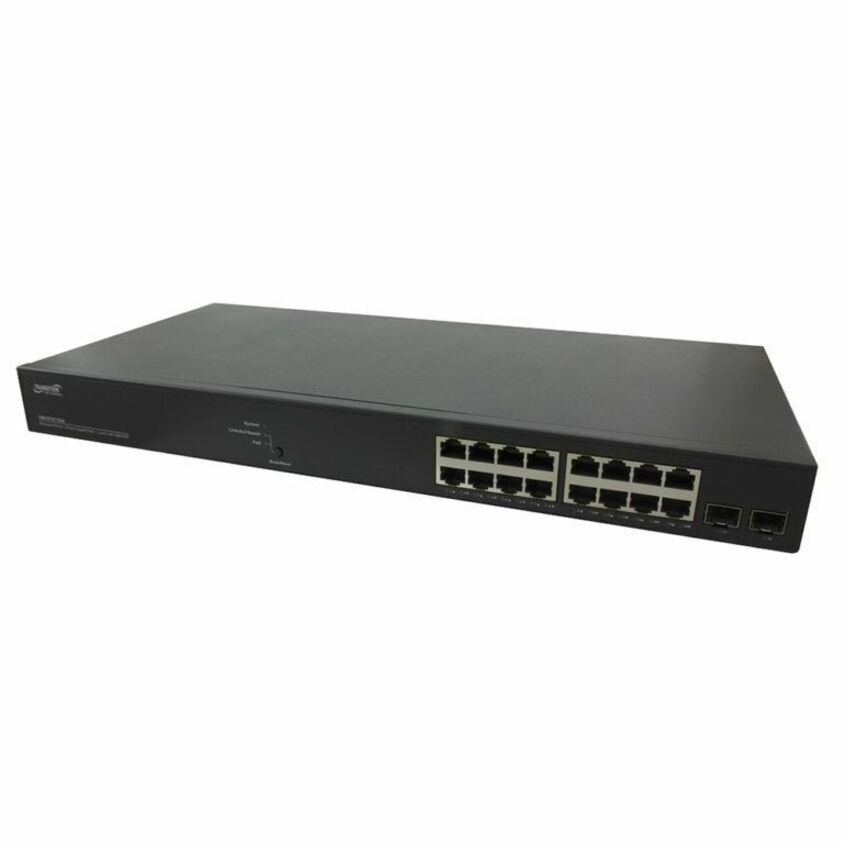

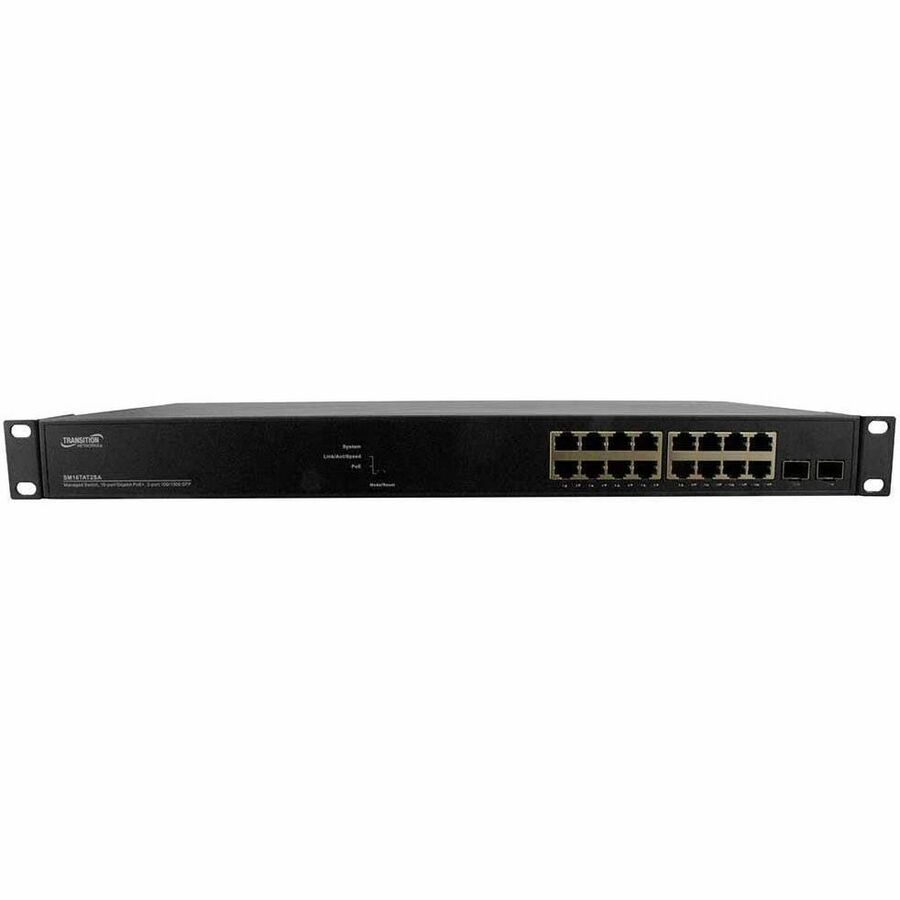

Lantronix SM16TAT2SA-OZ — 16-Port Gigabit PoE+ Switch
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Key Features
- 16 10/100/1000Base-T ports with IEEE 802.3at PoE+ capability
- 2 100/1000Base-X SFP slots for dual speed SFP connectivity
- 250 Watts Max PoE budget with 30 Watts for (8) ports simultaneously
- 36 Gbps switching capacity with store-and-forward switching architecture
- Device Management System with Topology view, Floor view and Map view
- Management by Web Management, SNMP V1/V2c/V3, Telnet and CLI
Ideal For
- IP surveillance deployments using attached IP-powered devices
- Wireless Access Point applications with PoE+ ports
- Security integrator baseline deployment and documentation
- Network administrator remote configuration of attached PDs
Specifications
| Depth | 8.3” [211 mm] |
| Width | 17.4” [442 mm] |
| Height | 1.73” [44 mm] |
| Safety | IEC62368/EN62368; UL Listed |
| Weight | 6.6 lbs. [3.0 kg] |
| Humidity | 10% to 90% (non-condensing) |
| Protocol | CSMA/CD |
| Standard | IEEE 802.3af; IEEE 802.3at; IEEE 802.3az; IEEE 802.1Q; IEEE 802.3ad |
| Warranty | 5 Years |
| Backplane | 36 Gbps |
| SFP+ Slots | (2) 100/1000 SFP slots |
| PoE++ Output | 30 Watts for (8) ports simultaneously; 15.4 Watts for (16) ports simultaneously |
| Technology | Store-and-forward switching architecture |
| Mac Address | 8k MAC address table |
| Power Input | 100-240VAC |
| RJ-45 Ports | (16) 10/100/1000 RJ-45 ports |
| Certification | FCC Class A; CE; NOM |
| Max PoE++ Budget | 250 Watts |
| Surge Protection | 6KV |
| Power Consumption | 296 Watts (full load with PoE) |
| Operating Temperature | 0°C to +50°C |
Frequently Asked Questions
How many network ports does the SM16TAT2SA-OZ provide?▾
SM16TAT2SA-OZ provides (16) 10/100/1000Base-T copper ports with IEEE 802.3at PoE+ capability and (2) 100/1000 dual speed SFP slots.
What is the PoE budget?▾
The switch has a Max PoE budget of 250 Watts. It supports 30 Watts for (8) ports simultaneously or 15.4 Watts for (16) ports simultaneously.
What does the embedded Device Management System provide?▾
The embedded Device Management System provides graphical monitoring with Topology view, Floor view and Map view, traffic monitoring, and troubleshooting for network diagnostic, protection mechanism, performance and link management.
What is included with the OZ configuration?▾
The SM16TAT2SA-OZ part row includes 19” rack mount brackets and an Australia power cord.
