Lantronix xDirect-IAP Industrial Modbus Serial Device Server
The xDirect-IAP is a compact, cable-style serial-to-Ethernet device server with Modbus TCP, RTU and ASCII support, built to network industrial automation equipment directly at its DB9 serial port.
From $123.14
Overview
About the Lantronix xDirect-IAP
The xDirect-IAP (also written xDirect IAP) puts an industrial device server right on the wire. Its housing integrates the serial cable and DB9F connector at one end and a 10/100 Ethernet RJ45 port at the other, so it plugs straight into a PLC, drive, meter or other automation device and connects it to an Ethernet network or the Internet. There is no separate box to mount, which helps in crowded control panels and for temporary or portable connections.
The serial side supports RS-232, RS-422 or RS-485 (2- and 4-wire) at 300 bps to 115.2 kbps with DTR, DSR/DCD control and hardware or software flow control. A full IP stack handles TCP, UDP, DHCP, SNMP, HTTP and Telnet, and Modbus TCP, Modbus ASCII and Modbus RTU support lets Modbus TCP masters on Ethernet reach serial Modbus slaves. Protection includes 15 kV ESD on the serial transceivers and 1500 VAC isolation on the Ethernet and PoE paths.
Power comes from 5V on a mini-USB-B jack, 5-15 VDC on DB9 pin 9, or PoE on the PoE model, at 1.3W maximum without PoE. The non-PoE model operates from -40 to 85 C and the PoE model from -40 to 70 C. Configuration uses DeviceInstaller, Telnet or a serial terminal, and Com Port Redirector provides virtual COM ports on Windows.
Key capabilities
- Modbus gateway built in
- Supports Modbus TCP, Modbus ASCII and Modbus RTU, bridging Ethernet Modbus TCP hosts to serial Modbus equipment without a separate protocol converter.
- Inline cable form factor

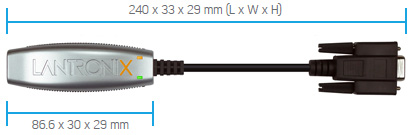

- The integrated serial cable and DB9F connector attach directly to the device, and the unit weighs 0.068 kg, leaving no enclosure to mount.
- Three power options
- Power from 5V on a mini-USB-B jack, 5-15 VDC on DB9 pin 9 from the host device, or Power over Ethernet on the PoE model.
- -40 to 85 C operation
- The non-PoE model operates from -40 to 85 C and the PoE model from -40 to 70 C, with UL rating to 75 C.
- RS-232, RS-422, RS-485
- One DB9F DCE port supports RS-232, RS-422 and 2- or 4-wire RS-485 at up to 115.2 kbps, covering most PLC and instrument serial ports.
How to choose the right xDirect-IAP part number
There are two xDirect-IAP models, and the choice comes down to power. XDT4851002IA-01-S is the standard model and ships with a 100-240 VAC international power supply with regional adapters; it operates from -40 to 85 C (the supplied adapter itself is rated 0 to 40 C). XDT10P0IA-01-S is the PoE model, powered from the Ethernet cable with no power supply included, rated -40 to 70 C. Both can also take 5-15 VDC on DB9 pin 9. ACC-520-0180-00 is the replacement 5VDC mini-USB-B supply.
Configure & order
Find your xDirect-IAP part number
Every orderable xDirect-IAP configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.

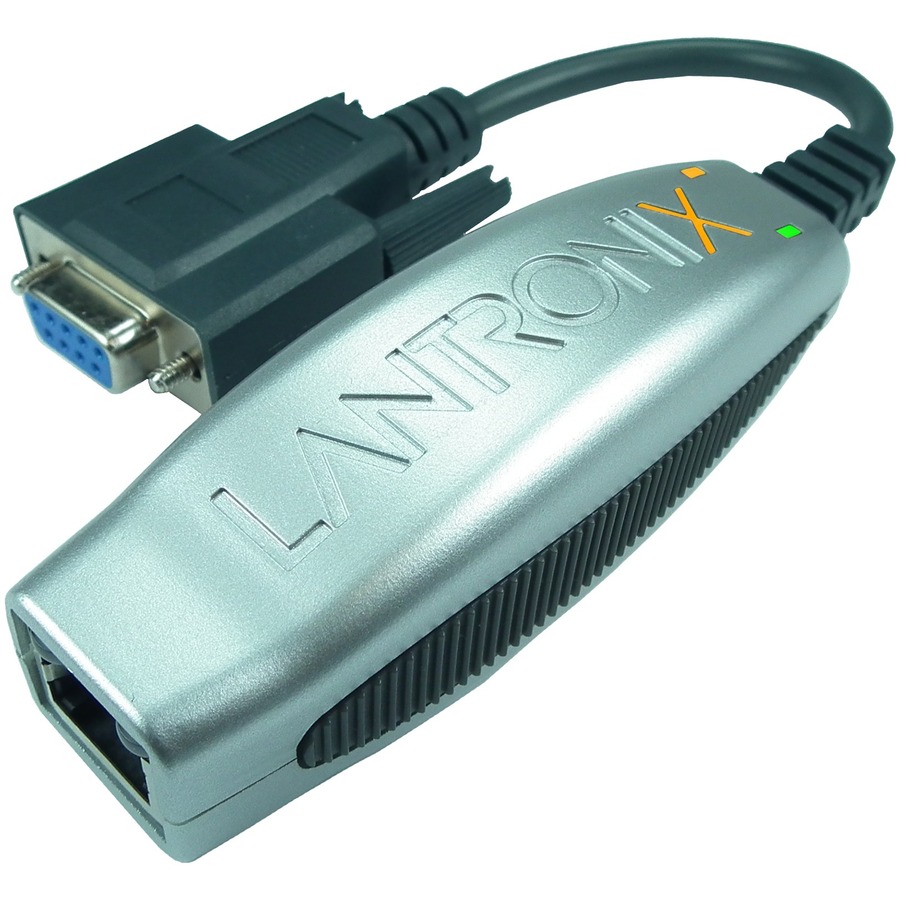

XDT4851002IA-01-S
$123.14
Ships on backorder

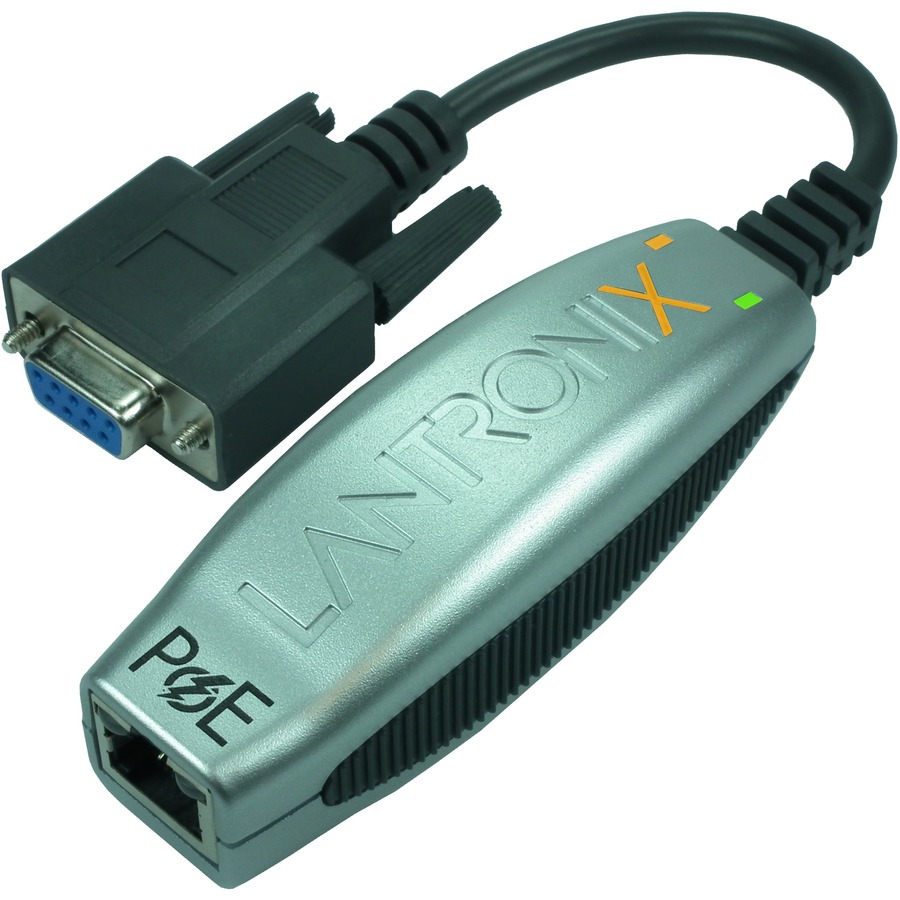

XDT10P0IA-01-S
$145.54
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the xDirect-IAP, organized by what it does — power— each with why you'd add it.
Power
1 item
Power Supply
ACC-520-0180-00
Power supply accessory with 100-240VAC, 50-60Hz input and 5VDC 1A output. It uses a Mini USB-B right angle connector and includes 4 regional adapters.
$37.00
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the xDirect-IAP. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the xDirect-IAP is used
- Connecting serial Modbus RTU PLCs to Modbus TCP networks
- Ethernet access to drives and meters in crowded control panels
- Portable field connection to serial automation equipment
- PoE-powered serial connectivity where no outlet is available
- Remote monitoring of industrial controllers over the Internet
xDirect-IAP datasheets & documentation
xDirect-IAP FAQ
Does the xDirect-IAP convert Modbus RTU to Modbus TCP?
Yes. The xDirect-IAP supports Modbus TCP, Modbus ASCII and Modbus RTU, so Modbus TCP hosts on Ethernet can communicate with Modbus RTU or ASCII devices on its serial port. Lantronix publishes a Modbus Protocol User Guide for configuration.
What is the difference between XDT4851002IA-01-S and XDT10P0IA-01-S?
XDT4851002IA-01-S is the non-PoE model with a 100-240 VAC international power supply and regional adapters, rated -40 to 85 C. XDT10P0IA-01-S is the PoE model, powered over Ethernet with no supply included, rated -40 to 70 C.
How can the xDirect-IAP be powered?
It accepts 5V on a mini-USB-B jack, 5-15 VDC on pin 9 of the DB9F connector, or PoE on the PoE model. Consumption is 1.3W maximum without PoE and 2.0W maximum with PoE.
What serial standards and speeds does the xDirect-IAP support?
RS-232, RS-422 and RS-485 in 2-wire or 4-wire mode, at 300 bps to 115.2 kbps, with 7 or 8 data bits, 1 or 2 stop bits, and XON/XOFF or CTS/RTS flow control on a DCE-pinned DB9F.
