Lantronix xPico 600 Wi-Fi 6 and BLE 5.4 Embedded IoT Gateway
The xPico 600 is a hostless embedded IoT gateway module that adds dual-band Wi-Fi 6, Bluetooth LE 5.4 and Ethernet to OEM products, offered as an LGA surface-mount part or an M.2 3030 E-Key card.
From $19.95
Overview
About the Lantronix xPico 600
The xPico 600 (also written xPico600, part prefix XPC600) is a new Lantronix connectivity module for OEMs building connected equipment such as robots, AGVs, autonomous systems and network printers. Its hostless architecture means it does not need an external host MCU: it can run as a network co-processor that offloads all IoT communications from your microcontroller, or as a wireless microcontroller programmed through the Lantronix SDK. Either way, Wi-Fi, Ethernet and BLE come up without writing low-level drivers.
The radio is 1x1, 20 MHz, dual-band 2.4 and 5 GHz 802.11a/b/g/n/ac/ax with 802.11r fast roaming and concurrent Soft AP plus client mode. Two separate antennas let Wi-Fi and Bluetooth 5.4 LE run independently. An integrated 10/100BASE-T PHY needs only external magnetics. Host interfaces include a TTL UART at 9600 bps to 4 Mbps, USB host and 12 programmable I/O pins. TruPort Serial and TruPort Socket handle TCP, UDP and TLS connections, and a Modbus TCP to Modbus RTU/ASCII gateway is built in.
InfiniShield security provides secure boot, secure FOTA updates, secure key storage, encrypted configuration, role-based access control and WPA3 Enterprise. The module is pre-integrated with Lantronix Percepxion for zero-touch provisioning, device updates and Cyber Resilience Act support across the product lifecycle. It operates from -40 to +85 C and withstands 40G operational vibration.
Key capabilities
- No external host required
- Runs as a network co-processor beside your MCU or as a standalone wireless microcontroller using the provided SDK, cutting host-side driver and stack work.
- Wi-Fi 6 plus BLE 5.4
- Dual-band 802.11ax and Bluetooth LE 5.4 on separate antennas operate simultaneously, with BLE central and peripheral roles and GAP and GATT profiles.
- Two mechanical formats
- Choose an 18 x 28.5 x 3.15 mm LGA for direct board mounting or an M.2 3030 E-Key card for socketed, replaceable designs.
- Industrial temperature range
- Rated -40 to +85 C operating and storage, 40G operational vibration and 65G non-operational shock for factory floors and mobile machines.
- InfiniShield device security
- Secure boot, secure firmware-over-the-air updates, encrypted configuration, key storage, WPA3 Enterprise and TLS 1.3 with X.509 certificates up to 4096-bit keys.
- Serial and Modbus gateway
- TruPort Serial passes proprietary serial and Fieldbus protocols transparently, and a built-in Modbus TCP to Modbus RTU/ASCII gateway bridges legacy controllers.
How to choose the right xPico 600 part number
Every xPico 600 part has the same radio and interface set; the differences are form factor and packaging. The 100 parts are LGA modules: XPC600100P is a sample and XPC600100S ships on tape and reel in 500s. The 300 parts are M.2 3030 E-Key cards: XPC600300P is a sample and XPC600300S ships on tray. Start development with XPC600100EK, the evaluation kit that includes an M.2 3030 module. Antenna cables such as 500-180-R-ACC (u.FL to R-SMA) and the ACC-930-033-R dual-band antenna are listed separately.
Configure & order
Find your xPico 600 part number
Every orderable xPico 600 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
XPC600100P
$19.95
Ships on backorder
XPC600100S
$19.95
Ships on backorder
XPC600300P
$23.45
Ships on backorder
XPC600300S
$23.45
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the xPico 600, organized by what it does — antennas, cables & adapters, evaluation & development kits— each with why you'd add it.
Antennas
5 itemsCable
ACC-500-0378-00
U.FL to U.FL antenna cable accessory with 254 mm Length (10 inch).
$5.19
Ships on backorder
Antenna
ACC-930-033-R
Accessory antenna for 2.4 GHz and 5 GHz wireless data networks. It provides 2.15 dBi gain, an RP-SMA connector, and RoHS compliance.
$6.41
Ships on backorder
Cable
500-182-R-ACC
38.10 mm U.FL to R-SMA antenna cable supplied as a 10-pc bulk pack. Etilize data lists compatibility with the Lantronix xPico Wi-Fi SMT Embedded Wireless Device Server.
$34.50
Ships on backorder
Cable
500-180-R-ACC
U.FL to R-SMA antenna cable supplied as a 10-pc bulk pack. Lantronix lists the cable length at 152.40 mm.
$39.50
Ships on backorder
Antenna
XPW100A003-01-B
U.FL to PCB strip antenna accessory with a 50 mm cable. It is specified at 2.5dBi from 2.39 GHz to 2.49 GHz and 5 dBi from 4.9 GHz to 5.9GHz.
$162.50
Ships on backorder
Cables & adapters
2 itemsCable
ACC-500-0390-00
Antenna cable accessory with U.FL to R-SMA connections. It measures 254mm (10 inch) in length.
$5.99
Ships on backorder
Cable
500-181-R-ACC
U.FL to U.FL antenna cable listed at 152.40 mm / 6 inches. It is supplied as a 10-pc bulk pack.
$33.25
Ships on backorder
Evaluation & development kits
1 itemxPico 600 Embedded IoT Gateway

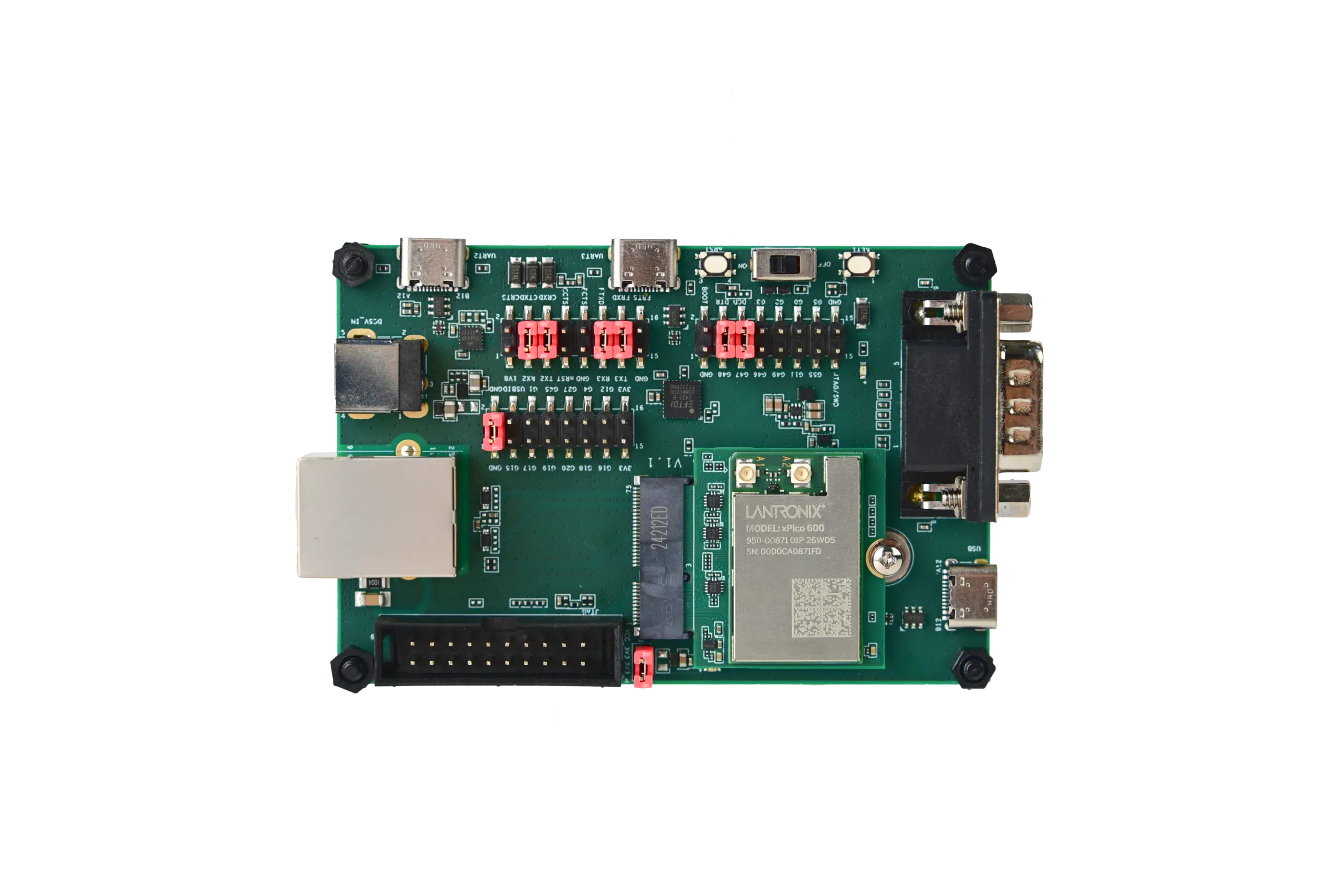

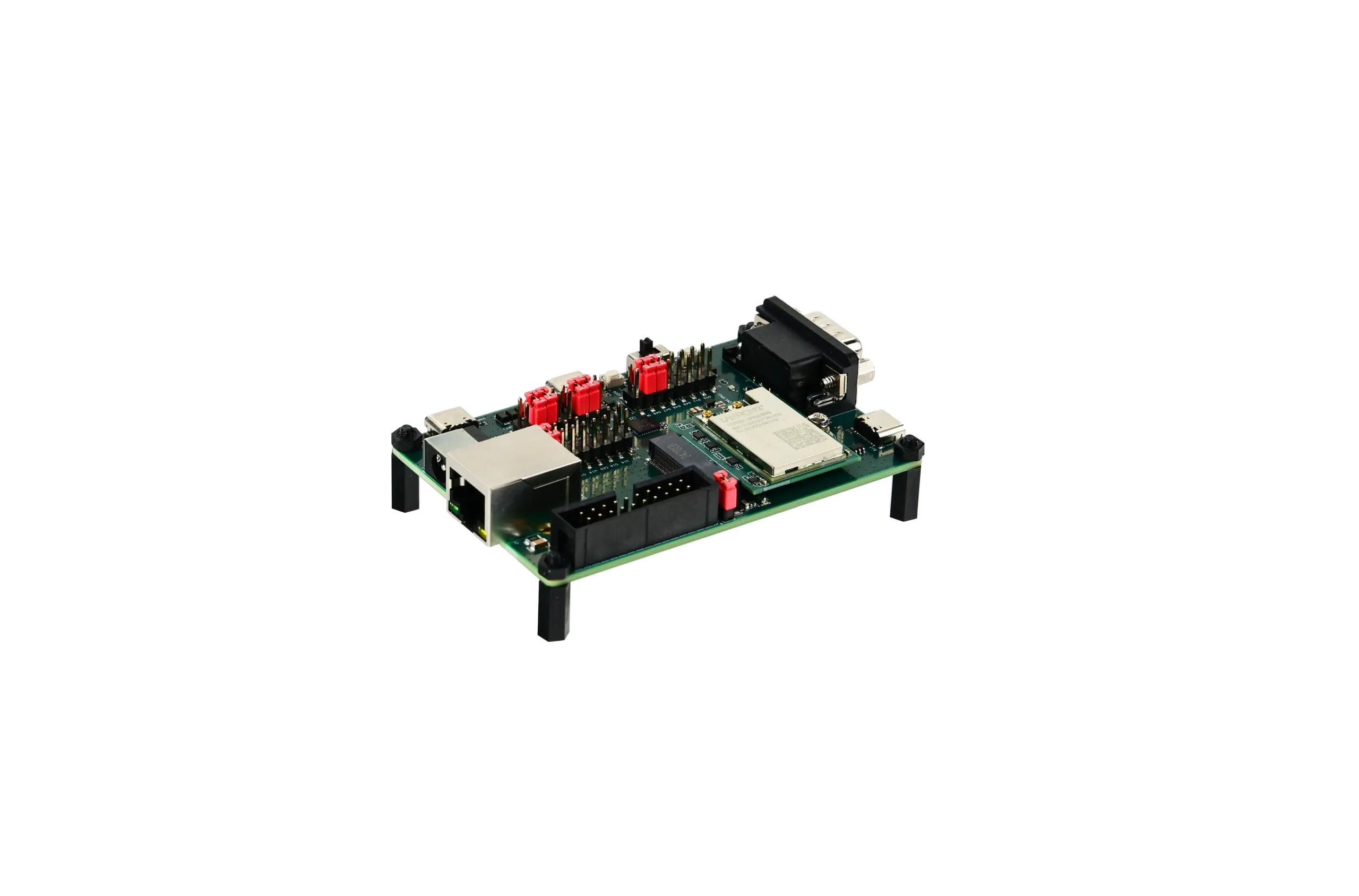

XPC600100EK
XPico 600 Embedded IoT Gateway evaluation kit with M.2 3030 included. It supports Wi-Fi 6, Bluetooth Low Energy 5.4, Fast Ethernet, serial, USB, I2C, SPI, SDIO, and GPIO.
$49.95
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the xPico 600. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the xPico 600 is used
- Wi-Fi 6 and BLE connectivity for robots and AGVs
- Network-connected printers and office equipment
- Wireless retrofit of serial and Modbus industrial controllers
- Connected medical devices needing secure firmware updates
- Retail and resource-management devices managed through Percepxion
xPico 600 datasheets & documentation
xPico 600 FAQ
What is the difference between the xPico 600 LGA and M.2 3030 versions?

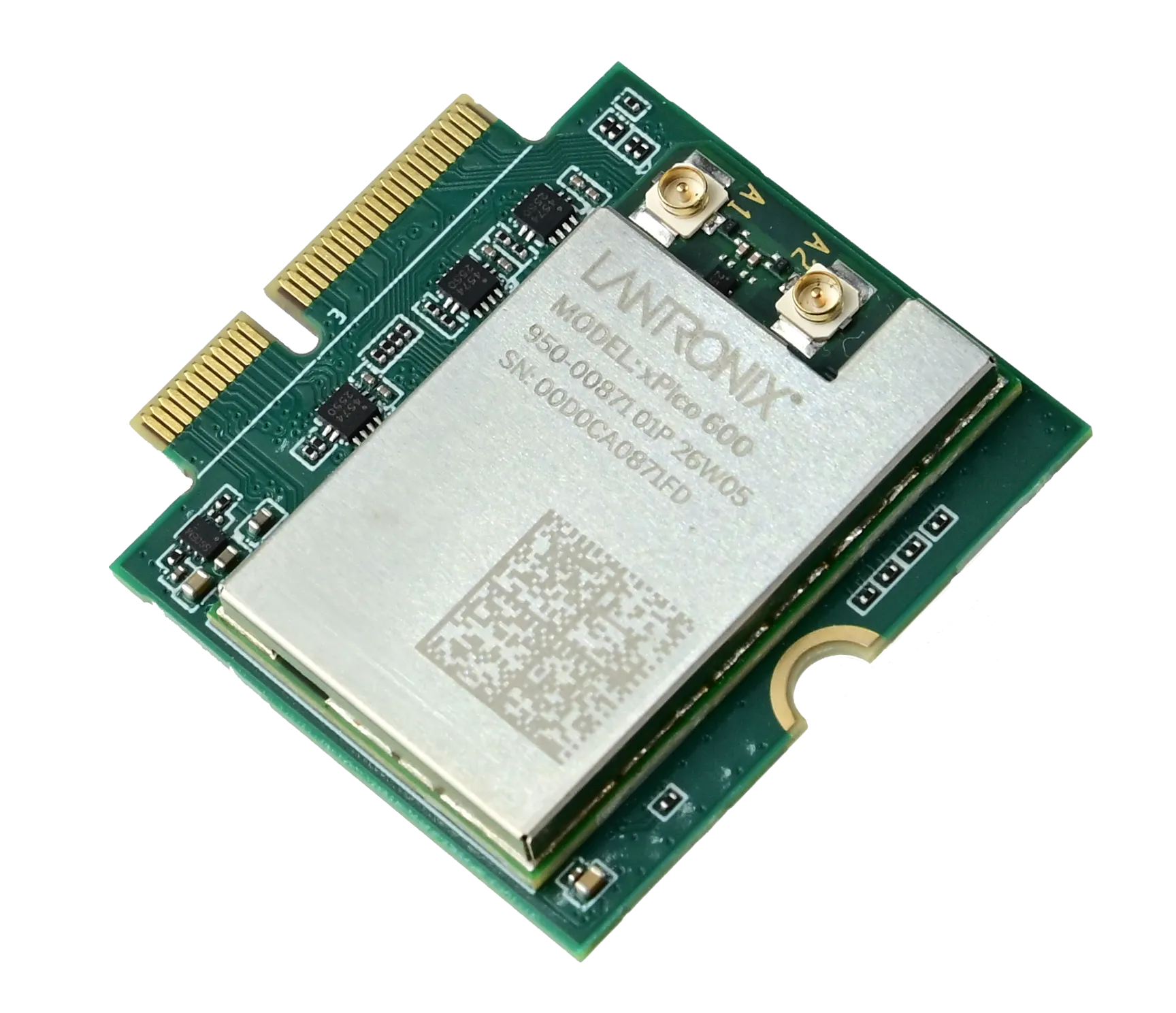

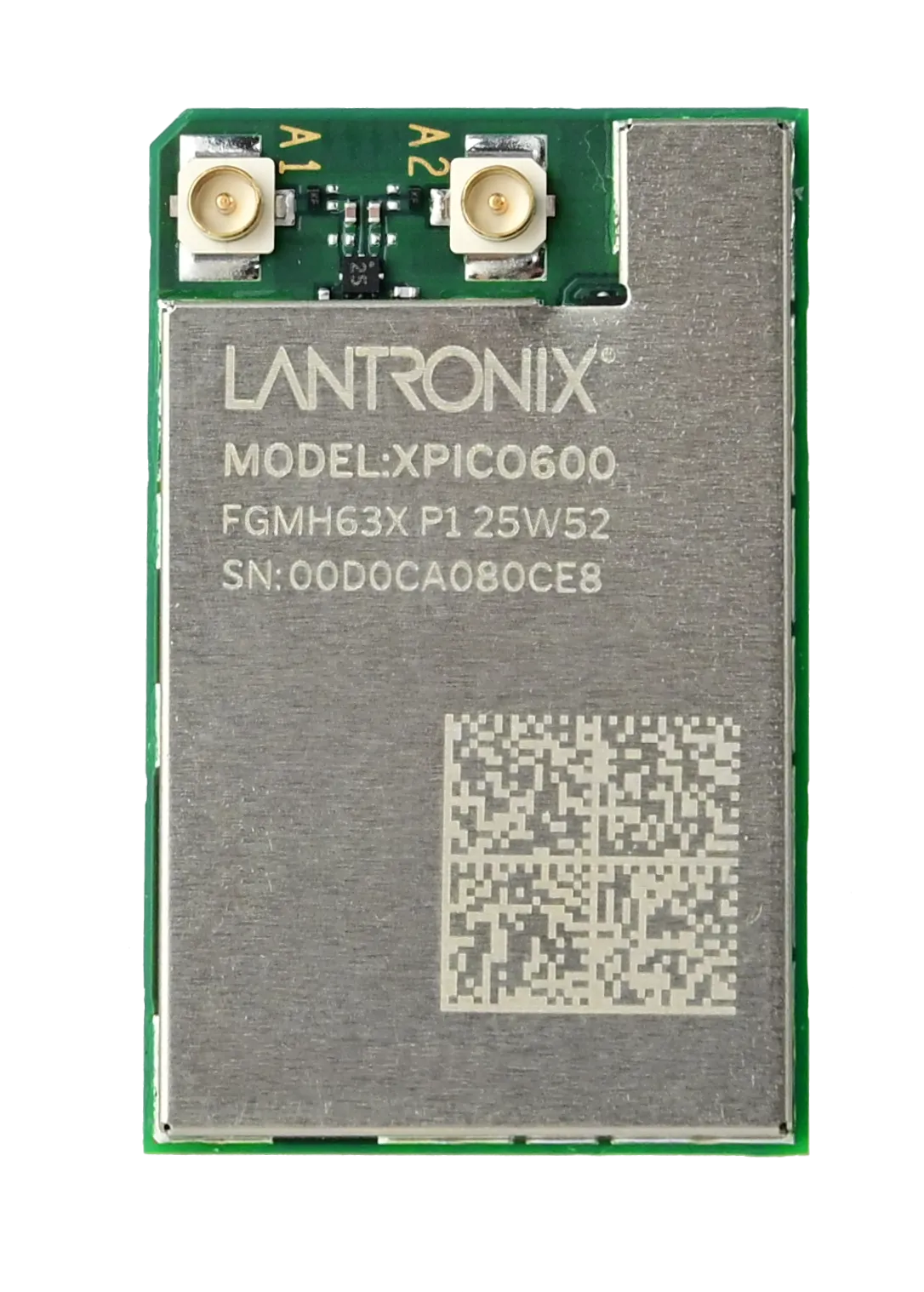

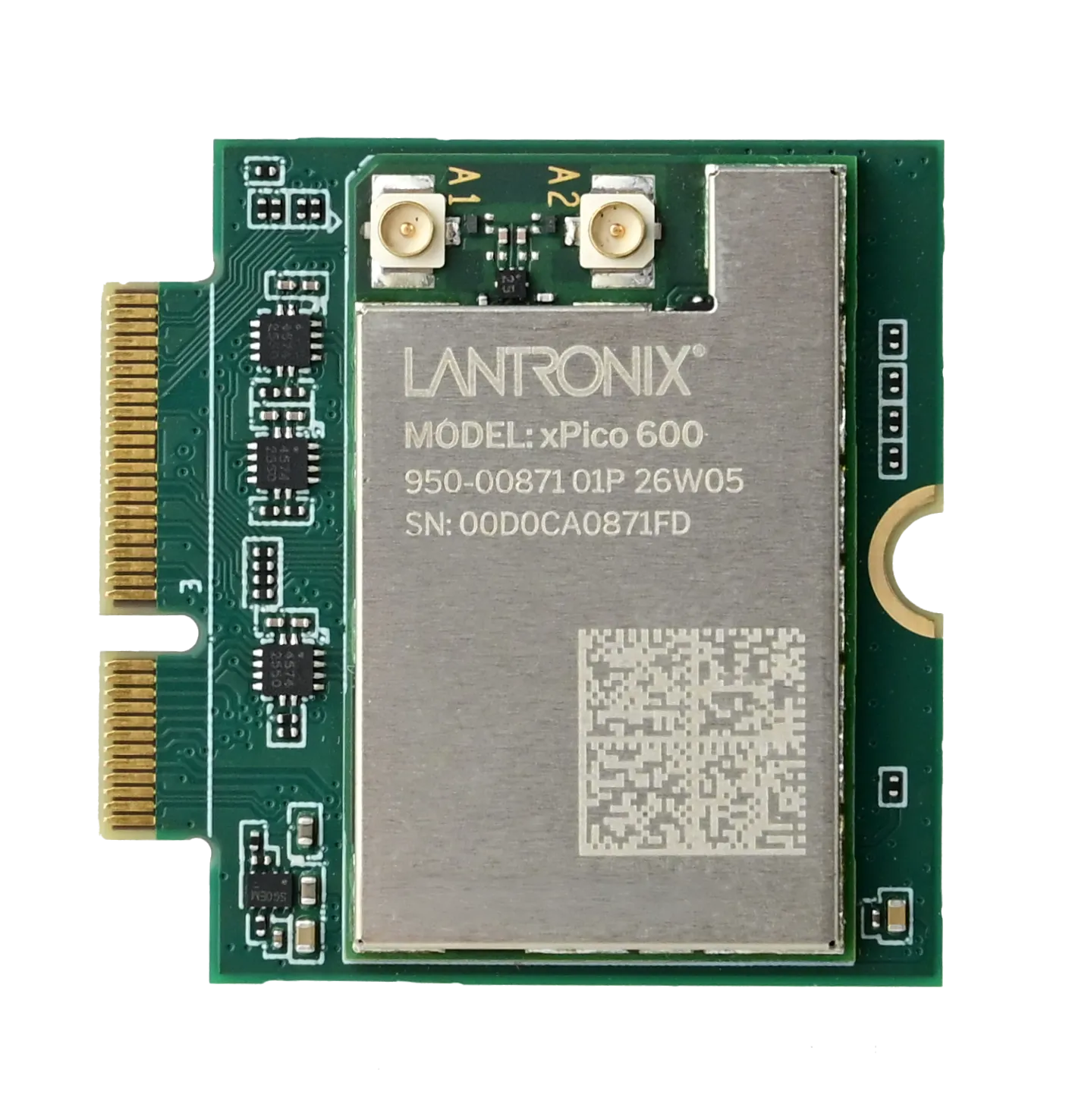

Both carry the same Wi-Fi 6, BLE 5.4, Ethernet and host interfaces. The LGA version (XPC600100) is an 18 x 28.5 x 3.15 mm surface-mount module on tape and reel. The M.2 version (XPC600300) is a 3030 E-Key card shipped on tray, suited to socketed designs.
Does the xPico 600 need a host microcontroller?
No. Its hostless architecture lets it run your application as a wireless microcontroller with the Lantronix SDK. It can also act as a network co-processor, configured from the host over the serial command mode or from the network with Web Service APIs and XML configuration.
What operating temperature is the xPico 600 rated for?
The xPico 600 is rated for -40 to +85 C operating and storage temperature, with 10% to 85% non-condensing storage humidity, 40G operational vibration and 65G non-operational shock.
Which Wi-Fi security modes does the xPico 600 support?
It supports WPA/WPA2 Personal with AES/CCMP and TKIP, and WPA3 Enterprise with EAP-TLS, EAP-TTLS, EAP-PEAP and EAP-FAST. Connections use SSL/TLS up to TLS 1.3 with PKI and X.509 certificates up to 4096-bit keys.
Which xPico 600 part should I order for prototyping?
XPC600100EK is the evaluation kit and includes an M.2 3030 module with access to Ethernet, serial, USB, I2C, SPI, SDIO and GPIO. Sample parts XPC600100P (LGA) and XPC600300P (M.2) let you test the exact form factor you plan to build with.
