Lantronix SISPM1040-384-LRT-C — SISPM1040-300 Series PoE+ Switch
$1,478.70
Ships from and sold by A5 IT
Free 2-3 Day Shipping within the United StatesArrives by Thursday, Oct 29
New, with full manufacturer warranty
Key Features
- 8 10/100/1000Base-T PoE+ ports for connecting and powering devices in hardened environments
- 4 100/1000Base-X SFP slots for fiber uplink connectivity
- 240 Watts PoE Budget with 30 Watts output on all 8 ports
- 24 Gbps switching bandwidth with Store-and-Forward Architecture
- Percepxion IoT Edge Solutions Platform for device life cycle management, enterprise application integration, and data analytics
- DMS web manager for topology, floor, and map views, traffic monitoring, and network diagnostics
- -40°C to +75°C operating temperature with fan-less design
- PoE+ for up to 30watts

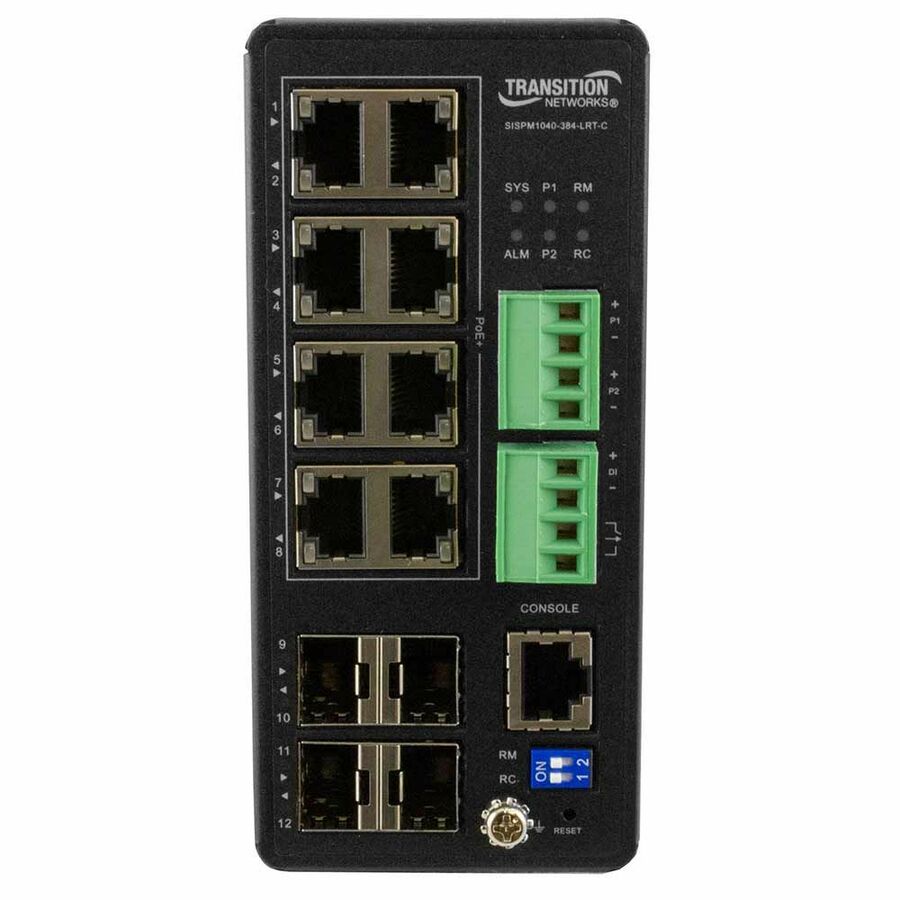

The Lantronix SISPM1040-384-LRT-C is a managed hardened PoE+ switch in the SISPM1040-300 Series. It provides (8) 10/100/1000Base-T PoE+ ports [100 m/328 ft.] and (4) 100/1000Base-X SFP slots, with a 240 Watts PoE Budget and 30 Watts output on all 8 ports. The switch comes integrated with the Lantronix cloud based Percepxion software platform for device life cycle management, enterprise application integration, and data analytics through a single pane of glass. DMS, accessible by Percepxion or the local web manager, provides advanced configuration and management of IP addressable devices in the network. It includes graphical network topology, floor map creator, device map view, traffic monitoring, and network diagnostics for troubleshooting. Lantronix’s hardened switches are certified to operate reliably in harsh environments such as factory floors, outdoor enclosures, or other challenging environments.
Ideal For
- Connecting and powering PoE+ devices in hardened environments
- Managed network switching on factory floors
- PoE+ connectivity in outdoor enclosures
- Traffic monitoring and network diagnostics through DMS
Specifications
| MTBF | 92,110 hours (384 only) |
| Depth | 5.3" [135 mm] |
| Width | 2.4” [62 mm] |
| Height | 5.4” [130 mm] |
| Safety | IEC62368-1/EN62368-1, UL Class 1/Div 2 |
| Weight | 2.2 lbs. [1 kg] (384 only) |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Backplane | 24 Gbps (384 Only) |
| SFP+ Slots | (4) 100/1000Base-X SFP slots |
| PoE++ Ports | (8) 10/100/1000Base-T PoE+ ports [100 m/328 ft.] |
| PoE++ Budget | 240 Watts PoE Budget |
| PoE++ Output | 30 Watts output on all 8 ports |
| Form Factor | DIN Rail Mountable |
| Mac Address | 8K |
| Power Inputs | Dual inputs Terminal Block |
| PoE++ Standards | IEEE 802.3at, IEEE 802.3af |
| Digital Output | 24VDC/1A |
| Serial Console | RJ-45 |
| Designed To Meet | EN50155, EN50121-4, DNV, IEC61850-3, IEEE1613 |
| Digital Input Low | 0V to 6V |
| Digital Input High | 10V to 24V |
| Ingress Protection | IP30 |
| Power Input Voltage | 44 - 57VDC |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40°C to +75°C |
| PoE++ Recommended Input | >48V for IEEE 802.3af PoE recommended |
| PoE++ Recommended Input | >52V for 802.3at PoE+ recommended |
| Precision Time Protocol | IEEE 1588 v2 |
| Power Consumption Without PoE++ | 11.1 Watts |
Frequently Asked Questions
What port configuration does the SISPM1040-384-LRT-C include?▾
This SKU includes (8) 10/100/1000Base-T PoE+ ports [100 m/328 ft.] and (4) 100/1000Base-X SFP slots.
What is the PoE budget?▾
The SISPM1040-384-LRT-C provides a 240 Watts PoE Budget with 30 Watts output on all 8 ports.
How is the switch managed?▾
It supports web / SNMP v1,v2c,v3 / Telnet / CLI management and includes DMS, accessible by Percepxion or the local web manager.
What operating temperature range is specified?▾
The operating temperature is -40°C to +75°C.
