Lantronix C3210-1013 — Media Converter Module
$354.65$528.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T (RJ-45) [100 m] to 1000Base-SX 850nm multimode (SC) conversion
- 220 m/722 ft. reach on 62.5/125 µm fiber and 550 m/1804 ft. on 50/125 µm fiber
- Layer 2 rate conversion for legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber
- Managed operation when installed in a managed ION chassis
- Copper and Fiber Auto-Negotiation with Switch Selectable Speeds and Auto-MDI/MDIX
- Link Pass Through, Remote Fault Detect, Pause, and Automatic Link Restoration

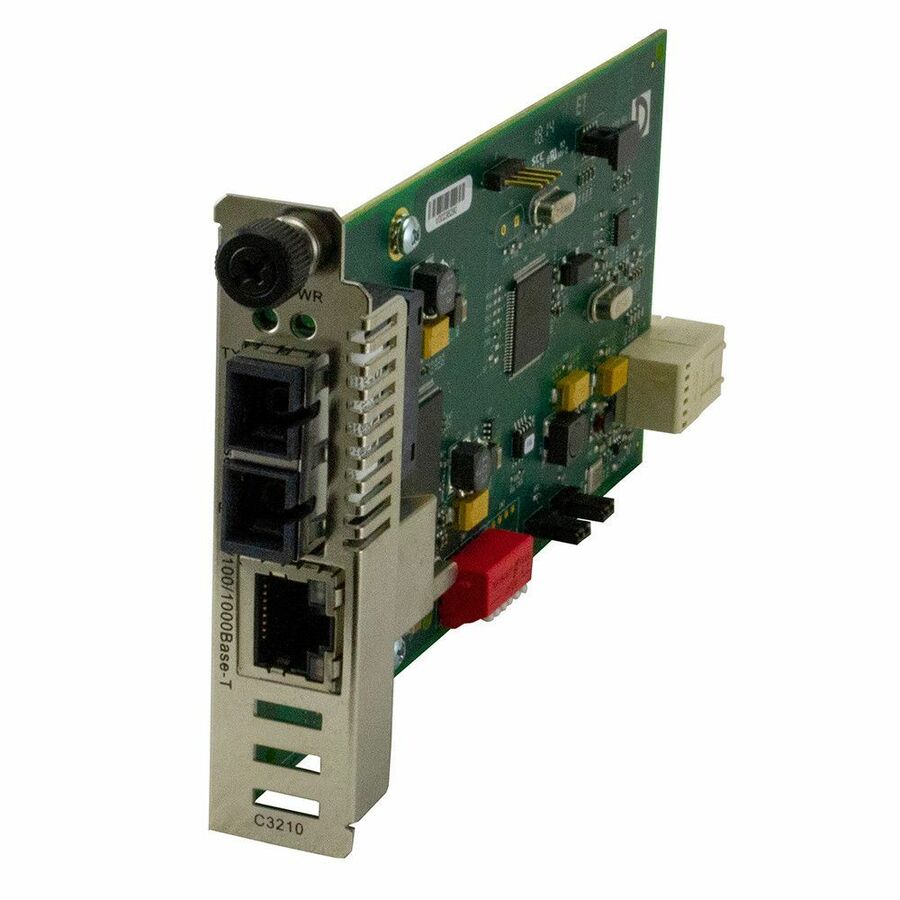

The Lantronix C3210-1013 is an ION C3210 Series media converter module for integrating fiber optic cabling into 10/100/1000 copper environments. This SKU provides 10/100/1000Base-T RJ-45 copper to 1000Base-SX 850nm multimode SC fiber conversion. Operating at Layer 2, the module converts copper to fiber and provides rate conversion for legacy 10/100 copper devices connecting to 1000Base-SX/LX fiber. The ION C3210 is manageable when installed in a managed ION chassis and can be used in any ION Platform Chassis. Features include Copper and Fiber Auto-Negotiation, Switch Selectable Speeds, Auto-MDI/MDIX, Link Pass Through, Remote Fault Detect, and Field Upgradeable Firmware.
Ideal For
- Integrating 1000Base-SX multimode fiber into 10/100/1000 copper environments
- Connecting legacy 10/100 copper devices to 1000Base-SX/LX fiber through Layer 2 rate conversion
- Deploying a manageable media converter module in a managed ION chassis
- Using an SC multimode interface where C3210 Series 1000Base-SX fiber reach is required
Specifications
| MTBF | Greater than 250,000 hours (MIL-HDBK-217F); Greater than 667,500 hours (Bellcore) |
| Depth | 6.5” [165 mm] |
| Width | 0.86” [22 mm] |
| Height | 3.4” [86 mm] |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 10/100/1000 Mbps; Layer 2 |
| Standards | IEEE 802.3; IEEE 802.3ab; IEEE 802.3u; IEEE 802.3z; IEEE 802.1p; IEEE 802.1Q |
| Link Budget | 8.5 dB |
| Certifications | CISPR/EN55022 Class A, EN55024, EN61000,; FCC Class A, CE Mark |
| Fiber Distance | 62.5/125 µm fiber: 220 m/722 ft.; 50/125 µm fiber: 550 m/1804 ft |
| Max Frame Size | 10,240 Bytes (jumbo frame support); 1,632 Bytes when linked to an xGFEB10xx-120 |
| Fiber Interface | 1000Base-SX 850nm multimode (SC) |
| Copper Interface | 10/100/1000Base-T (RJ-45) [100 m] |
| Power Consumption | 3.6 Watts, 300mA @ 12 VDC |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
What copper and fiber interfaces does C3210-1013 support?▾
C3210-1013 converts 10/100/1000Base-T over RJ-45 to 1000Base-SX 850nm multimode fiber over SC.
Is the C3210-1013 manageable?▾
Yes. The ION C3210 is a manageable device when installed in a managed ION chassis.
What multimode fiber distances are listed for this SKU?▾
It supports 220 m/722 ft. on 62.5/125 µm fiber and 550 m/1804 ft. on 50/125 µm fiber.
Which chassis platform can this module be used with?▾
The C3210 Series can be used in any ION Platform Chassis.
