Lantronix C3210-1014 — Ion 1000Base-LX Media Converter
$498.95$743.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- Copper-to-fiber conversion between 10/100/1000Base-T (RJ-45) [100 m] and 1000Base-LX 1310nm single mode (SC) [10 km/6.2 mi.]
- Rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber
- Layer 2 operation for data link layer media and rate conversion
- Managed operation when installed in a managed ION chassis
- Auto-MDI/MDIX and copper and fiber auto-negotiation
- Link Pass Through, Remote Fault Detect and Automatic Link Restoration
- IEEE 802.1p QoS, IPv4 TOS/DiffServ and IPv6 traffic class

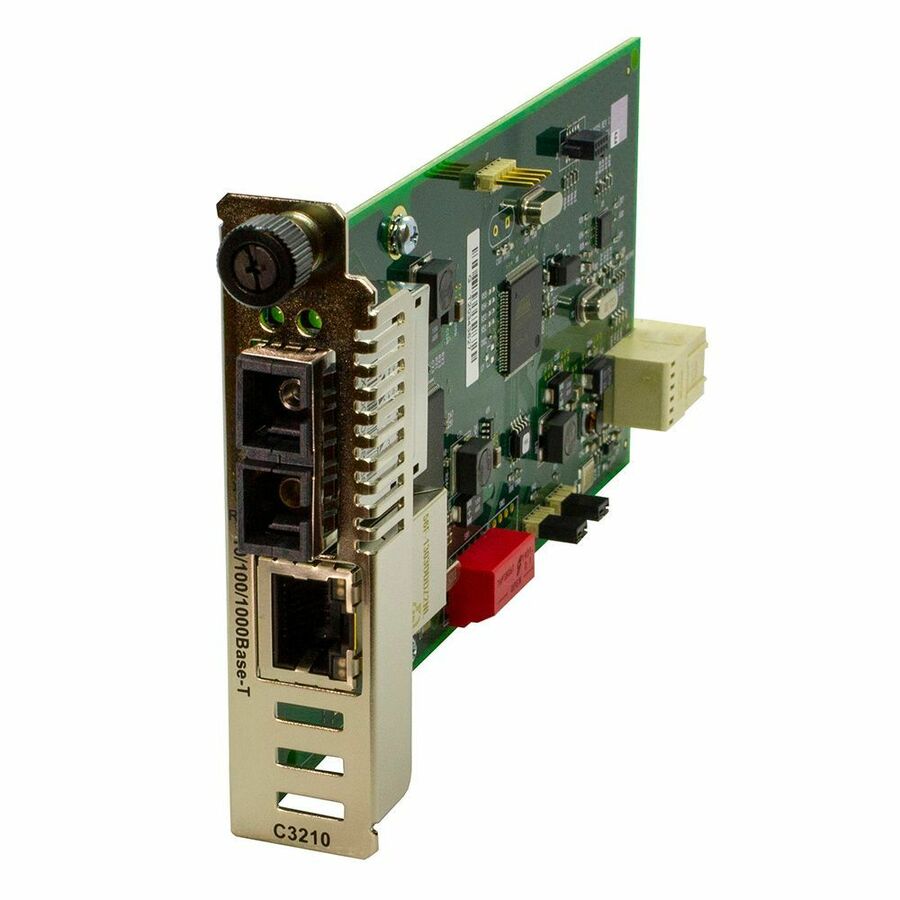

The Lantronix ION C3210 is a media converter module that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. C3210-1014 is the 10/100/1000Base-T (RJ-45) [100 m] to 1000Base-LX 1310nm single mode (SC) [10 km/6.2 mi.] configuration with a 10.5 dB link budget. Operating at Layer 2, it converts copper to fiber and provides rate conversion for legacy 10/100 copper devices connecting to 1000Base-SX/LX fiber. The C3210 Series supports copper and fiber auto-negotiation, switch selectable speeds, Auto-MDI/MDIX, Link Pass Through, Remote Fault Detect and Automatic Link Restoration. It can be used in any ION Platform Chassis and is manageable when installed in a managed ION chassis.
Ideal For
- Integrating fiber optic cabling into 10/100/1000 copper environments
- Connecting legacy 10/100 copper devices to 1000Base-SX/LX fiber
- Extending 10/100/1000Base-T RJ-45 links over 1000Base-LX 1310nm single mode SC fiber up to 10 km/6.2 mi
- Managed ION deployments that need Layer 2 media and rate conversion
Specifications
| MTBF | Greater than 250,000 hours (MIL-HDBK-217F); Greater than 667,500 hours (Bellcore) |
| Depth | 6.5” [165 mm] |
| Width | 0.86” [22 mm] |
| Height | 3.4” [86 mm] |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Standard | IEEE 802.3; IEEE 802.3ab; IEEE 802.3u; IEEE 802.3z; IEEE 802.1p; IEEE 802.1Q |
| Warranty | Lifetime |
| Data Rate | 10/100/1000 Mbps |
| Link Budget | 10.5 dB |
| Certification | CISPR/EN55022 Class A, EN55024, EN61000; FCC Class A, CE Mark |
| Max Frame Size | 10,240 Bytes (jumbo frame support) |
| Fiber Interface | 1000Base-LX 1310nm single mode (SC)[10 km/6.2 mi.] |
| Operating Layer | Layer 2 |
| Copper Interface | 10/100/1000Base-T (RJ-45) [100 m] |
| Power Consumption | 3.6 Watts, 300mA @ 12 VDC |
| Operating Temperature | 0°C to 50°C |
| Max Frame Size With Xgfeb10xx-120 | 1,632 Bytes when linked to an xGFEB10xx-120 |
Frequently Asked Questions
What network types does C3210-1014 connect?▾
It connects 10/100/1000Base-T (RJ-45) copper to 1000Base-LX 1310nm single mode fiber with an SC interface for 10 km/6.2 mi.
Is the C3210-1014 manageable?▾
Yes. The ION C3210 is a manageable device when installed in a managed ION chassis.
Which chassis can the C3210 Series be used in?▾
The C3210 Series can be used in any ION Platform Chassis.
What warranty is listed for the C3210 Series?▾
The C3210 Series warranty is Lifetime.
