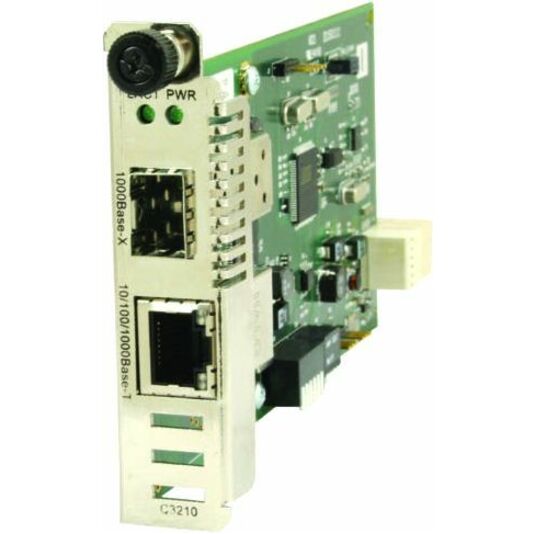

Lantronix C3210-1040 — Media Converter Module
$462.00
Ships from and sold by A5 IT
Free 2-3 Day Shipping within the United StatesArrives by Thursday, Oct 29
New, with full manufacturer warranty
Key Features
- 10/100/1000Base-T (RJ-45) [100 m] to 1000Base-X SFP Slot (empty)
- Rate conversion allows legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber
- Layer 2 operation with 10/100/1000 Mbps data rate
- Copper and Fiber Auto-Negotiation
- Link Pass Through and Remote Fault Detect
- IEEE 802.1p QoS, IPv4 TOS/DiffServ, IPv6 traffic class
- ION Platform Chassis support
The Lantronix C3210 Series is an ION Gigabit Ethernet media and rate converter module for 10/100/1000Base-T to 1000Base-SX/LX environments. C3210-1040 is the version with 10/100/1000Base-T (RJ-45) [100 m] to a 1000Base-X SFP Slot (empty). Operating at Layer 2, the C3210 converts copper to fiber and provides rate conversion for legacy 10/100 copper devices connecting to 1000Base-SX/LX fiber. The module is manageable when installed in a managed ION chassis. C3210 Series features include Copper and Fiber Auto-Negotiation, Auto-MDI/MDIX, Link Pass Through, Remote Fault Detect, IEEE 802.1p QoS and IEEE 802.1Q Port VLAN support.
Ideal For
- Integrating fiber optic cabling into 10/100/1000 copper environments
- Connecting legacy 10/100 copper devices to 1000Base-SX/LX fiber
- Deploying media conversion modules in an ION Platform Chassis
- Using a manageable media converter module in a managed ION chassis
Specifications
| Series | C3210 Series |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | 10/100/1000 Mbps; Layer 2 |
| Standards | IEEE 802.3; IEEE 802.3ab; IEEE 802.3u; IEEE 802.3z; IEEE 802.1p; IEEE 802.1Q |
| Environment | Environment specs are dependent on the chassis chosen |
| MTBF Bellcore | Greater than 667,500 hours |
| Certifications | CISPR/EN55022 Class A, EN55024, EN61000; FCC Class A, CE Mark |
| Max Frame Size | 10,240 Bytes (jumbo frame support) |
| Copper Distance | 100 m |
| Fiber Interface | 1000Base-X SFP Slot (empty) |
| Copper Interface | 10/100/1000Base-T (RJ-45) |
| Power Consumption | 3.6 Watts, 300mA @ 12 VDC |
| MTBF Mil-hdbk-217f | Greater than 250,000 hours |
| Dimensions W X D X H | 0.86” [22 mm] x 6.5” [165 mm] x 3.4” [86 mm] |
| Operating Temperature | 0°C to 50°C |
| Max Frame Size With Xgfeb10xx-120 | 1,632 Bytes when linked to an xGFEB10xx-120 |
Frequently Asked Questions
What interfaces does C3210-1040 provide?▾
C3210-1040 provides 10/100/1000Base-T (RJ-45) [100 m] to a 1000Base-X SFP Slot (empty).
Is the SFP slot populated?▾
The Lantronix part row specifies a 1000Base-X SFP Slot (empty).
Is the C3210-1040 manageable?▾
The ION C3210 is a manageable device when installed in a managed ION chassis.
What chassis platform can this module be used in?▾
The C3210 Series features state that it can be used in any ION Platform Chassis.
