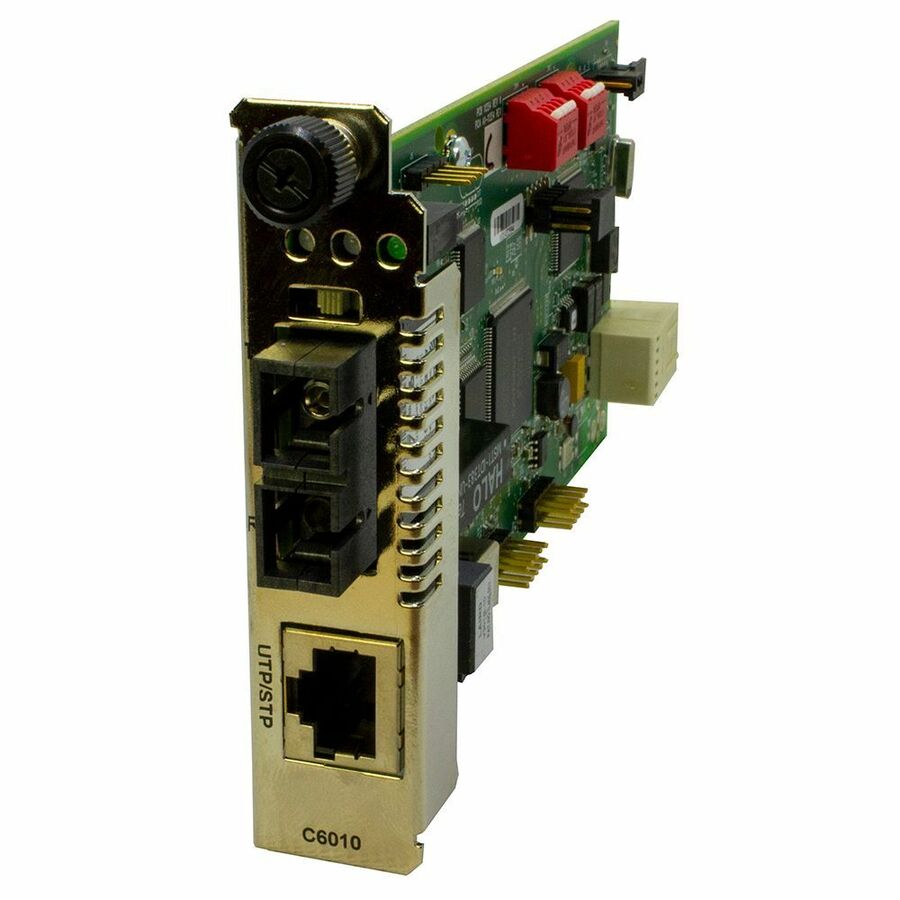

Lantronix C6010-1013 — T1/E1 to SC Fiber Media Converter
$537.95$801.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- T1/E1 over fiber extension for T1/E1 or PRI connections over fiber optic cabling
- Twisted pair RJ-48 to 1300nm SC fiber configuration with 2 km/1.2 mi fiber reach
- 12.0 dB link budget for the C6010-1013 fixed-optics model
- Switch-selectable T1 or E1 operation
- Remote in-band management with remote firmware upgrade
- SNMP management when used with ION chassis and management module
- Local or remote loopbacks on copper or fiber
Lantronix C6010-1013 is a C6010 Series managed media converter for extending T1/E1 or PRI connections over fiber optic cabling. This SKU connects twisted pair RJ-48 [1.5 km/0.9 mi.] to 1300nm SC fiber [2 km/1.2 mi.] with a 12.0 dB link budget. C6010 Series converters must be used in pairs, one on each end of the fiber link. A typical installation uses a chassis card in a centrally located managed ION chassis linked over fiber to an S6010 stand-alone converter at the remote location. The C6010 Series supports remote in-band management, copper or fiber loopbacks, switch-selectable T1 or E1 operation, remote firmware upgrade, and LEDs for immediate visual status. SNMP management is supported when used with an ION chassis and management module.
Ideal For
- Extending T1/E1 connections over fiber optic cabling
- Extending PRI over fiber
- Linking a centrally located managed ION chassis to an S6010 stand-alone converter at a remote location
- Using remote in-band management and SNMP management with an ION chassis and management module
Specifications
| MTBF | Greater than 250,000 hours (MIL-HDBD-217F); Greater than 687,000 hours (Bellcore) |
| Depth | 6.5” [165 mm] |
| Width | 0.86” [22 mm] |
| Height | 3.4” [86 mm] |
| Weight | 1 lb. [0.45 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Warranty | Lifetime |
| Data Rate | T1 = 1.544 Mbit/s, E1 = 2.048 Mbit/s |
| Standards | ANSI T1.102; T1.402; T1.408; ITU I.431; G.703; G.736; G.775; G.823; ETSI 300-166; ETSI 300-233; TBR12/12 |
| Link Budget | 12.0 dB |
| Status Leds | Power, Signal Detect Copper, Signal Detect FiberK |
| Fixed Optics | ST or SC connector |
| Certifications | EN55035/55032 Class A, FCC Class A, CE, UKCA |
| Media Conversion | Twisted Pair (RJ-48) [1.5 km/0.9 mi.] to 1300nm (SC) [2 km/1.2 mi.] |
| Copper Connectors | RJ-48, BNC |
| Power Consumption | 2.6 Watts |
| Fiber Connectors SFP+ | LC connector Uses standard 100Base-X/OC-3 SFP |
| Operating Temperature | 0°C to 50°C |
Frequently Asked Questions
Does the C6010-1013 need to be deployed in pairs?▾
Yes. C6010 Series T1/E1 converters must be used in pairs, one on each end of the fiber link.
What T1 and E1 data rates does it support?▾
It supports T1 = 1.544 Mbit/s and E1 = 2.048 Mbit/s.
What is the fiber reach for this SKU?▾
C6010-1013 is specified as twisted pair RJ-48 [1.5 km/0.9 mi.] to 1300nm SC [2 km/1.2 mi.] with a 12.0 dB link budget.
How is the C6010 Series managed?▾
It supports remote in-band management, remote firmware upgrade, and SNMP management when used with an ION chassis and management module.
