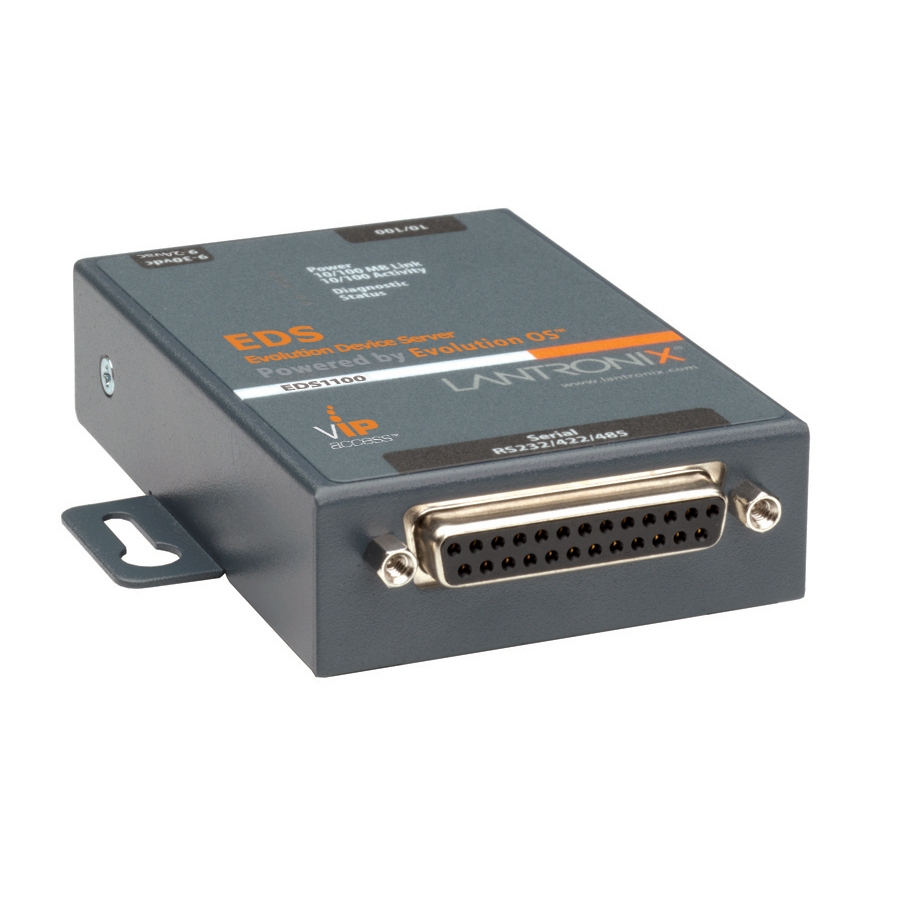

Lantronix ED1100002-LNX-01 — EDS1100 w/ Linux One-Port Secure Device Server
$208.21$247.30
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 1 DM25F (DCE) serial connector for the EDS1100 single-port configuration
- RS-232, RS-422 or RS-485 modes selectable in software, with 2- and 4-wire configurations supported
- 10BaseT and 100Base-TX Link network interface
- SSH v2 Client & Server and SSL v3 security with selectable 128/256/512/1024 Bit certificates
- AES, 3DES and RC4 encryption
- Web, CLI, XML and SNMP management tools
- 100-240 VAC International power supply included
- Quickly connect any device with a serial port to the network using robust SSH or SSL enterprise-level security
Lantronix EDS1100 is a one-port secure device server in the EDS1100 / EDS2100 series. It connects a device with a serial port to Ethernet for remote access to and management of IT/networking equipment or edge devices. This ED1100002-LNX-01 configuration is listed as EDS1100 w/ Linux and includes a 100-240 VAC International power supply. The serial interface supports software selectable RS232, RS422 or RS485 modes, with standard and customizable serial data rates from 300 to 921kbps. Security features include SSL v3, SSH v2 Client & Server, selectable 128/256/512/1024 Bit certificates, AES, 3DES and RC4 encryption, and SHA-1, MD5 and Base-64 User Access Lists authentication. Setup and management use DeviceInstaller, Internal Web Manager, CLI, XML Configuration Records, and SNMP.
Ideal For
- Remote access to and management of IT/networking equipment
- Connecting medical equipment with a serial port to the network
- Connecting POS terminals with a serial port to the network
- Connecting security equipment with a serial port to the network
Specifications
| Parity | Odd, even, none |
| Storage | -40° to 85° C (-40° to 185° F) |
| Security | SSL v3, SSH v2 Client & Server, Selectable 128/256/512/1024 Bit certificates |
| Data Bits | 7 or 8 data bits |
| Processor | 32-bit processor |
| Stop Bits | 1 or 2 |
| Encryption | AES, 3DES, RC4 |
| Flow Control | XON/XOFF (software), CTS/RTS (hardware) |
| Power Supply | 100-240 VAC International power supply |
| Product Type | Device Server |
| Serial Modes | Software selectable RS-232, RS-422 or RS-485 (2- and 4-wire configurations supported) |
| Extended Temp | -40° to 85° C (-40° to 185° F) |
| Product Model | EDS1100 |
| Authentication | SHA-1, MD5, Base-64 User Access Lists |
| Web Management | Internal Web Manager (SSL Option for secure login) |
| Deviceinstaller | Windows 98/NT/2000/XP/Vista-Based DeviceInstaller |
| On-board Memory | 8MB SDRAM/8MB Flash |
| Firmware Upgrade | FTP, TFTP, Web, and Serial Port |
| Network Standard | 10/100Base-TX |
| Serial Connector | 1 x DM25F (DCE) |
| Network Interface | 10BaseT and 100Base-TX Link |
| Relative Humidity | 5 to 95%, non-condensing |
| Serial Data Rates | 300 to 921kbps |
| Xml Configuration | XML Configuration Records via CLI or FTP |
| Com Port Redirector | ComPort Redirector |
| Network RJ-45 Ports | 1 |
| Media Type Supported | Twisted Pair |
| Modem Control Signals | CTS, RTS, DTR/DCD |
| Command Line Interface | CLI (over Serial Ports, Telnet or SSH) |
| Secure Com Port Redirector | Secure ComPort Redirector |
Frequently Asked Questions
Which serial modes does the EDS1100 support?▾
It supports software selectable RS232, RS422 or RS485, including 2- and 4-wire configurations.
What power supply is included with ED1100002-LNX-01?▾
This SKU includes a 100-240 VAC International power supply.
How can the EDS1100 be configured and managed?▾
Management options include Internal Web Manager, CLI over Serial Ports, Telnet or SSH, XML Configuration Records via CLI or FTP, DeviceInstaller software, and SNMP listed in the series management tools.
Does it include ComPort Redirector software?▾
Yes. The software list includes ComPort Redirector and Secure ComPort Redirector.
