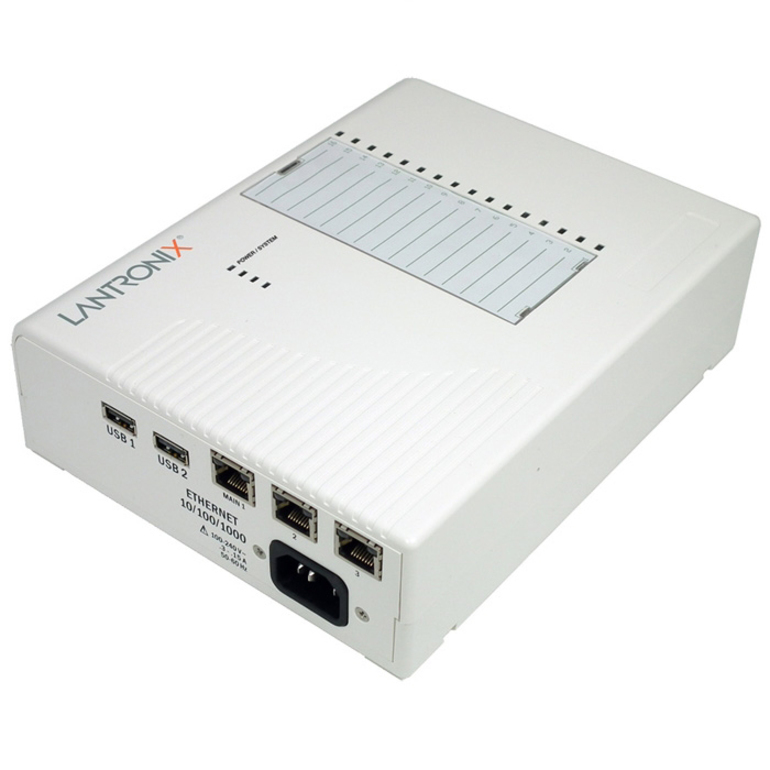

Lantronix EDSOR16P-01 — EDS-MD 16-Port Medical Device Server
$1,273.03$1,437.50
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 16-port device server configuration for EDS-MD medical device connectivity
- RS-232 interface with data rates up to 921 Kbps
- Gigabit Ethernet network interface for higher performance
- Galvanic port isolation to protect connected medical devices
- Secure Com Port Redirector™ support for encrypted virtual COM port communication
- Percepxion™ centralized management with Web, CLI and XML management tools
- UL and IEC-60601 compliance provides galvanic port isolation to protect connected medical devices
- Securely connect any medical device with a serial interface to the network using enterprise-level SSL and SSH
Lantronix EDS-MD is a certified multi-port wired IoT gateway for medical devices. EDSOR16P-01 is the 16-port device server configuration for connecting serial medical devices to the network. EDS-MD is designed for the medical industry and is described as UL and IEC-60601 compliant. It provides galvanic isolation on all ports to help protect connected medical devices if a grounding problem occurs. Secure Com Port Redirector™ lets existing serial port applications work with EDS-MD without code modifications. Virtual COM ports can be mapped to EDS-MD and encrypted at both ends of communication. Setup and configuration use industry-standard management tools including Web, CLI and XML. Centralized management is available via Percepxion™.
Ideal For
- Connect serial medical devices to an enterprise network
- Map virtual COM ports to EDS-MD for existing serial port applications
- Give authorized IT staff local or remote access to medical device data
- Centrally manage EDS-MD devices through Percepxion™
Specifications
| Flash | 8 MB Flash |
| Power | 100-240 VAC, 50/60 HZ, 0.4A |
| Memory | 256 MB DRAM |
| Weight | 16-Port = 0.9 Kg (2.0) lbs |
| Sd Card | 4 GB SD Card (internal only) |
| Mounting | Wall mount; Desktop |
| Security | SSLv3, TLS1.0, TLS1.1 Client and Server – up to 4096-bit certificates. |
| IP Rating | 20 |
| Processor | 600MHz ARM 11 processor |
| Standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; USB 2.0 |
| USB Ports | 2 x USB |
| Data Rates | Up to 921 Kbps |
| Dimensions | 21 cm (8.25 in) x 19 cm (7.5 in) x 6 cm (2.4 in) |
| Encryption | AES |
| Management | Percepxion™; secure cloud and on-premise platform for remote device management; Web Browser (SSL option for secure login); CLI (over Serial Ports, Telnet or SSH); XML Configuration Records via CLI or FTP |
| Form Factor | Desktop |
| Power Input | IEC60320 C14 receptacle without a power switch |
| Serial Ports | 16 x Serial Port |
| Storage Temp | -30°C to +80° C |
| Network Ports | 1 x Network (RJ-45) |
| Nominal Power | 12 Watts |
| Authentication | SHA-1, MD5, Base-64 |
| Certifications | FCC part 15 Subpart B; Industry Canada ICES-003 Issue 4 February 2004; CISPR 22:2005 + A1: 2005 + A2: 2006 ITE; CISPR 11:2003 + A1: 2004 + A2: 2006; VCCI V-3/2010.04; CAN/CSA-C22.2; No. 60950-1-07: 2nd edition; Canada Safety Standard for Information Technology Equipment; CAN/CSA C22.2; No. 601.1: 1990; Canada Safety Standard for Medical Electrical Equipment; JIS T 0601-1:1999, Japan Safety Standard for Medical Electrical Equipment; Reach; RoHS |
| LED Indicators | Power/System; Serial Ports (4, 8, 16) |
| Operating Temp | 0°C to +50° C (32°F to 122°F) |
| Serial Interface | RS-232 Interface |
| Power Consumption | 23 Watts Max |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet LED Indicators | Activity/Link |
| Relative Humidity Operating | 20% to 90% non-condensing |
Frequently Asked Questions
How many serial ports does EDSOR16P-01 provide?▾
EDSOR16P-01 is the 16-port EDS-MD device server configuration.
Is the EDS-MD designed for medical device connectivity?▾
Yes. The EDS-MD is described as UL and IEC-60601 compliant and designed for the medical industry.
How is the EDS-MD managed?▾
Management options include Percepxion™, Web Browser with SSL option for secure login, CLI over serial ports, Telnet or SSH, and XML Configuration Records via CLI or FTP.
What power input does this device server use?▾
The power input is 100-240 VAC, 50/60 HZ, 0.4A through an IEC60320 C14 receptacle without a power switch.
