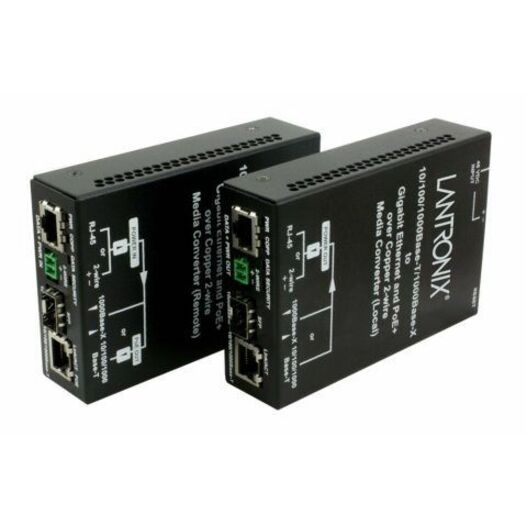

Lantronix EO2PD4052-111 — EO2Px Series Remote Ethernet Over 2-Wire Extender With PoE
Ships from and sold by A5 IT
Key Features
- 10/100/1000Base-T RJ-45 PoE+ output for IEEE 802.3af/at remote powered devices
- 100/1000Base-X SFP combo port for fiber Ethernet connection options
- 2-wire Ethernet extension over 18-24 AWG unshielded twisted pair cabling
- Full PoE+ at 335-1,500 ft. over a single pair or 1,500-6,800 ft. over multiple pairs, dependent on cable type
- Half-Gigabit Ethernet speeds over UTP cable at 330 feet (100m) or Fast Ethernet speeds at approximately 1800 feet (550m), dependent on wire gauge
- Web GUI configuration with password-protected access through a single IP address
- Power monitoring with Auto Power Reset (APR) and power-saving mode
Ideal For
- Upgrade existing 18-24 AWG twisted-pair cabling for modern PoE powered IP devices
- Connect remote IP cameras, wireless access points or other PoE powered end devices
- Extend Ethernet over UTP or twisted 2-wire phone wire infrastructure
- Configure local and remote EO2Px devices through a web GUI using a single IP address
Specifications
| MTBF | Greater than 200,000 MIL-HDBK-217F Hours |
| Weight | 1.05 lbs. [0.48 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Immunity | EN55024 |
| PoE++ Port | 10/100/1000Base-T RJ-45 PoE+ |
| Warranty | 5 Years |
| Emissions | FCC Part 15, CISPR22/EN55022 Class A |
| Standards | IEEE 802.1p; IEEE 802.1Q; IEEE 802.3; IEEE 802.3ab; IEEE 802.3af/at; IEEE 802.3az; IEEE 802.3u; IEEE 802.3x; IEEE 802.3z |
| Dimensions | 3.25” [82.5 mm] x 5.38″ [136.7 mm] x 1.25″ [31.75 mm] |
| 2-wire Port | 10/100/1000Base-T RJ-45 or 2-wire terminal block |
| Power Input | 48 VDC |
| Status Leds | Power, Copper Power, Copper ACT, Copper Security, Combo Port Link/ACT, PoE+ |
| Ethernet Port | 10/100/1000Base-T RJ-45 or 100/1000Base-X SFP Combo |
| Ingress Protection | IP30 |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to +65°C (Industrial +85°C SFP modules must be used above 50°C ambient temperature) |
| Eo2pd Power Consumption | 4.4 Watts |
| Maximum Power Consumption | 45 Watts (max) |
Frequently Asked Questions
Is EO2PD4052-111 the local unit or the remote unit?▾
It is the remote unit. EO2Px Ethernet Over 2-Wire Extenders With PoE+ are used in pairs, with a local device at one end and a remote device at the other end of the copper link.
What cabling can the EO2Px Series use?▾
The extenders use existing 18-24 AWG unshielded twisted pair cabling, including CAT 5, CAT 3 and other twisted 2-wire phone wire.
What does the remote unit provide to the end device?▾
The remote device provides a 10/100/1000Base-T RJ-45 output with PoE+ power or a 100/1000Base-X open SFP combo port connection for IP cameras, wireless access points or other PoE powered end devices.
How is the EO2Px Series configured?▾
The extenders include a web GUI with password-protected access to configuration options for both the local and remote devices through a single IP address. The web GUI also allows firmware upgrades.
