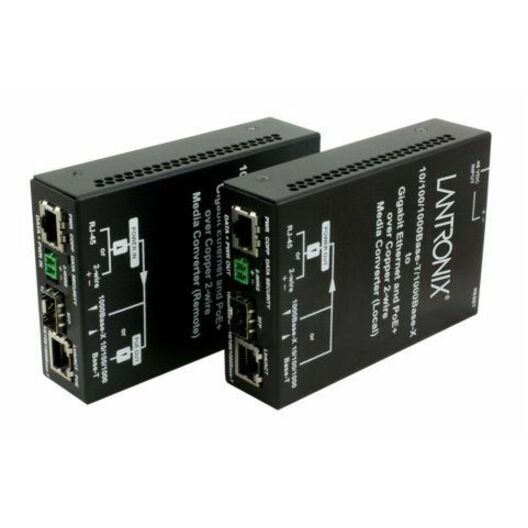

Lantronix EO2PSE4052-111 — EO2Px Series Ethernet Over 2-Wire PoE+ Local Unit
Ships from and sold by A5 IT
Key Features
- 10/100/1000Base-T RJ-45 or 100/1000Base-X SFP combo Ethernet port
- 10/100/1000Base-T RJ-45 or 2-wire terminal block 2-Wire connection
- Full PoE+ at 335-1,500 ft. over a single pair or 1,500-6,800 ft. over multiple pairs, dependent on cable type
- Half-Gigabit Ethernet speeds over UTP cable at distances of 330 feet (100m) or Fast Ethernet speeds at approximately 1800 feet (550m), dependent on wire gauge
- Web browser configurable management through a single IP address
- 128 Bit AES encryption over 2-wire
- Auto Power Reset (APR) and power-saving mode
Ideal For
- Upgrading Ethernet networks with PoE powered IP devices without replacing existing copper wire infrastructure
- Extending Ethernet over 18-24 AWG unshielded twisted pair cabling, including CAT 5, CAT 3 and other twisted 2-wire phone wire
- Connecting to copper or fiber Ethernet network equipment at the local end of an EO2Px Series link
- Providing data and power to IP cameras, wireless access points or other PoE powered end devices through paired Local and Remote extenders
Specifications
| MTBF | Greater than 200,000 MIL-HDBK-217F Hours |
| Depth | 5.38″ [136.7 mm] |
| Width | 3.25” [82.5 mm] |
| Height | 1.25″ [31.75 mm] |
| Weight | 1.05 lbs. [0.48 kg] |
| Altitude | 0 – 10,000 ft |
| Humidity | 5% to 95% (non-condensing) |
| Immunity | EN55024 |
| PoE++ Port | 10/100/1000Base-T RJ-45 PoE+ |
| Warranty | 5 Years |
| Emissions | FCC Part 15, CISPR22/EN55022 Class A |
| Standards | IEEE 802.1p; IEEE 802.1Q; IEEE 802.3; IEEE 802.3ab; IEEE 802.3af/at; IEEE 802.3az; IEEE 802.3u; IEEE 802.3x; IEEE 802.3z |
| 2-wire Port | 10/100/1000Base-T RJ-45 or 2-wire terminal block |
| Power Input | 48 VDC |
| Ethernet Port | 10/100/1000Base-T RJ-45 or 100/1000Base-X SFP Combo |
| Power Consumption | 45 Watts (max) |
| Ingress Protection | IP30 |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to +65°C (Industrial +85°C SFP modules must be used above 50°C ambient temperature) |
| Eo2pd Power Consumption | 4.4 Watts |
| Eo2pse Power Consumption | 4 Watts |
Frequently Asked Questions
Is EO2PSE4052-111 the local or remote unit?▾
EO2PSE4052-111 is the Local Unit. EO2Px Series extenders are used in pairs, with a local device at one end and a remote device at the other end of the copper link.
What cabling can the EO2Px Series use?▾
The series uses existing 18-24 AWG unshielded twisted pair cabling, including CAT 5, CAT 3 and other twisted 2-wire phone wire.
What network connections does this local unit provide?▾
It offers a 10/100/1000Base-T RJ-45 or 100/1000Base-X SFP combo Ethernet port and a 10/100/1000Base-T RJ-45 or 2-wire terminal block connection.
How is the EO2Px Series configured?▾
The extenders are supplied with a web GUI that allows password-protected configuration of both the Local and Remote devices through a single IP address. The web GUI also allows firmware upgrades.
