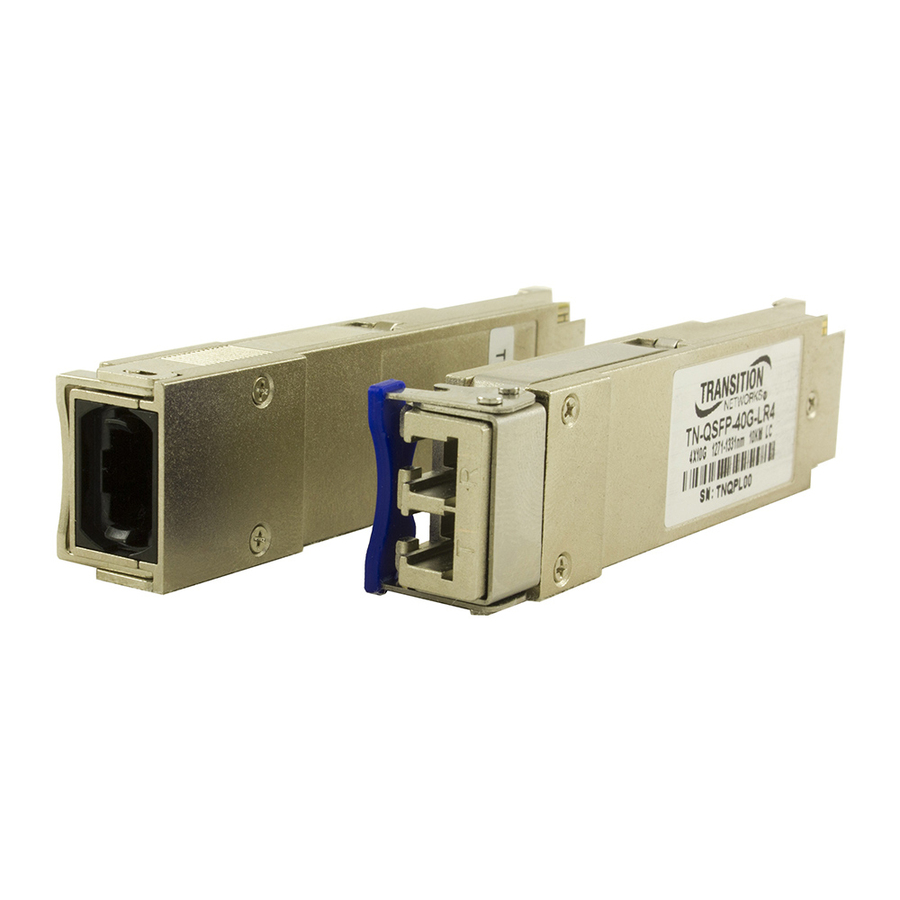

Lantronix TN-QSFP-40G-LR4-3 — QSFP+ 40GBase-LR4 Transceiver
$1,600.72$2,385.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 40GBase-LR4 QSFP+ interface for 40GBase-X network connections
- 30km/18.7mi. single mode reach with LC connector
- 1271nm, 1291nm, 1311nm, 1331nm wavelengths
- 9.0 dB link budget with DMI
- Up to 44.4 Gbps per module
- SFF 8436 QSFP+ MSA compliance
- TAA Compliant part configuration
Lantronix TN-QSFP-40G-LR4-3 is a TN-QSFP-40G Series QSFP+ optical transceiver for 40GBase-LR4 connections over single mode fiber. It uses an LC connector and is listed for 30km/18.7mi. reach. The TN-QSFP-40G Series installs in QSFP+ ports to provide 40GBase-X interfaces to the network through the QSFP+ connector. The series is Cisco Compliant and designed for bi-directional serial-optical data communication such as 40G Ethernet. This LR4-3 model uses 1271nm, 1291nm, 1311nm and 1331nm wavelengths, includes DMI, and provides a 9.0 dB link budget. Applications listed for the series include 40G Ethernet, 10G Ethernet, and Data Center Aggregation Connection.
Ideal For
- 40G Ethernet links over single mode fiber
- 40GBase-X network interfaces through QSFP+ ports
- Data Center Aggregation Connection
- Optical network and data networking applications
Specifications
| Depth | 2.83” [72 mm] |
| Width | 0.71” [18 mm] |
| Height | 0.33” [8.5 mm] |
| Warranty | 5 Years |
| Standards | IEEE 802.3ba; SFF 8436 |
| Compliance | TAA Compliant |
| Form Factor | QSFP+ |
| Link Budget | 9.0 dB |
| Power Input | 3.3V |
| Wavelengths | 1271nm, 1291nm, 1311nm, 1331nm |
| Certifications | IEC 60825-1, FDA CDRH 21-CFR 1040.10 Class 1 |
| Connector Type | LC |
| Maximum Distance | 30 km |
| Network Interface | 40GBase-LR4 |
| Ethernet Technology | 40 Gigabit Ethernet |
| Storage Temperature | -40°C to +85°C |
| Fiber Mode Supported | Single-mode |
| Operating Temperature | 0°C to +70°C |
| Digital Diagnostic Monitoring | DMI |
Documentation
Frequently Asked Questions
What reach does this transceiver support?▾
TN-QSFP-40G-LR4-3 is listed for single mode (LC) connections up to 30km/18.7mi.
Does this QSFP+ module include DMI?▾
Yes. The part-table description lists DMI, and the TN-QSFP-40G Series features include Digital Diagnostic Monitoring.
What connector and fiber type does it use?▾
It uses a Duplex LC connector for 40GBase-LR4 over single mode fiber.
Which standards are listed for the series?▾
The TN-QSFP-40G Series standards are IEEE 802.3ba and SFF 8436.
