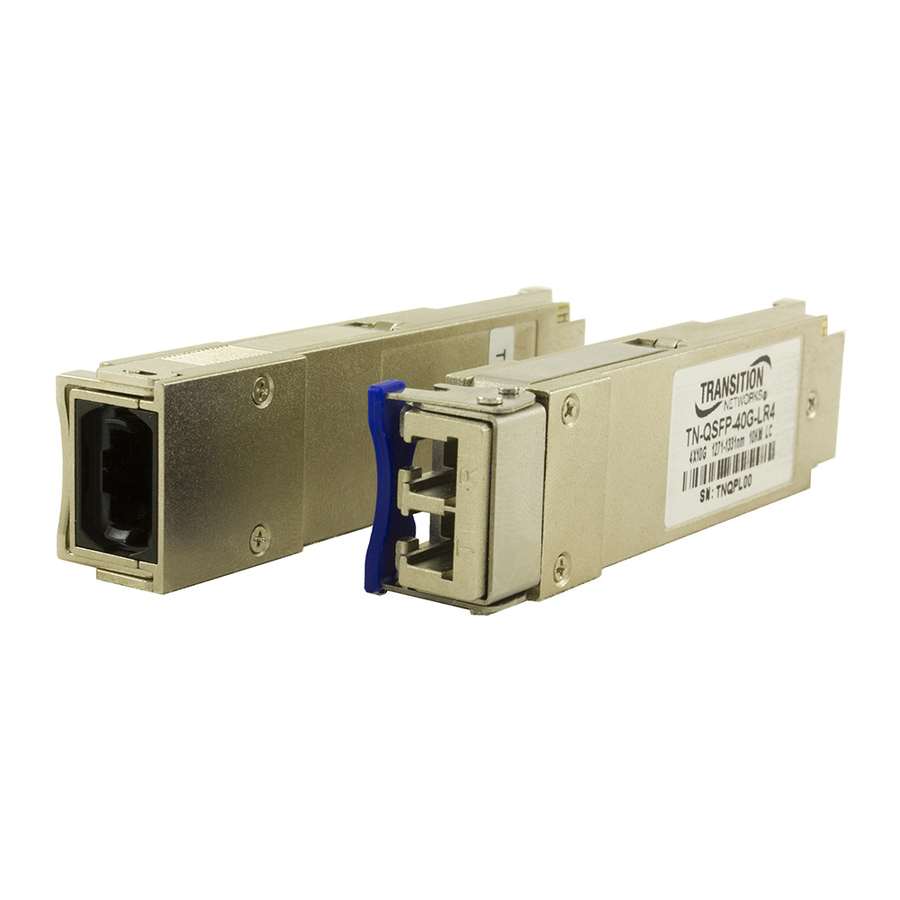

Lantronix TN-QSFP-40G-LR4 — QSFP+ Transceiver 40GBase-LR4
$1,031.69$1,537.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 40GBase-LR4 QSFP+ interface for 40GBase-X network connections through a QSFP+ port
- 10km/6.2mi. single-mode reach over LC fiber
- 1271nm, 1291nm, 1311nm, 1331nm wavelengths with 4 wavelength CWDM Mux/Demux design
- DMI support for Digital Diagnostic Monitoring
- 7.0 dB link budget
- 3.3V power input
- Cisco Compliant and TAA Compliant designations
Lantronix TN-QSFP-40G-LR4 is a TN-QSFP-40G Series 40G QSFP+ optical transceiver for 40GBase-LR4 connections over single-mode LC fiber. The part row lists 1271nm, 1291nm, 1311nm and 1331nm wavelengths, 10km/6.2mi. reach, DMI, a 7.0 dB link budget and TAA Compliant status. TN-QSFP-40G Series transceivers are designed to install in any QSFP+ port, allowing 40GBase-X interfaces to the network through the QSFP+ connector. Lantronix describes the series as Cisco Compliant and designed for bi-directional serial-optical data communication such as 40G Ethernet. Applications include 40G Ethernet, 10G Ethernet and Data Center Aggregation Connection.
Ideal For
- 40G Ethernet links over single-mode LC fiber
- 40GBase-X interfaces from QSFP+ ports
- Data Center Aggregation Connection
- 10G Ethernet applications listed for the TN-QSFP-40G Series
Specifications
| Depth | 2.83” [72 mm] |
| Reach | 10km/6.2mi. |
| Width | 0.71” [18 mm] |
| Height | 0.33” [8.5 mm] |
| Warranty | 5 Years |
| Connector | LC Duplex |
| Standards | IEEE 802.3ba; SFF 8436 |
| Fiber Mode | Single-mode |
| Form Factor | QSFP+ |
| Link Budget | 7.0 dB |
| Power Input | 3.3V |
| Wavelengths | 1271nm, 1291nm, 1311nm, 1331nm |
| TAA Compliant | Yes |
| Certifications | IEC 60825-1, FDA CDRH 21-CFR 1040.10 Class 1 |
| Network Technology | 40GBase-LR4 |
| Ethernet Technology | 40 Gigabit Ethernet |
| Storage Temperature | -40°C to +85°C |
| Operating Temperature | 0°C to +70°C |
| Digital Diagnostic Monitoring | DMI |
Documentation
Frequently Asked Questions
What fiber type and connector does TN-QSFP-40G-LR4 use?▾
It uses single-mode fiber with an LC connector and lists a reach of 10km/6.2mi.
Does this QSFP+ transceiver support DMI?▾
Yes. The Lantronix part row lists the TN-QSFP-40G-LR4 with DMI, and the series features list Digital Diagnostic Monitoring.
Is the TN-QSFP-40G-LR4 Cisco Compliant?▾
Lantronix describes the TN-QSFP-40G transceivers as Cisco Compliant.
What is the operating temperature range?▾
The listed operating range is 0°C to +70°C.
