Lantronix TN-QSFP-40G Series 40G QSFP+ Optical Transceivers
The TN-QSFP-40G Series is a family of Cisco-compliant 40GBase QSFP+ optical transceivers covering multimode links inside the data center through 30 km single-mode runs between sites, most with digital diagnostics.
From $397.50
Overview
About the Lantronix TN-QSFP-40G Series
TN-QSFP-40G modules (also written TN QSFP 40G) plug into any QSFP+ port to provide 40GBase-X optical interfaces for 40G Ethernet, 10G Ethernet and data center aggregation links. They comply with the SFF-8436 QSFP+ MSA and IEEE 802.3ba, run from a single 3.3 V supply and carry up to 44.4 Gbps per module. Lantronix describes them as Cisco compliant.
Five optical designs cover different plant. The SR4 drives four parallel lanes of up to 11.1 Gbps over an MPO connector on multimode fiber. The SR-BD sends two 20 Gbps bidirectional channels at 850 to 900 nm over a duplex LC multimode pair, so existing 10G duplex cabling can carry 40G. The IR4, LR4 and LR4-3 multiplex four CWDM wavelengths (1271, 1291, 1311 and 1331 nm) onto duplex LC single-mode fiber at up to 11.1 Gbps each, reaching 2 km, 10 km and 30 km.
Power dissipation is under 1.5 W for the SR4 and under 3.5 W for the others. All modules operate from 0°C to +70°C and are Class 1 laser products under IEC 60825-1 and FDA CDRH 21-CFR 1040.10. The SR4, LR4 and LR4-3 are TAA compliant.
Key capabilities
- 40G over duplex LC multimode
- The TN-QSFP-40G-SR-BD uses two bidirectional 20 Gbps channels on one duplex LC pair, reaching 150 m on OM4 and 100 m on OM3.
- 30 km single-mode reach
- The TN-QSFP-40G-LR4-3 extends 40GBase-LR4 CWDM optics to 30 km with a 9.0 dB link budget for campus and metro links.
- Digital diagnostics
- SR4, IR4, LR4 and LR4-3 modules provide DMI, reporting optical and electrical parameters to the host switch for link monitoring.
- TAA compliant options
- Three modules, the SR4, LR4 and LR4-3, are marked TAA compliant, which matters for government and public-sector network procurement.
- Low power draw
- The SR4 dissipates under 1.5 W and every other module under 3.5 W, from a single 3.3 V supply in the QSFP+ port.
How to choose the right TN-QSFP-40G Series part number

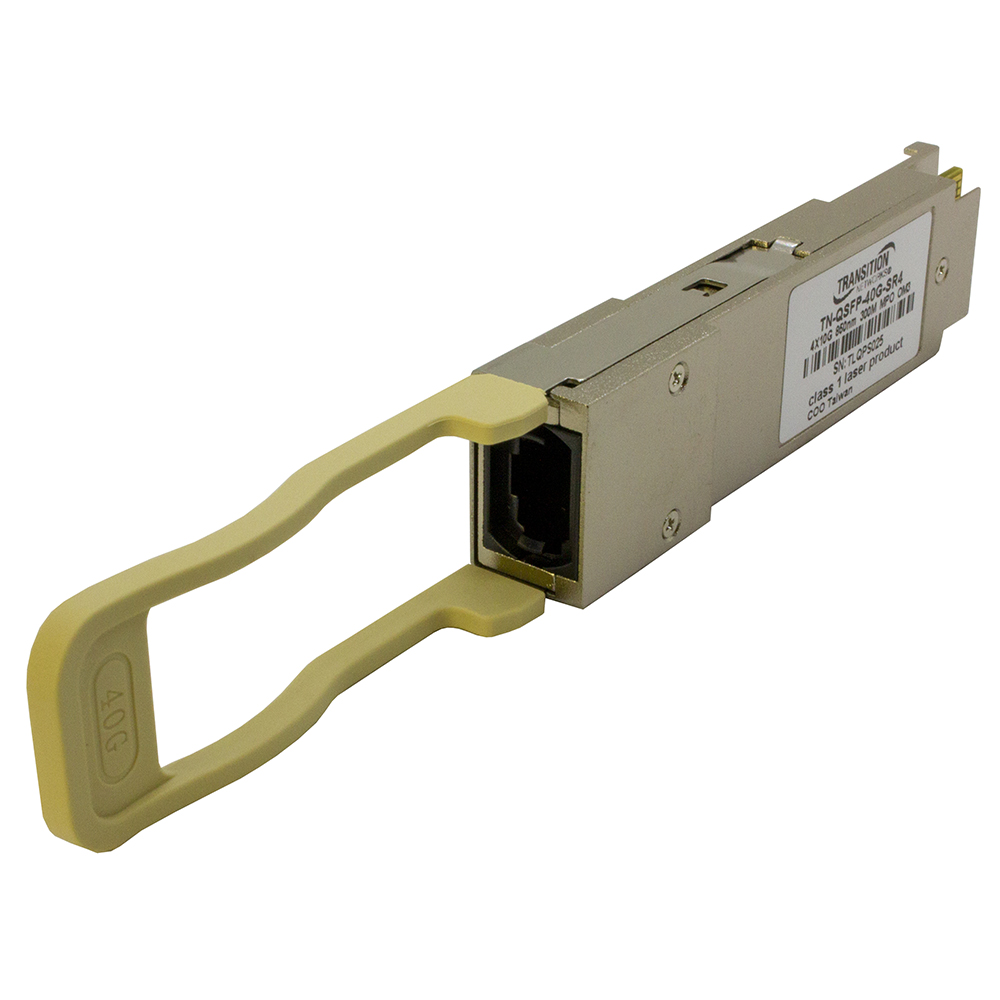

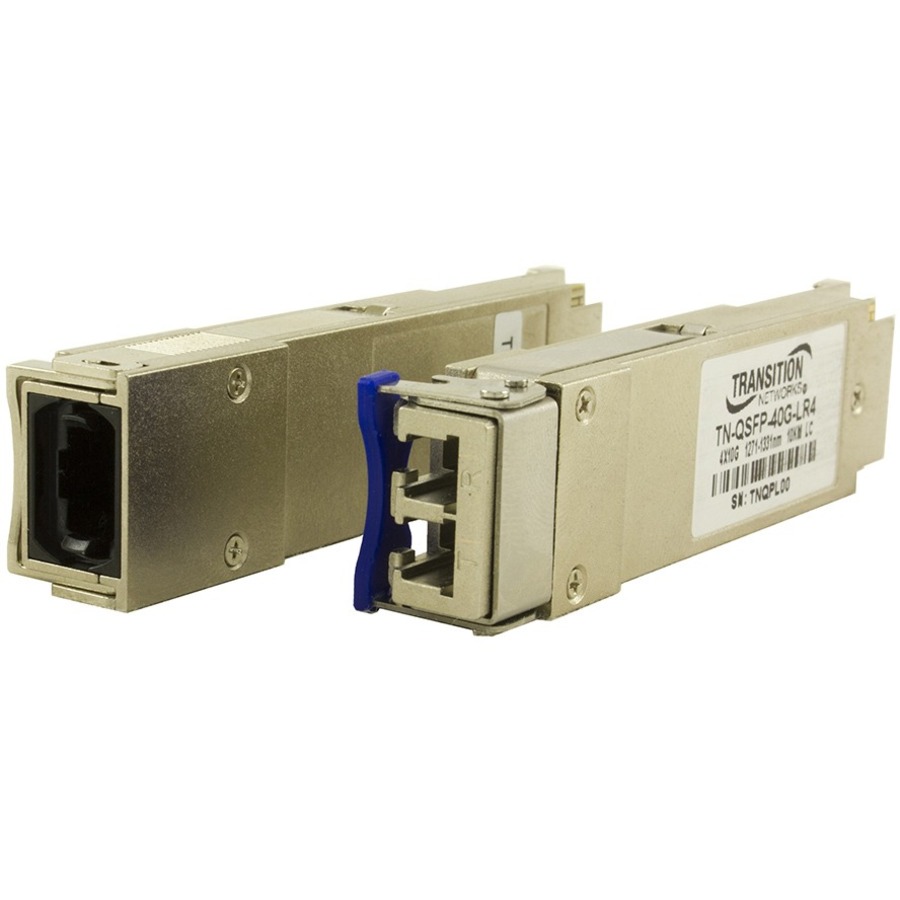

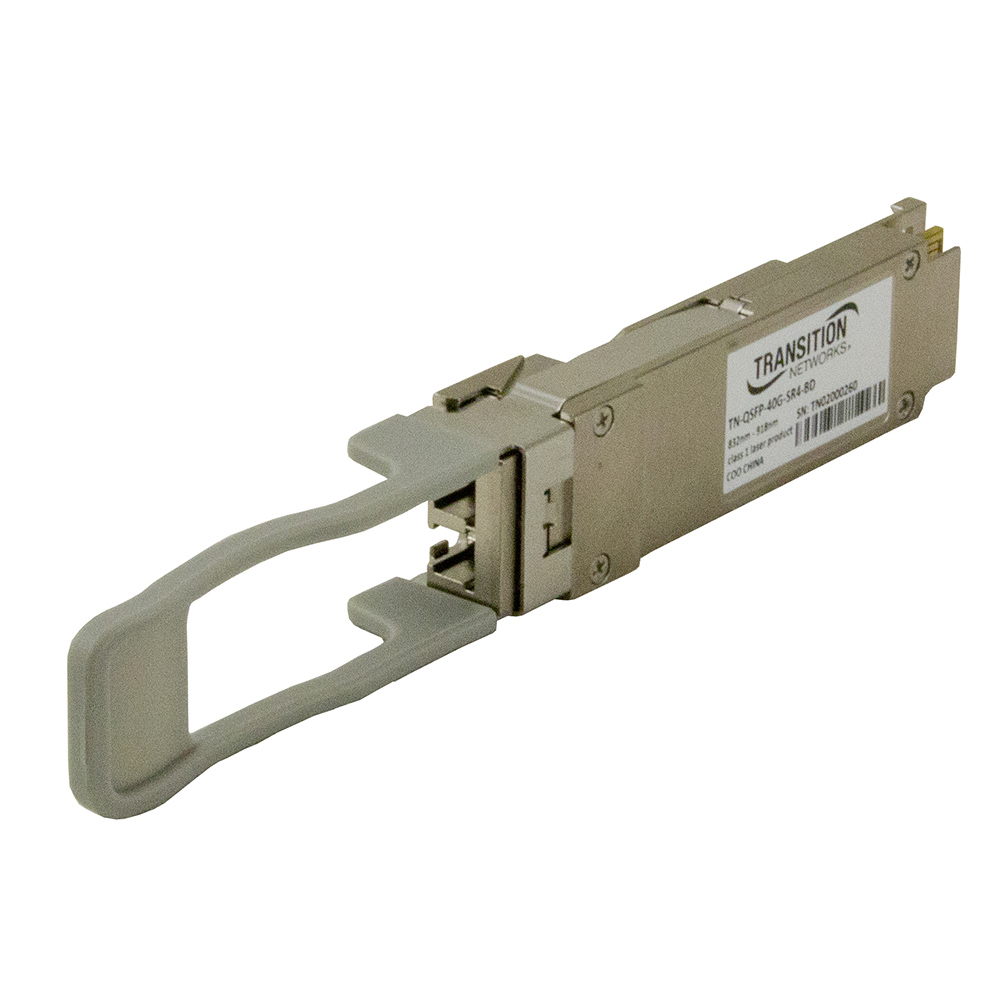

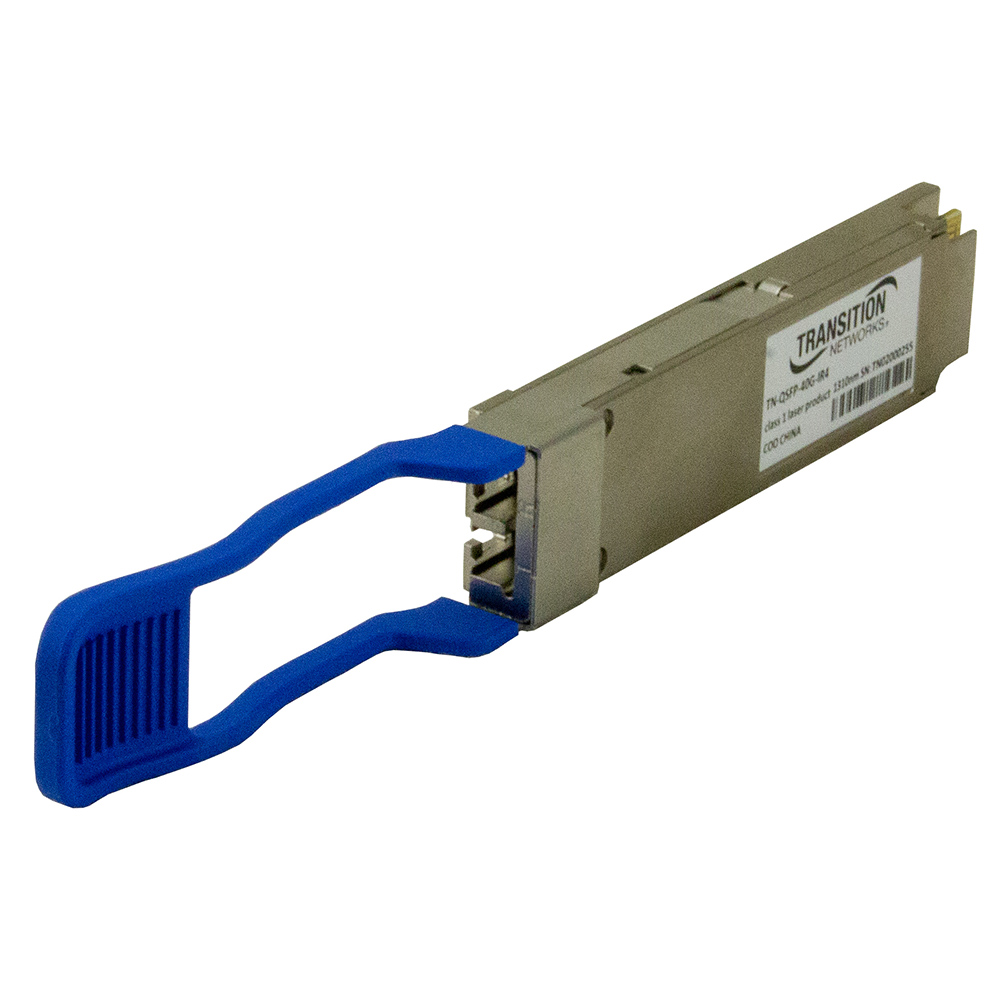

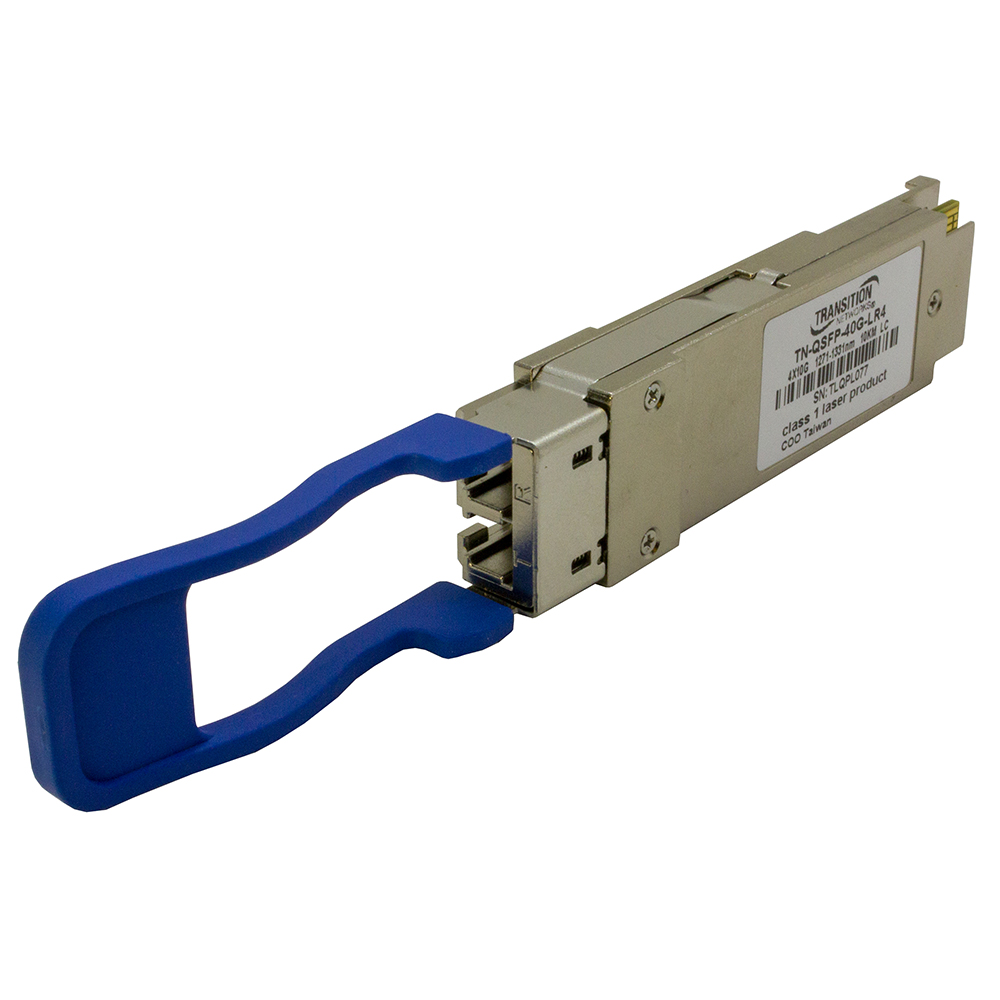

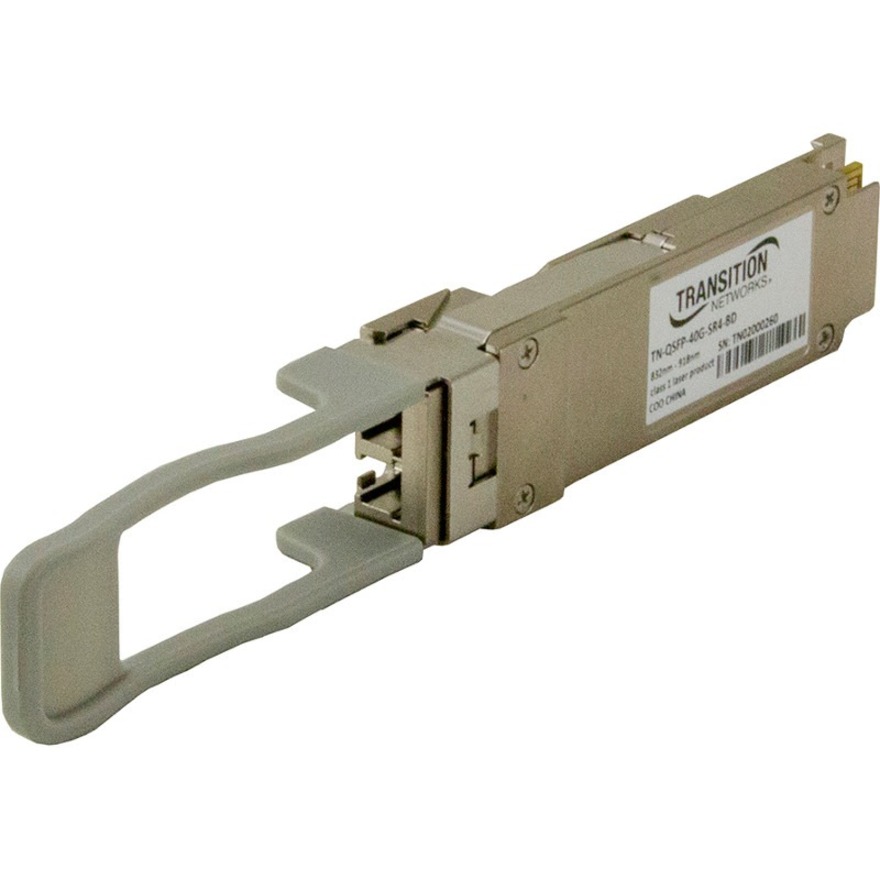

Match the module to your fiber and distance. TN-QSFP-40G-SR4 is 850 nm multimode with an MPO connector, 400 m on OM4 or 300 m on OM3. TN-QSFP-40G-SR-BD uses duplex LC multimode at 850/900 nm for 150 m on OM4 or 100 m on OM3, without DMI. For single-mode duplex LC, TN-QSFP-40G-IR4 reaches 2 km, TN-QSFP-40G-LR4 10 km and TN-QSFP-40G-LR4-3 30 km. SR4, LR4 and LR4-3 are TAA compliant. Remember that both ends of a link need the same module type.
Configure & order
Find your TN-QSFP-40G Series part number
Every orderable TN-QSFP-40G Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
TN-QSFP-40G-LR4
$1,537.00
Ships on backorder
TN-QSFP-40G-SR4
$397.50
Ships on backorder
TN-QSFP-40G-SR-BD
$731.40
Ships on backorder
TN-QSFP-40G-IR4
$1,113.00
Ships on backorder
TN-QSFP-40G-LR4-3
$2,385.00
Ships on backorder
Where the TN-QSFP-40G Series is used
- 40G spine and leaf links inside the data center
- Reusing duplex OM3/OM4 cabling for 40G with SR-BD
- Building-to-building 40G over single-mode with LR4
- Metro or campus 40G backbones up to 30 km
TN-QSFP-40G Series datasheets & documentation
TN-QSFP-40G Series FAQ
What is the difference between 40GBase-SR4 and SR-BD QSFP+?
The TN-QSFP-40G-SR4 uses four parallel lanes over an MPO connector and reaches 400 m on OM4. The TN-QSFP-40G-SR-BD uses two bidirectional channels over a duplex LC pair and reaches 150 m on OM4, letting you reuse duplex multimode cabling.
How far can a TN-QSFP-40G transceiver reach?
Multimode reach is up to 400 m on OM4 with SR4 and 150 m with SR-BD. Single-mode reach is 2 km with IR4, 10 km with LR4 and 30 km with LR4-3, all over duplex LC.
Are the TN-QSFP-40G modules compatible with Cisco switches?
Lantronix describes the series as Cisco compliant and designed to install in any QSFP+ port. The modules comply with the SFF-8436 QSFP+ MSA and IEEE 802.3ba, so they follow the standard QSFP+ form factor and 40G Ethernet optics.
Which TN-QSFP-40G part numbers are TAA compliant?
TN-QSFP-40G-SR4, TN-QSFP-40G-LR4 and TN-QSFP-40G-LR4-3 are listed as TAA compliant. The TN-QSFP-40G-IR4 and TN-QSFP-40G-SR-BD are not marked TAA compliant in the part number listing, so choose SR4, LR4 or LR4-3 where TAA is required.
What is the operating temperature of TN-QSFP-40G optics?
All modules operate from 0°C to +70°C and store from -40°C to +85°C. They are Class 1 laser products under IEC 60825-1 and FDA CDRH 21-CFR 1040.10.
