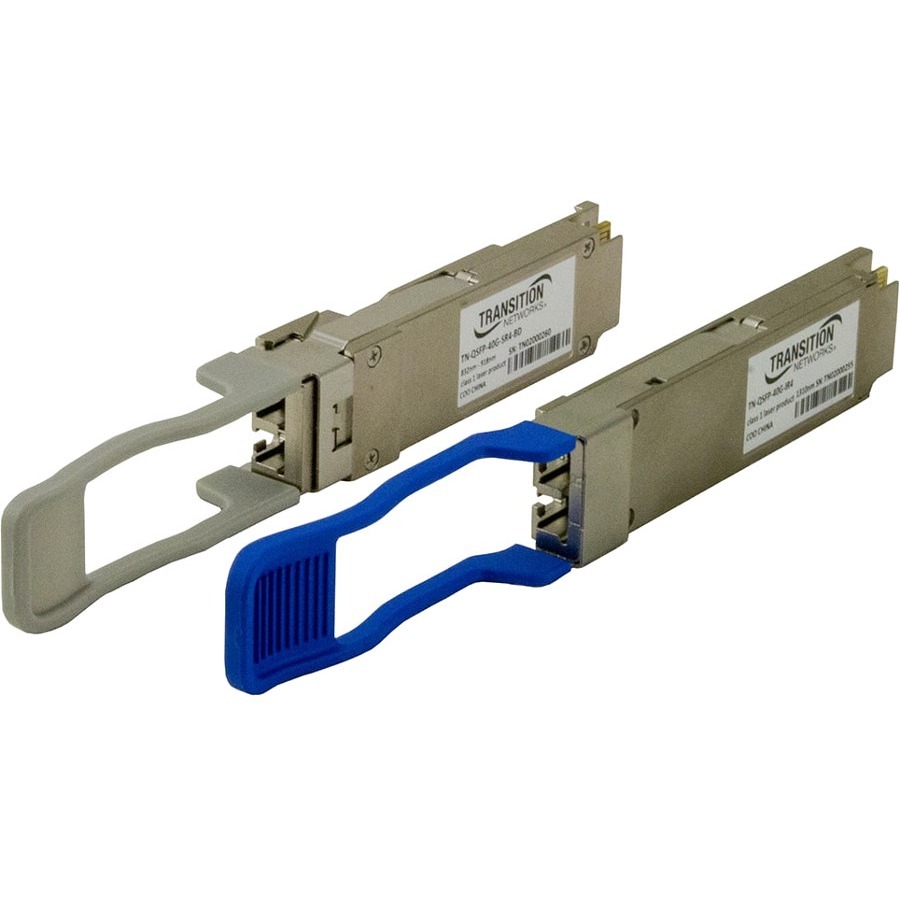

Lantronix TN-QSFP-40G-SR-BD QSFP+ 40GBase-SR-BD optical transceiver

Lantronix TN-QSFP-40G Series 40GBase-SR-BD QSFP+ Transceiver

Lantronix|

MPN: TN-QSFP-40G-SR-BD

|

UPC: 648177040506

Available on Backorder
$490.89$731.40

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales
Free shipping — every order, no minimumShips free as soon as stock arrives. We'll confirm the lead time before your card is charged.
Authorized Dealer — Full manufacturer warranty
Business Pricing Available

Exclusive pricing, free shipping on your first order, and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

  • 40GBase-SR-BD optical interface for 40GBase-X network connections through a QSFP+ connector
  • 850nm/900nm multimode LC connection for short-reach bidirectional serial-optical data communication
  • 150m/492ft. on OM4 and 100m/328ft. on OM3 reach
  • Two transmit/receive channels with 20Gbps each channel
  • Single +3.3 V Power Supply
  • SFF 8436 QSFP+ MSA compliance
  • Digital Diagnostic Monitoring
Lantronix TN-QSFP-40G-SR-BD is a TN-QSFP-40G Series 40G QSFP+ optical transceiver designed to install in any QSFP+ port, allowing 40GBase-X interfaces to the network through the QSFP+ connector. The series is Cisco Compliant* and designed for bi-directional serial-optical data communication such as 40G Ethernet. This SKU provides a 40GBase-SR-BD multimode LC interface at 850nm/900nm. It supports 150m/492ft. on OM4 and 100m/328ft. on OM3 with a Link Budget of 3.0 dB. The TN-QSFP-40G Series includes Digital Diagnostic Monitoring, a Single +3.3 V Power Supply, IEEE 802.3ba support, and SFF 8436 compliance. Applications include 40G Ethernet, 10G Ethernet, and Data Center Aggregation Connection.

Ideal For

  • 40G Ethernet connections through QSFP+ ports
  • 10G Ethernet applications listed for the TN-QSFP-40G Series
  • Data Center Aggregation Connection
  • Short-reach multimode LC fiber links using OM4 or OM3

Why This Product

  • 1Uses multimode LC for 40GBase-SR-BD, while TN-QSFP-40G-SR4 uses a multimode MPO connector
  • 2Supports 150m/492ft. on OM4 and 100m/328ft. on OM3; single-mode siblings list 2km/1.24mi., 10km/6.2mi., or 30km/18.7mi. reach
  • 3Link Budget: 3.0 dB, compared with 2.3 dB for SR4, 6.7 dB for IR4, 7.0 dB for LR4, and 9.0 dB for LR4-3
