Lantronix TN-SFP-10G-LR-PK — TN-SFP-10G-xR Series 10GBase-LR SFP+ 20 Pack
$3,987.57$5,941.30
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 20-pack configuration of TN-SFP-10G-LR 10GBase-LR SFP+ transceivers
- 1310nm single-mode LC optics for 10 km/6.2 mi. links
- 9.0 dB link budget for the listed 10GBase-LR configuration
- SFF-8472 Digital Diagnostic Function (DMI)
- 10G Small Form-Factor Pluggable (SFP+) MSA Compliant design
- 3.3V power input
- RoHS Compliant

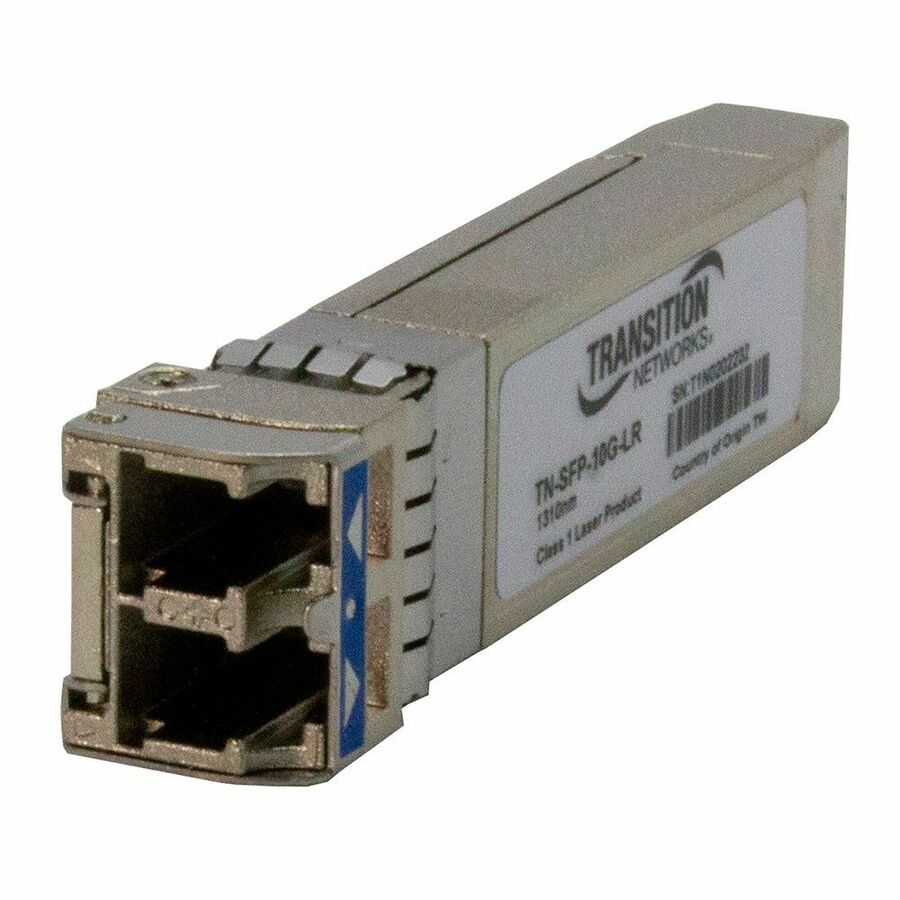

The Lantronix TN-SFP-10G-LR-PK is a 20 pack of TN-SFP-10G-LR Cisco Compatible 10GBase-LR SFP+ transceivers with DMI. Each transceiver uses 1310nm single-mode LC optics for 10 km/6.2 mi. links with a 9.0 dB link budget. The TN-SFP-10G-xR Series lists an SFP+ Optical Transceiver with LC connector, 10G Small Form-Factor Pluggable (SFP+) MSA Compliant design, and SFF-8472 Digital Diagnostic Function (DMI). The series uses 3.3V power input and carries a Lifetime warranty. Applications include 10G Ethernet Switches and Routers and Metro Edge Switching.
Ideal For
- 10G Ethernet Switches
- Routers
- Metro Edge Switching
- Optical Network data networking
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Standard | IEEE 802.3z; IEEE 802.3ae |
| Warranty | Lifetime |
| Wavelength | 1310nm |
| Form Factor | SFP+ |
| Link Budget | 9.0 dB |
| Power Input | 3.3V |
| Connector Type | LC |
| Packaged Quantity | 20 |
| Network Technology | 10GBase-LR |
| Digital Diagnostics | SFF-8472 Digital Diagnostic Function (DMI) |
| Ethernet Technology | 10 Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Fiber Mode Supported | Single-mode |
| Operating Temperature | 0°C to 70°C |
| Maximum Distance Supported | 10 km/6.2 mi. |
Frequently Asked Questions
What is included with TN-SFP-10G-LR-PK?▾
TN-SFP-10G-LR-PK is a pack of (20) TN-SFP-10G-LR 10GBase-LR SFP+ transceivers with DMI.
What fiber type and connector does it use?▾
It uses 1310nm single-mode fiber with an LC connector.
What link distance does this 10GBase-LR SFP+ support?▾
The listed distance is 10 km/6.2 mi. with a 9.0 dB link budget.
Does this SFP+ transceiver support DMI?▾
Yes. The TN-SFP-10G-xR Series lists SFF-8472 Digital Diagnostic Function (DMI).
