Lantronix TN-SFP-10G-ZR-10 — TN-SFP-10G-xR Series 10GBase-ZR SFP+ Transceiver
$1,885.34$2,809.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 10GBase-ZR SFP+ optical transceiver with LC connector
- 100 km/62.1 mi. maximum link length on single-mode fiber
- 1550nm wavelength with 26.0 dB link budget
- SFF-8472 Digital Diagnostic Function (DMI)
- 10G Small Form-Factor Pluggable (SFP+) MSA compliant
- Single +3.3V power supply
- RoHS compliant

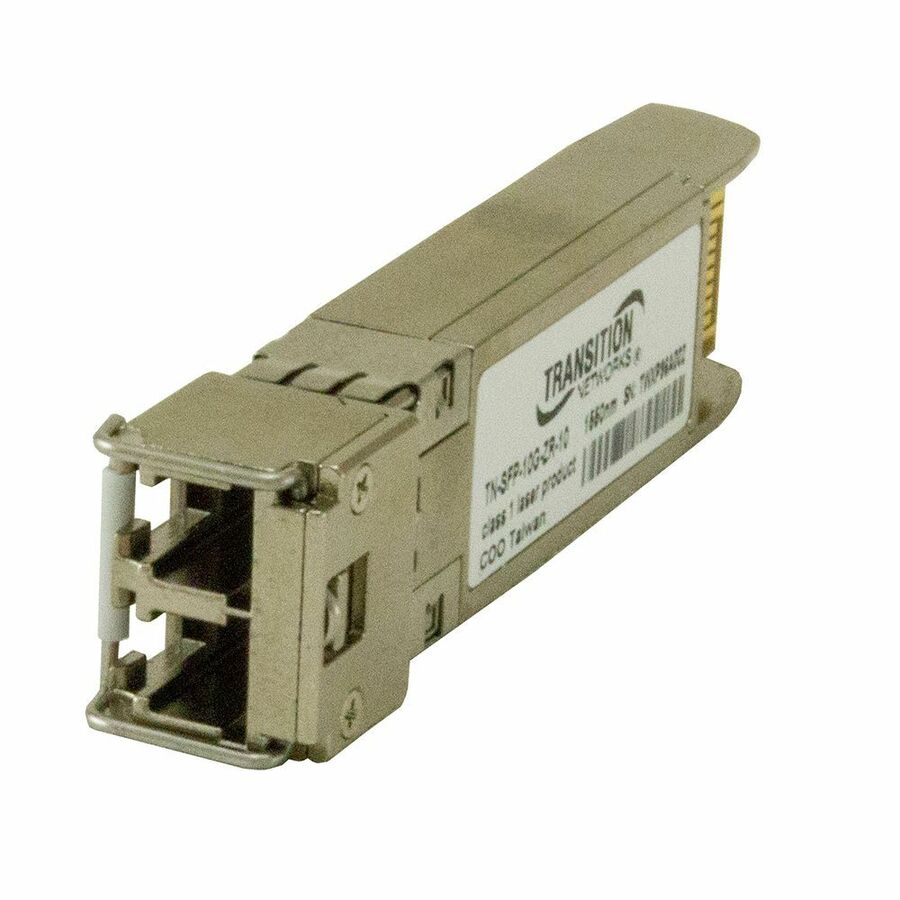

Lantronix TN-SFP-10G-ZR-10 is a Cisco Compatible 10GBase-ZR SFP+ optical transceiver in the TN-SFP-10G-xR Series. It uses single-mode fiber, an LC connector, and a 1550nm wavelength for 100 km/62.1 mi. links. The module supports SFF-8472 Digital Diagnostic Function (DMI) and a 26.0 dB link budget. It is 10G Small Form-Factor Pluggable (SFP+) MSA compliant and uses a single +3.3V power supply. Applications include 10G Ethernet switches and routers and Metro Edge Switching.
Ideal For
- 10G Ethernet switches
- 10G Ethernet routers
- Metro Edge Switching
Specifications
| Depth | 2.18” [55 mm] |
| Width | 0.52” [13 mm] |
| Height | 0.33” [8 mm] |
| Standard | IEEE 802.3z; IEEE 802.3ae |
| Warranty | Lifetime |
| Fiber Mode | Single-mode |
| Media Type | Optical Fiber |
| Form Factor | SFP+ |
| Link Budget | 26.0 dB |
| Power Input | 3.3V |
| Network Port | 1 x LC 10GBase-ZR Network |
| Compatibility | MSA Compliant |
| Connector Type | LC |
| TAA Compliance | TAA Compliant |
| Output Wavelength | 1550nm |
| Network Technology | 10GBase-ZR |
| Digital Diagnostics | SFF-8472 Digital Diagnostic Function (DMI) |
| Ethernet Technology | 10 Gigabit Ethernet |
| Maximum Link Length | 100 km/62.1 mi. |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 70°C |
| Environmental Compliance | RoHS Compliant; Waste Electrical and Electronic Equipment Directive (WEEE); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Frequently Asked Questions
What is the maximum link length for TN-SFP-10G-ZR-10?▾
TN-SFP-10G-ZR-10 is listed with a maximum link length of 100 km/62.1 mi.
What fiber type and connector does this SFP+ transceiver use?▾
It uses single-mode optical fiber and an LC connector for 10GBase-ZR networking.
Does this module support DMI?▾
Yes. The TN-SFP-10G-xR Series features SFF-8472 Digital Diagnostic Function (DMI).
What applications does Lantronix list for this series?▾
Lantronix lists applications including 10G Ethernet switches and routers and Metro Edge Switching.
