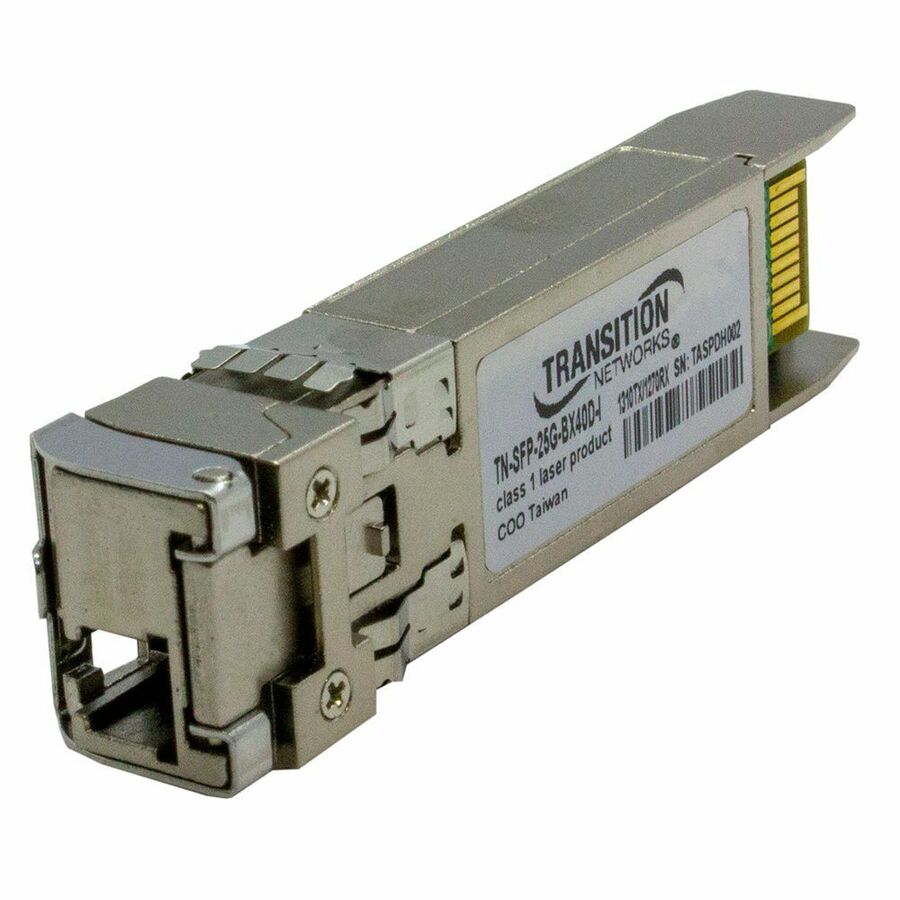

Lantronix TN-SFP-25G-BX40D-I — TN-SFP-25G Series 25GBase-BX SFP28
$960.43$1,431.00
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 25Gbase-BX connectivity with SFP28 and DMI
- 1310nm TX / 1270nm RX optics for single mode single fiber (LC)
- 40KM / 24.9 mi. reach with 19.0 dB link budget
- Cisco Compatible design in the TN-SFP-25G Series
- 5G eCPRI compliance for fronthaul/backhaul applications
- SFF-8431 and SFF-8472 compliance
- -40°C to 85°C operating range for TN-SFP-25G-BX40D-I
The Lantronix TN-SFP-25G-BX40D-I belongs to the TN-SFP-25G Series of Cisco Compatible 25GBase SFP28 modules with DMI and LC connectivity. This SKU is configured for 25Gbase-BX with 1310nm TX / 1270nm RX over single mode single fiber. It is specified for 40KM / 24.9 mi. reach with a 19.0 dB link budget and an operating range of -40°C to 85°C. Series applications include 25G Ethernet and Fiber Channel for Data Center and eCPRI for 5G Fronthaul/Backhaul. The module is MSA Compliant, compliant with 25GBase-xR and 5G eCPRI, and compliant with SFF-8431 and SFF-8472. It uses a single +3.3V power supply.
Ideal For
- 25G Ethernet links for data center applications
- Fiber Channel for Data Center applications
- eCPRI for 5G Fronthaul/Backhaul
- Optical network and data networking connections
Specifications
| Warranty | Lifetime |
| Standards | IEEE 802.3z; IEEE 802.3; IEEE 802.3ae; IEEE 802.3CC |
| Compliance | MSA Compliant; 25GBase-xR; 5G eCPRI; SFF-8431; SFF-8472 |
| Dimensions | 0.52” [13 mm] x 2.18” [55 mm] x 0.33” [8 mm] |
| Fiber Mode | Single-mode |
| Media Type | Optical Fiber |
| Link Budget | 19.0 dB |
| Power Input | 3.3V |
| Product Type | SFP28 |
| TAA Compliant | Yes |
| Certifications | IEC-60825, FDA 21, CFR 1040.10 and 1040.11 |
| Connector Type | LC |
| Product Series | TN-SFP-25G |
| Maximum Distance | 40KM / 24.9 mi. |
| Tx Rx Wavelength | 1310nm TX / 1270nm RX |
| Power Dissipation | < 2 Watts |
| Network Technology | 25GBase-BX |
| Ethernet Technology | 25 Gigabit Ethernet |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40°C to 85°C |
| Environmental Compliance | RoHS; WEEE; REACH |
| Interfaces Ports Details | 1 x LC 25Gbase-BX Network |
Frequently Asked Questions
Is TN-SFP-25G-BX40D-I Cisco Compatible?▾
Yes. The source data identifies the TN-SFP-25G Series as Cisco Compatible 25GBase SFP28 modules.
What TX and RX wavelengths does this module use?▾
This SKU uses 1310nm TX / 1270nm RX on single mode single fiber with an LC connector.
What distance is this SFP28 specified for?▾
The Lantronix part row lists 40KM / 24.9 mi. with a 19.0 dB link budget.
What operating temperature range applies to this SKU?▾
The operating temperature for TN-SFP-25G-BX40D-I is -40°C to 85°C.
