Lantronix E220 Series Industrial LTE Cellular Routers
The E220 Series are compact DIN-rail cellular routers that combine LTE, wired WAN, LAN, Wi-Fi and RS-485 serial in an aluminium housing for M2M and enterprise sites that need cellular primary or failover links.
From $272.48
Overview
About the Lantronix E220 Series
The E220 Series (sometimes written E-220; orderable models carry the E228 prefix) is a family of rugged cellular routers for M2M and enterprise applications that cannot tolerate a lost connection. Cellular can run as the primary link or as automatic WAN failover behind a wired line, and the router supports failover or load balancing across Ethernet, cellular and Wi-Fi. The E220 Series is in Last Time Buy status, so plan remaining orders and spares now.
The orderable E228 models use a WP7607 LTE Cat 4 engine rated up to 150 Mbps down and 50 Mbps up, with 3G and 2G fallback. They run OpenWrt on a 580 MHz processor with 128MB RAM and add RS-485, two digital inputs and two digital outputs, Modbus RTU to TCP support and 802.11b/g/n Wi-Fi as client or access point with multiple SSIDs. Main power is 10.8 to 60 VDC, compliant with ISO 7637-2, and the operating range is -30 to +70 C.
VPN options include OpenVPN client and server, IPSec, GRE, L2TP and PPTP, backed by a zone-based firewall, VLAN, DMZ and SIM PIN protection. Routers are configured through a web interface with a setup wizard or remotely by SMS and OTA updates, are TR-069 capable and can be managed at fleet scale from the ConsoleFlow cloud platform.
Key capabilities
- LTE Cat 4 with fallback
- E228 models deliver LTE Cat 4 at up to 150 Mbps downlink and 50 Mbps uplink, falling back to 3G and 2G where LTE coverage is missing.
- Automatic WAN failover
- When the wired WAN drops, traffic moves to cellular automatically; Ethernet, cellular and Wi-Fi can also be set for load balancing.
- Wide DC input range
- The main power input accepts 10.8 to 60 VDC on a Micro-Fit 3.0 connector and complies with ISO 7637-2 for vehicle-grade power.
- Industrial serial and I/O
- An RS-485 port with 6 kV contact protection, Modbus RTU to TCP conversion and two digital inputs and outputs connect field equipment.
- Compact DIN-rail housing
- The brushed aluminium alloy body measures 61.25 x 85.75 x 24.5 mm, weighs about 152 g and mounts on DIN rail.
- Full VPN toolset
- OpenVPN client and server, IPSec, GRE, L2TP and PPTP plus a zone-based firewall secure traffic between remote sites and the core.
How to choose the right E220 Series part number
The router part numbers differ by cellular band set, so choose by deployment region. E228G002S covers EMEA with LTE bands 1, 3, 7, 8, 20 and 28. E228G004S covers Asia Pacific with LTE bands 1, 3, 5, 7, 8 and 28. E228G00CS covers China and India with LTE bands 1, 3 and 5 plus TDD 40 and 41. E228G00CB28 bundles the E228G00CS with an A32M0 antenna, KEEC0 cable, KDC22 power cable and BR351 DIN clip. MF17 is the E228 accessory bundle, and the P22E0 to P22E4 adapters supply 12 V 1.25 A with region-specific plugs.
Configure & order
Find your E220 Series part number
Every orderable E220 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
E228G002S
$280.31
Ships on backorder

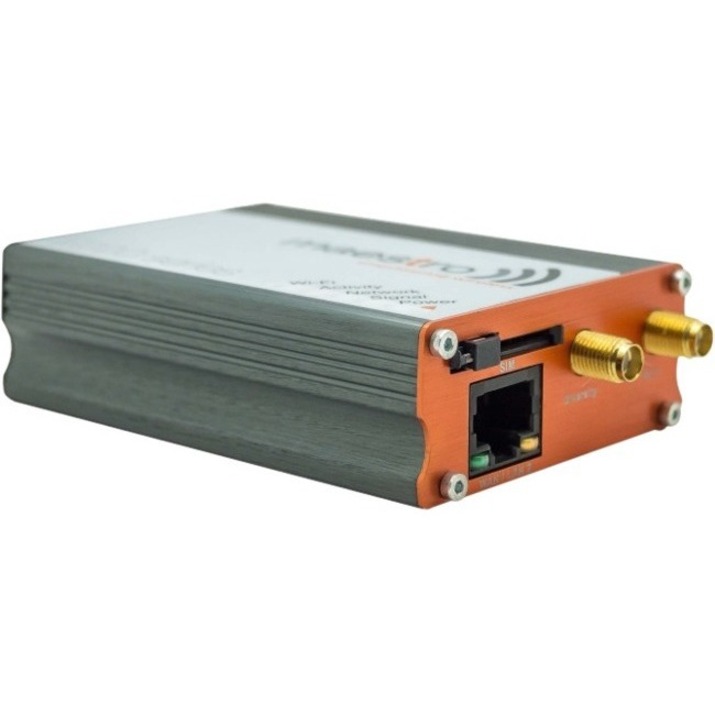

E228G004S
$284.55
Ships on backorder
E228G00CS
$272.48
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the E220 Series, organized by what it does — antennas, power— each with why you'd add it.
Antennas
3 itemsAccessory Bundle
MF17
E220 Series accessory bundle for E228G MKII, E224, and E228 routers. It includes a KDC22 power cord, 2X A22H0 antennas, 2X A21H0 antennas, and a BR351 DIN rail clip.
$70.67
Ships on backorder
Accessory Bundle
MF16
Accessory bundle for E225G MKII and E225 routers in the E220 Series. It includes a KDC22 power cord, A14M0 antenna, 2 x A21H0 antennas and a BR351 DIN rail clip.
$74.79
Ships on backorder
E228 Series
E228G00CB28
E228 Series router bundle with an E228G00CS router, A32M0 antenna, KEEC0 cable, KDC22 power cable and BR351 DIN clip.
$289.42
Ships on backorder
Power
7 items
Power Supply
P24E2
12 V DC, 1.25 A switching power adapter with a 4-pin SWB connector, US AC cable and plug.
$26.18
Ships on backorder
Power Supply
P22E2
External 12 V DC power supply with 1.25 A output. It includes a 2PIN MOLEX CONNECTOR, AC CABLE and US plug.
$26.18
Ships on backorder
Power Supply
P22E4
12V 1.25A switching Power Supply adapter with a 2PIN MOLEX CONNECTOR. This configuration includes an AC cable and UK/HK plug for the E220 Series router.
$26.18
Ships on backorder
Power Supply
P22E3
12V1.25A switching power supply with a 2PIN MOLEX CONNECTOR. It includes an AC cable for AUSTRALIA & NZ and is listed for the E220 Series.
$26.18
Ships on backorder
Power Supply
P22E0
12V1.25A switching power adapter with a 2PIN MOLEX CONNECTOR and EURO PLUG AC CABLE.
$26.18
Ships on backorder
Power Supply
P22E1
12V1.25A switching power supply for the E220 Series router. It includes a 2PIN MOLEX CONNECTOR and plug AC cable with PSE mark for Japan.
$27.74
Ships on backorder
Accessory Bundle
MF15
Accessory bundle for the Lantronix E225 Lite 3G Router. It includes a KDC22 power cord, A31M0 antenna, 2 x A21H0 and BR351 DIN rail clip.
$49.32
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the E220 Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the E220 Series is used
- Cellular failover for wired WAN links at branch sites
- Remote Modbus RTU equipment connected over RS-485
- Wi-Fi access point and LTE uplink in vehicles
- VPN-connected M2M telemetry from unmanned field cabinets
E220 Series FAQ
Is the Lantronix E220 Series discontinued?
Lantronix lists the E220 Series as Last Time Buy. The E228 router part numbers and their accessories remain listed, but buyers maintaining an installed base should plan final quantities and spares while Last Time Buy orders are still possible.
Which E228 model should I choose for my region?
Pick by band set. E228G002S is the EMEA model with LTE bands 1, 3, 7, 8, 20 and 28. E228G004S is for Asia Pacific with bands 1, 3, 5, 7, 8 and 28. E228G00CS is for China and India, adding TDD bands 40 and 41.
What power input does the E220 router accept?
The main source is 10.8 to 60 VDC on a 2-pin Micro-Fit 3.0 connector, compliant with ISO 7637-2 and ISO 21848. Lantronix offers 12 V 1.25 A switching adapters with Euro, US, UK/HK, Australia/NZ and Japan plugs, plus the KDC22 fused bare-wire cable.
Does the E220 Series support Modbus and serial devices?
Yes. Every model has an RS-485 port supporting full and half duplex on a 5-pin COMBICON connector, and the software supports Modbus RTU to TCP and Modbus master. Two digital inputs (5 to 48 VDC detection) and two open-collector outputs are also provided.
What is the operating temperature of the E228 router?
The E228 and other non-Lite E220 models operate from -30 C to +70 C. Lite models in the wider series are rated -20 C to +55 C.
