Lantronix EDS3000PS 8- and 16-Port Secure Serial Device Servers
The EDS3000PS is an office-grade, plastic-enclosed device server that puts 8 or 16 RJ-45 serial ports on a Gigabit Ethernet network, with SSH and TLS security, for medical equipment, POS terminals, security systems and IT gear.
From $808.00
Overview
About the Lantronix EDS3000PS
The EDS3000PS (also written EDS 3000PS) connects serial-port equipment to an IP network so it can be reached, configured and monitored remotely. Lantronix describes it as a hybrid Ethernet terminal server and multiport device server: it can give administrators console access to networking equipment, or let applications talk to edge devices such as medical equipment, POS terminals and security systems. The plastic desktop or wall-mount housing is designed for visible locations such as clinical areas.
Hardware is built on a Cortex-A9 CPU with 512 MB flash and 512 MB RAM and a 10/100/1000 Mbps Ethernet port. The 8 or 16 RJ-45 serial ports run from 300 baud to 230 Kbaud with 7 or 8 data bits, hardware or software flow control and CTS, RTS, DTR and DCD modem signals. Security includes SSHv2, TLS 1.0 through 1.3, AES, RSA, DSA and ECDSA keys, password protection and IP address filtering.
Configuration uses a Cisco-like CLI, a web manager, SNMP v1/v2/v3 or the Windows-based Lantronix Provisioning Manager, and the unit is manageable from Percepxion. Firmware updates through the web manager, FTP or the serial port. ComPort Redirector and Secure ComPort Redirector present the remote ports as local COM ports, so existing applications work without code changes.
Key capabilities
- 8 or 16 serial ports
- Software-selectable RJ-45 serial ports on one Gigabit Ethernet uplink, in a compact desktop or wall-mount enclosure.
- TLS 1.3 and SSHv2
- Encrypted access with SSHv2 and SSL/TLS up to TLS 1.3, AES, MD5/SHA-1/SHA-2 and RSA, DSA or ECDSA keys.
- Virtual COM ports
- ComPort Redirector and Secure ComPort Redirector map network serial ports to local COM ports, so legacy software needs no modification.
- Built for visible spaces
- A plastic, office-grade housing for medical and other high-visibility installations, operating from 0°C to 55°C on 100-240 VAC.
- Customizable web server
- The internal web server supports CGI and a local file system updated over FTP for application-specific pages.
How to choose the right EDS3000PS part number
There are two base models. EDS3008PS1NS has 8 RJ-45 serial ports and EDS3016PS1NS has 16; both have one Gigabit Ethernet port, 100-240 VAC input and a North American power cord. The 16-port unit is taller (6 cm versus 4.3 cm) and heavier. To connect devices, pick the RJ-45 adapter that matches the device connector and role: DB9 or DB25, male or female, DTE (200.2069A, 200.2070A, 200.2067A, 200.2066A) or DCE (200.2071, 200.2072, 200.2073). RJ-45 cables come in 2, 5 and 15 m lengths.
Configure & order
Find your EDS3000PS part number
Every orderable EDS3000PS configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.

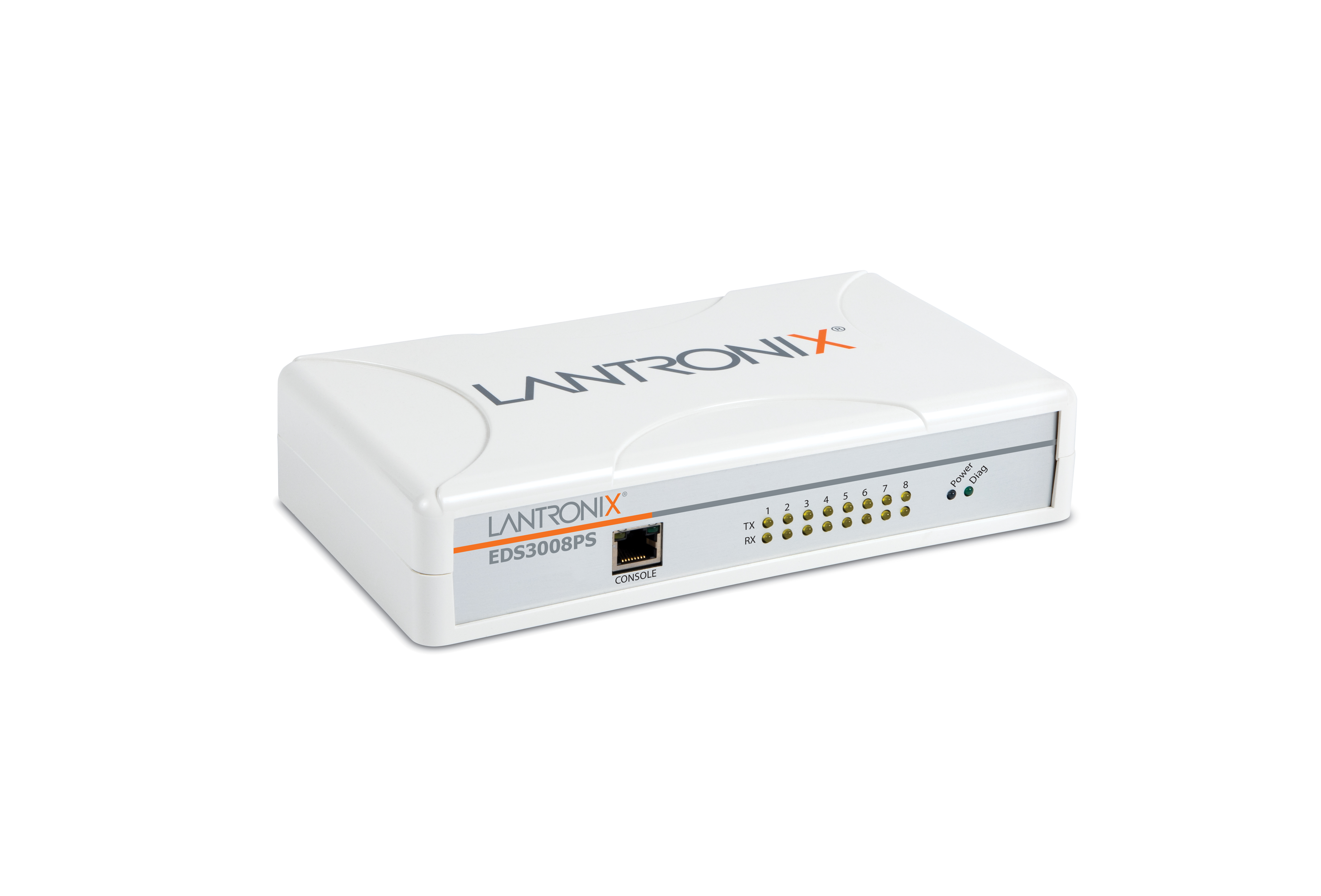

EDS3008PS1NS
$808.00
Ships on backorder

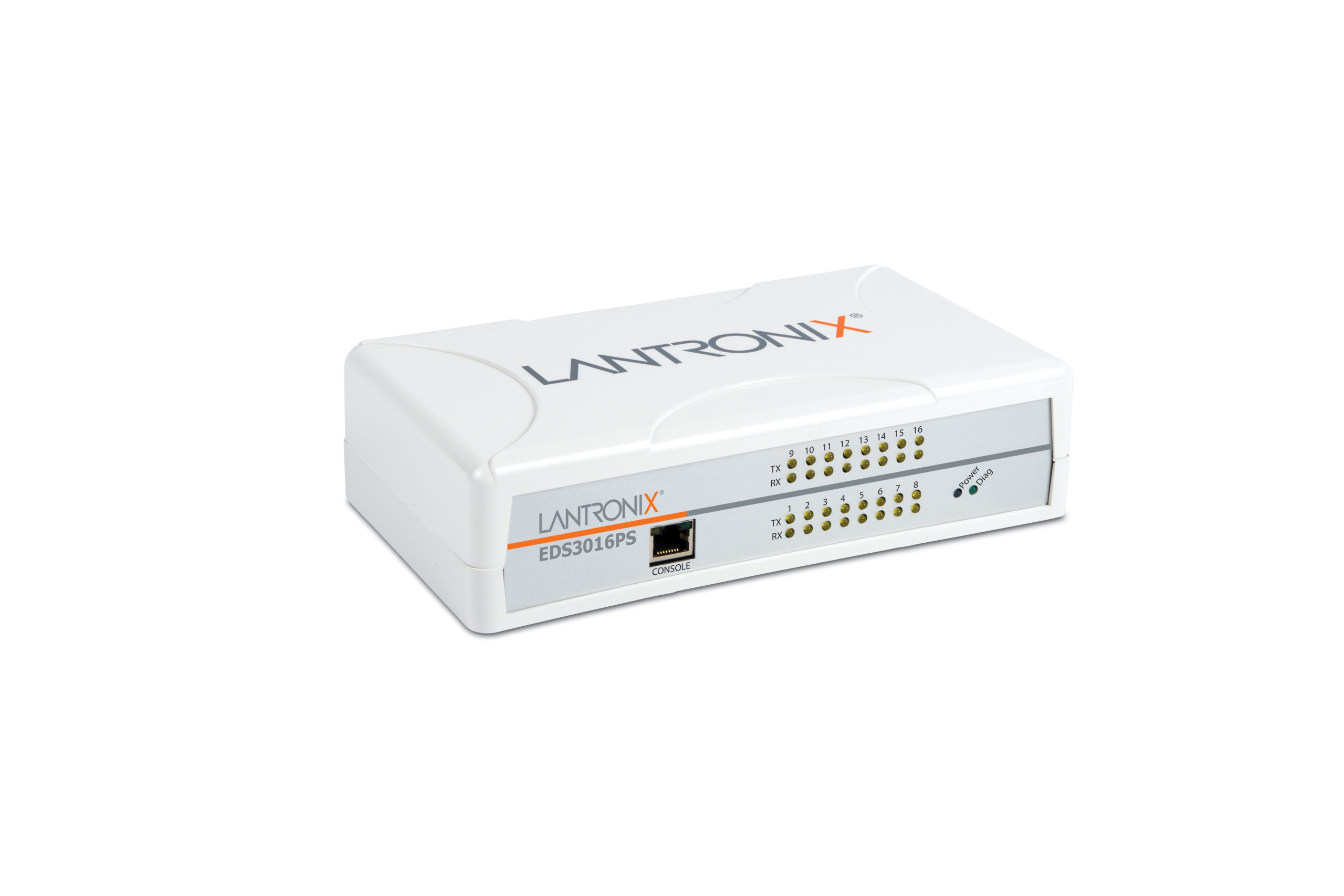

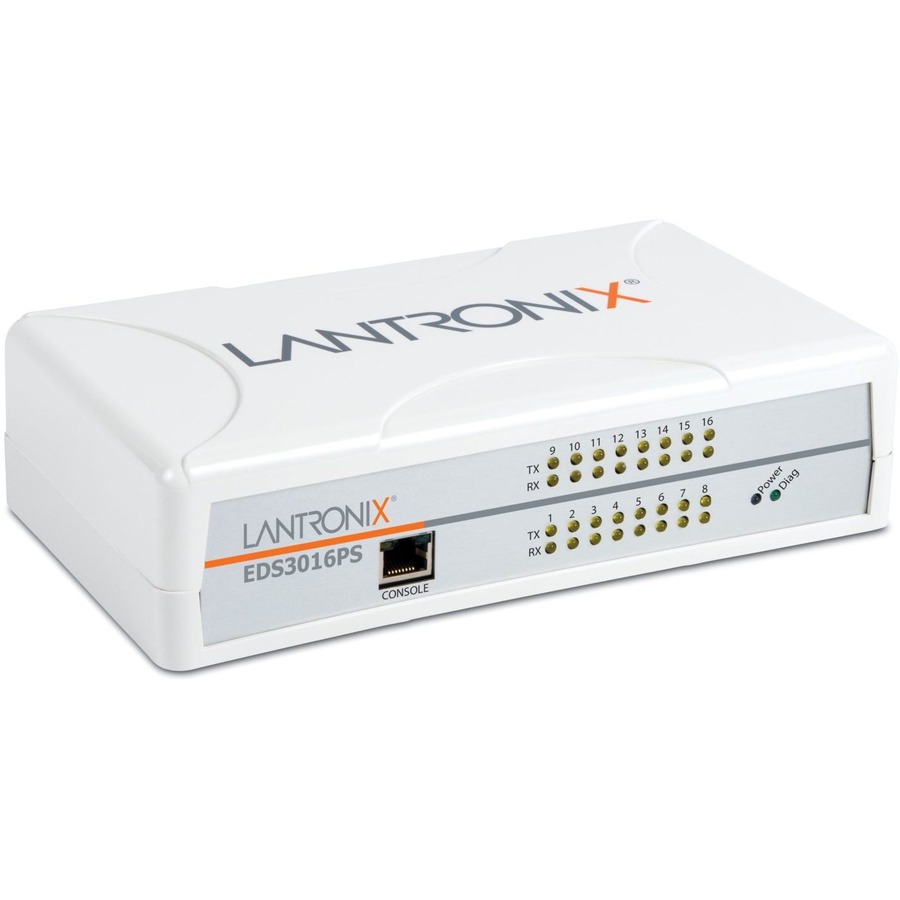

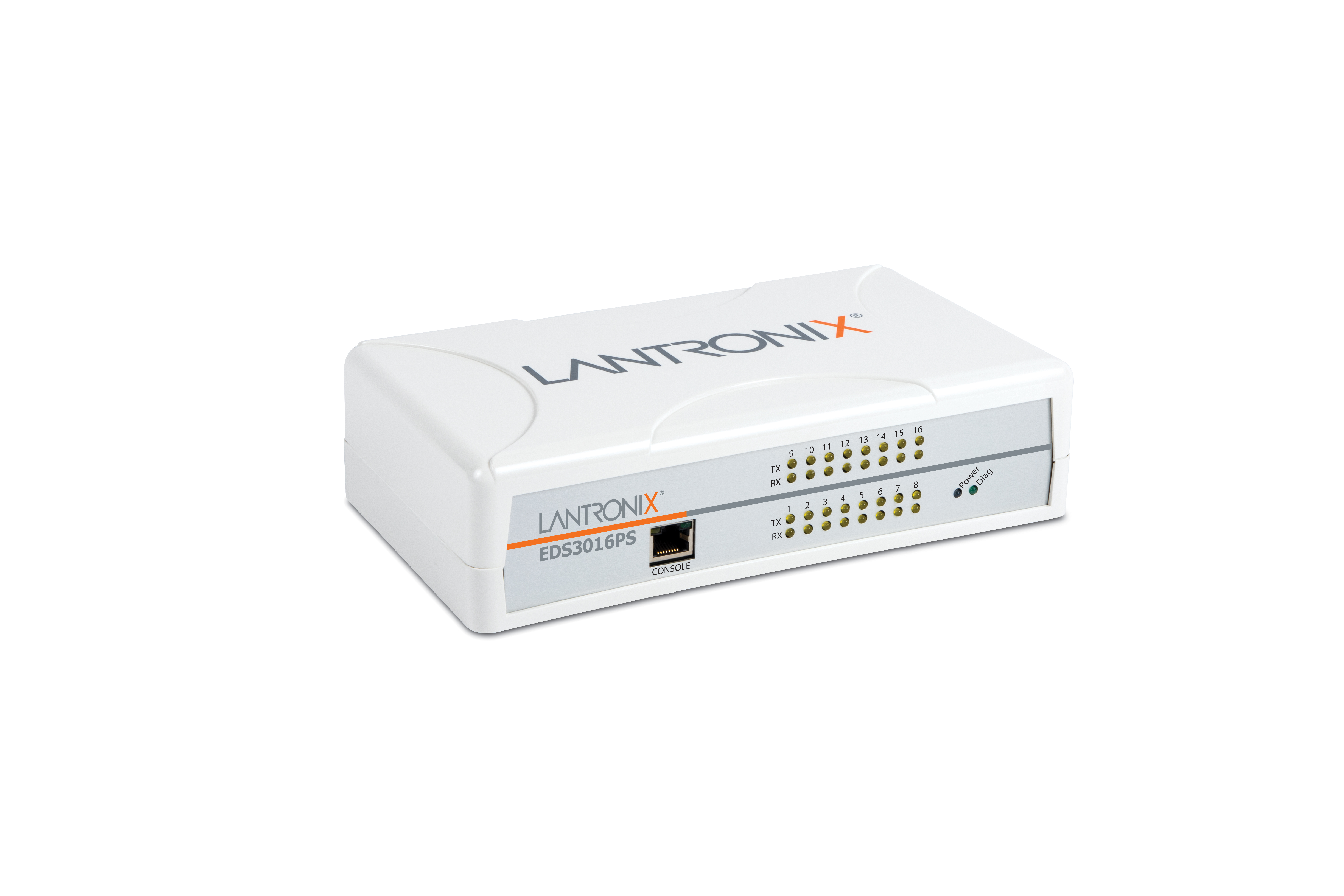

EDS3016PS1NS
$1,036.00
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the EDS3000PS, organized by what it does — cables & adapters— each with why you'd add it.
Cables & adapters
12 items
Cable
500-153
RJ45 loopback adapter cable for compatible Lantronix products. The supplied data lists compatibility with EDS3000PS, EDS-MD, and SecureLinx SLC 8, 16, 32, and 48.
$7.00
Ships on backorder
Cable
ADP010104-01
ADP010104-01 is a Lantronix rolled serial adapter cable, 0.1m (0.33 ft). It is listed with an RJ-45 male connector on one end and an RJ-45 female connector on the other.
$21.29
Ships on backorder
DTE Device
200.2069A
RJ45 to DB9M cable adapter for a DTE Device. It has an RJ-45 male connector and a 9-pin DB-9 male connector.
DTE Device
200.2070A
RJ45 to DB9F cable adapter for a DTE Device. It has 1 x RJ-45 male connector and 1 x 9-pin DB-9 RS-232 serial female connector.
DTE Device
200.2067A
RJ45 to DB25F cable adapter for a DTE Device. It has a DB-25 female connector and an RJ-45 male connector.
DCE Device
200.2073
RJ45 to DB25M cable adapter configured as a DCE Device. It has 1 RJ-45 female connector and 1 25-pin DB-25 male connector.
DCE Device
200.2072
RJ45 to DB9F cable adapter for serial devices with DB9M DCE connectors. It includes 1 RJ-45 Network connector and 1 9-pin DB-9 Serial Female connector.
DCE Device
200.2071
RJ45 to DB9M cable adapter listed by Lantronix as a DCE Device compatible accessory. It provides 1 RJ-45 male connector and 1 9-pin DB-9 Serial male connector.
Cable
200.0065
Category 5 network cable with RJ-45 male connectors on both ends. The cable length is 15 m (49.2 ft).
Cable
200.0063
Category 5 RJ45 cable measuring 5 m (16.4 ft). It is listed as a compatible accessory for EDS3000PS and as compatible with SCS820 and SCS1620.
Cable
200.0062
2 m (6.6 ft) Category 5 RJ45 cable with RJ-45 Network - Male connectors on both ends. It is listed for compatible Lantronix EDS3000PS, SCS820 and SCS1620 products.
Compatibility taken from the Lantronix part-number tables for the EDS3000PS. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the EDS3000PS is used
- Networking serial ports on medical devices in clinical areas
- Remote console access to routers, switches and IT equipment
- Connecting POS terminals and security equipment to the LAN
- Running legacy serial applications over IP via virtual COM ports
EDS3000PS FAQ
What is the difference between the EDS3008PS and EDS3016PS?

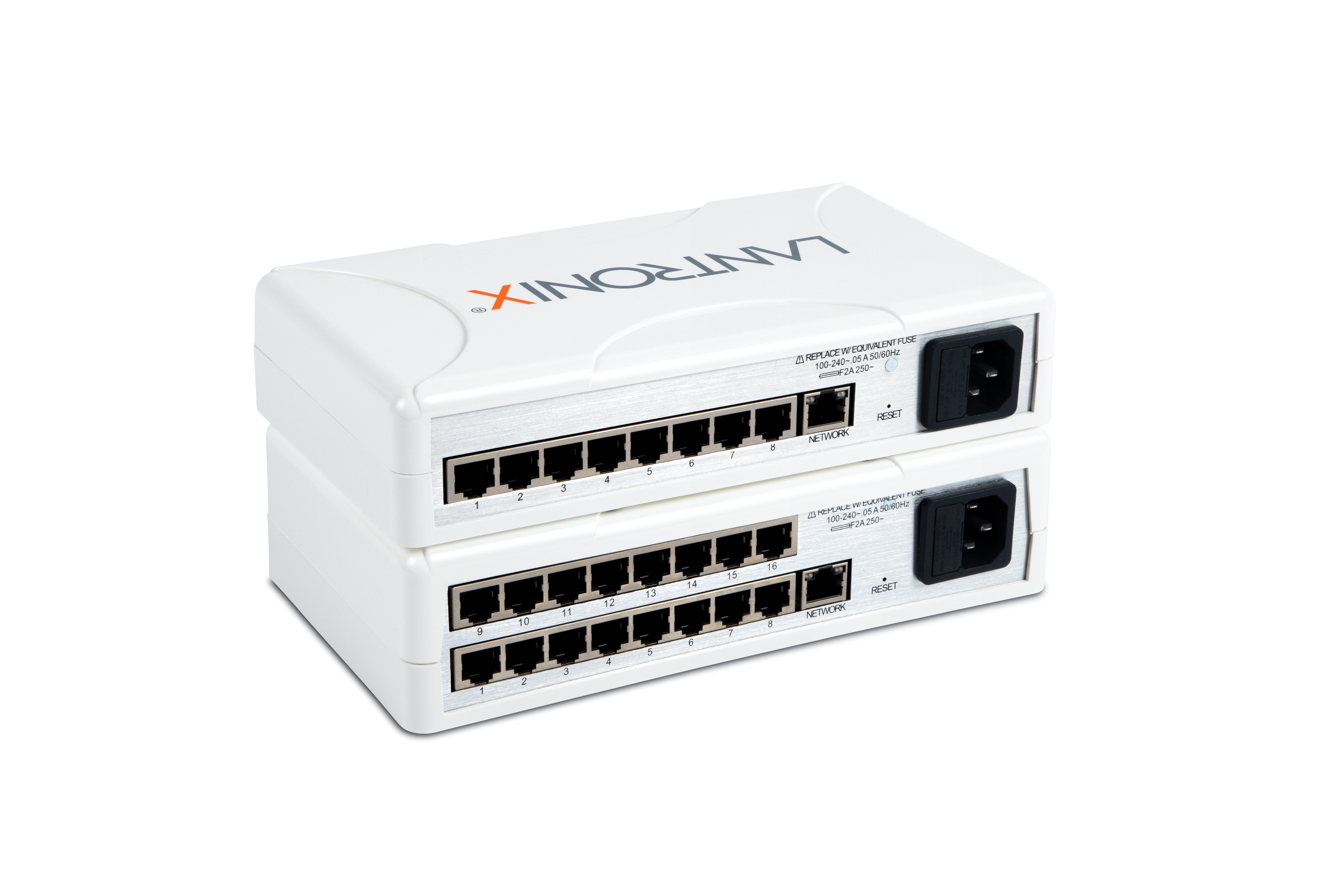

Port count and size. The EDS3008PS has 8 RJ-45 serial ports and measures 22.7 x 12.8 x 4.3 cm. The EDS3016PS has 16 ports and is 6 cm high. Both share the same Cortex-A9 hardware, Gigabit Ethernet, software and security features.
What baud rates does the EDS3000PS support?
Software-selectable rates from 300 baud to 230 Kbaud, with 7 or 8 data bits, odd, even or no parity, 1 or 2 stop bits, and XON/XOFF, CTS/RTS or no flow control.
How do I connect a DB9 serial device to the EDS3000PS?
Use an RJ-45 to DB9 adapter matched to the device. Lantronix lists DB9 male and female adapters in DTE versions (200.2069A, 200.2070A) and DCE versions (200.2071, 200.2072), plus DB25 equivalents and RJ-45 cables of 2, 5 or 15 m.
Can existing software use EDS3000PS ports as COM ports?
Yes. Lantronix ComPort Redirector and Secure ComPort Redirector create virtual COM ports on the host that map to the device server's serial ports, so applications work with no code modifications.
What are the EDS3000PS power and environmental ratings?
It runs on 100-240 VAC, 50-60 Hz, through an IEC-type cord and draws 20 W. Operating temperature is 0°C to 55°C, storage is -40°C to 70°C, and humidity is 5% to 95% non-condensing. Approvals are FCC, IC, CE and UL/CB.
