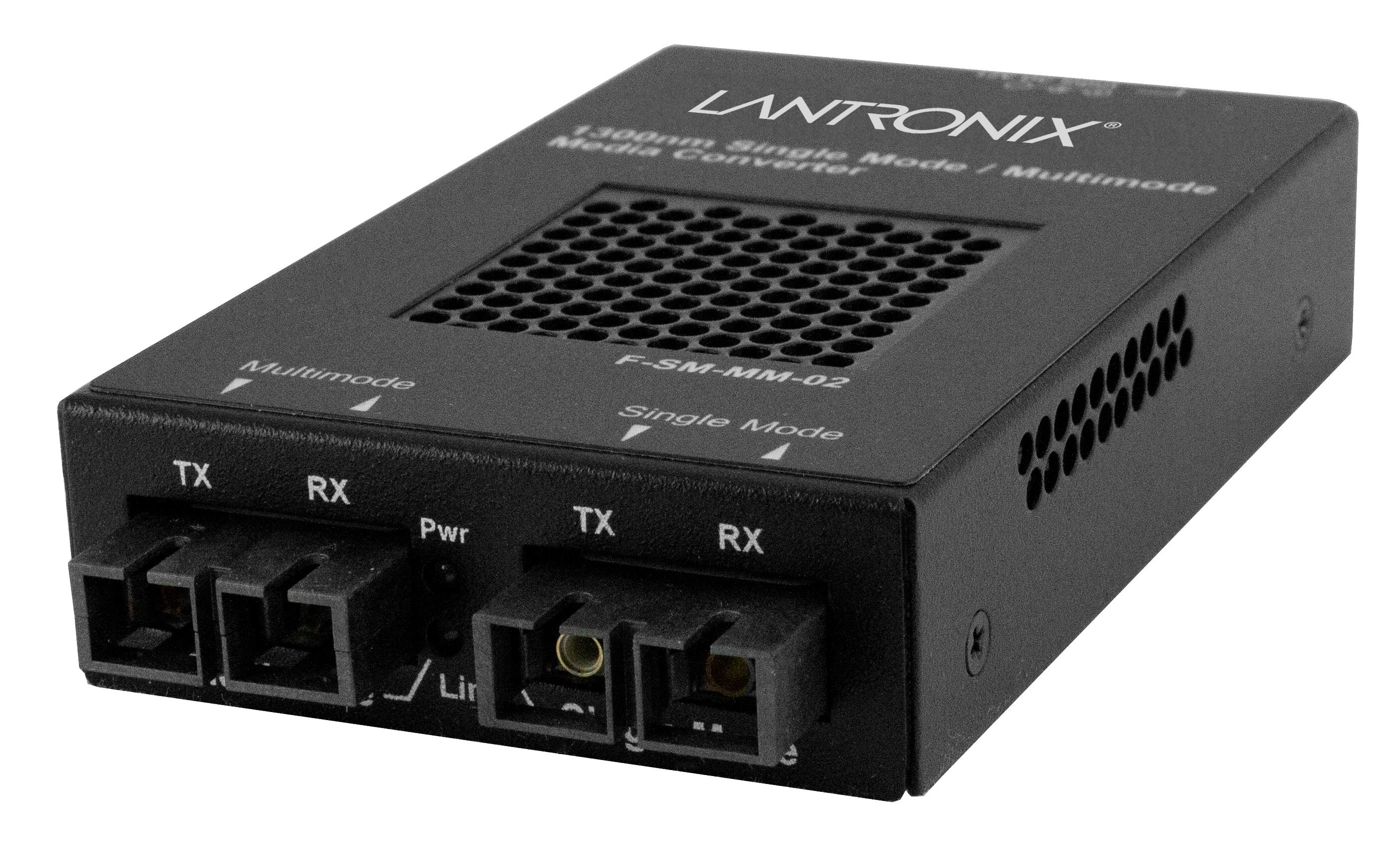

Lantronix F-SM-MM-02 Multimode to Single-Mode Fiber Media Converter
A stand-alone fiber-to-fiber media converter that bridges 1300 nm multimode fiber to 1310 nm single-mode fiber, extending 100 to 155 Mbps links of any protocol out to 20 km.
Overview
About the Lantronix F-SM-MM-02
The F-SM-MM-02 (also searched as FSMMM02) solves a common plant problem: equipment with multimode optics needs to reach a site that is only served by single-mode fiber, or a multimode run is too long. The converter takes a 1300 nm multimode SC link on one side and retransmits it on 1310 nm single-mode SC on the other, stretching the reach from 2 km to 20 km.

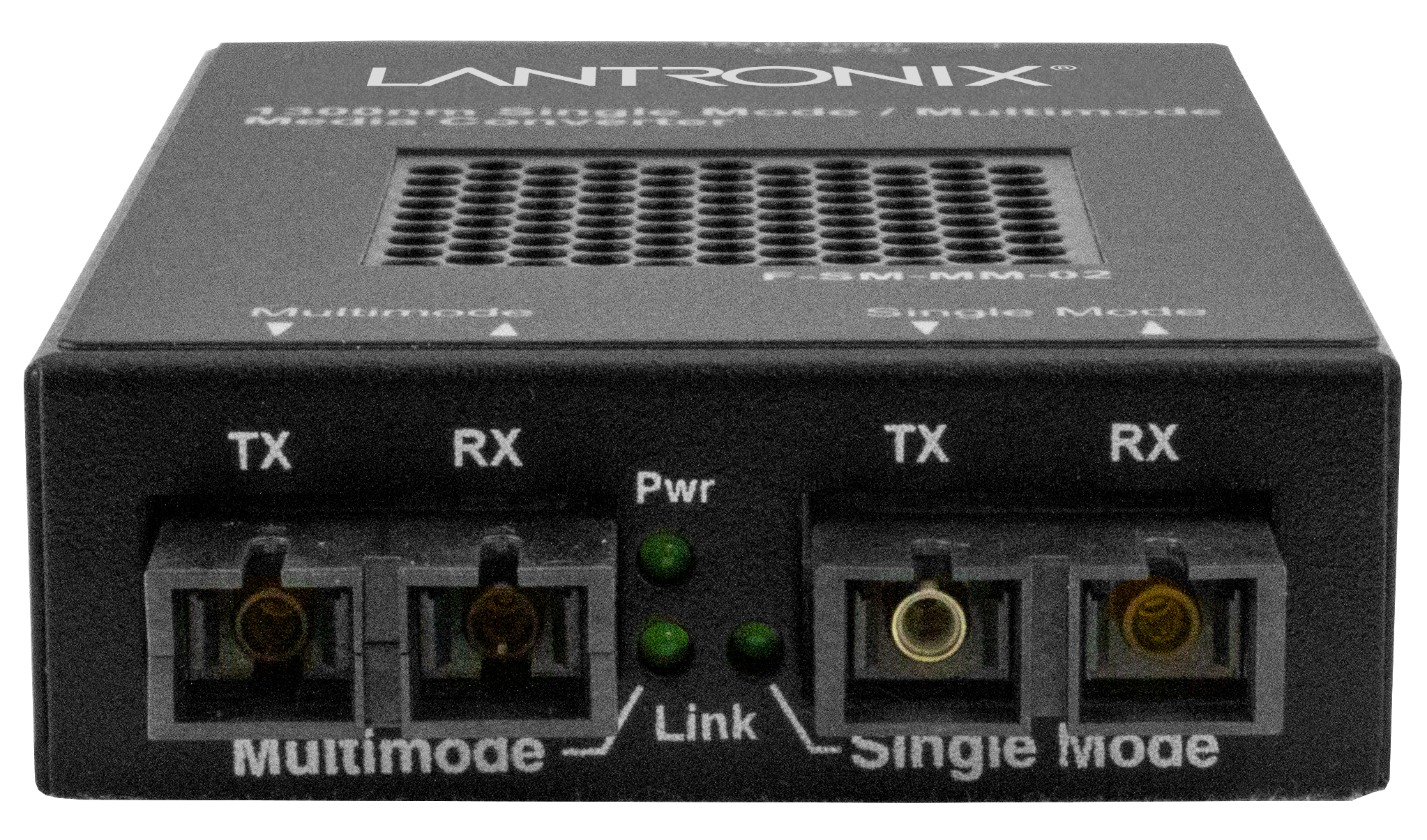

Because it converts at the optical level, it is not tied to Ethernet. Lantronix states that distance can be extended for any networking protocol between 100 Mbps and 155 Mbps that uses 1300 nm transmission. The multimode side has an 11.0 dB link budget and the single-mode side 16.0 dB. Link Pass Through forwards a link loss on one side to the other so attached equipment sees the fault, and Automatic Link Restoration brings the path back when the fiber recovers. Separate LEDs show multimode and single-mode link status.

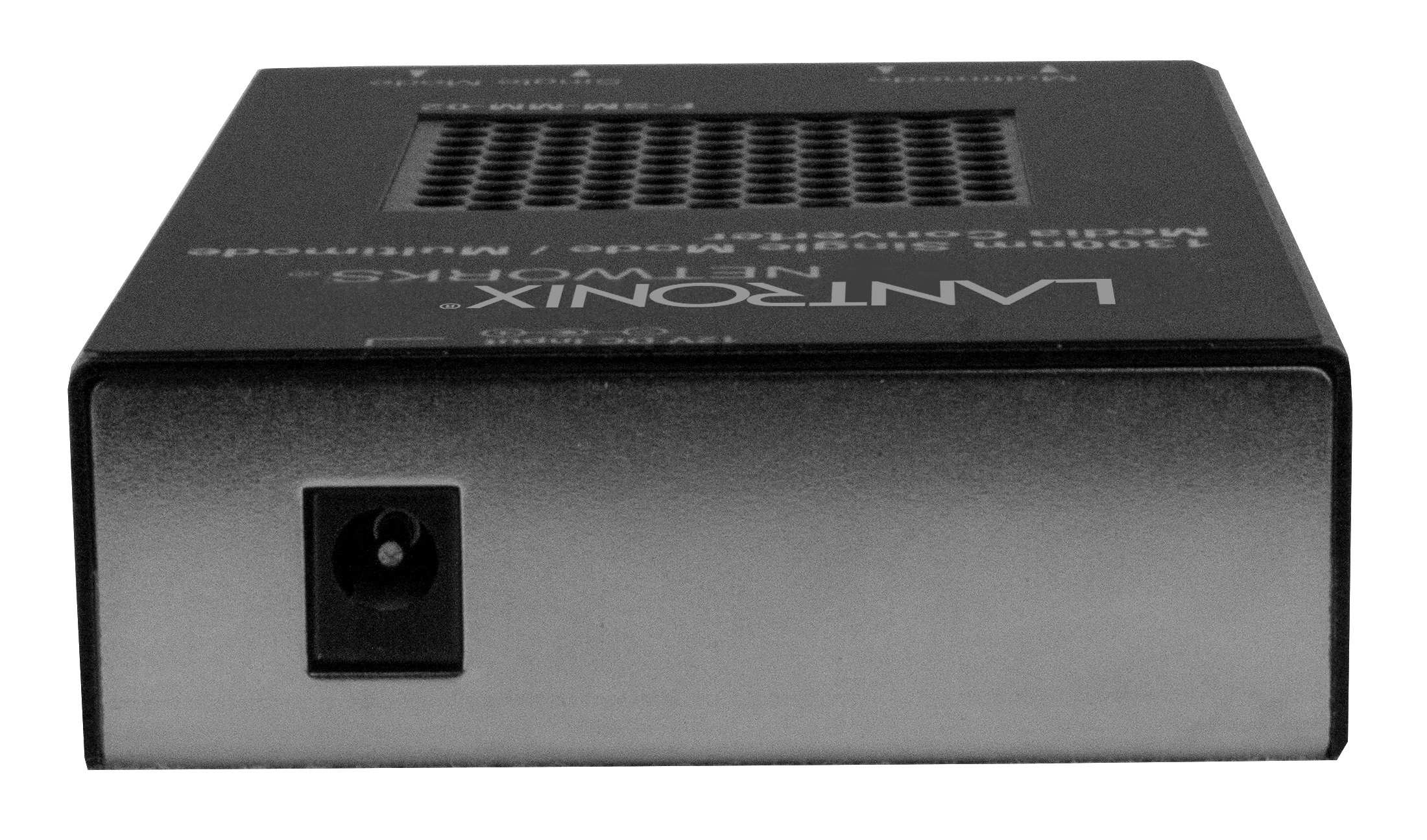

The unit measures 76 x 119 x 25 mm and draws 3.1 W from an external 12 VDC wall-mount supply on 120-240 VAC. It operates from 0°C to 50°C at up to 10,000 ft. It can sit on a desk or mount on a wall or DIN rail with brackets, or in a media converter shelf or rack.
Key capabilities
- Multimode to single-mode
- Converts 1300 nm multimode SC fiber to 1310 nm single-mode SC fiber in one small stand-alone unit.
- 20 km single-mode reach
- Single-mode side reaches 20 km (12.4 mi) with a 16.0 dB budget; multimode side reaches 2 km at 11.0 dB.
- Protocol transparent
- Extends any networking protocol running between 100 Mbps and 155 Mbps over 1300 nm optics, not only Fast Ethernet.
- Link Pass Through
- Passes a link failure from one fiber to the other, and Automatic Link Restoration recovers the path without intervention.
- Flexible mounting
- Use on a desktop, a DIN rail with the WMBD-FS bracket, or in an RMS19-SA4-02 shelf or E-MCR-05 rack.
How to choose the right F-SM-MM-02 part number
F-SM-MM-02 is a single model: 1300 nm multimode SC (2 km) to 1310 nm single-mode SC (20 km). The remaining part numbers are mounting and power options. WMBD-FS is a small flat DIN rail bracket for 3-inch-wide converters like this one, and WMBD a 5-inch DIN rail bracket. WMBV is a vertical mount, and WMBL a wall bracket for 4.8- and 6.5-inch-deep converters. RMS19-SA4-02 is a 4-slot shelf, E-MCR-05 a 12-slot rack, and SPS-2460-SA a compatible power supply.
Configure & order
Find your F-SM-MM-02 part number
Every orderable F-SM-MM-02 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
F-SM-MM-02
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the F-SM-MM-02, organized by what it does — power, mounting & enclosures, chassis & shelves— each with why you'd add it.
Power
1 item
SPS-2460-SA
SPS-2460-SA
Stand-alone wide input external power supply for all Lantronix stand-alone media converters and some chassis.
$248.00
Ships on backorder
Mounting & enclosures
2 items
WMBD-FS
WMBD-FS
3.1” [79 mm] DIN Rail Mount Bracket (flat, small). It fits Stand-Alone Converters that are 3″ [76 mm] wide.
$16.00
Ships on backorder
WMBL
WMBL
4″ [102 mm] wall-mount bracket kit for stand-alone converters size 4.8″ [122 mm] and 6.5″ [165 mm]. It is listed as a compatible accessory for the E-100BTX Series.
$16.00
2 in stock
Chassis & shelves
4 items
WMBD
WMBD
5″ [127 mm] DIN Rail Mount Bracket for all Stand-Alone Converters and 1- or 2-Slot ION Chassis.
$11.00
Ships on backorder
WMBV
WMBV
5″ [127 mm] vertical mount for all Stand-Alone Converters and 1- or 2-slot ION Chassis. It supports wall-mountable installations and is supplied as a bulk package quantity of 1.
$22.00
Ships on backorder
RMS19-SA4-02
RMS19-SA4-02
19-inch, 1U rack-mount shelf for up to 4 stand-alone media converters. It includes 4 converter mounting brackets and 3 slot blanks.
$177.00
3 in stock
E-MCR-05
E-MCR-05
19” rack-mountable 12-slot media converter rack. It supports up to twelve Lantronix stand-alone media converters in a single chassis.
Compatibility taken from the Lantronix part-number tables for the F-SM-MM-02. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the F-SM-MM-02 is used
- Linking multimode equipment to single-mode campus fiber
- Extending 100 Mbps fiber links beyond 2 km
- OC-3 rate (155 Mbps) fiber links between buildings
- Reusing legacy multimode optics on new single-mode runs
F-SM-MM-02 datasheets & documentation
F-SM-MM-02 FAQ
What does the F-SM-MM-02 convert?
It converts 1300 nm multimode fiber (SC, up to 2 km) to 1310 nm single-mode fiber (SC, up to 20 km), for links running between 100 Mbps and 155 Mbps.
Does the F-SM-MM-02 work only with Ethernet?
No. Lantronix states distances can be extended in any networking protocol between 100 Mbps and 155 Mbps that uses 1300 nm fiber transmission. It is not limited to Fast Ethernet links.
What power supply does the F-SM-MM-02 need?
An external 12 VDC wall-mount supply on 120-240 VAC input. The converter draws 3.1 W. Lantronix lists the SPS-2460-SA as a compatible power supply for stand-alone converters.
Can the F-SM-MM-02 be DIN-rail mounted?
Yes. The WMBD-FS flat DIN rail bracket fits 3-inch-wide stand-alone converters such as the F-SM-MM-02, and the 5-inch WMBD fits all stand-alone converters. A WMBV vertical mount is also available.
What is the operating temperature of the F-SM-MM-02?
0°C to 50°C with 5% to 95% non-condensing humidity, at altitudes up to 10,000 ft. That suits wiring closets, telecom rooms and other indoor, climate-controlled spaces.
