Lantronix S4110-4848 SFP+ to SFP+ Fiber-to-Fiber Media Converter
The S4110-4848 is a stand-alone, protocol-independent fiber-to-fiber converter and 3R repeater with two open SFP+ slots, used for multimode to single-mode conversion, CWDM wavelength conversion and link extension at 1 to 11.5 Gbps.
Overview
About the Lantronix S4110-4848
Sometimes the problem is not copper versus fiber but one fiber type versus another: a multimode run meeting a single-mode backbone, a link that needs a specific CWDM wavelength, or a span that needs regeneration. The S4110-4848 (the stand-alone counterpart of the ION C4110-4848 slide-in card) handles these cases with two open SFP+ slots, and it is often searched simply as the S4110. You fit a pair of SFP or SFP+ modules, one for each side, and the converter passes the signal between them.
It is protocol transparent across 1 to 11.5 Gbps, covering 10 Gigabit LAN and WAN, Gigabit Ethernet, Fibre Channel at 1, 2, 4, 8 and 10G, and SONET OC-48 and OC-192. It operates any-rate to same-rate, so both ports run at the selected rate, set with four DIP switches. 3R signal regeneration reamplifies, reshapes and retimes the signal, and there is no frame size limit. Transmission distance depends on the SFP modules and fiber used. The converter draws 4.2 W from a 12 VDC adapter and operates from 0 to 50 C.
Key capabilities

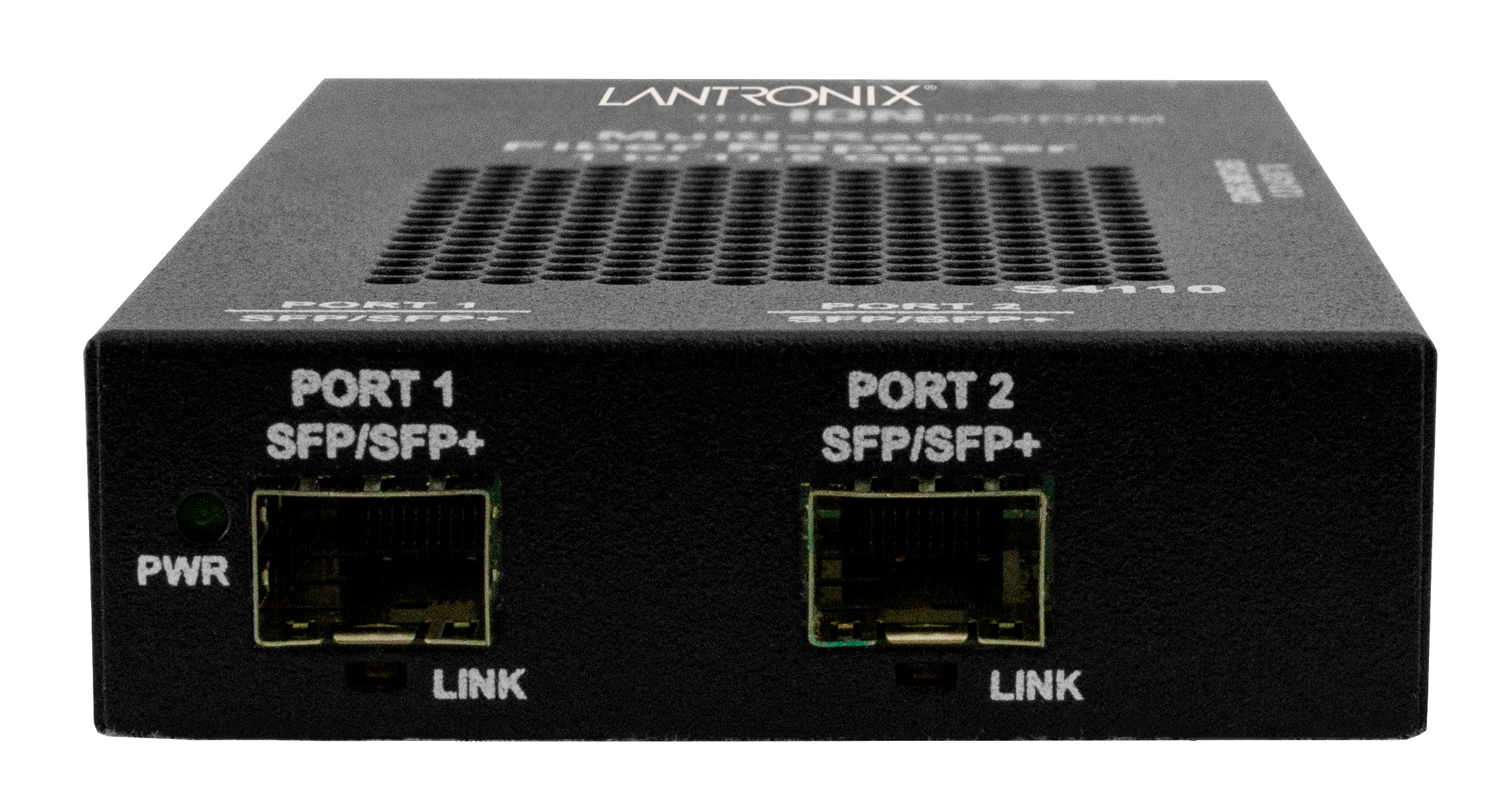

- Two open SFP+ slots
- Install any pair of SFP+ or SFP modules to convert between multimode and single-mode fiber or between different wavelengths.
- 1 to 11.5 Gbps
- Protocol-independent operation covers 10G and 1G Ethernet, Fibre Channel from 1 to 10G, and SONET OC-48 and OC-192.
- 3R regeneration
- Reamplifies, reshapes and retimes the optical signal, so it can act as a fiber repeater to extend a link.
- CWDM transponder
- With a CWDM SFP+ on one side, the S4110 converts a standard optic to a specific wavelength for CWDM multiplexing.
- Low 4.2 W draw

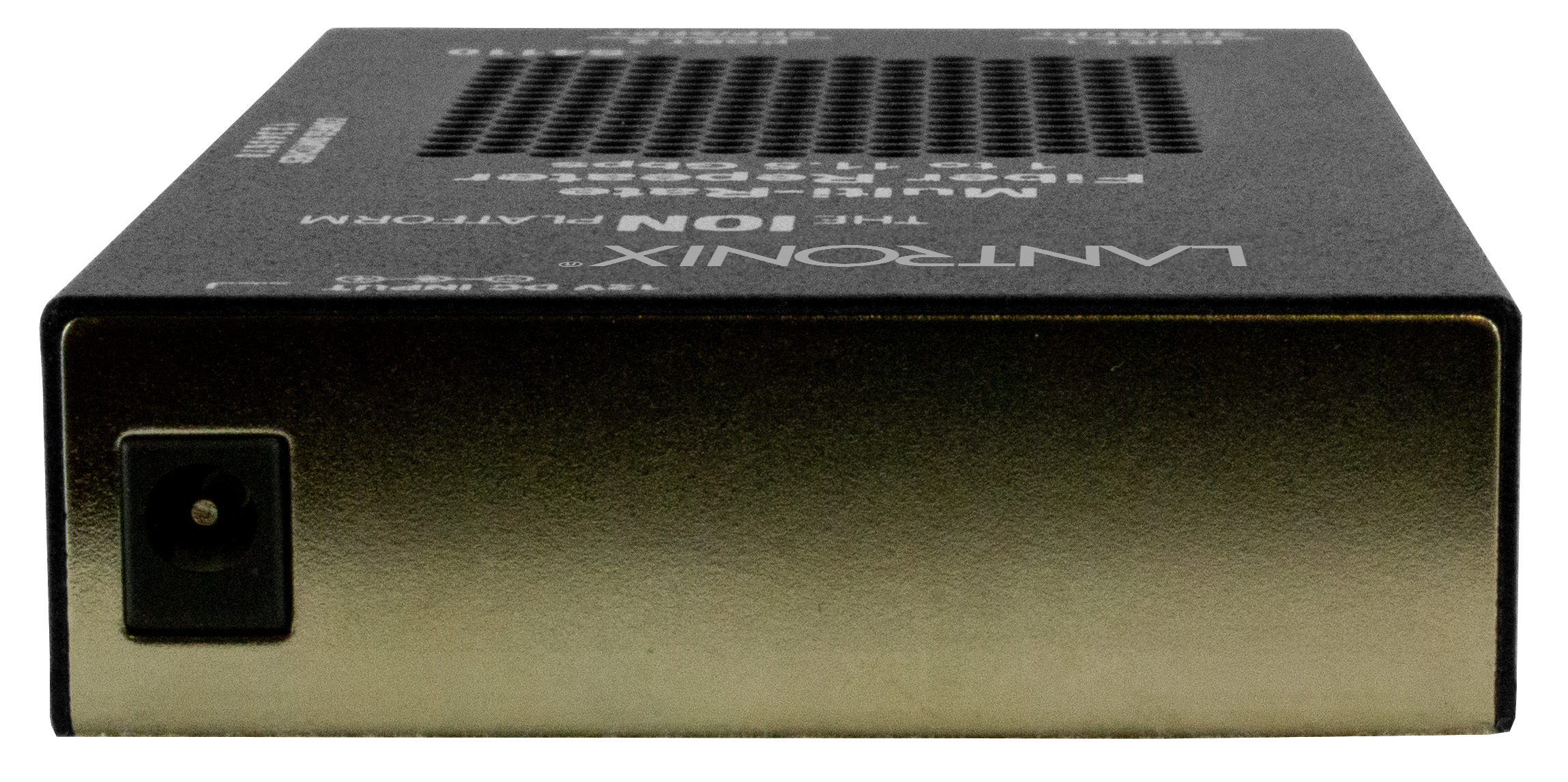

- Consumes 4.2 W (350 mA at 12V) from an external 120-240 VAC adapter, in a 3.25 x 6.5 x 1 in stand-alone housing.
How to choose the right S4110-4848 part number
S4110-4848 is the single stand-alone model: two empty SFP+ slots, any-rate to same-rate from 1 to 11.5 Gbps. All optical characteristics come from the modules you install, so buy two SFP or SFP+ modules matched to each side of the link, for example a multimode SR optic on one port and a single-mode LR or CWDM optic on the other, both at the same data rate. For chassis installations the same function is available as the C4110-4848 ION slide-in card. Mounting options include WMBL, WMBD and the RMS19-SA4-02 shelf.
Configure & order
Find your S4110-4848 part number
Every orderable S4110-4848 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the S4110-4848, organized by what it does — mounting & enclosures, chassis & shelves— each with why you'd add it.
Mounting & enclosures
1 item
WMBL
WMBL
4″ [102 mm] wall-mount bracket kit for stand-alone converters size 4.8″ [122 mm] and 6.5″ [165 mm]. It is listed as a compatible accessory for the E-100BTX Series.
$10.79
3 in stock
Chassis & shelves
3 items
WMBD
WMBD
5″ [127 mm] DIN Rail Mount Bracket for all Stand-Alone Converters and 1- or 2-Slot ION Chassis.
$7.42
Ships on backorder
RMS19-SA4-02
RMS19-SA4-02
19-inch, 1U rack-mount shelf for up to 4 stand-alone media converters. It includes 4 converter mounting brackets and 3 slot blanks.
$122.79
1 in stock
E-MCR-05
E-MCR-05
19” rack-mountable 12-slot media converter rack. It supports up to twelve Lantronix stand-alone media converters in a single chassis.
Compatibility taken from the Lantronix part-number tables for the S4110-4848. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the S4110-4848 is used
- Converting multimode links to single-mode fiber at 10G
- Wavelength conversion into a CWDM network
- Regenerating and extending 10G or Fibre Channel links
- Bridging SONET OC-48 or OC-192 between fiber types
S4110-4848 FAQ
Can the S4110-4848 convert between different data rates?
No. It is an any-rate to same-rate converter: it supports any rate from 1 to 11.5 Gbps, but both ports run at the same selected rate. Four of its eight DIP switches select the operational data rate.
Does the S4110-4848 work with Fibre Channel and SONET?
Yes. It is protocol transparent and supports 10G LAN and WAN Ethernet, 1G Ethernet, Fibre Channel at 1, 2, 4, 8 and 10G, and SONET OC-48 and OC-192.
Can I use SFP modules instead of SFP+ in the S4110?
Yes. Lantronix lists SFP to SFP or SFP+ to SFP+ operation. Use a matched pair at the same data rate, choosing each module for the fiber type and wavelength on its side of the link.
Is there a chassis version of the S4110-4848?
Yes. The same fiber-to-fiber function is available as the C4110-4848 slide-in card for the Lantronix ION chassis. The S4110-4848 is the stand-alone version with its own 12 VDC power adapter.
