Lantronix S6120 Series 4-Port T1/E1/J1 and Ethernet over Fiber Mux
A managed stand-alone network interface device that carries four DS1 T1/E1/J1 circuits and one 10/100 Ethernet connection over a single fiber link, deployed in pairs or with an ION C6120 card.
Overview
About the Lantronix S6120 Series
The S6120 (Lantronix ION S6120) is a stand-alone DS1 multiplexer for extending T1, E1 or J1 circuits and an Ethernet connection over fiber. Use it where copper T1 runs are too long or noisy, or where TDM voice and data need to share fiber with a LAN link. Each unit has four RJ-48 ports, one RJ-45 10/100 Ethernet port and one fiber port. The S6120 must be used in pairs; when the far end is a C6120 card in a managed ION chassis, the stand-alone unit is managed in-band over the fiber.
Copper ports run at 1.544 Mbps for T1/J1 or 2.048 Mbps for E1 and reach up to 1.5 km on RJ-48 cabling. Switch settings control line code, line build out, loopbacks and Alarm Indication Signal. Local and remote loopbacks, loopback via test set, and status LEDs support circuit testing. The unit complies with ANSI T1.102, T1.403, ITU G.703, G.823, ETSI 300-166 and AT&T Pub 62411. The SFP version also accepts CWDM SFPs to add capacity on existing fiber.
The S6120 runs on 12 VDC through a barrel connector from a 100-240 VAC UL listed supply, drawing 6 W maximum. It operates from -10°C to 65°C. Status LEDs cover power, port status, loopback and AIS, and Lantronix rates MTBF at 114,580 hours (Bellcore). The enclosure measures 94 x 165 x 46 mm.
Key capabilities
- Four DS1 plus Ethernet
- Four RJ-48 T1/E1/J1 ports and one 10/100 Ethernet port share a single fiber connection, so TDM and LAN traffic need only one link.
- Fixed or SFP fiber
- Choose 2 km multimode SC, 20 km single-mode SC, or an empty SFP slot that also accepts CWDM SFPs.
- Loopback testing
- Local and remote loopbacks, loopback via test set, and AIS settings for turning up and troubleshooting circuits.
- Remote management
- Status, configuration and firmware upgrades for local and remote units, managed in-band when paired with an ION C6120.
- -10°C to 65°C rating
- Extended operating range in a 94 x 165 x 46 mm stand-alone enclosure with an optional WMBL wall-mount bracket.
How to choose the right S6120 Series part number

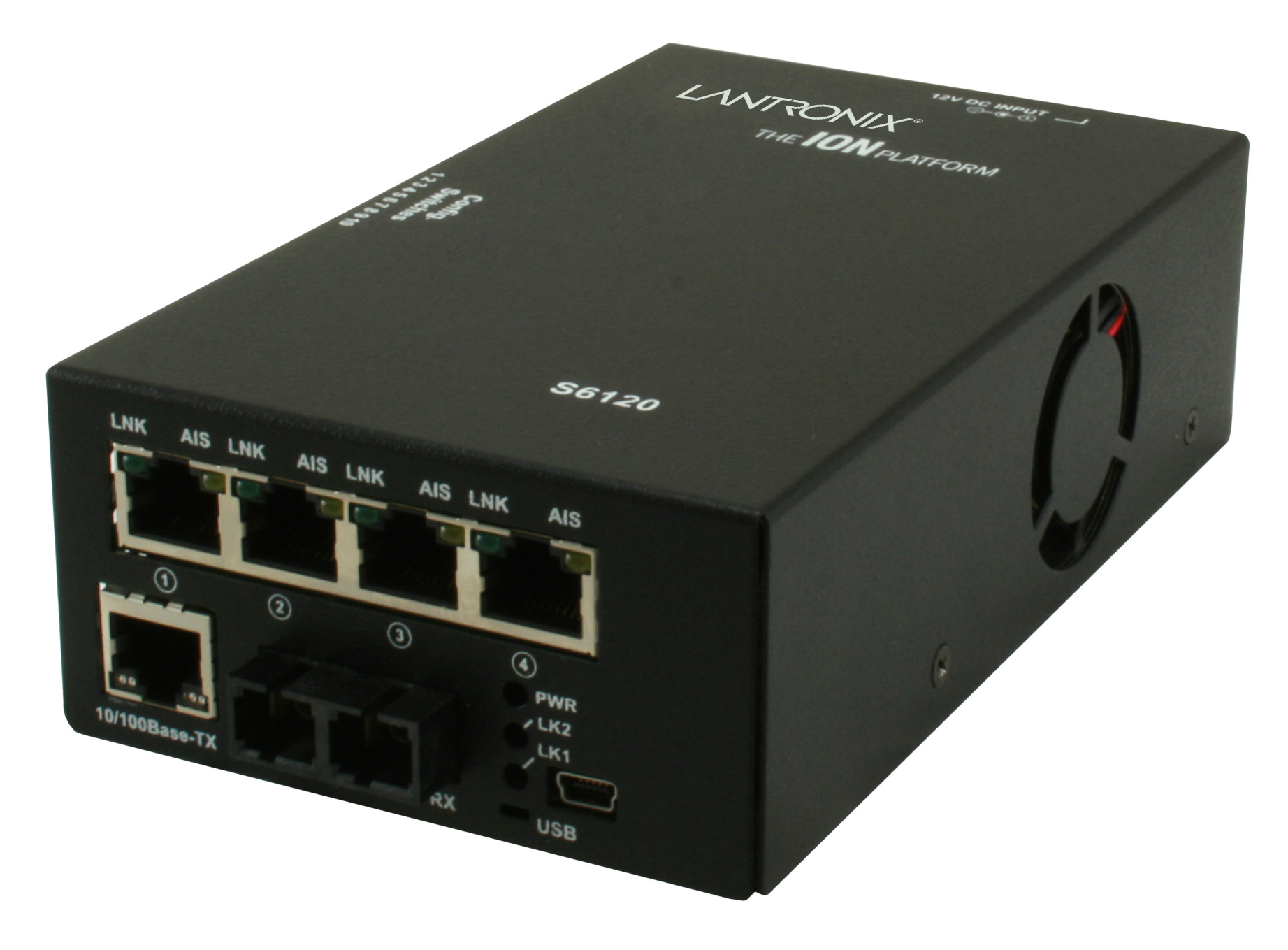

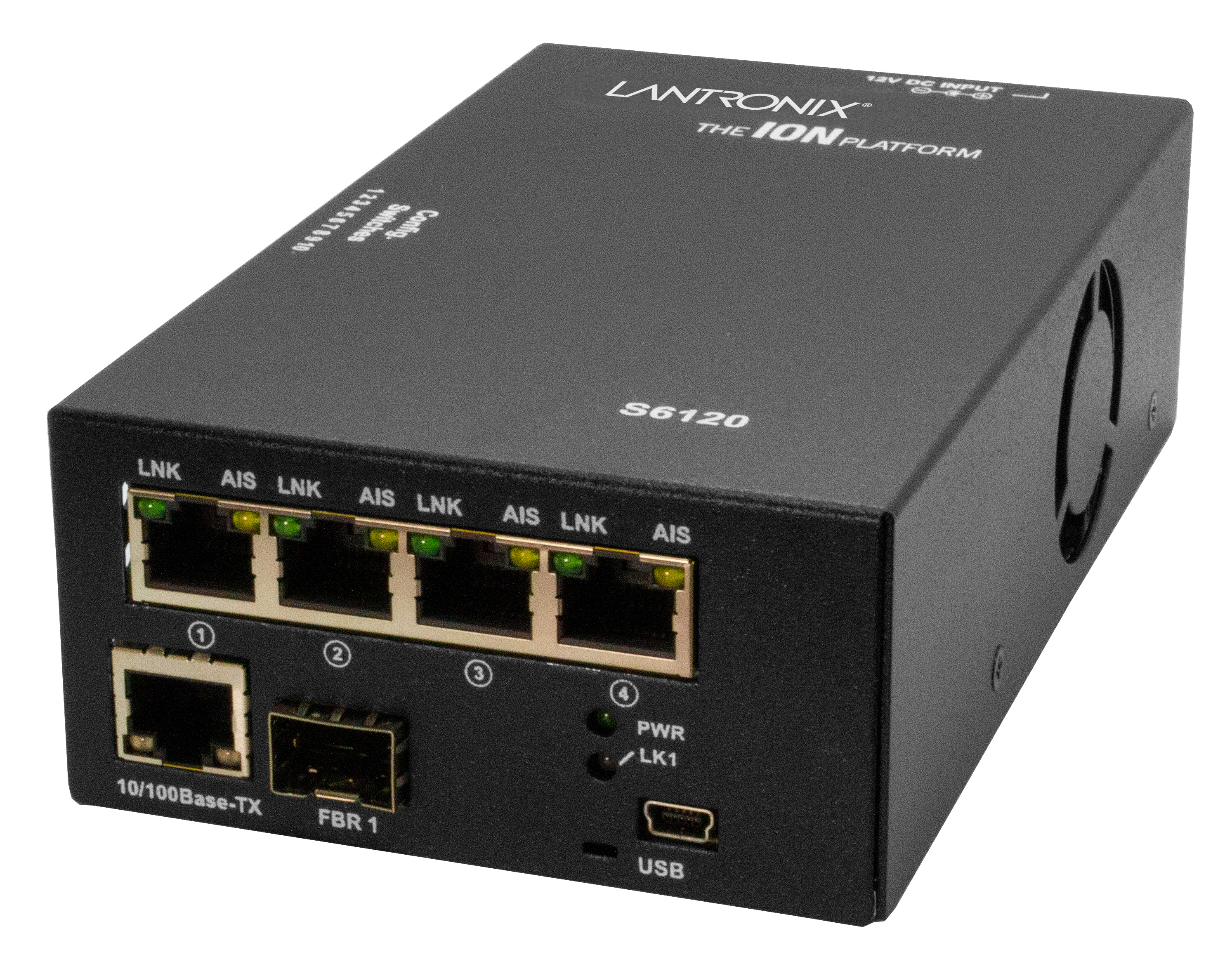

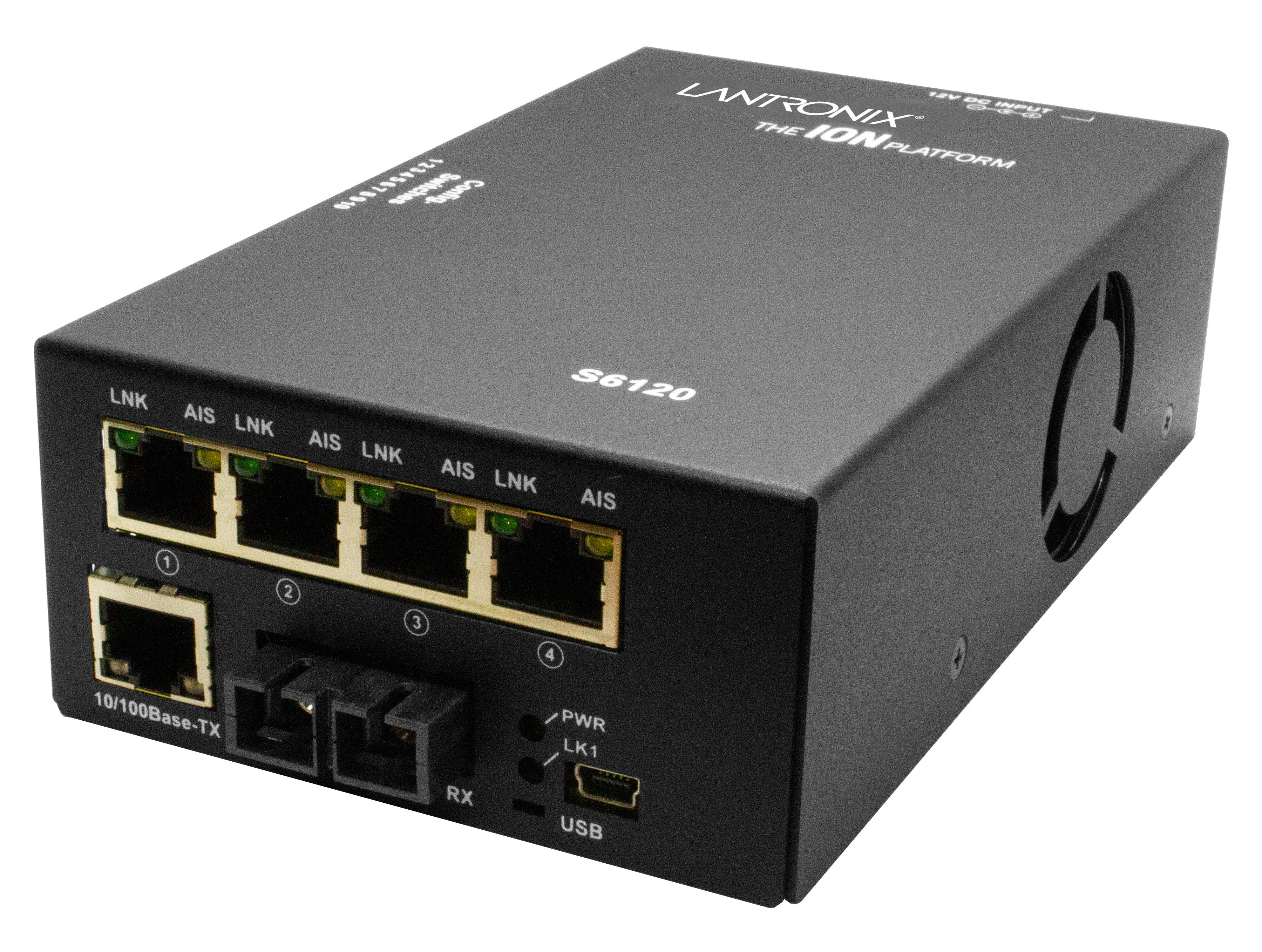

Every S6120 has four RJ-48 DS1 ports and a 10/100 RJ-45 port; the suffix sets the fiber interface. S6120-1013 uses 1300 nm multimode SC fiber for up to 2 km (11.0 dB budget). S6120-1014 uses 1310 nm single-mode SC for up to 20 km (16.0 dB). S6120-1040 has an empty SFP slot (100Base-X/OC-3) for other distances, single-fiber or CWDM optics. Order units in matched pairs, or pair with a C6120 card. SPS-2460-SA is a compatible power supply and WMBL a wall-mount bracket.
Configure & order
Find your S6120 Series part number
Every orderable S6120 Series configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the S6120 Series, organized by what it does — power, mounting & enclosures— each with why you'd add it.
Power
1 item
SPS-2460-SA
SPS-2460-SA
Stand-alone wide input external power supply for all Lantronix stand-alone media converters and some chassis.
$166.84
Ships on backorder
Mounting & enclosures
1 item
WMBL
WMBL
4″ [102 mm] wall-mount bracket kit for stand-alone converters size 4.8″ [122 mm] and 6.5″ [165 mm]. It is listed as a compatible accessory for the E-100BTX Series.
$10.79
3 in stock
Compatibility taken from the Lantronix part-number tables for the S6120 Series. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the S6120 Series is used
- Extending PBX T1 trunks between buildings over fiber
- Carrying E1 circuits and a LAN link on one fiber
- Utility and transit TDM circuits needing fiber isolation
- Adding DS1 capacity over existing fiber with CWDM SFPs
S6120 Series FAQ
Does the S6120 need to be used in pairs?
Yes. The S6120 must be used in pairs, either two S6120 units or an S6120 linked to a C6120 card in an ION chassis. The C6120 pairing enables in-band management over the fiber.
How far can the S6120 extend T1 or E1 over fiber?
S6120-1013 reaches 2 km on 1300 nm multimode and S6120-1014 reaches 20 km on 1310 nm single-mode. The SFP model S6120-1040 distance depends on the module. RJ-48 copper runs reach 1.5 km.
Does the S6120 support E1 and J1 as well as T1?
Yes. Each RJ-48 port supports T1 or J1 at 1.544 Mbps and E1 at 2.048 Mbps, with switch settings for line code and line build out.
Can I use CWDM SFPs with the S6120?
Yes, on the SFP version S6120-1040. Lantronix notes CWDM SFPs can be used to increase the bandwidth capacity of the fiber infrastructure, so additional services can share existing strands.
What power does the S6120 use?
12 VDC via barrel connector from a 100-240 VAC UL listed supply. Consumption is 6 W maximum for dual-fiber models and 5.5 W for single-fiber models.
