Lantronix SBFTF1010-130 Fault-Tolerant 10/100 Redundant Link Protector
The SBFTF1010-130 is a stand-alone 10/100 Ethernet redundant link protector that gives a single critical device two network paths, switching from the primary to the backup path in about 189 ms when the primary link fails.
Overview
About the Lantronix SBFTF1010-130

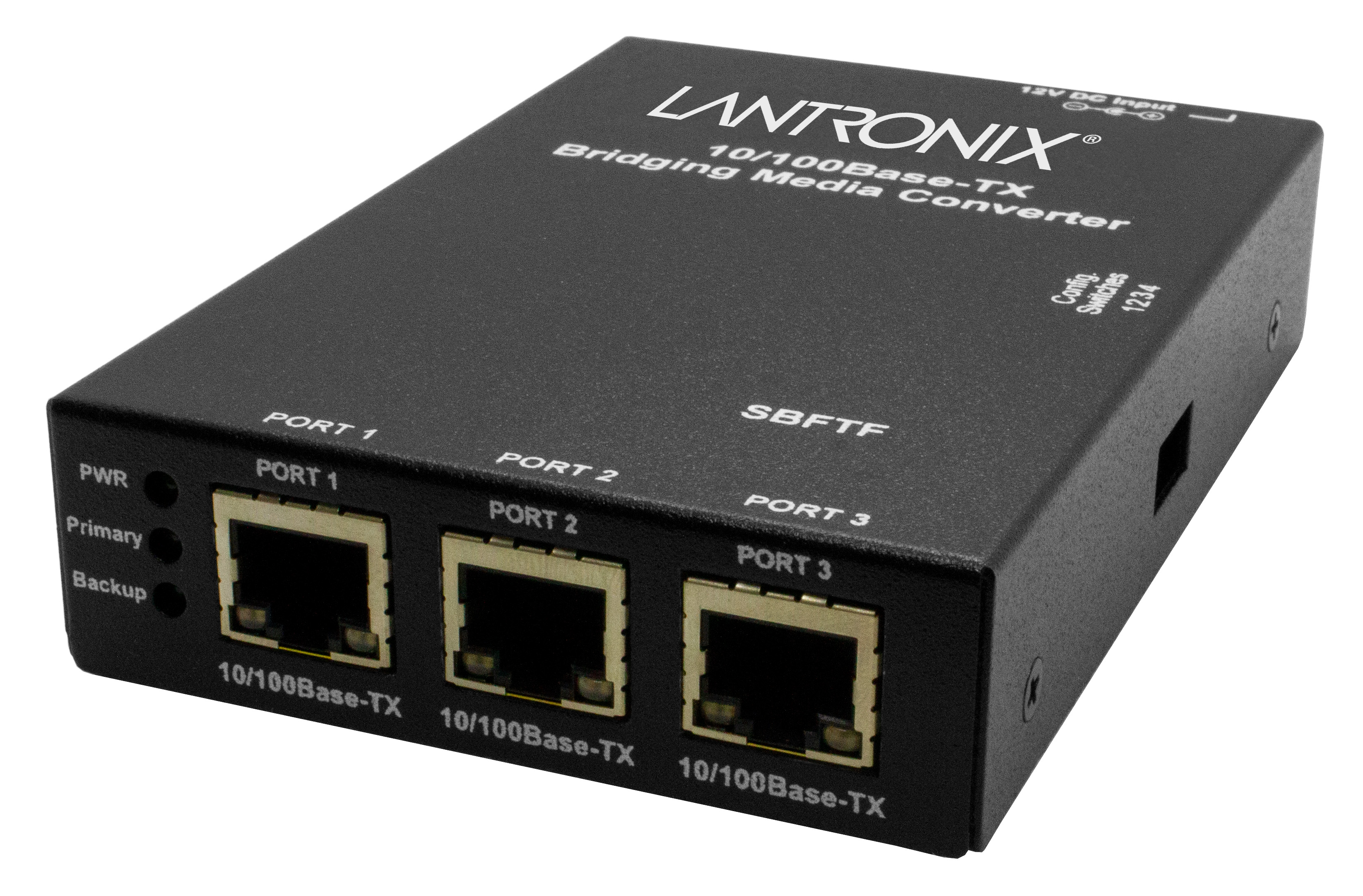

Many critical devices, such as controllers, recorders and servers with a single Ethernet port, have no way to use a second network path. The SBFTF1010-130 (also written SBFTF1010130) adds that redundancy externally. It has three 10/100Base-TX RJ-45 ports: one for the critical device, one for the primary path and one for the backup path. The unit transmits only on the active path, so the backup path stays silent until it is needed, and no loop forms in the network.
If the primary path loses link, the protector moves traffic to the backup path in approximately 189 milliseconds. When the primary link comes back, it switches back automatically, with no operator action. A DIP switch can instead put the unit into a 3-port switch mode. Other DIP switches control auto-negotiation, 10 or 100 Mbps speed and half or full duplex, and the ports support auto-MDI/MDIX with 100 m copper reach.

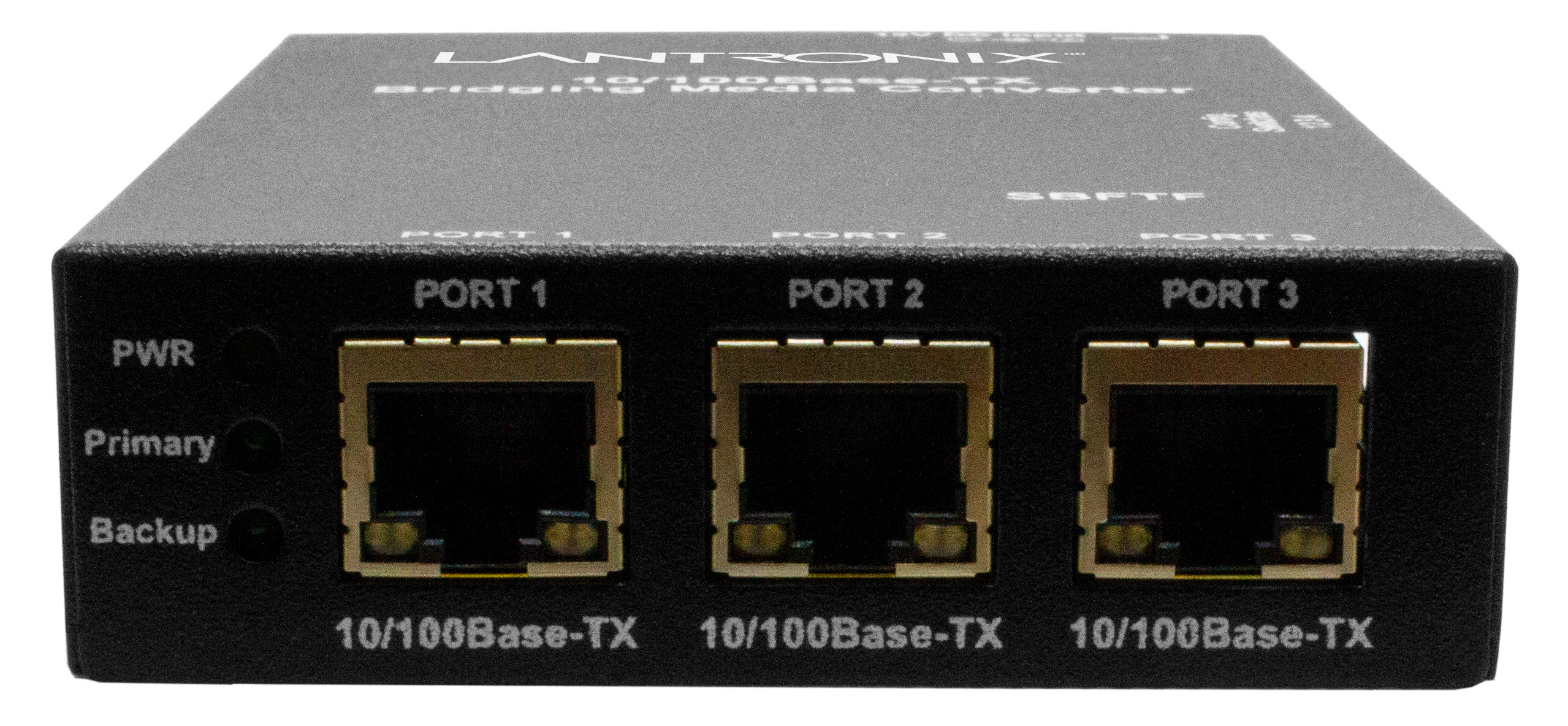

Nine diagnostic LEDs show power, which path is active (PRI or BKP), and per-port speed, duplex and activity. The housing is the 82.55 mm stand-alone media converter size, draws 2.4 W from a 12 VDC wall-mount supply, operates from 0 °C to 50 °C, and fits the same wall, DIN-rail, shelf and rack mounting accessories as Lantronix stand-alone converters.
Key capabilities
- Failover in about 189 ms
- When the primary link drops, traffic moves to the backup path in approximately 189 milliseconds, limiting interruption to the critical device.
- Automatic switch-back
- Once the primary path re-establishes its link, the protector returns to it on its own, so no one has to restore the normal path manually.
- Loop-free by design
- The unit sends no signal on the inactive path, so connecting both paths to the network does not create a switching loop.
- Optional 3-port switch mode
- A DIP switch changes the unit from fault-tolerant redundancy mode into a simple three-port 10/100 switch.
- Nine diagnostic LEDs
- Power, primary and backup path LEDs plus per-port speed, duplex and activity indicators show link state at a glance.
How to choose the right SBFTF1010-130 part number
The family has a single part number, SBFTF1010-130, with three 10/100Base-TX RJ-45 ports rated for 100 m runs. It uses the standard 3.25-inch stand-alone housing, so the mounting accessories apply: WMBV vertical and WMBL wall brackets, WMBD and WMBD-F DIN-rail brackets, the RMS19-SA4-02 4-slot shelf and the E-MCR-05 12-slot rack. SPS-2460-SA and SPS-2460-PS are listed as compatible power supplies.
Configure & order
Find your SBFTF1010-130 part number
Every orderable SBFTF1010-130 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the SBFTF1010-130, organized by what it does — power, mounting & enclosures, chassis & shelves— each with why you'd add it.
Power
2 items
SPS-2460-PS
SPS-2460-PS
Piggy-back power supply for stand-alone media converters 3.25” wide. It accepts 24 – 60 VDC and 24 – 42 VRMS input and provides 12.25 VDC output at 1.0A.
$156.83
Ships on backorder
SPS-2460-SA
SPS-2460-SA
Stand-alone wide input external power supply for all Lantronix stand-alone media converters and some chassis.
$166.84
Ships on backorder
Mounting & enclosures
2 items
WMBD-F
WMBD-F
3.3” [84 mm] flat DIN rail mount bracket. It fits all stand-alone converters that are 3.25″ [82 mm] wide.
$10.79
Ships on backorder
WMBL
WMBL
4″ [102 mm] wall-mount bracket kit for stand-alone converters size 4.8″ [122 mm] and 6.5″ [165 mm]. It is listed as a compatible accessory for the E-100BTX Series.
$10.79
3 in stock
Chassis & shelves
4 items
WMBD
WMBD
5″ [127 mm] DIN Rail Mount Bracket for all Stand-Alone Converters and 1- or 2-Slot ION Chassis.
$7.42
Ships on backorder
WMBV
WMBV
5″ [127 mm] vertical mount for all Stand-Alone Converters and 1- or 2-slot ION Chassis. It supports wall-mountable installations and is supplied as a bulk package quantity of 1.
$14.79
Ships on backorder
RMS19-SA4-02
RMS19-SA4-02
19-inch, 1U rack-mount shelf for up to 4 stand-alone media converters. It includes 4 converter mounting brackets and 3 slot blanks.
$122.79
1 in stock
E-MCR-05
E-MCR-05
19” rack-mountable 12-slot media converter rack. It supports up to twelve Lantronix stand-alone media converters in a single chassis.
Compatibility taken from the Lantronix part-number tables for the SBFTF1010-130. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the SBFTF1010-130 is used
- Dual-path connectivity for single-port critical devices
- Redundant uplinks for controllers and building systems
- Backup network paths for surveillance recorders
- Simple 10/100 three-port switching in switch mode
SBFTF1010-130 FAQ
How fast does the SBFTF1010-130 fail over to the backup path?
It switches from the primary path to the backup path in approximately 189 milliseconds after the primary path loses link. When the primary link is restored, it switches back automatically.
How are the three ports on the SBFTF1010-130 used?
One RJ-45 port connects the critical (main) device, one connects the default primary path, and the third connects the backup path. All three are 10/100Base-TX with auto-MDI/MDIX and support 100 m copper runs.
Can the SBFTF1010-130 work as a normal switch?
Yes. DIP switch SW4 changes the unit from redundancy mode to a 3-port switch mode. Other DIP switches set auto-negotiation, 10 or 100 Mbps speed and half or full duplex.
Will the backup link create a network loop?
No. The redundant link protector does not send any signal on the inactive path, so only one path carries traffic at a time and the backup connection stays idle until a failover.
What power does the SBFTF1010-130 use?

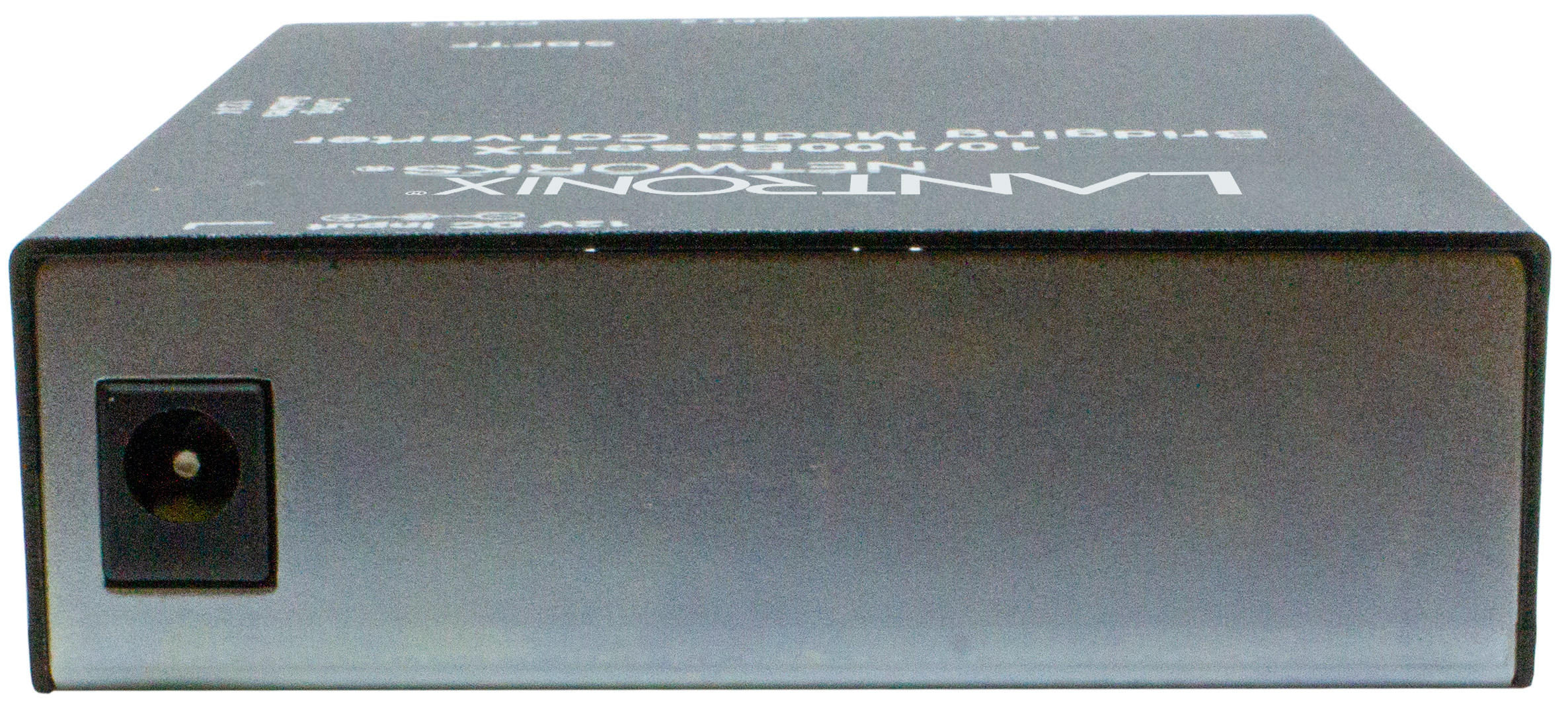

It consumes 2.4 W. Power comes from a 12 VDC wall-mount supply, with domestic (120 VAC, 60 Hz) and international (100-240 VAC, 50 Hz) versions listed. Operating temperature is 0 °C to 50 °C.
