Lantronix SecureBox SDS1101 Encrypted Serial Device Server
The SecureBox SDS1101 is a single-port serial-to-Ethernet device server that encrypts serial data with NIST-certified AES before it crosses the network, for equipment where the link itself must be protected.
From $416.88
Overview
About the Lantronix SecureBox SDS1101
The SDS1101 (also written SDS 1101; part number SD1101002-11) puts a serial device on an Ethernet network without exposing its data in the clear. It encapsulates serial traffic into packets and encrypts it with a NIST-certified implementation of 128 to 256 bit AES (Rijndael) as specified by FIPS-197. Two SecureBox units on a network form an encrypted serial tunnel across a building or across the Internet, and Lantronix lists medical facilities, government agencies and financial institutions as typical users.
The single DB25F DCE port is software-selectable for RS-232, RS-422 or RS-485 (2- and 4-wire) at 300 baud to 230 kbaud, with hardware and software flow control. The network side is 10/100 Ethernet on RJ-45 with 1500 VAC isolation, and the serial port has 15 kV ESD protection. Power is 9-30 VDC or 9-24 VAC on a barrel connector, or 9-30 VDC through the DB25, at 1.5 W maximum.
Encryption is transparent to attached equipment, so no special software is needed. Secure Com Port Redirector creates encrypted virtual COM ports for Windows applications, and modem emulation accepts AT commands to replace dial-up modems and phone lines. Setup runs through DeviceInstaller, a web interface that can be disabled, Telnet, SNMP or the serial port.
Key capabilities
- NIST-certified AES
- 128 to 256 bit AES encryption, implemented to FIPS-197 and certified by NIST, protects serial data as it crosses the network or Internet.
- Encrypted serial tunneling
- Pair two SecureBox units to extend a secure virtual serial cable between devices across a facility or around the world.
- Secure modem replacement
- Modem emulation mode accepts AT commands and opens an encrypted network connection instead of dialing, retiring dedicated phone lines.
- RS-232, RS-422 or RS-485
- One DB25F DCE port is software-selectable across RS-232, RS-422 and 2- or 4-wire RS-485 at up to 230 kbaud.
- Flexible low-voltage power
- Runs on 9-30 VDC or 9-24 VAC, or 9-30 VDC via the serial connector, drawing 1.5 W maximum.
How to choose the right SecureBox SDS1101 part number
There is one SDS1101 unit, SD1101002-11, which includes a universal power supply. The accessories adapt it to your installation: ACC-500-163-R is a DB25M to DB9F serial cable for devices with DB9 ports, ACC-500-171-R breaks the DB25 out to RS-485 and a 9-30 VDC power screw terminal for field wiring, and ACDIN2001-01 adds an optional 35 mm DIN-rail mount to the metal enclosure, which otherwise wall mounts with integrated tabs.
Configure & order
Find your SecureBox SDS1101 part number
Every orderable SecureBox SDS1101 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
SD1101002-11
$416.88
Ships on backorder
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the SecureBox SDS1101, organized by what it does — cables & adapters, other add-ons— each with why you'd add it.
Cables & adapters
2 items
cable
ACC-500-163-R
6 ft DB25M to DB9F serial cable for compatible Lantronix device server products.
$21.72
Ships on backorder
power input screw terminal adapter
ACC-500-171-R
DB25M to RS-485 screw terminal adapter with 9-30 VDC power input. It is listed as a compatible accessory for select Lantronix device servers.
$96.63
2 in stock
Other add-ons
1 item

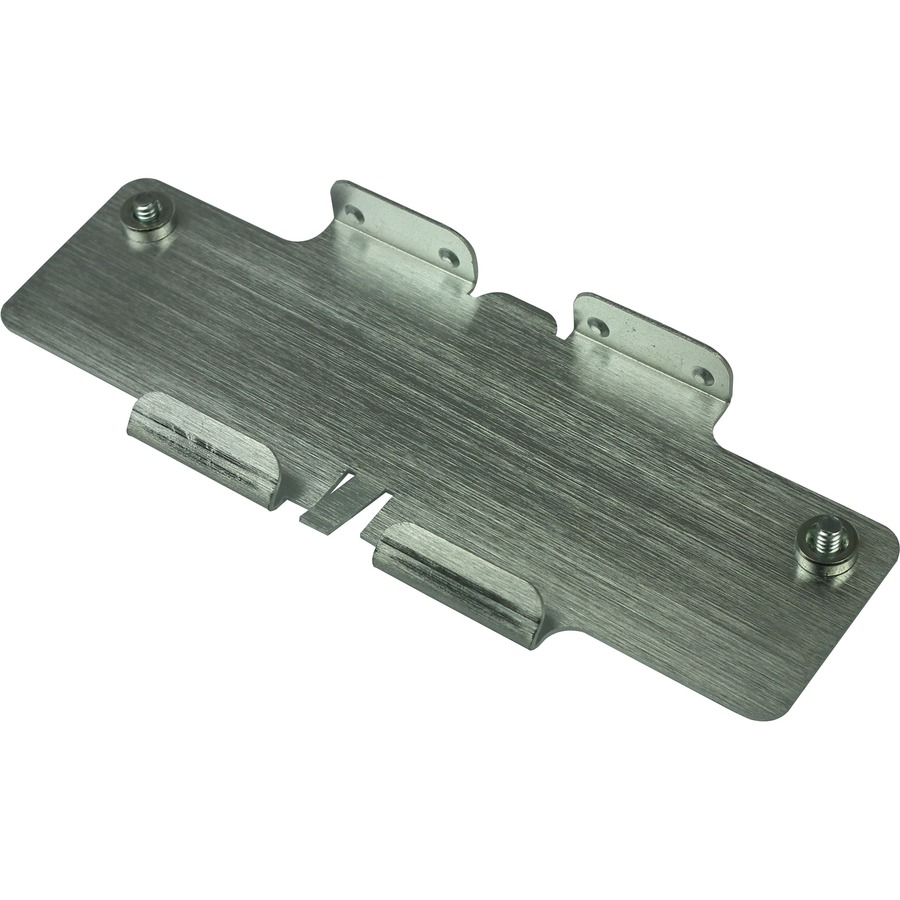

Optional DIN-rail mount
ACDIN2001-01
Optional DIN-rail mount kit for compatible Lantronix device servers, including UDS200, SDS2100, and WiBox references in the part description.
$25.05
Ships on backorder
Compatibility taken from the Lantronix part-number tables for the SecureBox SDS1101. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the SecureBox SDS1101 is used
- Encrypted remote access to serial medical and lab equipment
- Secure serial links for government and financial systems
- Replacing dial-up modems with encrypted network connections
- Windows COM port applications reaching remote serial devices
SecureBox SDS1101 datasheets & documentation
SecureBox SDS1101 FAQ
What encryption does the SecureBox SDS1101 use?
It uses a NIST-certified implementation of 128 to 256 bit AES (Rijndael) as specified by FIPS-197. Encryption is transparent to the attached device and software, so nothing has to change on the serial equipment.
Does the SDS1101 support RS-485?
Yes. The DB25F DCE serial port is software-selectable for RS-232, RS-422 or RS-485 in 2-wire and 4-wire modes. The ACC-500-171-R adapter breaks the port out to an RS-485 and 9-30 VDC power screw terminal.
Can the SecureBox replace a dial-up modem?
Yes. In modem emulation mode the unit accepts modem AT commands on the serial port and establishes a secure network connection to the end device, removing the need for dedicated modems and phone lines.
How do Windows applications reach a SecureBox?
Lantronix Secure Com Port Redirector creates encrypted virtual COM ports on a Windows PC, so COM port-based applications communicate with the remote SecureBox over the network or Internet as if the device were attached locally.
What power and temperature range does the SDS1101 support?
It accepts 9-30 VDC or 9-24 VAC on the barrel connector, or 9-30 VDC on the DB25F port, using 1.5 W maximum. It operates from 5°C to 50°C in an IP30 metal enclosure.
