Lantronix SFMFF1314-220 Gigabit Multimode to Single-Mode Converter
The SFMFF1314-220 is a stand-alone fiber-to-fiber mode converter that turns a 1000Base-SX multimode port into a 1000Base-LX single-mode link, extending Gigabit Ethernet or Fiber Channel from hundreds of meters to 10 km.
Overview
About the Lantronix SFMFF1314-220
Multimode Gigabit optics run out of reach at a few hundred meters, which strands switches whose ports are all 1000Base-SX when a link must cross a campus. The SFMFF1314-220 solves that on a port-by-port basis: it takes an 850 nm multimode SX signal on one SC port and retransmits it at 1310 nm on single-mode fiber from a second SC port. Used individually or in pairs, it functions as a mode converter for Gigabit Ethernet or Fiber Channel without replacing switch hardware.
On the multimode side, reach is 220 m on 62.5/125 μm fiber or 550 m on 50/125 μm fiber. The single-mode side reaches 10 km. Each side has a 7.0 dB link budget, with single-mode transmit power of -13.0 to -3.0 dBm and receive sensitivity of -20.0 dBm. The converter is protocol transparent at 1000 Mbps and supports auto-negotiation on its 1000Base-X ports, Link Pass Through, pause and automatic link restoration.

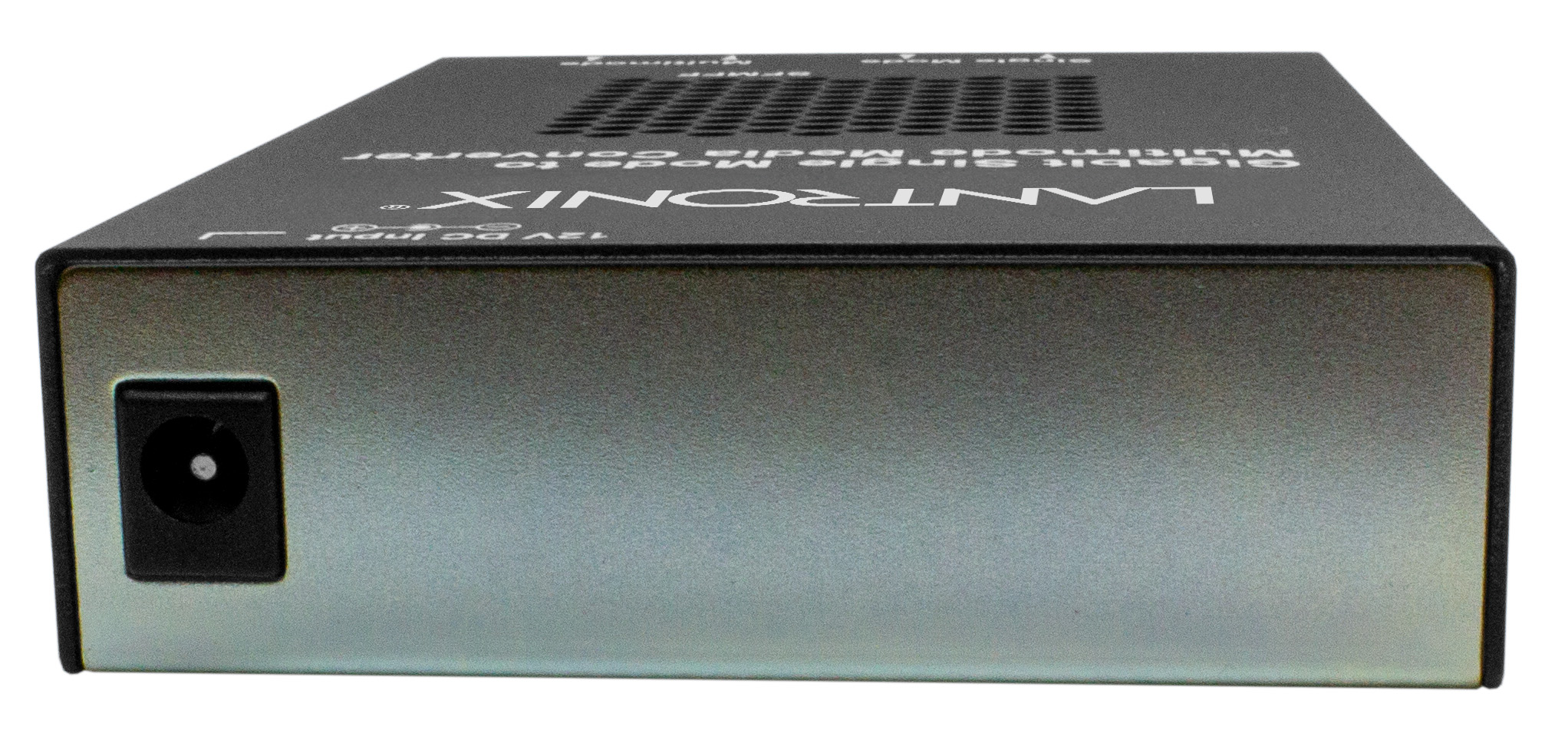

The SFMFF1314-220 (sometimes searched as SFMFF1314) runs from an external 12 VDC, 0.5 A supply and operates from 0°C to 50°C at 5% to 90% non-condensing humidity. Power, single-mode link (LKS) and multimode link (LKM) LEDs show status at a glance. Lantronix lists support for IEEE 802.3, ATM, OC-3, STM-1, HSTR and FDDI standards, and the 3.25-inch-wide housing shares mounting hardware with other Lantronix stand-alone converters.
Key capabilities
- SX to LX conversion
- Converts a 1000Base-SX multimode port to 1000Base-LX single-mode, letting existing SX switch ports reach 10 km without new line cards.
- Gigabit or Fiber Channel
- The converter handles 1000Base-SX Gigabit Ethernet or 1000Base Fiber Channel signals, and is protocol transparent at 1000 Mbps.
- Both multimode fiber types
- The multimode port supports 220 m on 62.5/125 μm fiber and 550 m on 50/125 μm fiber, covering legacy and newer multimode plant.
- Link Pass Through
- Link Pass Through and automatic link restoration propagate a fiber failure to attached equipment and recover the link when the fault clears.
- Compact stand-alone housing
- The 3.25 x 4.7 x 1 inch unit mounts with WMBD-F DIN-rail or WMBV brackets, or in RMS19-SA4-02 and E-MCR-05 rack shelves.
How to choose the right SFMFF1314-220 part number
SFMFF1314-220 is a single model with fixed optics: an 850 nm 1000Base-SX multimode SC port (220 m on 62.5/125 μm, 550 m on 50/125 μm) and a 1310 nm 1000Base-LX single-mode SC port to 10 km, each with a 7.0 dB link budget. Choose it when one end is a multimode SX port and the run needs single-mode distance. Add an SPS-2460-SA or SPS-2460-PS power supply if needed, and a WMBD-F, WMBV, RMS19-SA4-02 or E-MCR-05 for mounting.
Configure & order
Find your SFMFF1314-220 part number
Every orderable SFMFF1314-220 configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
SFMFF1314-220
Complete the deployment
Accessories, renewals & add-ons
Everything sold for the SFMFF1314-220, organized by what it does — power, mounting & enclosures, chassis & shelves— each with why you'd add it.
Power
2 items
SPS-2460-PS
SPS-2460-PS
Piggy-back power supply for stand-alone media converters 3.25” wide. It accepts 24 – 60 VDC and 24 – 42 VRMS input and provides 12.25 VDC output at 1.0A.
$233.00
Ships on backorder
SPS-2460-SA
SPS-2460-SA
Stand-alone wide input external power supply for all Lantronix stand-alone media converters and some chassis.
$248.00
Ships on backorder
Mounting & enclosures
2 items
WMBD-F
WMBD-F
3.3” [84 mm] flat DIN rail mount bracket. It fits all stand-alone converters that are 3.25″ [82 mm] wide.
$16.00
Ships on backorder
WMBL
WMBL
4″ [102 mm] wall-mount bracket kit for stand-alone converters size 4.8″ [122 mm] and 6.5″ [165 mm]. It is listed as a compatible accessory for the E-100BTX Series.
$16.00
2 in stock
Chassis & shelves
4 items
WMBD
WMBD
5″ [127 mm] DIN Rail Mount Bracket for all Stand-Alone Converters and 1- or 2-Slot ION Chassis.
$11.00
Ships on backorder
WMBV
WMBV
5″ [127 mm] vertical mount for all Stand-Alone Converters and 1- or 2-slot ION Chassis. It supports wall-mountable installations and is supplied as a bulk package quantity of 1.
$22.00
Ships on backorder
RMS19-SA4-02
RMS19-SA4-02
19-inch, 1U rack-mount shelf for up to 4 stand-alone media converters. It includes 4 converter mounting brackets and 3 slot blanks.
$177.00
3 in stock
E-MCR-05
E-MCR-05
19” rack-mountable 12-slot media converter rack. It supports up to twelve Lantronix stand-alone media converters in a single chassis.
Compatibility taken from the Lantronix part-number tables for the SFMFF1314-220. Don't see what you need? Request a quote — we can source the full Lantronix catalog.
Where the SFMFF1314-220 is used
- Extending 1000Base-SX switch ports across a campus
- Linking multimode building fiber to single-mode backbone
- Fiber Channel storage links over longer single-mode runs
- Port-by-port SX to LX conversion without switch upgrades
SFMFF1314-220 datasheets & documentation
SFMFF1314-220 FAQ
What does the SFMFF1314-220 convert?
It converts 1000Base-SX on 850 nm multimode fiber to 1000Base-LX on 1310 nm single-mode fiber, both with SC connectors. It works with Gigabit Ethernet or 1000Base Fiber Channel and can be used individually or in pairs.
How far can the SFMFF1314-220 reach on multimode and single-mode fiber?
The multimode port reaches 220 m on 62.5/125 μm fiber or 550 m on 50/125 μm fiber. The single-mode port reaches 10 km. Each side has a 7.0 dB link budget.
What power supply does the SFMFF1314-220 need?
It requires an external AC/DC supply providing 12 VDC at 0.5 A. The SPS-2460-SA and SPS-2460-PS are listed as compatible power supplies for Lantronix stand-alone media converters.
What is the operating temperature of the SFMFF1314-220?
The converter operates from 0°C to 50°C at 5% to 90% non-condensing humidity and up to 10,000 feet. It carries FCC Class A and B, CISPR/EN55022 Class A and B and CE marks.
