Lantronix SM24TAT2SA 24-Port Smart Managed Gigabit PoE+ Switch
The SM24TAT2SA is a 19-inch rack-mount smart managed Gigabit switch with 24 IEEE 802.3at PoE+ copper ports and two 100/1000 SFP slots, sized for IP camera and wireless access point networks.
From $858.60
Overview
About the Lantronix SM24TAT2SA
The SM24TAT2SA, the 24-port member of the Lantronix SMTATSA series, is a Layer 2 smart managed switch that powers and connects up to 24 PoE+ devices from one 1.73-inch-high rack unit. Each 10/100/1000Base-T port supports IEEE 802.3at PoE+ and 802.3af PoE, and two 100/1000 dual-speed SFP slots provide fiber uplinks. A built-in Device Management System helps integrators establish and document a baseline deployment, then discover and remotely configure attached powered devices.
The internal 100-240 VAC supply provides a 370 W PoE budget: 30 W on 12 ports simultaneously or 15.4 W on all 24. Switching capacity is 52 Gbps with store-and-forward architecture and an 8k MAC table. Ports have 6 kV surge protection, and the switch operates from 0°C to +50°C. Auto Power Reset restarts unresponsive powered devices, and Always on PoE is supported.
Software features include RADIUS and TACACS+ authentication, DHCP snooping and server, L2/L3/L4 ACLs, IP Source Guard, IGMP and MLD snooping, MVR, 8 QoS queues with ingress policing and egress shaping, MSTP/RSTP, LACP and up to 4k VLANs with QinQ. Management is via web, CLI, Telnet and SNMP v1/v2c/v3.
Key capabilities
- 370 W PoE+ budget
- Delivers 30 W to 12 ports at once or 15.4 W to all 24 ports, covering typical fixed cameras, phones and access points.
- Built-in Device Management System
- DMS discovers attached powered devices and shows them in topology, floor and map views, with traffic monitoring and network diagnostics for troubleshooting.
- Auto Power Reset
- APR detects a powered device that stops responding and power-cycles its port automatically, reducing truck rolls for frozen cameras or access points.
- Wider temperature margin
- Rated for 0°C to +50°C operation with 6 kV surge protection, which suits warm network closets and telecom rooms.
- Multicast-ready for video
- IGMP snooping v1/v2, MLD snooping and MVR keep multicast video streams contained to the ports that requested them.
- Compact single-supply chassis

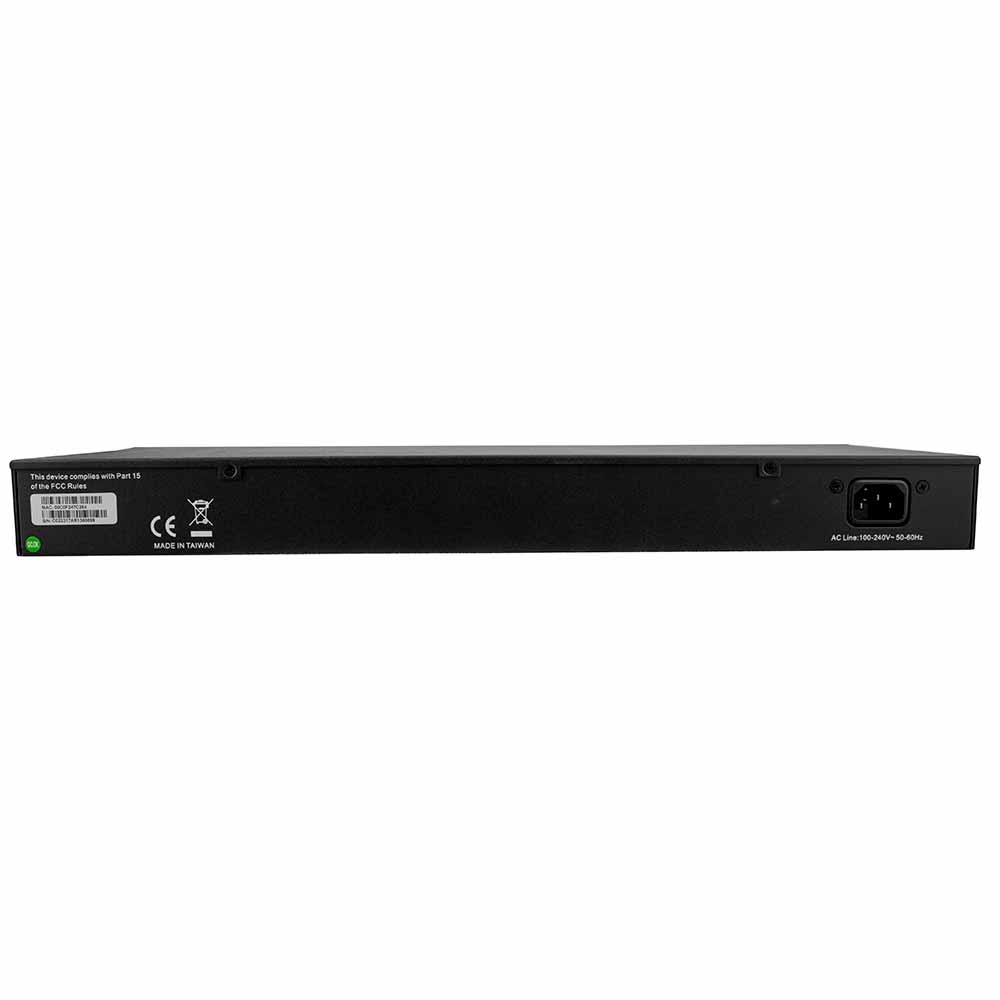

- An internal 100-240 VAC supply and 8.3-inch depth make the 3.0 kg switch a fit for shallow racks and small network closets.
How to choose the right SM24TAT2SA part number
Every SM24TAT2SA part number is the same 24-port PoE+ switch with two SFP slots and 19-inch rack-mount brackets. The suffix only sets the included AC power cord: SM24TAT2SA-NA for North America, -LA for Latin America, -EU for Europe, -UK for the United Kingdom, -SA, -JP for Japan, -OZ for Australia and -BR for Brazil. Order the suffix that matches the outlet type at the installation site.
Configure & order
Find your SM24TAT2SA part number
Every orderable SM24TAT2SA configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
SM24TAT2SA-NA
$858.60
40 in stock
SM24TAT2SA-LA
$858.60
Ships on backorder
SM24TAT2SA-EU
$858.60
Ships on backorder
SM24TAT2SA-UK
$858.60
Ships on backorder
SM24TAT2SA-SA
$858.60
Ships on backorder
SM24TAT2SA-JP
$858.60
Ships on backorder
SM24TAT2SA-OZ
$858.60
Ships on backorder
SM24TAT2SA-BR
$858.60
Ships on backorder
Where the SM24TAT2SA is used
- IP surveillance networks with up to 24 PoE+ cameras
- Wireless access point and VoIP phone closets
- Smart building and energy management device networks
- Fiber-uplinked edge switching in multi-floor buildings
SM24TAT2SA datasheets & documentation
- Product BriefPDF
- SMTATSA Series Product Brief (A4)PDF
- Unified API User Guide Rev B (PDF 797.16 KB)PDF
- Auto Power Reset Overview (PDF 266.77 KB)PDF
- Device Management System Feature Overview (PDF 215.04 KB)PDF
- Milestone Integration Partnership Overview (PDF 478.44 KB)PDF
- SMTATSA Series Install Guide Rev RPDF
SM24TAT2SA FAQ
What is the PoE budget of the SM24TAT2SA?
The SM24TAT2SA has a maximum PoE budget of 370 W. That supports 30 W PoE+ on 12 ports simultaneously or 15.4 W PoE on all 24 ports simultaneously. Full-load power consumption with PoE is 438 W.
Is the SM24TAT2SA a Layer 2 or Layer 3 switch?
It is a Layer 2 smart managed switch. It supports L2/L3/L4 ACLs, VLANs with QinQ, LACP, spanning tree, IGMP and MLD snooping, and DHCP relay, snooping and server functions, managed through web, CLI, Telnet or SNMP.
What SFP modules work in the SM24TAT2SA uplink slots?
The two SFP slots are 100/1000 dual-speed, so they accept 100Base-X and 1000Base-X SFP transceivers for fiber uplinks to the core or to remote buildings.
What is the difference between the SM24TAT2SA and SM24TBT2DPB?
The SM24TAT2SA is a PoE+ (802.3at) switch with a fixed internal supply and a 370 W budget. The SM24TBT2DPB supports PoE++ (802.3bt) at up to 90 W per port with hot-swappable modular power supplies.
What is the operating temperature of the SM24TAT2SA?
The switch operates from 0°C to +50°C at 10% to 90% non-condensing humidity. It is certified FCC Class A, CE and NOM, with IEC62368/EN62368 safety and a UL listing.
