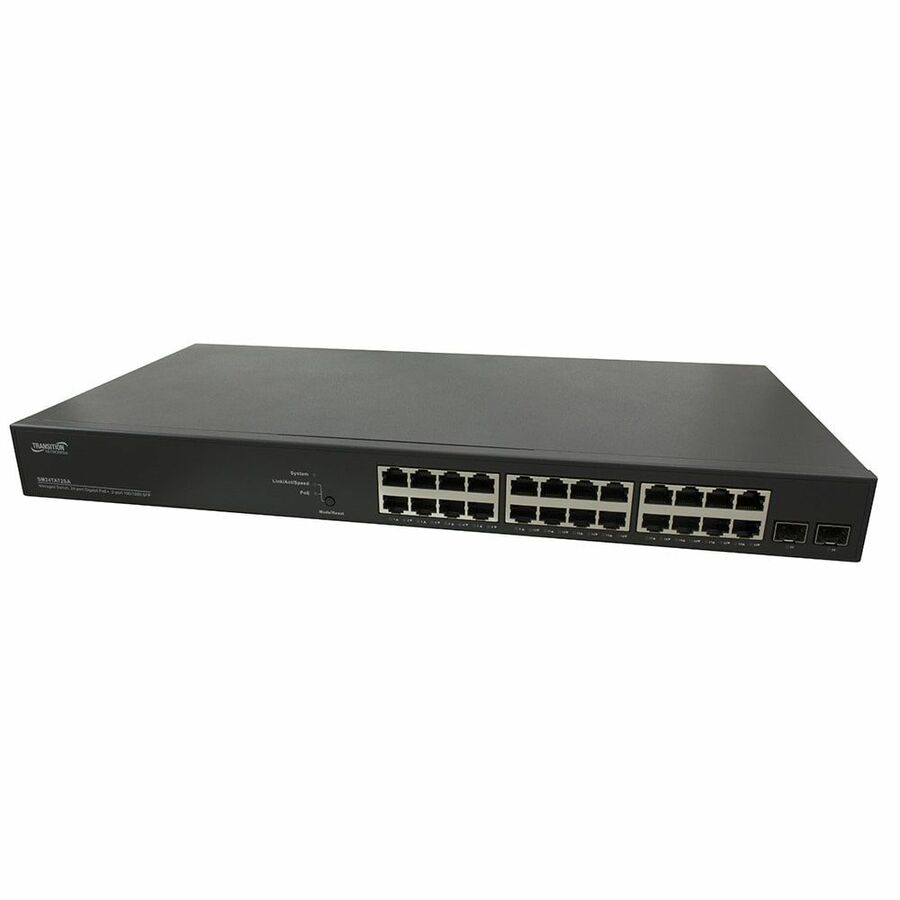

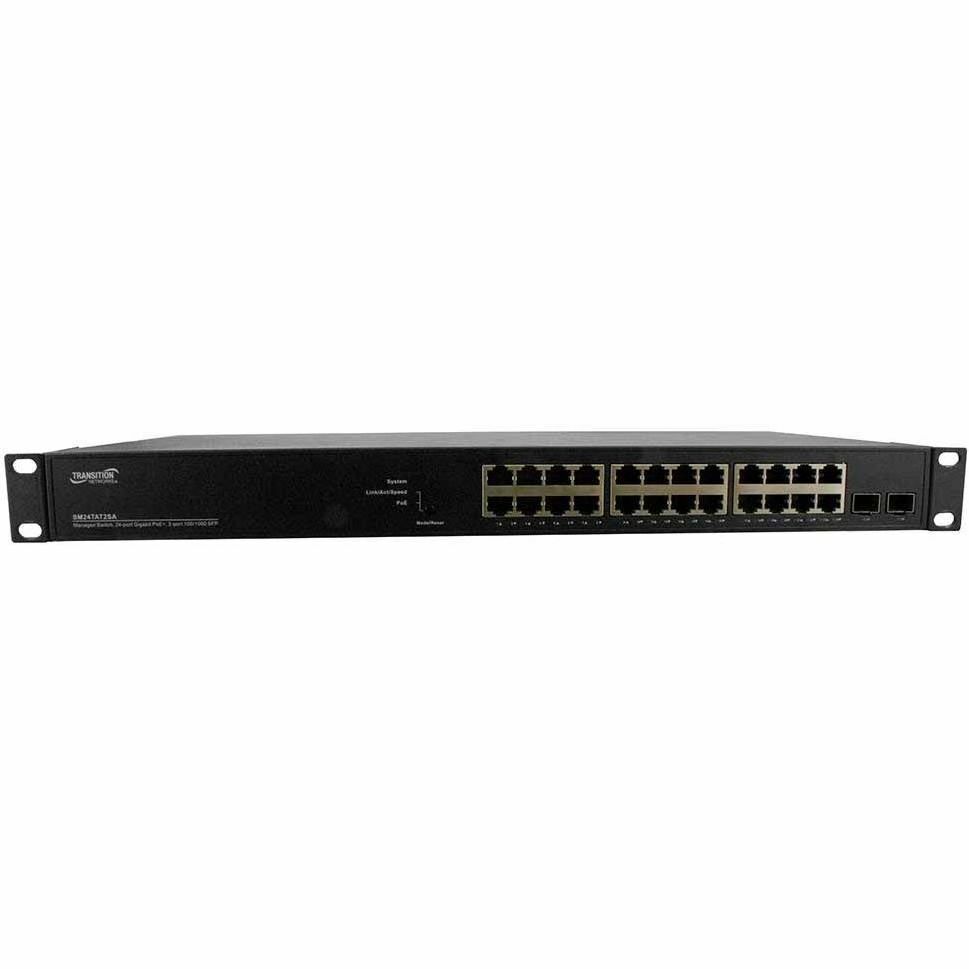

Lantronix SM24TAT2SA-JP — Smart Managed Gigabit PoE+ Switch
$858.60
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Free 2-3 Day Shipping within the United StatesShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 24 10/100/1000Base-T copper ports with IEEE 802.3at PoE+ capability
- 2 100/1000Base-X SFP slots for fiber connectivity
- 370 Watts max PoE budget with 30 Watts for (12) ports simultaneously or 15.4 Watts for (24) ports simultaneously
- 52Gbps switching capacity for Gigabit Ethernet switching
- Device Management System with Topology view, Floor view, Map view and Traffic Monitoring
- Management through Web Management, SNMP V1/V2c/V3, Telnet and CLI
- Japan configuration with 19” rack mount brackets and Japan power cord
The Lantronix SM24TAT2SA-JP is a smart managed Gigabit Ethernet PoE+ switch for the SM24TAT2SA Series. It provides (24) 10/100/1000Base-T copper ports with IEEE 802.3at PoE+ capability and (2) 100/1000Base-X SFP slots. The switch delivers 52Gbps switching capacity and a max PoE budget of 370 Watts. It supports 30 Watts for (12) ports simultaneously or 15.4 Watts for (24) ports simultaneously. The embedded Device Management System supports IP surveillance, Wireless Access Point and other applications. It helps security integrators and network administrators establish and document a baseline deployment, automatically discover attached IP-powered devices (PDs), and remotely configure them. SM24TAT2SA-JP includes 19” rack mount brackets and a Japan power cord.
Ideal For
- IP surveillance networks that need PoE+ Gigabit Ethernet switching
- Wireless Access Point applications using PoE-powered devices
- Baseline deployment documentation with automatic discovery of attached IP-powered devices (PDs)
- Rack-mounted smart managed switching with 100/1000 SFP slots
Specifications
| Safety | IEC62368/EN62368, UL listed |
| Weight | 6.6 lbs. [3.0 kg] |
| Humidity | 10% to 90% (non-condensing) |
| Warranty | 5 Years |
| Backplane | 52 Gbps |
| Protocols | CSMA/CD |
| SFP+ Slots | (2) 100/1000 SFP slots |
| Standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab; IEEE 802.3x; IEEE 802.3ad; IEEE 802.1D; IEEE 802.1w; IEEE 802.1s; IEEE 802.1Q; IEEE 802.1p; IEEE 802.1ad; IEEE 802.1AB; IEEE 802.3af; IEEE 802.3at; IEEE 802.3az |
| Dimensions | 17.4” [442 mm] x 8.3” [211 mm] x 1.73” [44 mm] |
| Management | Web Management, SNMP V1/V2c/V3, Telnet, CLI |
| Technology | Store-and-forward switching architecture |
| Power Input | 100-240VAC |
| RJ-45 Ports | (24) 10/100/1000 RJ-45 ports |
| PoE++ Features | Compliant with IEEE 802.3at PoE+; Compliant with IEEE 802.3af PoE |
| Certifications | FCC Class A, CE, NOM |
| Max PoE++ Budget | 370 Watts |
| Troubleshooting | Network diagnostic, protection mechanism, performance and link management |
| Mac Address Table | 8k MAC address table |
| Power Consumption | 438 Watts (full load with PoE) |
| Graphical Monitoring | Topology view, Floor view, Map view |
| Included Accessories | 19” rack mount brackets and Japan power cord |
| Operating Temperature | 0°C to +50°C |
| PoE++ Power At 12 Ports | 30 Watts for (12) ports simultaneously |
| PoE++ Power At 24 Ports | 15.4 Watts for (24) ports simultaneously |
| Device Management Software | Traffic Monitoring |
Frequently Asked Questions
How many ports does the SM24TAT2SA-JP provide?▾
It provides (24) 10/100/1000Base-T copper ports with IEEE 802.3at PoE+ capability and (2) 100/1000Base-X SFP slots.
What is the PoE budget?▾
The switch has a max PoE budget of 370 Watts. It supports 30 Watts for (12) ports simultaneously or 15.4 Watts for (24) ports simultaneously.
How is the switch managed?▾
Management options include Web Management, SNMP V1/V2c/V3, Telnet and CLI. The embedded Device Management System also provides Topology view, Floor view, Map view and Traffic Monitoring.
What is included with the JP configuration?▾
The SM24TAT2SA-JP includes 19” rack mount brackets and a Japan power cord.
