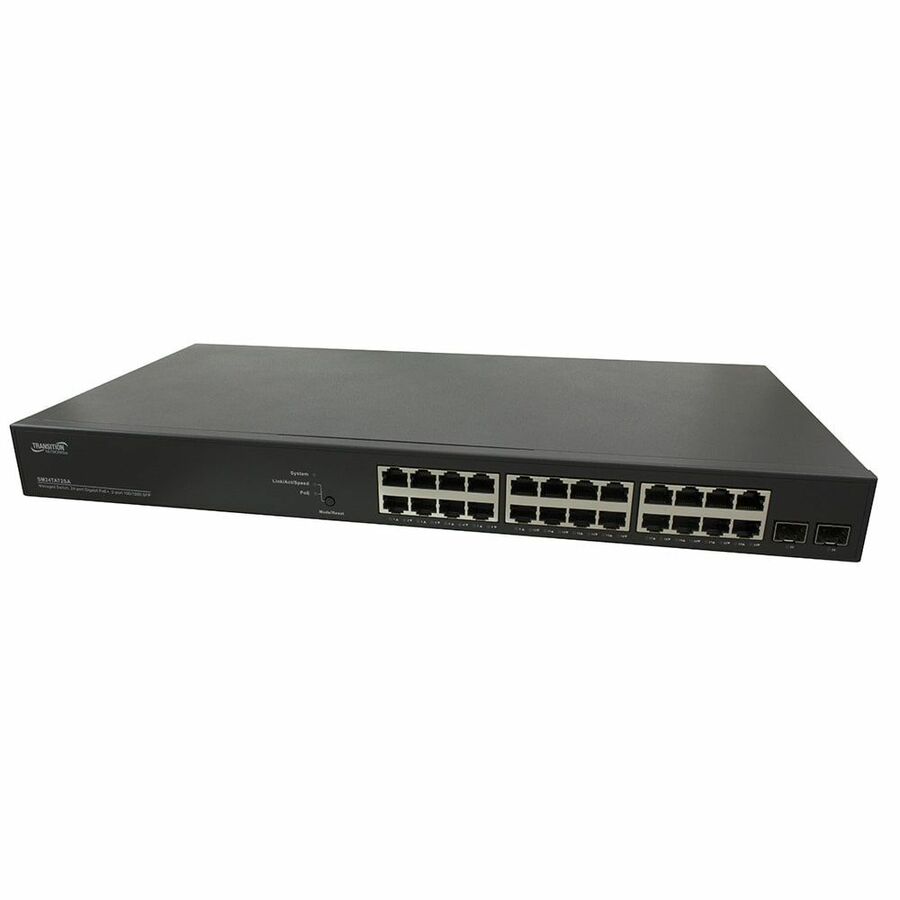

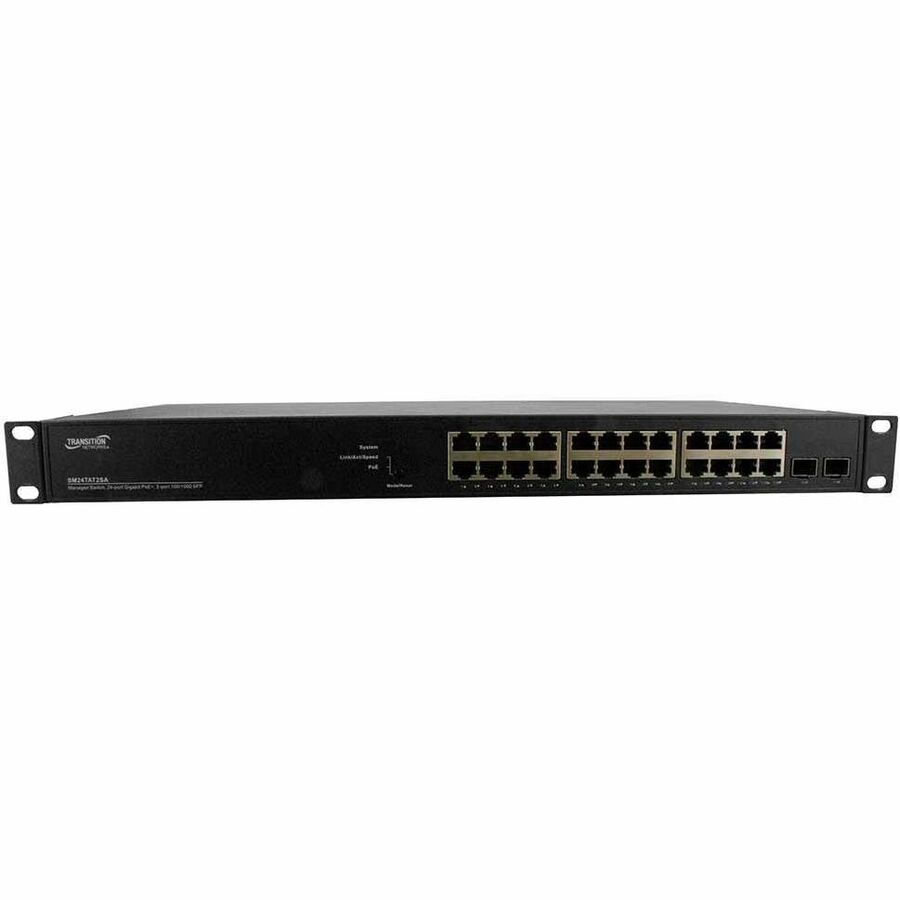

Lantronix SM24TAT2SA-EU — 24-Port Gigabit PoE+ Switch (Europe)
$586.34$858.60
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
&mpn=SM24TAT2SA-EU&price=58634&image=https%3A%2F%2Fcontent.etilize.com%2FMain%2F1073317429.jpg&vendor=Lantronix){kind=link}
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty
Key Features
- 24 10/100/1000Base-T copper ports with IEEE 802.3at PoE+ capability
- 2 100/1000Base-X SFP slots for dual-speed SFP connectivity
- 370 Watts max PoE budget with 30 Watts for (12) ports simultaneously or 15.4 Watts for (24) ports simultaneously
- 52 Gbps switching capacity
- Device Management System with Topology view, Floor view, Map view, Traffic Monitoring and network diagnostic troubleshooting
- Web Management, SNMP V1/V2c/V3, Telnet and CLI management
- 19” rack mount brackets and European power cord included
The Lantronix SM24TAT2SA-EU is a smart managed Gigabit Ethernet PoE+ switch with (24) 10/100/1000Base-T copper ports and (2) additional 100/1000 dual speed SFP slots. It provides 52Gbps switching capacity and a max PoE budget of 370 Watts. The embedded Device Management System supports IP surveillance, Wireless Access Point and other applications. DMS enables security integrators or network administrators to establish and document a baseline deployment, automatically discover and remotely configure attached IP-powered devices (PDs). Management features include Web Management, SNMP V1/V2c/V3, Telnet, CLI, port trunk, multicast, Quality of Service, Spanning Tree, VLAN and firmware update through TFTP and HTTP. This EU SKU includes 19” rack mount brackets and a European power cord.
Ideal For
- IP surveillance deployments using PoE+ ports and Device Management System graphical monitoring
- Wireless Access Point applications using IEEE 802.3at PoE+ capability
- Network administration for automatic discovery and remote configuration of attached IP-powered devices (PDs)
- Rack-mounted Gigabit Ethernet access switching with 100/1000Base-X SFP slots
Specifications
| Safety | IEC62368/EN62368, UL listed |
| Weight | 6.6 lbs. [3.0 kg] |
| Humidity | 10% to 90% (non-condensing) |
| Warranty | 5 Years |
| Backplane | 52 Gbps |
| Protocols | CSMA/CD |
| SFP+ Slots | (2) 100/1000 SFP slots |
| Standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab; IEEE 802.3x; IEEE 802.3ad; IEEE 802.1D; IEEE 802.1w; IEEE 802.1s; IEEE 802.1Q; IEEE 802.1p; IEEE 802.1ad; IEEE 802.1AB; IEEE 802.3af; IEEE 802.3at; IEEE 802.3az |
| Dimensions | 17.4” [442 mm] x 8.3” [211 mm] x 1.73” [44 mm] |
| Management | Web Management, SNMP V1/V2c/V3, Telnet, CLI |
| Technology | Store-and-forward switching architecture |
| Power Input | 100-240VAC |
| RJ-45 Ports | (24) 10/100/1000 RJ-45 ports |
| Certifications | FCC Class A, CE, NOM |
| Max PoE++ Budget | 370 Watts |
| PoE++ At 12 Ports | 30 Watts for (12) ports simultaneously |
| PoE++ At 24 Ports | 15.4 Watts for (24) ports simultaneously |
| Troubleshooting | Network diagnostic, protection mechanism, performance and link management |
| Mac Address Table | 8k MAC address table |
| Power Consumption | 438 Watts (full load with PoE) |
| Graphical Monitoring | Topology view, Floor view, Map view |
| Included Accessories | 19” rack mount brackets and European power cord |
| Operating Temperature | 0°C to +50°C |
| Device Management Software | Traffic Monitoring |
Frequently Asked Questions
How many ports does the SM24TAT2SA-EU provide?▾
It provides (24) 10/100/1000Base-T copper ports with IEEE 802.3at PoE+ capability and (2) 100/1000Base-X SFP slots.
What is the PoE budget?▾
The switch has a max PoE budget of 370 Watts. It supports 30 Watts for (12) ports simultaneously or 15.4 Watts for (24) ports simultaneously.
What management options are supported?▾
Management features include Web Management, SNMP V1/V2c/V3, Telnet and CLI. Device Management System features include Topology view, Floor view, Map view, Traffic Monitoring and troubleshooting.
Does this SKU include rack mount brackets and a European power cord?▾
Yes. The SM24TAT2SA-EU includes 19” rack mount brackets and a European power cord.
