Lantronix SM8TAT2SA Smart Managed Gigabit PoE+ Switch

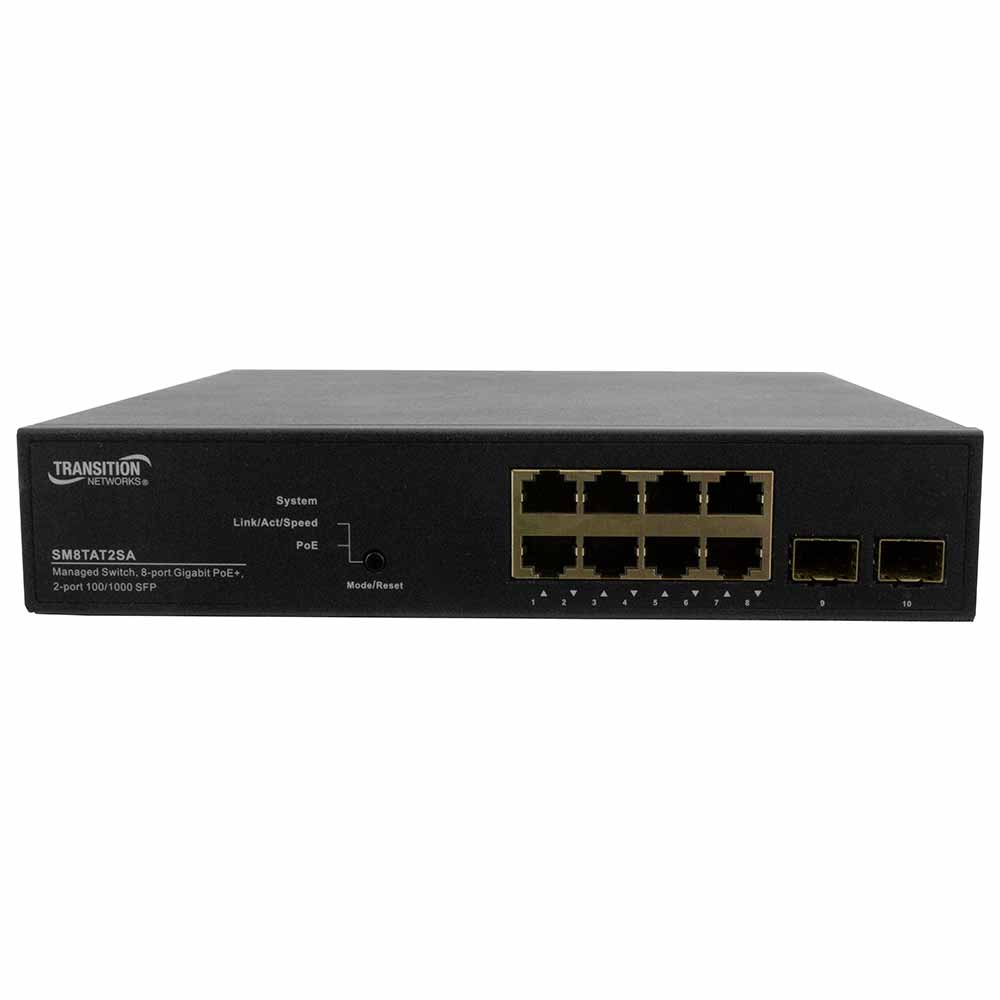

The SM8TAT2SA is a fanless, AC-powered smart managed switch with eight 10/100/1000 PoE+ ports and two 100/1000 SFP slots, built for IP surveillance cameras, wireless access points and other powered devices.
From $435.02
Overview
About the Lantronix SM8TAT2SA
The SM8TAT2SA, part of the Lantronix SMTATSA Series, powers and connects up to eight PoE or PoE+ devices from a single desktop or rack-mounted switch, with two dual-speed SFP slots for fiber uplinks back to the core. Its embedded Device Management System (DMS) is aimed at security integrators: it automatically discovers attached IP cameras and access points, lets you configure them remotely, and documents a baseline deployment with topology, floor and map views.
The 130 W PoE budget delivers 30 W to four ports simultaneously or 15.4 W to all eight. Auto Power Reset reboots an unresponsive powered device, and Always-on PoE is supported for devices that must stay powered. Switching capacity is 20 Gbps with an 8K MAC table and 9K jumbo frames. Layer 2 features include 802.1Q VLANs (up to 4K), QinQ, private VLANs, LACP, MSTP/RSTP, IGMP and MLD snooping and 8 QoS queues, with RADIUS, TACACS+, ACLs, DHCP snooping and IP Source Guard for security.

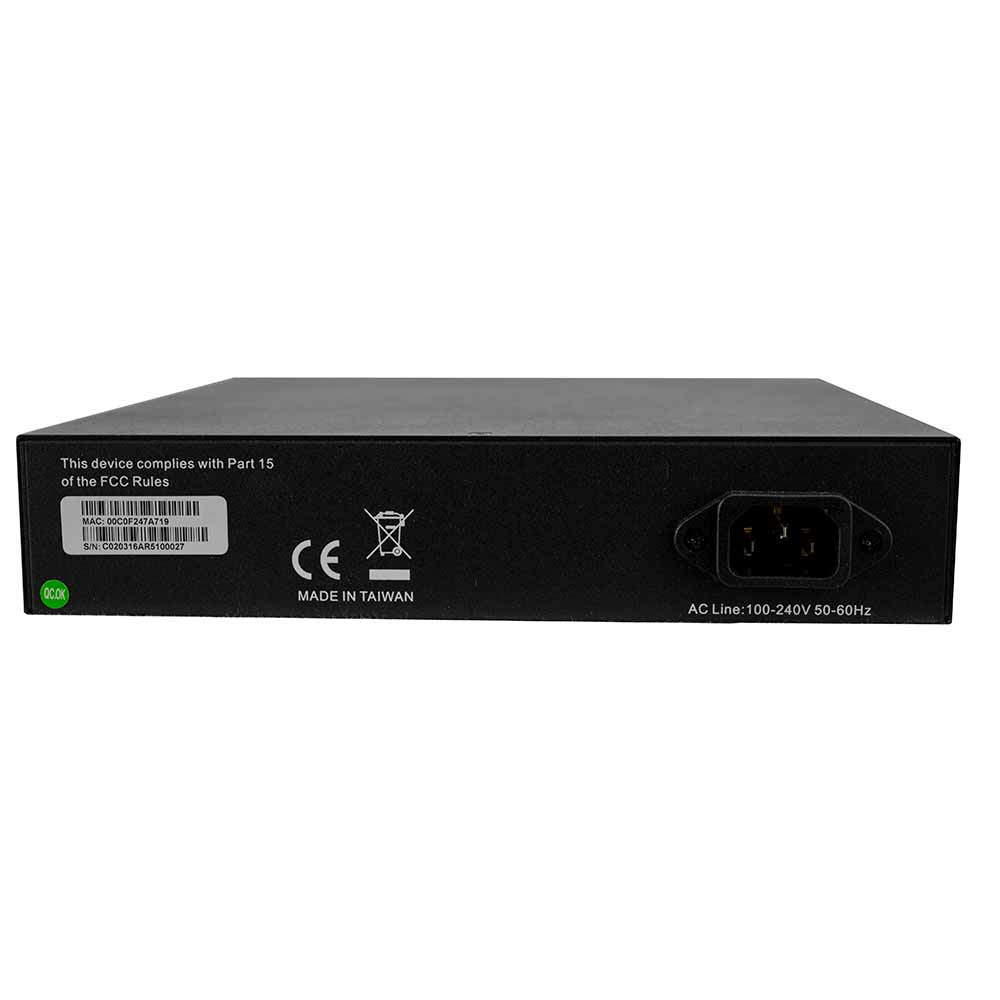

The switch runs from 100-240 VAC with an internal supply, has 6 kV surge protection and operates from 0 °C to 50 °C. It ships with 19-inch rack-mount brackets and a regional power cord. Management is by web, CLI, Telnet and SNMP v1/v2c/v3, and Percepxion can manage it centrally. A version for 52 to 54 VDC power is sold separately as the SM8TAT2SA-DC.
Key capabilities
- 130 W PoE+ budget
- Delivers 30 W to four ports at once or 15.4 W to all eight, enough for a mix of PTZ cameras, fixed cameras and access points.
- Device Management System
- DMS discovers attached powered devices, configures them remotely and shows them in topology, floor and map views for faster commissioning.
- Auto Power Reset
- Detects an unresponsive camera or access point and power-cycles its port automatically, cutting the truck rolls caused by hung devices.
- Dual-speed SFP uplinks
- Two 100/1000 SFP slots accept Fast Ethernet or Gigabit fiber modules for uplinks to distant aggregation switches.
- Fanless, AC-powered
- Internal 100-240 VAC supply, fanless design and 6 kV surge protection suit quiet offices, retail sites and wiring closets.
How to choose the right SM8TAT2SA part number
All SM8TAT2SA part numbers are the same switch with 19-inch rack-mount brackets included; the suffix selects the power cord shipped in the box. SM8TAT2SA-NA includes a North American cord, -EU a European cord, -UK a United Kingdom cord, -JP a Japanese cord, -OZ an Australian cord and -BR a Brazilian cord, while -LA and -SA are listed with South American cords. For DC power plants, choose the separate SM8TAT2SA-DC model instead.
Configure & order
Find your SM8TAT2SA part number
Every orderable SM8TAT2SA configuration, filtered by the specs that actually differ between them. Pick what you need on the left and the matching part numbers appear here.
SM8TAT2SA-NA
$435.02
67 in stock
SM8TAT2SA-LA
$435.02
Ships on backorder
SM8TAT2SA-EU
$435.02
Ships on backorder
SM8TAT2SA-UK
$435.02
Ships on backorder
SM8TAT2SA-SA
$435.02
Ships on backorder
SM8TAT2SA-JP
$435.02
Ships on backorder
SM8TAT2SA-OZ
$435.02
Ships on backorder
SM8TAT2SA-BR
$435.02
Ships on backorder
Where the SM8TAT2SA is used
- PoE+ power and uplink for IP surveillance cameras
- Wireless access point deployments in offices and retail
- Small IP video systems integrated with Milestone VMS
- Fiber-connected edge switching in remote wiring closets
SM8TAT2SA datasheets & documentation
- Product BriefPDF
- SMTATSA Series Product Brief (A4)PDF
- Unified API User Guide Rev B (PDF 797.16 KB)PDF
- Device Management System Feature Overview (PDF 215.04 KB)PDF
- Auto Power Reset Overview (PDF 266.77 KB)PDF
- Milestone Integration Partnership Overview (PDF 478.44 KB)PDF
- SMTATSA Series Install Guide Rev RPDF
SM8TAT2SA FAQ
How much PoE power does the SM8TAT2SA provide?
The total PoE budget is 130 W. That supports 30 W PoE+ on four ports simultaneously or 15.4 W PoE on all eight ports. The switch complies with IEEE 802.3af and 802.3at, and full-load consumption with PoE is 147 W.
What is the difference between the SM8TAT2SA and the SM8TAT2SA-DC?
Both have eight Gigabit PoE+ ports, two 100/1000 SFP slots, a 130 W PoE budget and the same software. The SM8TAT2SA runs from 100-240 VAC, while the SM8TAT2SA-DC takes +52 to +54 VDC or -52 to -54 VDC input.
Is the SM8TAT2SA a managed switch?
Yes. It is a smart managed Layer 2 switch with web, CLI, Telnet and SNMP v1/v2c/v3 management, 802.1Q VLANs, LACP, MSTP, IGMP snooping, ACLs, RADIUS and TACACS+. It can also be managed centrally through Lantronix Percepxion.
What do the SM8TAT2SA suffixes such as -NA and -EU mean?
The suffix identifies the regional power cord included with the switch, for example -NA for North America, -EU for Europe and -UK for the United Kingdom. The switch hardware and the included 19-inch rack-mount brackets are the same across all versions.
What is the operating temperature of the SM8TAT2SA?
It operates from 0 °C to +50 °C at 10% to 90% non-condensing humidity. The fanless design suits indoor environments such as offices, retail sites and telecom closets.
