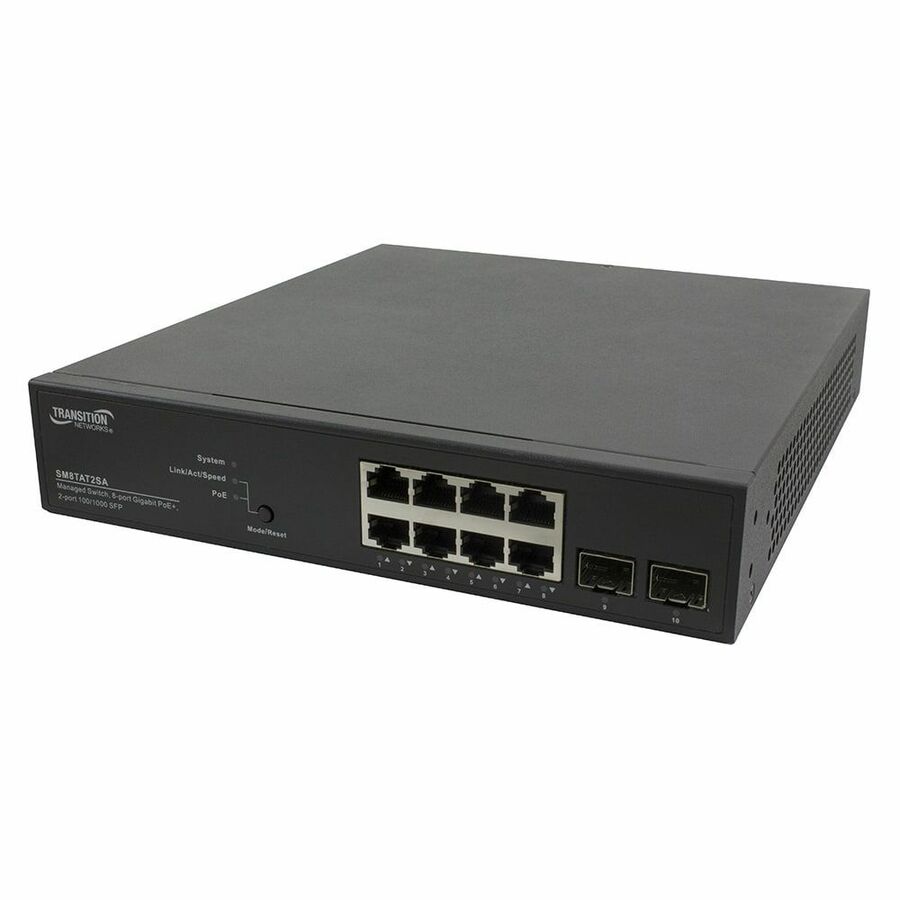

Lantronix SM8TAT2SA-UK — Smart Managed PoE+ Switch
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Key Features
- 8 10/100/1000Base-T ports with IEEE 802.3at PoE+ capability
- 2 100/1000Base-X SFP slots
- 130 Watts max PoE budget
- Device Management System software with Topology view, Floor view and Map view
- Web Management, SNMP V1/V2c/V3, Telnet and CLI management
- Fanless Design
- 19” rack mount brackets and United Kingdom power cord included
Ideal For
- IP surveillance applications
- Wireless Access Point applications
- Baseline deployment documentation
- Remote configuration of attached IP-powered devices
Specifications
| Safety | IEC62368/EN62368, UL Listed |
| Weight | 4.4 lbs. [2.0 kg] |
| Humidity | 10% to 90% (non-condensing) |
| Warranty | 5 Years |
| Backplane | 20 Gbps |
| PoE++ Power | 30 Watts for (4) ports simultaneously; 15.4 Watts for (8) ports simultaneously |
| SFP+ Slots | (2) 100/1000 SFP slots |
| Dimensions | 8.66” [220 mm] x 9.53” [242 mm] x 1.73” [44 mm] |
| Management | Web Management, SNMP V1/V2c/V3, Telnet, CLI |
| PoE++ Budget | Max PoE budget 130 Watts |
| Technology | Store-and-forward switching architecture |
| Power Input | 100-240VAC |
| RJ-45 Ports | (8) 10/100/1000 RJ-45 ports |
| PoE++ Standard | Compliant with IEEE 802.3at PoE+; Compliant with IEEE 802.3af PoE |
| Certifications | FCC Class A, CE, NOM |
| Mac Address Table | 8k MAC address table |
| Power Consumption | 147 Watts (full load with PoE) |
| Included Accessories | 19” rack mount brackets and United Kingdom power cord |
| Operating Temperature | 0°C to +50°C |
Frequently Asked Questions
What ports are on the SM8TAT2SA-UK?▾
It provides (8) 10/100/1000Base-T ports with IEEE 802.3at PoE+ capability and (2) 100/1000Base-X SFP slots.
What is the PoE budget?▾
The max PoE budget is 130 Watts. It supports 30 Watts for (4) ports simultaneously or 15.4 Watts for (8) ports simultaneously.
Does this SKU include a UK power cord?▾
Yes. This SKU includes 19” rack mount brackets and a United Kingdom power cord.
How is the switch managed?▾
Management options include Web Management, SNMP V1/V2c/V3, Telnet and CLI.
