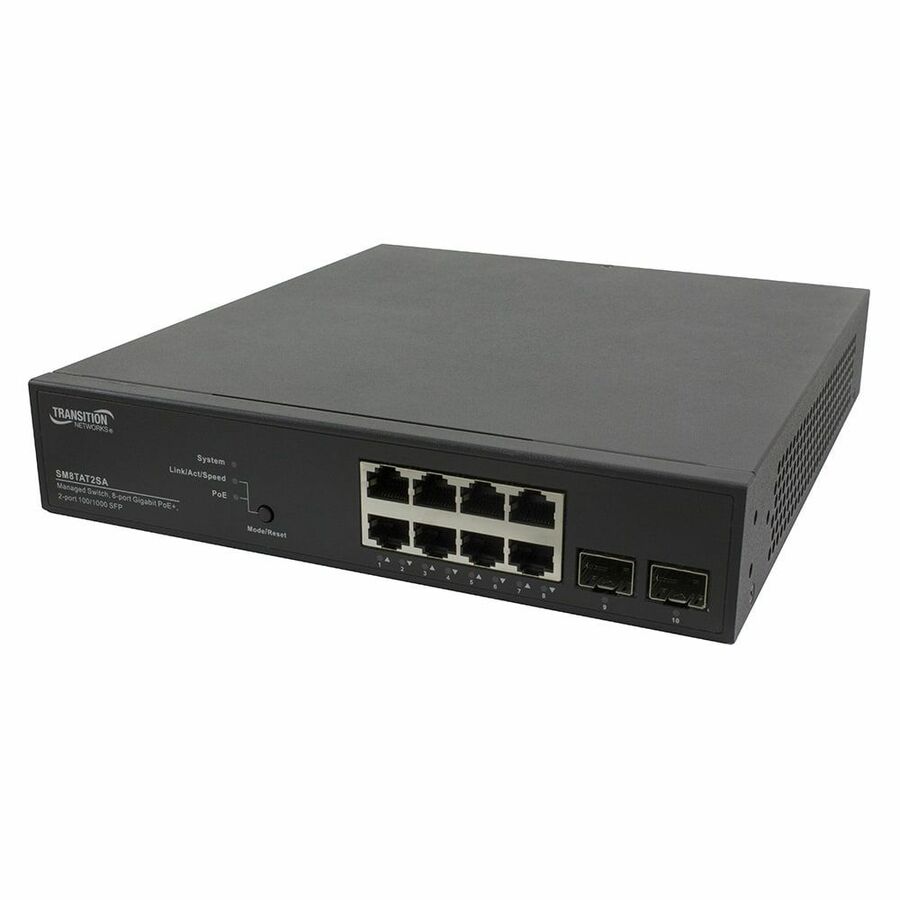

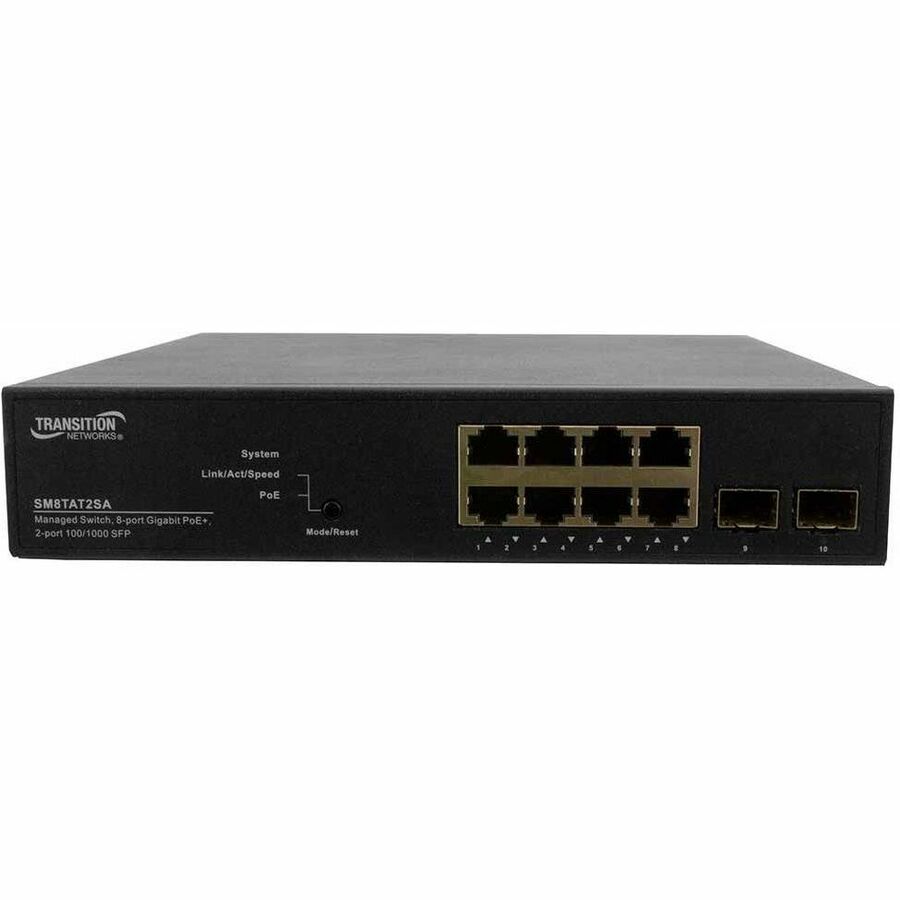

Lantronix SM8TAT2SA smart managed Gigabit Ethernet PoE+ switch with 8 RJ-45 ports and 2 SFP slots

Lantronix SM8TAT2SA-OZ — Smart Managed Gigabit PoE+ Switch

Name: Lantronix SM8TAT2SA-OZ — Smart Managed Gigabit PoE+ Switch
Brand: Lantronix
SKU: SM8TAT2SA-OZ
Price: 301.31 USD
Availability: BackOrder

Lantronix|

MPN: SM8TAT2SA-OZ

UPC: 783384251205

Available on Backorder

$301.31$435.02

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales

Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.

New, with full manufacturer warranty

Key Features

8 10/100/1000Base-T copper ports with IEEE 802.3at PoE+ capability
2 100/1000Base-X SFP slots
130 Watts max PoE budget with 30 Watts for (4) ports simultaneously
20 Gbps switching capacity
Device Management System software with Topology view, Floor view and Map view
Management by Web Management, SNMP V1/V2c/V3, Telnet and CLI
19” rack mount brackets and Australia power cord included

Lantronix SM8TAT2SA-OZ is a smart managed Gigabit Ethernet PoE+ switch with (8) 10/100/1000Base-T copper ports and (2) 100/1000Base-X SFP slots. This SKU includes 19” rack mount brackets and an Australia power cord. The switch provides 20 Gbps switching capacity and a 130 Watts max PoE budget. It is compliant with IEEE 802.3at PoE+ and IEEE 802.3af PoE, with PoE configuration, Auto Power Reset (APR) and Always on PoE. Embedded Device Management System software supports IP surveillance, Wireless Access Point and other applications. It helps security integrators and network administrators establish and document a baseline deployment, automatically discover attached IP-powered devices and remotely configure them.

Ideal For

IP surveillance applications
Wireless Access Point applications
Automatic discovery and remote configuration of attached IP-powered devices
Baseline deployment documentation for security integrators and network administrators

Specifications

DHCP	DHCP Relay, DHCP Snooping, DHCP Server
Depth	9.53” [242 mm]
Width	8.66” [220 mm]
Height	1.73” [44 mm]
Safety	IEC62368/EN62368, UL Listed
Weight	4.4 lbs. [2.0 kg]
Humidity	10% to 90% (non-condensing)
Warranty	5 Years
Backplane	20 Gbps
PoE++ Power	30 Watts for (4) ports simultaneously; 15.4 Watts for (8) ports simultaneously
Protocols	CSMA/CD
SFP+ Slots	(2) 100/1000 SFP slots
Standards	IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab; IEEE 802.3x; IEEE 802.3ad; IEEE 802.1D; IEEE 802.1w; IEEE 802.1s; IEEE 802.1Q; IEEE 802.1p; IEEE 802.1ad; IEEE 802.1AB; IEEE 802.3af; IEEE 802.3at; IEEE 802.3az
Management	Web Management, SNMP V1/V2c/V3, Telnet, CLI
Technology	Store-and-forward switching architecture
Jumbo Frame	Up to 9K bytes
Mac Address	8k MAC address table
Power Input	100-240VAC
RJ-45 Ports	(8) 10/100/1000 RJ-45 ports
Authentication	RADIUS, TACACS+
Certifications	FCC Class A, CE, NOM
Max PoE++ Budget	Max PoE budget 130 Watts
PoE++ Compliance	Compliant with IEEE 802.3at PoE+; Compliant with IEEE 802.3af PoE
Troubleshooting	Network diagnostic, protection mechanism, performance and link management
Surge Protection	6KV
Power Consumption	147 Watts (full load with PoE)
Graphical Monitoring	Topology view, Floor view, Map view
Included Accessories	19” rack mount brackets and Australia power cord
Operating Temperature	0°C to +50°C
Device Management Software	Traffic Monitoring

Documentation

Manufacturer Brochure

User Manual

Product Brief

SMTATSA Series Product Brief (A4)

CERT, RCM sDoC , SM8TAT2SA RCM

CERT, CB , SM8TAT2SA CB

Device Management System Feature Overview (PDF 215.04 KB)

Frequently Asked Questions

How many ports does the SM8TAT2SA-OZ provide?▾

SM8TAT2SA-OZ has (8) 10/100/1000Base-T copper ports and (2) 100/1000Base-X SFP slots.

What is the PoE budget?▾

The switch has a max PoE budget of 130 Watts. It supports 30 Watts for (4) ports simultaneously or 15.4 Watts for (8) ports simultaneously.

What is included with the OZ configuration?▾

This SKU includes 19” rack mount brackets and an Australia power cord.

How can the switch be managed?▾

Management options include Web Management, SNMP V1/V2c/V3, Telnet and CLI. The embedded Device Management System also provides Topology view, Floor view, Map view, Traffic Monitoring and troubleshooting features.
