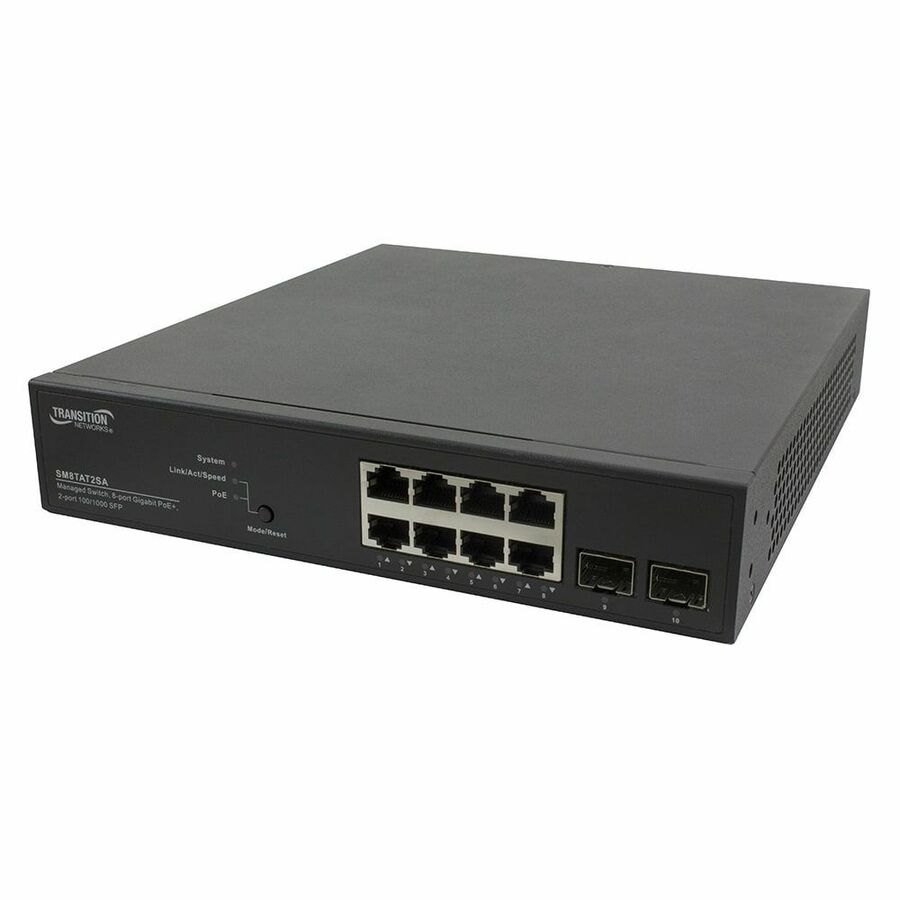

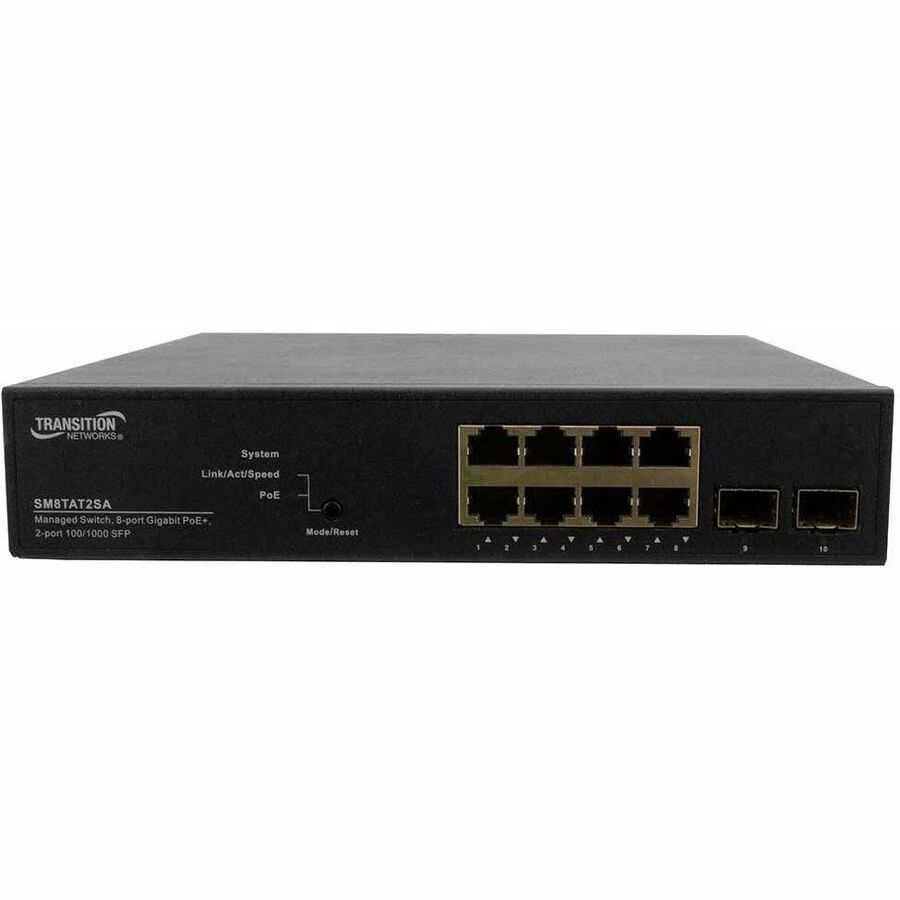

Lantronix SM8TAT2SA-JP smart managed Gigabit Ethernet PoE+ switch with 8 RJ-45 ports and 2 SFP slots

Lantronix SM8TAT2SA-JP — 8-Port Gigabit PoE+ Switch

Lantronix|

MPN: SM8TAT2SA-JP

|

UPC: 783384251182

Available on Backorder
$301.31$435.02

Ships from and sold by A5 IT

Available on backorder — ships as soon as stock arrives

Request for QuoteCall 224-312-2244 for Sales
Free 2-3 Day Shipping — no minimumShips as soon as stock arrives. We'll confirm the lead time before your card is charged.
New, with full manufacturer warranty

Key Features

  • 8 10/100/1000Base-T PoE+ ports provide Gigabit copper connectivity
  • 2 100/1000Base-X SFP slots add dual-speed SFP connectivity
  • 130 Watts max PoE budget supports 30 Watts for (4) ports simultaneously or 15.4 Watts for (8) ports simultaneously
  • 20 Gbps switching capacity with store-and-forward switching architecture
  • Device Management System (DMS) software includes Topology view, Floor view, Map view, Traffic Monitoring and troubleshooting
  • Web Management, SNMP V1/V2c/V3, Telnet and CLI management
  • 19” rack mount brackets and Japan power cord included
Lantronix SM8TAT2SA-JP is a smart managed Gigabit Ethernet PoE+ switch with (8) 10/100/1000Base-T copper ports and (2) 100/1000Base-X SFP slots. It delivers 20Gbps switching capacity and a max PoE budget of 130 Watts. The embedded Device Management System (DMS) software supports IP surveillance, Wireless Access Point and other applications. It helps security integrators and network administrators establish and document a baseline deployment, automatically discover attached IP-powered devices and remotely configure attached PDs. Management features include Web Management, SNMP V1/V2c/V3, Telnet, CLI, port trunking, multicast, Quality of Service, spanning tree, VLAN and firmware update through TFTP and HTTP. This SKU includes 19” rack mount brackets and a Japan power cord.

Ideal For

  • IP surveillance networks
  • Wireless Access Point deployments
  • Managed PoE networks that need automatic discovery and remote configuration of attached PDs
  • Rack installations using the included 19” rack mount brackets and Japan power cord

Specifications

Depth9.53” [242 mm]
Width8.66” [220 mm]
Height1.73” [44 mm]
SafetyIEC62368/EN62368, UL Listed
Weight4.4 lbs. [2.0 kg]
Humidity10% to 90% (non-condensing)
Warranty5 Years
ProtocolsCSMA/CD
SFP+ Slots(2) 100/1000 SFP slots
ManagementWeb Management, SNMP V1/V2c/V3, Telnet, CLI
PoE++ BudgetMax PoE budget 130 Watts
PoE++ Output30 Watts for (4) ports simultaneously; 15.4 Watts for (8) ports simultaneously
TechnologyStore-and-forward switching architecture
Power Input100-240VAC
RJ-45 Ports(8) 10/100/1000 RJ-45 ports
CertificationsFCC Class A, CE, NOM
PoE++ ComplianceCompliant with IEEE 802.3at PoE+; Compliant with IEEE 802.3af PoE
TroubleshootingNetwork diagnostic, protection mechanism, performance and link management
Mac Address Table8k MAC address table
Power Consumption147 Watts (full load with PoE)
Switching Capacity20 Gbps
Graphical MonitoringTopology view, Floor view, Map view
Operating Temperature0°C to +50°C
Device Management SoftwareTraffic Monitoring

Documentation

Manufacturer Brochure

User Manual

Product Brief

SMTATSA Series Product Brief (A4)

CERT, RCM sDoC , SM8TAT2SA RCM

CERT, CB , SM8TAT2SA CB

Device Management System Feature Overview (PDF 215.04 KB)

Frequently Asked Questions

What ports are included on the SM8TAT2SA-JP?▾

It provides (8) 10/100/1000Base-T copper ports with IEEE 802.3at PoE+ capability and (2) 100/1000Base-X SFP slots.

Does this switch support PoE+?▾

Yes. It is compliant with IEEE 802.3at PoE+ and IEEE 802.3af PoE, with a max PoE budget of 130 Watts.

What management options does it support?▾

It supports Web Management, SNMP V1/V2c/V3, Telnet and CLI. Its Device Management System software also includes Topology view, Floor view, Map view, Traffic Monitoring and troubleshooting.

What is included with the JP version?▾

This SKU includes 19” rack mount brackets and a Japan power cord.
